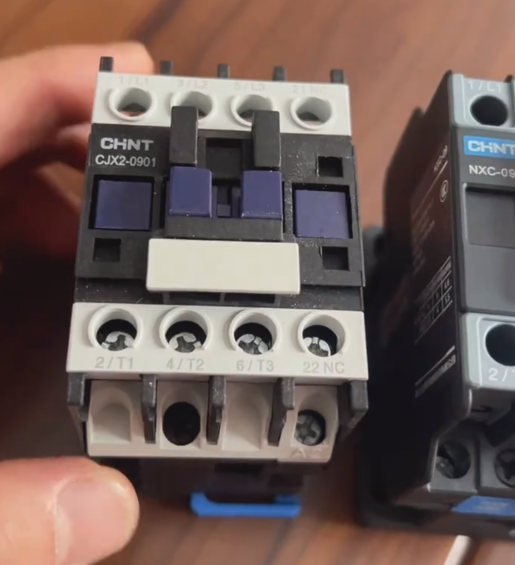

Contacteur CA Chint CJX2-0901

Chint CJX2-0901 is a compact Contacteur CA, mainly used to control the on-off of motors or other loads in industrial and commercial circuits.

1. Paramètres techniques de base
2. Signification du modèle

CJX2: Code de série (CJ stands for AC Contactor, and X2 is the design serial number).

09: Rated operating current of 9A (under AC-3 service category, it can control a 4kW motor at 380V).

01: Auxiliary contact configuration is 1 normalement fermé (Caroline du Nord) contact, with no normally open (NON) contacts.

2. Caractéristiques électriques

Tension de bobine: Supports multiple AC voltages such as 24V, 36V, 48V, 110V, 220V, 240V, and 380V. Selection should be based on actual needs (par ex., CJX2-0901-220V indicates a coil voltage of 220V).

Contacts principaux: 3-pole normally open (3NON), with a rated insulation voltage of 660V and a conventional heating current of 25A.

Contacts auxiliaires: 1 normalement fermé (Caroline du Nord) contact, with a rated current of 10A, which can be used for interlocking of control circuits or signal feedback.

Durée de vie: Mechanical service life of 10 million times, electrical service life of 1 million times under AC-3, et 200,000 times under AC-4 (suitable for high-load switching scenarios).

3. Spécifications physiques

Méthode d'installation: Supports quick installation on 35mm DIN rails and can also be fixed with screws, gain de place et facilité de maintenance.

Dimensions: Approximately 79mm × 44mm × 71mm (length × width × height), with a weight of about 0.32kg.

Wiring Capacity: The main contacts can be connected to 2.5mm² flexible wires or 4mm² rigid wires, and the auxiliary contacts support 1.5mm² wires.

1. Scénarios d'application typiques
2. Contrôle du moteur

Directly starts three-phase asynchronous motors below 380V/4kW or 220V/2.2kW, suitable for equipment such as fans, pompes à eau, and compressors.

Can be combined with thermal overload relays (par ex., NR2, JRS1 series) to form electromagnetic starters, providing overload protection.

2. Automatisation industrielle

Implements sequential control of equipment in production lines, Par exemple, controlling the contactor coil through PLC output signals to drive robotic arms or conveyors.

Used in star-delta reduced-voltage starting circuits, cooperating with time relays to achieve smooth starting.

3. Systèmes électriques

Serves as a remote control component in power distribution systems, realizing the switching-on and switching-off of circuits by controlling the on-off of the coil, thereby improving power supply reliability.

III. Performance Advantages and Expansion Functions

1. Conception de fiabilité

Adopts silver alloy contact material, which has excellent anti-welding and wear-resistant performance, suitable for frequent operation occasions.

The coil has a built-in surge suppressor (external SR2-A series is required), which can reduce electromagnetic interference and protect the control system.

2. Modular Expansion

F4 series auxiliary contact blocks can be installed on the top (par ex., F4-20: 2 contacts normalement ouverts; F4-02: 2 contacts normalement fermés), and the number of auxiliary contacts can be expanded to a maximum of 4 pairs.

Air time delay heads (F5 series) can be installed on the side to achieve 0.1-180 seconds of energization or de-energization delay functions, meeting the needs of complex timing control.

3. Compatibility and Certifications

Compatible with international brands such as Schneider LC1-D09 and Siemens 3TF40, with matching installation dimensions and electrical parameters, facilitating replacement and upgrading.

Has passed certifications such as CCC and CE, complies with GB/T 14048.4 et CEI 60947-4-1 normes, and is suitable for most regions around the world.

1. Selection and Usage Recommendations
2. Points clés de sélection

Select the service category according to the load type: AC-3 is used for normal motor starting, and AC-4 is used for occasions with frequent forward-reverse rotation or braking (derating is required in this case).

The coil voltage must be consistent with the control circuit to avoid coil burnout or incorrect operation of the contactor due to voltage mismatch.

2. Précautions d'installation

The installation environment temperature should be between -5℃ and +40℃, and high-temperature or humid environments should be avoided to prevent impact on service life.

The main circuit and control circuit should be wired separately to reduce signal interference; during wiring, ensure that the contacts are crimped firmly to prevent heating caused by poor contact.

3. Recommandations d'entretien

Regularly clean the oxide layer and dust on the contact surface, check the contact wear condition, and replace the contacts when the wear exceeds 1mm.

Check the coil insulation resistance every 1-2 années, which should be not less than 1MΩ; if overheating or abnormal noise of the coil is found, troubleshoot in a timely manner.

1. Prix ​​du marché et canaux d'achat

Reference Prices

The 220V coil model is priced at approximately 20-35 RMB par unité (WhatsApp: 0086-13811255435).

The unit price of expansion modules (par ex., F4 auxiliary contact blocks) est approximativement 3-10 RMB, and that of air time delay heads is approximately 50-100 RMB.
