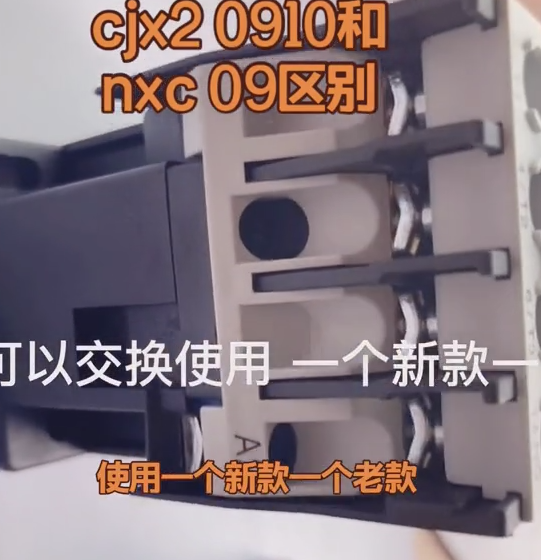

Contacteurs Chint CJX2-0910 et NXC09

As two 9A AC contactors, the core differences between Chint CJX2-0910 and NXC09 are mainly reflected in contact configuration, performance design, and application scenarios. The following is a detailed analysis:

1. Differences in Contact Configuration
2. Number and Type of Auxiliary Contacts

Le suffixe “10” in the model number of CJX2-0910 indicates that its auxiliary contacts are 1 set of normally open (NON) et 0 sets of normally closed (Caroline du Nord), meaning there is only one normally open auxiliary contact. En revanche, the auxiliary contacts of NXC09 are 1 set of normally open + 1 set of normally closed (1NON + 1Caroline du Nord), which directly integrates more complete control signal feedback capability into the contactor itself. This design makes NXC09 more advantageous in scenarios that require simultaneous monitoring of circuit on-off status (such as motor forward-reverse interlock control).

2. Main Contact Structure

Although both have a 3-pole normally open design for the main contacts, the contacts of NXC09 adopt a hook-type structure. Compared with the traditional flat contacts of CJX2-0910, it can generate greater contact pressure at the moment of switching, reducing the risk of arc erosion.

1. Performance and Design Upgrades
2. Electrical and Mechanical Life

As an upgraded product of the CJX2 series, NXC09 has a mechanical life of up to 55 million times and an electrical life of 68 million times, far exceeding the 1 million times electrical life of CJX2-0910 (under AC-3 duty). This is due to the 3D structural motion simulation optimization and new low-resistance contact materials adopted by the NXC series, which significantly improve the anti-welding performance.

2. Arc Extinguishing System Optimization

The arc extinguishing chamber of NXC09 integrates specially designed arc chutes, which can control the arcing distance within 10mm, while the conventional arc extinguishing structure of CJX2-0910 has a longer arcing distance. This improvement not only enhances safety but also reduces the space requirement inside the distribution cabinet.

3. Voltage Compatibility

CJX2-0910 is mainly compatible with standard voltages of 220V and 380V, while NXC09 supports a wide voltage range of 24V to 415V. It can be directly compatible with 24V PLC systems without the need for additional voltage conversion modules, making it particularly suitable for complex control scenarios such as automated production lines.

III. Structural and Installation Characteristics

1. Volume and Layout

NXC09 adopts a streamlined and compact design, with an overall volume reduced by approximately 15% compared to CJX2-0910, making it more suitable for installation in distribution boxes with limited space. Its modular structure also supports direct plug-in of auxiliary contact modules on the top (such as AX-3M), making it more convenient to expand the number of contacts.

2. Méthodes d'installation

CJX2-0910 mainly relies on screw fixing, while NXC09 supports both 35mm rail clamping and screw installation. It not only meets the rapid deployment requirements of DIN standard cabinets but also adapts to traditional distribution box environments.

1. Comparaison des scénarios d'application

1. Recommandations de sélection

Budget-Sensitive Scenarios: With a lower purchase cost (about 30% lower) and mature market verification, CJX2-0910 remains an economical choice for basic industrial control.

Upgrade and Transformation Needs: The direct replacement compatibility of NXC09 (some models are marked as “replaceable with CJX2”) can reduce circuit modifications, making it especially suitable for the intelligent transformation of old equipment.

Future Expandability: If there is a need to connect to the Internet of Things or Industry 4.0 systèmes, the wide voltage support and modular design of NXC09 can better adapt to subsequent functional expansion.

It is recommended to comprehensively evaluate the load characteristics, complexity of control logic, and long-term maintenance costs in specific projects, and give priority to NXC09 for higher reliability and flexibility.
