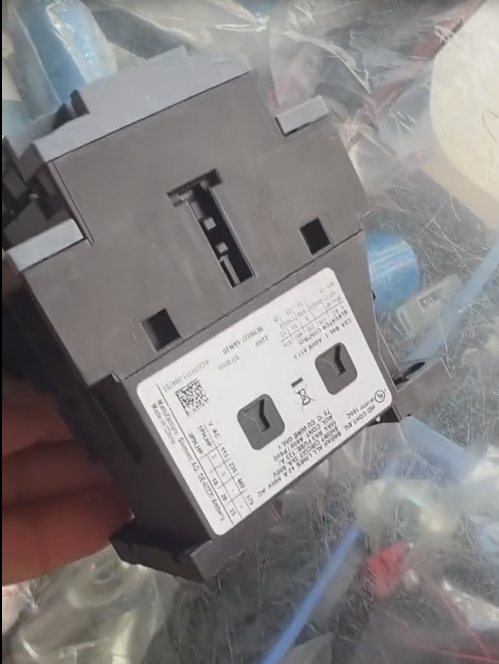

Contacteur CA Siemens 3RT6027-1AN20

Siemens 3RT60271AN20 is an Contacteur CA suitable for the field of industrial automation. It belongs to the Sirius 3RT6 series and is mainly used to control the start, stop and operation of electric motors.

Paramètres techniques de base

Rated Current and Power

Under AC3 duty cycle (motor load), the rated current is 32A at 400V, which can control a 15kW threephase asynchronous motor.

Under AC1 duty cycle (noninductive or slightly inductive load), the maximum current can reach 50A at an ambient temperature of 40°C.

Paramètres de la bobine

The coil voltage is AC 220V with a frequency of 50/60Hz. The power consumption of the control circuit is as low as 2.62W (noload condition), ensuring energyefficient operation.

Configuration des contacts

Main contacts: 3pole normally open (3NON), supporting screw terminal connection and adaptable to 10mm² wires.

Auxiliary contacts: 1 normalement ouvert (NON) + 1 normalement fermé (Caroline du Nord), used for signal feedback or interlocking functions in the control circuit.

Durée de vie mécanique et électrique

Durée de vie mécanique: Jusqu'à 10 millions d'opérations.

Durée de vie électrique: Environ 200,000 operations under AC3 duty cycle, suitable for longterm and frequent operations.

Adaptabilité environnementale

Operating temperature range: 25°C à +60°C

Storage temperature range: 55°C à +80°C

Protection class: IP20 (protection against finger contact), suitable for general industrial environments.

Certifications and Standards

Certification CE: Complies with the requirements of the EU Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

RoHS Compliance: Products manufactured since May 2012 comply with the EU RoHS Directive, ensuring environmental friendliness.

Scénarios d'application

Contrôle du moteur

Widely used for startstop control of equipment such as fans, pumps and compressors, and supports typical circuits like stardelta reducedvoltage starting and forwardreverse control. Par exemple, in building electrical systems, it can be used for the electrical control of elevators and air conditioning units.

Industrial Automation Production Lines

It cooperates with equipment such as PLCs (Contrôleurs logiques programmables) and sensors to realize the logical control of automated production processes and ensure the continuous operation of equipment.

Alternative Solutions

It can replace the earlier Siemens model 3RT1027 and is compatible with thirdparty contactors (par ex., Schneider LC1D32). Cependant, attention should be paid to matching the installation dimensions and contact capacity.

Installation et entretien

Méthode d'installation

Supports 35mm standard DIN rail mounting or screw fixing. It has a size of S0 (width 45mm), which saves space in the control cabinet.

Matching Accessories

Thermal overload relay: Model 3RU61264CB0 (setting current 1722A) is recommended for motor overload protection.

Auxiliary contact module: Can be expanded to 4 contacts auxiliaires (par ex., 3RT7921) to meet complex control requirements.

Recommandations d'entretien

Regularly check the wear condition of contacts, clean dust, and ensure that the terminal blocks are tight. Replace the contacts when their wear exceeds 1/3 of the original thickness.

Market and Price

État de l'approvisionnement

It will remain an active product in 2025. Instock sales are available via WhatsApp: 008613811255435. The unit price is approximately 68135 RMB, which varies depending on the purchase quantity and channel.

AfterSales Service

Siemens provides a 1year warranty. Technical support and maintenance services can be obtained through official channels.

Précautions

Correspondance de tension

Ensure that the coil voltage is consistent with the control circuit to avoid damage caused by incorrect connection.

Derated Operation

When the ambient temperature exceeds 40°C, derated operation is required in accordance with the manual (par ex., the AC3 current is reduced to 27A at 60°C).
