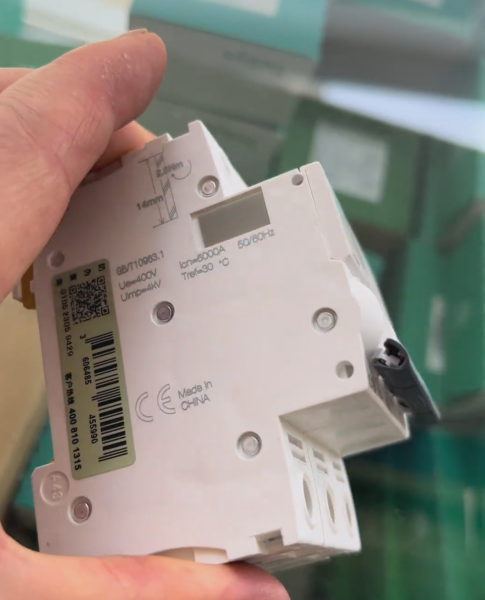

Schneider Electric IC65N-3PC16A

The IC65N-3PC16A from Schneider Electric is a Miniature Circuit Breaker (МКБ) specifically designed for end – из – line power distribution. It is suitable for protecting three – phase circuits against overload and short – circuit damage. Ниже приведен подробный анализ его основных параметров., application scenarios, and key selection points:

1. Model Meaning and Core Parameters

1.1 Model Breakdown

IC65: Represents the Schneider Acti9 series of miniature circuit breakers, with a frame rating current of 63A.

Н: Indicates the breaking capacity class. The N – type has a breaking capacity of 6kA (at 230/400V AC).

3П: Denotes a three – конструкция столба, which is used in three – phase four – wire or three – phase three – wire circuits and can disconnect three phase lines simultaneously.

C16A: Refers to a Type C tripping curve and a rated current of 16A. It is suitable for loads with moderate inrush currents, such as lighting and sockets.

1.2 Key Electrical Parameters

Номинальное напряжение: 230/400В и, supporting a frequency of 50/60Hz.

Характеристики срабатывания:

Защита от перегрузки: Achieved through the thermal effect of a bimetallic strip. It trips in approximately 30 seconds when the current reaches 1.5 раз номинальный ток (24А).

Short – Circuit Protection: The electromagnetic trip unit acts instantaneously when the current is 5 – 10 раз номинальный ток (80 – 160А).

Разрывная способность:

Ику (Ultimate Short – Circuit Breaking Capacity): 6тот (at 400V AC), which meets the short – circuit protection requirements in residential and small – scale commercial scenarios.

Ics (Service Short – Circuit Breaking Capacity): 6тот (100% of Icu), ensuring that the circuit breaker can still be used after a short – circuit occurs.

1.3 Physical Characteristics

Размеры: It has a width of 54mm (6 модули) and is suitable for installation on a 35mm DIN rail, экономия места в распределительной коробке.

Класс защиты: IP20 (for the terminal part), preventing accidental contact with live components.

Service Life: It has a mechanical life of 20,000 operations and an electrical life of 10,000 операции, ensuring high long – term reliability.

2. Application Scenarios and Load Matching

2.1 Typical Application Fields

Распределение электроэнергии в жилых домах: Used for protecting the circuits of high – power electrical appliances such as three – phase air conditioners and electric water heaters.

Коммерческие здания: Applied in the lighting systems of offices and shopping malls, as well as for small three – phase equipment (например, elevator control circuits).

Industrial Scenarios: Suitable for end – из – line power distribution lines of automated production lines and small motors. Однако, it should be noted that the Type C curve may not be suitable for high – inrush current loads (например, directly started motors).

2.2 Load Selection Recommendations

Loads Suitable for Type C Curve:

– Lighting fixtures (incandescent lamps, LED lamps, и т. д.).

– Ordinary sockets (for computers, televisions, small household appliances).

– Resistive loads (electric heaters, water dispensers).

Scenarios to Avoid:

– Motors (the starting current can reach 5 – 10 раз номинальный ток, which may cause false tripping).

– Inductive loads such as welding machines and compressors (a Type D curve is recommended).

3. Installation and Expansion Functions

3.1 Способ установки

Rail Installation: It can be directly fixed on a standard 35mm DIN rail using the snap – fit on the back. It supports both top and bottom wire entry, with a wiring torque of 2.5N·m.

Wiring Capacity: It can accommodate single – core hard wires (1 – 25мм²) or flexible wires (1 – 16мм²). The tunnel – type terminal design ensures a reliable connection.

3.2 Accessory Expansion

Earth Leakage Protection: It can be assembled with a Vigi IC65 earth leakage module (например, Vigi C16A) to provide 30mA residual current protection. It is suitable for humid environments such as bathrooms and kitchens.

Status Monitoring:

OF Auxiliary Contact: Feeds back the on/off status of the circuit breaker through normally open/normally closed signals, and is used for remote monitoring or PLC systems.

SD Alarm Contact: Triggers an alarm when a fault trip occurs, facilitating quick location of the faulty circuit.

Control Functions:

MX Shunt Trip: Controls the circuit breaker to open remotely (например, for fire alarm linkage).

MN Undervoltage Trip: Automatically disconnects the circuit when the voltage is abnormal, protecting sensitive equipment.

4. Сертификация и соответствие

International Certifications: It complies with IEC 60898 – 1 (Circuit Breakers for Household and Similar Purposes) and GB 10963.1 (Chinese Standard). It has obtained CCC and CE certifications, ensuring its applicability in the global market.

Экологическая адаптивность:

– Рабочая температура: – 35°C to + 70°C, suitable for wide – temperature environments.

– Pollution Degree Resistance: Class 3, enabling stable operation in general industrial environments.

5. Key Selection Considerations

5.1 Текущее соответствие

– The rated current (16А) should be greater than the maximum continuous load current of the circuit. It is recommended to calculate based on the load power (например, for three – phase loads: Power = √3 × Voltage × Current × Power Factor).

– Avoid Overload: Например, the maximum resistive load that a 16A circuit breaker can handle is approximately 10.5kW (400V × 16A × 1.5).

5.2 Verification of Breaking Capacity

– Ensure that the prospective short – circuit current at the installation location does not exceed 6kA. If the short – circuit risk is high (например, near a transformer), a type with higher breaking capacity such as H – type (10тот) or L – type (15тот) should be selected.

5.3 Earth Leakage Protection Requirements

– For locations sensitive to personal safety (например, residential bathrooms, outdoor equipment), an earth leakage module (Vigi) should be used together, rather than relying solely on the overload/short – circuit protection of the circuit breaker itself.

6. Price and Market Reference

Цена: A single – полюсный автоматический выключатель (1P C16A) costs approximately 30 – 50 yuan, and a three – pole model (3P C16A) ranges from 80 to 120 yuan. The specific price varies depending on the purchasing channel and quantity.

Cost – Effectiveness Advantage: Compared with competing products, the IC65N series is renowned for its high reliability, modular design, and wide accessory compatibility. It is suitable for projects with high requirements for stability and expandability.

7. Краткое содержание

The Schneider IC65N – 3PC16A is a three – phase circuit breaker with balanced performance. Relying on its 6kA breaking capacity, Кривая отключения типа C, and flexible accessory expansion, it has become an ideal choice for end – из – line power distribution in residential, коммерческий, and light industrial applications. When selecting, a comprehensive evaluation should be conducted based on the load type, short – circuit risk, and functional requirements. Priority should be given to purchasing through formal channels to ensure product quality and after – sales support.
