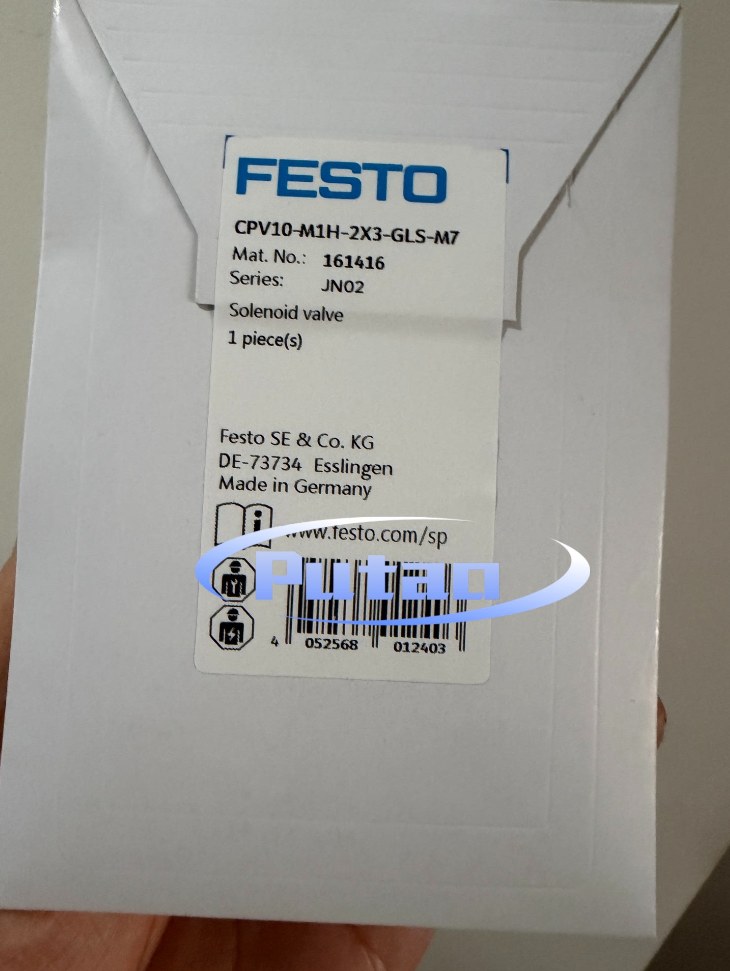

حزب 161416 صمام الملف اللولبي

Basic Model Information

رقم الطلب: 161416

Full Model Code: CPV10-M1H-2X3-GLS-M7

نوع المنتج: CPV10 Series Twin 3/2-way Monostable Single Solenoid Valve (Valve Terminal Specific Valve Slice)

انهيار رمز النموذج

2. Core Pneumatic Parameters
3. Valve Function: 2×3/2 normally closed, monostable (return upon power cut-off)
4. Nominal Orifice: 4 مم
5. Standard Flow C-value: 1.6 l/s·bar, b=0.4
6. ضغط التشغيل: -0.9 ~ 10 حاجِز (vacuum ~ 1 MPa)
7. Pilot Pressure: 3 ~ 8 حاجِز (0.3 ~ 0.8 MPa)
8. Switching Time: 17 ms energized / 25 ms de-energized
9. Port Specification: منافذ العمل 2/4 = M7; الموانئ 1/11/3/5 share integrated manifold channels on valve terminal base
10. Unidirectional flow, positive overlap spool design
11. كهربائي حدود

استهلاك طاقة الملف: 0.46 دبليو (with energy-saving holding current, 100% continuous energization permitted)

الواجهة الكهربائية: Unified power supply via integrated bus / multi-pin base of CPV10 valve terminal

Pulse Withstand Test: 1400 μs positive pulse, 700 μs negative pulse (anti-false triggering)

4. البيئية & Material Specifications

واسطة: Compressed air complying with ISO 8573-1 [7:4:4], long-term operation with or without lubrication

درجة الحرارة المحيطة: -20℃ ~ +80℃

Seals: NBR/HNBR; Valve body: die-cast aluminum, housing: PPS plastic

امتثال: بنفايات, CRC2 medium corrosion resistance, low copper-zinc LABS leaching (suitable for lithium battery & food production lines)

وزن: 70 g per slice

تصاعد: Through-hole locking installation on valve terminal, standalone discrete use prohibited

5. Pneumatic Port Definition

1/11: Common supply air (central air supply via valve terminal base)

2, 4: Two independent outlets with external M7 threads

3/5: Two exhaust ports, centralized manifold exhaust via base

12/14, 82/84: Shared channels for pilot supply / pilot exhaust

6. Distinction of Similar Models in Same Series (مرجع الاختيار)

7. سيناريوهات التطبيق النموذجية
8. Independent dual-circuit control of small cylinders (single slice controls 2 micro cylinders)
9. Micro clamping, air blowing dust removal & vacuum adsorption for 3C electronics and lithium battery equipment
10. Compact valve terminal modules for small material sorting, positioning and air blowing on packaging machinery
11. Compact valve terminals for laboratory and miniature automated test equipment
12. تثبيت & النقاط الرئيسية للصيانة
13. Only compatible with CPV10 10 mm width valve terminal bases; CPV14/CPV18 series cannot be mixed
14. Air supply must be fitted with 5 μm precision filter to prevent spool jamming by dust
15. FKM seals are recommended to replace NBR for long-term vacuum operating conditions (custom version)
16. Damaged single valve slices can be replaced individually without exchanging the entire valve terminal assembly
17. Replacement Instructions

الاستبدال المباشر: No universal interchangeable valve slices available; only 161414/161415 with identical function can be substituted (only port threads differ, matching fittings required)

Upgrade Replacement: New generation CPV10-VI series valve slices, fully compatible mounting dimensions with 20% higher flow rate

Complete Supporting Information for حزب 161416 (CPV10-M1H-2X3-GLS-M7): Matching Bases, الأسلاك & M7 Fittings

1. Valve Electrical Wiring Logic (معيار 24 VDC, 0.46 W Low-Power Coil)

1.1 Valve Slice Coil Definition (2 independent coils per slice)

نموذج 161416 is a twin 3-way valve, مع 2 independent solenoid valves integrated in one slice:

لفائف 1: Controls outlet port 2 (M7)

لفائف 2: Controls outlet port 4 (M7)

الجهد االكهربى: Standard DC24 V, non-polarized coils (no positive/negative differentiation)

استهلاك الطاقة: 0.46 دبليو, built-in energy-saving holding current, يدعم 100% continuous energization under full load

فئة الحماية: IP65, unified power supply via valve terminal base; no separate wiring terminals

1.2 Three Main Wiring Schemes for Valve Terminal Bases

مخطط 1: Multi-pin Direct Connection Base (CPV10-GE-DN Series, Direct PLC Relay Output Connection)

نماذج قابلة للتطبيق: CPV10-GE-DN3-4/8/12 (4/8/12 valve positions, G1/8 air supply port)

واجهة: M12 12-pin male connector, 24 V DC main power supply

Pin Assignment:

1–10: Solenoid valve output signals (2 points per valve; one 161416 slice occupies 2 output points)

11: Common positive 24 الخامس+

12: Common negative 0 V GND

الأسلاك: External KMYZ series cables plug directly into base; no terminal splitting required

مخطط 2: Bus-Type Base (Profinet/DP/DeviceNet/CC-Link, Recommended for Automated Production Lines)

General Base Model: CPV10-GE-DI01-8 (8-position bus interface)

Communication Port: 9-pin Sub-D Profibus DP, IP65 bus plug FBS-SUB-9-GS-DP-B

مزود الطاقة: Independent 24 V power terminals; bus signals separated from power supply

Address Mapping: كل 161416 slice occupies 2 bus output channels; bus program directly maps outputs to ports 2/4

مخطط 3: Compact AS-i Bus Base (Small Standalone Machines, Miniature 3C Equipment)

CPV10-GE-ASI-4, exclusively for CPV10 series, 4 valve positions, ultra-simplified wiring, ideal for equipment with limited I/O points

1.3 Manual Test & حظر الأسلاك

Blue manual override push button on valve slice side: two modes (self-latching / momentary jog), enables commissioning without power supply

Forbidden Operations: Directly feed voltage above 30 V to coils, mix AC and DC power, permanent short-circuit of positive/negative poles

Coil Withstand Voltage: Tolerates 1400 μs short pulses; freewheeling diodes required for long cables to prevent PLC output breakdown

2. Full Compatible CPV10 Valve Terminal Base Models (فقط 10 mm Width Terminals Supported; CPV14/18 Incompatible)

2.1 Standard Multi-pin Bases (Widely Used for Mass-Production Machinery)

2.2 Bus Communication Bases (Mainstream Automation Solutions)

بروفيبوس موانئ دبي: CPV10-GE-DI01-8

Profinet Ethernet: CPV10-GE-PN-8

ديفيس نت: CPV10-GE-DN-8

CC لينك: CPV10-GE-CC-8

2. Mandatory Auxiliary Accessories for Valve Terminals
3. End Cover: CPV10-END (left & right sealing plates to seal air supply channels)
4. Blank Plate: CPV10-BL (seal vacant valve positions to prevent air leakage)
5. Separator Plate: CPV10-SP (separate high/low pressure air supply circuits)
6. Multi-pin Plug-in Cable: KMYZ-7-24-4LED (4 m with LED status indicators)
7. Matching Push-in Fittings for M7 External Threads (الموانئ 2/4 ل 161416 are M7 External Threads)

Straight Fittings (Linear Air Outlet)

1. QSM-M7-4-I Order No.153319: Fits 4 mm OD PU tubing (first choice matching valve nominal orifice)
2. QSM-M7-6-I Order No.132919: Fits 6 mm OD tubing for high-flow air blowing

L-Type Elbow Fittings (Limited Installation Space)

1. QSML-M7-4-I: 4 mm tubing right-angle elbow
2. QSML-M7-6-I Order No.186353: Standard elbow for 6 mm tubing
3. QSMLLV-M7-6-I: Extended L elbow to avoid valve body interference

Extended Right-Angle & Flow Control Fittings (With Speed Regulation)

QSMLR-M7-4: M7 external thread L-type one-way flow control valve for precise cylinder speed adjustment

QSMT-M7-4: T-type tee splitter for driving two micro cylinders from one supply

Installation Torque Specification

Standard tightening torque for M7 threaded fittings: 2.2 ن · م; over-tightening will strip M7 threads on valve body

4. Pneumatic Channel Definition (Integrated Shared Channels on Base; No Separate Tubing Required)
5. 1/11: Main supply air (central G1/8 air supply on base)
6. 2: First M7 output (air outlet when Coil 1 energized)
7. 4: Second M7 output (air outlet when Coil 2 energized)
8. 3/5: Shared exhaust for two circuits (manifold exhaust via base; silencers can be fitted)
9. 12/14, 82/84: Built-in integrated channels for pilot supply / pilot exhaust, no external piping needed
10. Key Installation & إرشادات الاستبدال
11. Valve Slice Assembly & Disassembly: Loosen locking screws on both sides of valve terminal; pull entire slice out for direct replacement without disconnecting base air circuits
12. Air Supply Requirement: Compressed air with 5 μm precision filtration; custom valve slices with FKM seals required for vacuum operation
13. Cross-Series Interchangeability: 161414 (M5 thread) / 161415 (4 mm push-in) / 161416 (M7 thread) only differ in outlet ports; fully interchangeable in base and electrical systems
14. مطابقة التدفق: QSM-M7-4-I is preferred for 4 mm tubing to match native 4 mm valve orifice with zero flow loss

Complete Procurement List for FESTO 161416 (CPV10-M1H-2X3-GLS-M7)

Two schemes provided: مخطط 1 Multi-pin Direct Connection (PLC Relay Output, General Standalone Machines) and Scheme 2 Profinet Bus Type (خطوط الإنتاج الآلي). Both use a standard 8-position valve terminal as example; one 161416 slice occupies 2 output channels.

General Basic Notes

Valve Slice: 161416 (CPV10-M1H-2X3-GLS-M7), twin 3-way with M7 outlets, 24 VDC, 0.46 دبليو;

4 mm PU tubing selected as default; supporting fittings primarily for 4 mm tubing, replaceable with 6 mm fittings for high flow demand.

مخطط 1: 8-Position Multi-Pin Direct Connection Valve Terminal (CPV10-GE-DN3-8, Best Cost Performance)

1. Core Valve Terminal Assembly

2. Electrical Supporting Components (M12 Multi-pin Cable)

3. Air Supply & Exhaust Auxiliary Components (Base Pneumatic Circuits)

4. M7 Outlet Fittings for Valve Slices (Cylinder Actuator End)

Standard Straight Fittings (Direct Cylinder Connection)

153319 QSM-M7-4-I M7 external thread to 4 mm push-in straight fitting (standard preferred)

L Elbows for Confined Spaces

QSML-M7-4-I M7 4 mm right-angle elbow

Speed Control One-Way Flow Control (Mandatory for Cylinders)

GRLZ-M7-4 M7 right-angle exhaust flow control valve for precise speed regulation

Spare Blanking Plugs (Seal Unused Air Circuits)

578405 NPQH-BK-M7-P10 M7 threaded blank plug

5. inimal Complete Terminal Assembly Example (2 جهاز كمبيوتر شخصى 161416, 4 Output Circuits)
6. CPV10-GE-DN3-8 ×1
7. 161416 ×2
8. CPV10-END ×2
9. CPV10-BL ×2 (seal remaining 4 vacant positions)
10. KMYZ-7-24-4LED ×1
11. QS-1/8-6-I ×1
12. UC-M7 ×2, U-1/4-B ×1
13. QSM-M7-4-I ×4 (1 pc for each of 4 outlet circuits)
14. GRLZ-M7-4 ×4 (required if cylinder speed regulation is needed)

مخطط 2: 8-Position Profinet Bus Valve Terminal (CPV10-GE-PN-8, Industry Standard for Production Lines)

1. Valve Terminal Assembly (Interchangeable with Multi-pin Scheme, Only Base Replaced)

2. Bus Electrical Accessories

3. Pneumatic Fittings, Silencers & Flow Control Valves

Fully compatible with Scheme 1; no re-selection required.

Selection Differentiation & Procurement Risk Avoidance

1. Non-interchangeable Bases: Only CPV10 series fits 161416; CPV14/CPV18 differ in width and cannot be mounted
2. Torque Standard: M7 fitting tightening torque limited to 2.2 ن · م; brute force will strip valve body threads
3. Vacuum Operation Upgrade: Standard NBR seals; custom FKM-sealed 161416 required for long-term vacuum service
4. Functionally Interchangeable Valve Slices

161414: M5 outlet thread; 161415: 4 mm push-in; 161416: M7 thread (model covered herein)

5. I/O Point Occupancy per Slice: 1 slice of 161416 = 2 output channels; calculate required slice quantity by dividing total cylinder count by 2 during base procurement

Simplified Order List Template (Directly Copyable for Purchasing)

8-Position Multi-Pin Valve Terminal (4 Cylinders, 2 جهاز كمبيوتر شخصى 161416)

1. CPV10-GE-DN3-8 ×1 piece
2. 161416 ×2 pieces
3. CPV10-END ×2 pieces
4. CPV10-BL ×2 pieces
5. KMYZ-7-24-4LED ×1 piece
6. QS-1/8-6-I ×1 piece
7. UC-M7 ×2 pieces
8. U-1/4-B ×1 piece
9. QSM-M7-4-I ×4 pieces
10. GRLZ-M7-4 ×4 pieces
