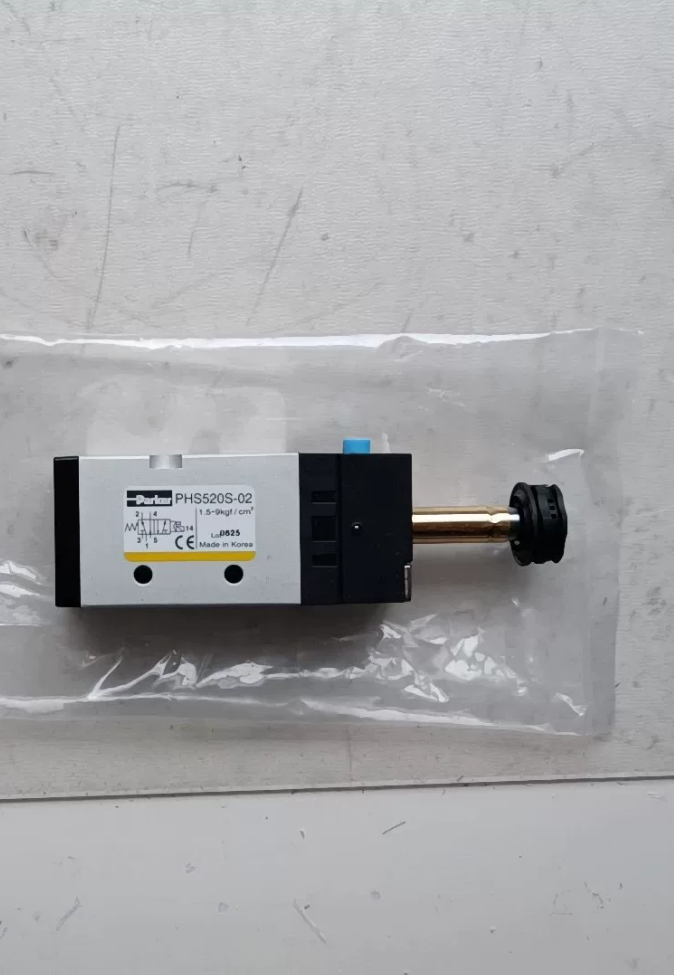

PHS520S-02
PHS520: مسلسل, 5-port pilot-operated pneumatic صمام الملف اللولبي
س: أعزب, Single-solenoid, عودة الربيع (energize for shift; de-energize for spring reset)
-02: PT1/4 (G1/4) خيط, inline threaded mounting, non-manifold base version
Complete ordering example: PHS520S-02-24V-DL
24V: تيار مستمر 24 فولت; 220V: تيار متردد 220 فولت
د: DIN connector; دي إل: DIN connector with LED indicator; no marking = direct wire-out
ل: Lockable manual override; no marking = non-locking manual override
المواصفات الفنية الأساسية
| غرض | مواصفة |
| Valve Function | 5/2-طريق, single‑solenoid spring return, internal pilot |
| Media | الهواء المضغوط (non‑lubricated acceptable) |
| حجم المنفذ | PT1/4 (P‑supply, A/B‑output); Exhaust R1/R2 PT1/8 |
| ضغط التشغيل | 0.15‑0.9 MPa (1.5‑9 bar) |
| Flow Cv | 1.0, Effective area ≈18 mm² |
| وقت الاستجابة | ≤20 ms |
| درجة حرارة التشغيل | +5～+60 ℃ |
| Body Material | Anodized aluminum; Seal: NBR nitrile rubber |
| الجهد لفائف | تيار مستمر 24 فولت, تيار متردد 110 فولت, تيار متردد 220 فولت |
| استهلاك الطاقة | تيار مستمر 24 فولت: 2.6 دبليو; تيار متردد 220 فولت: 3.5 VA |
| Allowable Voltage Variation | ±10% |
| فئة الحماية | IP65 (DIN connector properly fitted) |
| فئة العزل | الفئة ف |
| التجاوز اليدوي | معيار: non‑locking push‑type; Optional L: lockable lever type |
| أقصى تردد التشغيل | 5 cycles/sec |
| رمز النظام المنسق | 8481804090 |
ميزات المنتج
- Internal pilot design, low coil power consumption, suitable for long-duration continuous energization, low risk of coil burnout
- Direct inline threaded mounting; compatible with PHS520-series manifold bases for multi-valve assembly
- PEC5-series coils can be individually removed and replaced, valve body reusable, تكلفة صيانة منخفضة
- Independent exhaust ports, silencers can be fitted for noise reduction
- شهادة CE, widely used for cylinder directional control in packaging machinery, machine tools and automation production lines
Coil Compatibility
Valve body PHS520S-02 is supplied without coil. Order separate Parker PEC5-XXV-D / DL coils:
PEC5-24V-D: تيار مستمر 24 فولت, DIN connector, لا الصمام
PEC5-24V-DL: تيار مستمر 24 فولت, DIN connector with LED indicator
PEC5-220V-DL: تيار متردد 220 فولت, DIN connector with LED
Domestic Equivalent Selection Reference
Match thread size, flow rate and outer mounting dimensions as much as possible
- Airtac: 4V210-08 (PT1/4, 5/2 single-solenoid, comparable flow)
- JELPC: 4V210-08
- إي إم سي: EV520S-02 (highly compatible mounting & port dimensions for PHS520S-02)
ملحوظة: PHS520S-02 is pilot-operated; 4V210-08 is direct-pilot type. Differences exist in power consumption and internal construction. Prior to drop-in replacement, verify cylinder actuation speed and minimum working pressure.
عملية & إرشادات الصيانة
- يجب تصفية إمدادات الهواء; recommend 40 μm filter-regulator unit. Prevent liquid water/oil from entering valve cavity.
- Never energize bare coil; coil must be assembled onto valve body.
- Preferred mounting orientation: coil upward or horizontal.
- التجاوز اليدوي: Standard non-locking: press to test, auto-reset upon release. L-suffix lockable version: rotate to lock spool position.
- استكشاف الأخطاء وإصلاحها: No LED light → check power supply; No shift when energized → verify supply pressure ≥0.15 MPa, inspect pilot orifice for debris blockage.
PHS520 Series Complete Model Coding Table
Full ordering format:
PHS520【Function Code】【Pilot Option】-【Port Code】-【Voltage】-【Wiring】-【Manual Override】
Example complete model: PHS520S-02-24V-DL-L
① Series: PHS520
5-port internal pilot pneumatic solenoid valve, rubber seal, Parker Korea origin
② Valve Body Function Code
| شفرة | وصف الوظيفة |
| س | 5/2-طريق, Single‑solenoid spring return (PHS520S‑02 is this variant) |
| د | 5/2-طريق, Double‑solenoid latching, pulse trigger, no spring return |
| ج | 5/3‑way Center Closed (A/B ports blocked in center position) |
| ه | 5/3‑way Center Exhaust (A/B ports exhausted in center position) |
| ص | 5/3‑way Center Pressure (A/B ports pressurized in center position) |
③ Pilot Option (Optional Suffix)
No marking: طيار داخلي (standard for most models)
X: External pilot, requires separate external pilot air supply, for vacuum / low-pressure applications, على سبيل المثال. PHS520SX-8
④ Port Specification (suffix after hyphen)
| لاحقة | Port Description |
| -02 | Inline threaded, Rc(حزب العمال)1/4; Exhaust Rc1/8; standalone threaded valve body |
| ‑8 | Manifold base mounting, no external threads; mounts onto PHS520‑M multi‑station manifold, internal manifold air channels |
⚠️ PHS520S-02 VS PHS520S-8 Key Comparison
- PHS520S-02: Inline threaded valve: Valve body has threaded ports for direct pipe connection, standalone operation without manifold.
- PHS520S-8: Manifold-mount valve: No external pipe threads, must install on PHS520-M-series manifold base. Designed for multi-valve banks, cannot accept direct pipe fittings.
Spool, flow rating, pressure rating and coils are fully interchangeable between the two variants; PEC5-XXV-D/DL coils cross-fit 100%.
⑤ Coil Voltage
24V: تيار مستمر 24 فولت (الأكثر شيوعا)
110V: تيار متردد 110 فولت
220V: تيار متردد 220 فولت
⑥ Wiring Code
| شفرة | Wiring Form |
| No marking | Direct wire‑out flying leads |
| FL | Direct wire‑out + مؤشر LED |
| د | DIN43650 connector, لا الصمام |
| دي إل | DIN connector, with LED indicator + قمع الطفرة, preferred for industrial field installation |
⑦ Manual Override (Optional trailing suffix-L)
| شفرة | Manual Override Type |
| No marking | Non‑locking push‑to‑test: press for test, auto‑reset; cannot hold spool position |
| ل | Lockable lever override: rotate to mechanically lock spool position for maintenance & اختبار |
Separate-order Coil Models (PEC5 Series)
Valve body supplied without coil; coils must be ordered separately:
PEC5-24V-D: DC24V DIN connector, لا الصمام
PEC5-24V-DL: DC24V DIN connector with LED
PEC5-220V-DL: AC220V DIN connector with LED
Coils 100% interchangeable between PHS520-02 and PHS520-8 bodies.
Manifold Bases (for-8 manifold-mount valves)
PHS520-M N, N = number of stations:
PHS520-M2 (2-station), M3 (3-station) … M15; Blank-off plate: PHS520-BP-1
Common Selection Pitfalls Summary
- Do not confuse-02 inline threaded and-8 manifold-mount versions; -8 bodies cannot accept direct pipe threads.
- Suffix-X = external pilot. Do not select-X for standard cylinder control; external pilot air supply is mandatory, otherwise valve will not shift.
- 5/3-way valves (C/E/P) minimum working pressure 0.2 MPa, higher than 5/2-way valves at 0.15 MPa.
- مستخدم / second-hand valve inspection checklist:
No body cracks; manual override pushes and returns smoothly.
Pneumatic test at 0.4-0.5 MPa supply pressure; verify home position with power off; confirm shift upon energization, spring return upon de-energization.
DC24V coil resistance approx. 950-1100 أوه. Do not judge AC coil health by multimeter resistance; test by applying rated voltage.
Continuous exhaust port leakage indicates worn internal seals.
Frequently-used Complete Ordering Examples
- Stand-alone inline single-solenoid: PHS520S-02-24V-DL
- Manifold-mount single-solenoid with lockable manual override: PHS520S-8-24V-DL-L
- Double-solenoid inline version: PHS520D-02-24V-DL
- External-pilot manifold-mount single-solenoid: PHS520SX-8-24V-DL
Parker PHS520S-02 5/2-Way Single-Solenoid Solenoid Valve (Full Official Specifications)
Valve function: 5/2-طريق, internal pilot, single-solenoid spring return, inline threaded mounting (-02 = PT1/4 thread ports)
Pneumatic Performance
| غرض | قيمة |
| Valve Logic | 5/2-طريق, single‑solenoid spring return |
| يشتغل | طيار داخلي (‑X suffix = external pilot) |
| Media | الهواء المضغوط, non‑lubricated or lubricated service |
| ضغط التشغيل | 0.15～0.9 MPa (1.5‑9 bar) |
| Minimum Pilot Pressure | 0.15 MPa (spring cannot guarantee reliable shift below this threshold) |
| Port Threads | P/A/B ports: حزب العمال(Rc)1/4″; R1/R2 exhaust PT(Rc)1/8″ |
| Flow Coefficient Cv | 1 |
| Effective Flow Area | 18 mm² |
| وقت الاستجابة | ≤20 ms (energize shift; de‑energize spring return) |
| أقصى تردد التشغيل | 10 cycles/sec |
| Exhaust Configuration | Separate independent exhaust ports; silencers may be fitted |
| عمر الخدمة الميكانيكية | ≥20 million cycles |
ميكانيكية & Material Data
| غرض | مواصفة |
| Body Material | Anodized aluminum alloy |
| Seals | NBR nitrile rubber |
| التجاوز اليدوي | معيار: non‑locking push‑type; Optional‑L: lockable lever type |
| وزن (body without coil) | تقريبا. 220 g; complete unit with DIN‑connector coil approx. 310 g |
| تصاعد | Direct threaded inline mounting; also bracket‑mount via screw holes; NOT compatible with‑series‑8 manifolds |
| اهتزاز & مقاومة الصدمات | 5‑200 Hz at 5G; Shock 30G |
| Ambient Operating Temperature | +5～+60 درجة مئوية |
المعلمات الكهربائية (matched with PEC5 coils)
| غرض | تيار مستمر 24 فولت | تيار متردد 110 فولت | تيار متردد 220 فولت |
| استهلاك الطاقة المقدر | 2.6 دبليو | 4.0 VA | 3.5 VA |
| Allowable Voltage Deviation | ±10% | ±10% | ±10% |
| فئة العزل | الفئة ف | الفئة ف | الفئة ف |
| تصنيف الحماية | IP65 (DIN connector fully seated) | IP65 | IP65 |
| Wiring Options | Direct flying‑lead / DIN43650 connector; DL variant includes LED indicator + قمع الطفرة | ||
| DC24V Coil DC Resistance | تقريبا. 950‑1100 Ω | ‑ | ‑ |
⚠️ Valve body PHS520S-02 is supplied without coil. Coil part numbers: PEC5-24V-D / PEC5-24V-DL
Key Dimensional Data (مم)
Overall length (body + لفائف): 112
Body width: 40
Body height (excluding manual override): 42
فتحات التركيب: Φ4.5, hole center-to-center 60 mm
PT1/4 effective thread depth: 8 mm
Full Ordering Examples
PHS520S-02-24V-DL
PHS520S: 5/2-way single-solenoid spring return
-02: Inline PT1/4 threaded ports
24V: DC24V coil
دي إل: DIN connector with LED indicator and surge suppression
PHS520S-02-24V-DL-L: trailing-L = lockable manual override
الملحقات المتوافقة
- Silencer: fits PT1/8 exhaust ports
- Coils: PEC5-series, fully interchangeable between PHS520-02 and PHS520-8
- L-shaped mounting bracket: fastens to bottom of valve body
Fault Diagnosis Reference
- Continuous exhaust leakage: worn spool seals, aged NBR sealing components
- No shift when energized: confirm supply pressure ≥0.15 MPa; inspect pilot orifice for particulate blockage; verify coil receives rated voltage
- No spring-return on de-energization: sticking return spring, insufficient supply pressure
رمز النظام المنسق
8481804090 (Pneumatic solenoid valve)
PHS520S-02 vs PHS520S-8 Main Difference
PHS520S-02: Inline threaded valve, integral PT threads for direct pipe connection
PHS520S-8: Manifold-base valve, no pipe threads; must mount onto PHS520-M manifold base
Spool, flow performance and coils are fully interchangeable; only mounting configuration differs.
