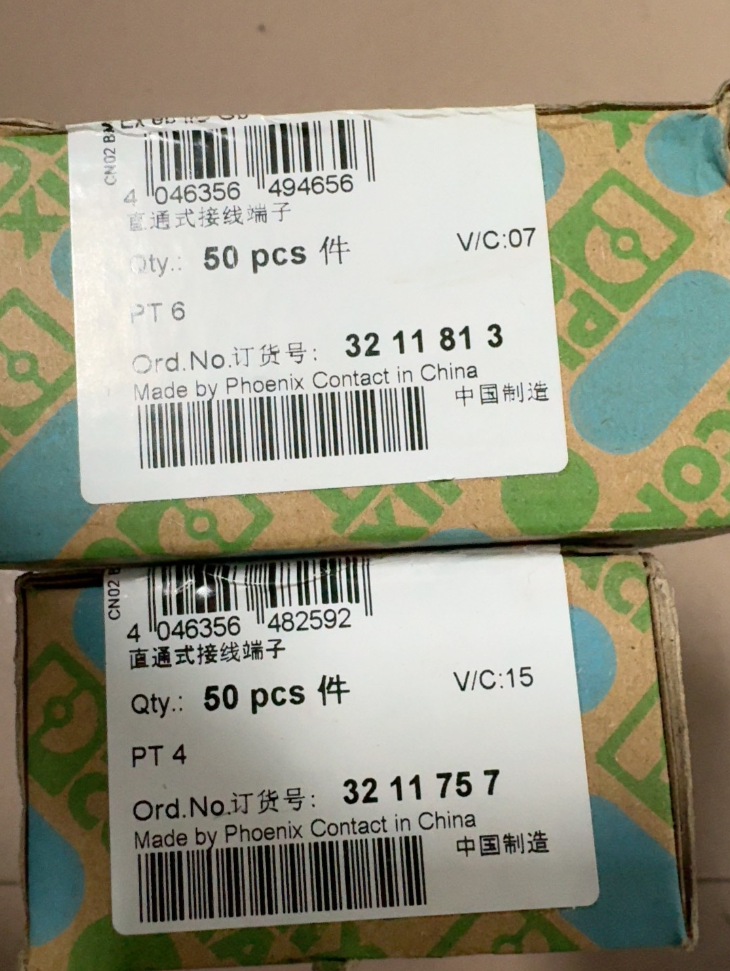

Phoenix Contact PT 4-3211757 Durchgangsklemmenblock

As a basic push-in terminal block, PT 4-3211757 liefert hervorragende Leistung im Bereich von 32A/800V/0,2-6 mm², Ideal für allgemeine Anwendungen wie industrielle Automatisierung und Leistungssteuerung. Bei Überschreitung der oben genannten Grenzwerte oder bei Bedarf an Sonderfunktionen, Wählen Sie entsprechend den tatsächlichen Arbeitsbedingungen geeignete alternative Modelle aus, um die Sicherheit zu gewährleisten, zuverlässige und effiziente elektrische Verbindungen.

1. Erklärung des Modellcodes

Kernpositionierung:

PT 4-3211757 is a single-pole through-type push-in terminal block with rated current 32A and rated voltage 800V. It adopts tool-free push-in connection, fits 0.2-6 mm² wires and supports DIN rail mounting. Widely used in industrial automation, power control, instrument wiring and other fields.

2. Kernspezifikationsparameter

3. Häufige Fehler & Maintenance Solutions

3.1 Fehlerbehebung

3.2 Daily Maintenance Schedule

4. Full PT 4 Liste der Serienmodelle

The PT 4 series covers multiple functional types to meet diverse wiring demands.

Notiz: All models support 0.2-6 mm² Drähte, 32Ein Nennstrom, 800V rated voltage, push-in connection and DIN rail installation.

5. Markenübergreifender Vergleich

6. Air Shipment Compliance & Zertifizierungen

6.1 Shipment Regulation

Produktkategorie: Electrical terminal blocks (no built-in battery, non-magnetic)

UN Number: Nicht erforderlich, ungefährliche Güter

Shipping Restriction: No special limits, delivered as general cargo

Verpackung: Anti-static packaging to avoid static damage

Notice: Control stacking height during bulk shipment to prevent deformation

6.2 Detailed Certification Information

Notiz: Relevant certification marks are printed on products and packages. Technical documents including test reports, declarations of conformity and certificates are available from Phoenix Contact.

7. Auswahlrichtlinien & Schnelle Regeln

Schnellauswahlregeln

1. Aktuelle Übereinstimmung: Continuous load ≤32A, transient peak ≤36A
2. Drahtauswahl: Prioritize 1.5-4 mm² wires for most stable connection
3. Farbcode: Grey=standard potential; Blue/Orange=phase classification; Green-yellow=PE earthing
4. Funktionserweiterung: Multi-wire use QUATTRO series; fuse protection use HESI series; earthing use PE series
5. Installation: Use standard NS 35 DIN-Schiene, installation gap ≥2mm
6. Applicable & Nicht anwendbare Szenarien

Anwendbare Szenarien

1. Industrielle Automatisierung: Wiring inside PLC cabinets, DCS systems and frequency converter cabinets
2. Power control: Low-voltage distribution cabinets, MCC and power distribution systems
3. Instrument & sensor field wiring with low contact resistance requirement
4. Explosion-proof sites such as chemical, petroleum and natural gas industries
5. Low-temperature (-60℃) and high-temperature (+110℃) industrial environments
6. Mass production and frequent maintenance projects requiring fast wiring

Nicht anwendbare Szenarien

1. Long-term load current over 36A (Recommend PT 6 Serie)
2. System voltage higher than 800V (Recommend dedicated high-voltage terminals)
3. Wires smaller than 0.2 mm² (Recommend PT 2.5 Serie)
4. Occasions with more than 100 times frequent plugging & unplugging
5. Severe corrosive environments with strong acid, alkali and salt fog
6. Sites without DIN rail mounting conditions

Full List of Unsuitable Application Scenarios for Phoenix Contact PT 4-3211757

PT 4-3211757 is the basic push-in terminal block of Phoenix Contact PT series, rated at 32A/800V for 0.2-6 mm² Drähte. It is not recommended for scenarios beyond its design limits. Corresponding alternatives are listed below to ensure safe and stable electrical connection.

1. Scenarios Exceeding Electrical Parameters
2. Long-term ultra-high current load over 32A

Risiko: Terminal overheating, accelerated insulation aging even fire hazard

Alternative: PT 6 / PT 10 / PT 16 series high-current terminals

2. Working voltage higher than 800V

Risiko: Insulation breakdown and electric shock accident

Alternative: HV series 1000V / 1500V high-voltage terminal blocks

3. Unmatched wire gauge

– Wires thinner than 0.2 mm² → Use PT 2.5 Serie

– Wires thicker than 6 mm² → Use PT 6 Serie

2. Mismatched Mechanical & Connection Conditions
3. Frequent plugging over 100 mal

Risiko: Spring fatigue leading to loose contact

Alternative: Screw-type terminals or dedicated pluggable terminals

2. No DIN rail installation condition

Alternative: Panel-mounted or fixed-type terminal blocks

3. Multi-branch wiring requirement

Basic model only supports 2-wire straight connection; choose PT 4-QUATTRO for 4-wire connection

3. Unsuitable Environmental Conditions
4. Severe corrosive atmosphere
5. Working temperature below -60℃ or above +110℃
6. Excessive vibration and shock beyond industrial standard range
7. Unmatched Functional Requirements
8. Need built-in fuse protection, LED status indication or surge protection
9. Higher explosion-proof grade than II 2 G Ex eb IIC Gb
10. Ultra-high density wiring with width less than 6.2mm

Core Selection Principles to Avoid Misuse

1. Strictly follow 32A rated current and 800V rated voltage
2. Wire range limited within 0.2~6 mm²
3. Operating temperature kept between -60℃ and +110℃
4. Suitable for standard DIN rail installation only
5. Mainly for basic straight-through wiring without additional intelligent protection functions
