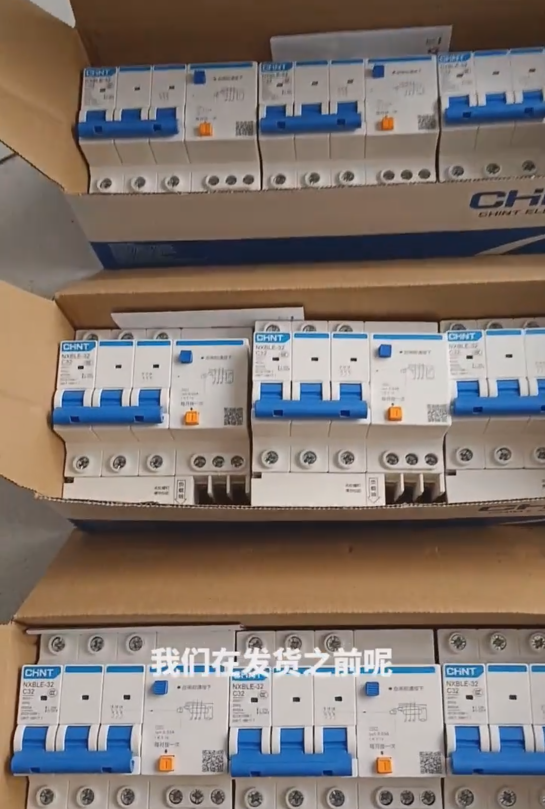

Disjoncteur à courant résiduel Chint NXBLE32-3PC32

Chint NXBLE323PC32 is a Disjoncteur à courant résiduel with Overcurrent Protection (RCBO) suitable for threephase circuits. Il intègre la surcharge, shortcircuit, and residual current protection functions, and is mainly used for safety protection in terminal power distribution systems.

Paramètres et fonctions de base

1. Rated Current and Pole Number

Courant nominal (Dans): 32UN, applicable to circuits where the total current of threephase loads does not exceed 32A (such as small commercial equipment, moteurs, etc.).

Numéro de pôle: 3P. (threephase threewire). It can disconnect three phase wires simultaneously, and is suitable for threephase systems without a neutral wire or scenarios that require disconnecting threephase power supplies.

2. Tripping Characteristic

Curve Type C: Suitable for conventional resistive loads (comme l'éclairage, heating equipment). It can trip quickly when the current reaches 510 fois le courant nominal, preventing circuit damage caused by overload.

3. Residual Current Protection Function

Courant de fonctionnement résiduel nominal (JeΔn): 30mA (default value). When the residual current reaches 30mA, the circuit breaker will cut off the power supply within 0.1 secondes, effectively preventing electric shock and electrical fires.

Type de protection contre le courant résiduel: Type AC. It can detect powerfrequency sinusoidal AC residual current and is suitable for common household and industrial equipment.

4. Breaking Capacity and Voltage Level

Rated ShortCircuit Breaking Capacity (ICU): 6le. It can reliably break the circuit when the shortcircuit current is as high as 6000A, protecting the circuit from severe damage.

Tension nominale: 400V et (threephase), which conforms to the standard voltage of domestic threephase power distribution systems.

Design and Installation

1. Structure and Dimensions

Dimensions hors tout: Width 45mm (for 3P), depth 76.8mm, height 94.5mm. It adopts standard 35mm DIN rail mounting, gain de place dans le coffret de distribution.

Méthode de câblage: Incoming wires can be connected from both the top and bottom. It supports wires with a maximum crosssectional area of 25mm². The torque of the terminal blocks must be operated in accordance with standards (refer to the instruction manual for recommendations).

2. Adaptabilité environnementale

Température de fonctionnement: 35℃ to +70℃, adaptable to a wide range of environmental temperatures.

Niveau de protection: IP20 (pour installation directe) or IP40 (for installation inside distribution boxes), preventing the intrusion of foreign objects.

3. Certifications and Standards

It complies with China’s CCC certification and the international IEC 610091 standard, and has passed CQC test verification, ensuring reliable quality.

Scénarios d'application

ThreePhase Motor Protection: Used for equipment such as small water pumps and compressors to prevent equipment damage and safety accidents caused by overload, court-circuit, and residual current.

Commercial and Industrial Power Distribution: Applied in threephase power supply systems of places like restaurants and small factories to provide comprehensive circuit protection.

Temporary Power Supply Facilities: Suitable for scenarios requiring mobile power supply such as construction sites and event venues to ensure electricity safety.

Sélection et précautions

1. Correspondance actuelle

Select the rated current according to the total load current to avoid overload. If multiple devices are connected in parallel, the derating factor should be considered (Par exemple, when more than 9 devices are installed side by side, the current should be derated to 0.76In).

2. Selection of Residual Operating Current

30mA is suitable for direct contact protection (such as human electric shock). If higher sensitivity is required, a 10mA model can be considered (but it is necessary to confirm whether the load allows this).

3. Modèles alternatifs et compatibilité

If neutral wire protection is required, a 3P+N model (such as NXBLE323P+NC32) peut être sélectionné; if the load current is larger, it can be upgraded to the NXBLE63 series (with a frame current of 63A).

4. Canaux de prix et d’achat

The price of a single unit is approximately 80120 RMB.

Installation et entretien

1. Étapes d'installation

Turn off the upperlevel power supply, clamp the circuit breaker onto the 35mm DIN rail, and connect the threephase incoming and outgoing wires according to the marks to ensure firm wiring.

Before closing the switch, test the residual current protection function: press the test button (marked “T”), and the circuit breaker should trip immediately.

2. Inspection régulière

Operate the test button once a month to check whether the residual current protection function works normally.

Regularly clean the dust on the surface of the circuit breaker and check whether the terminal blocks are loose.

Résumé

Chint NXBLE323PC32 is a costeffective threephase RCBO with balanced parameter configuration, suitable for various industrial and commercial scenarios. Its 30mA residual current protection, Type C tripping characteristic, and 6kA breaking capacity can effectively ensure circuit safety. During selection and installation, reasonable configuration should be made according to the actual load requirements and the structure of the power distribution system, and electrical installation specifications should be followed.
