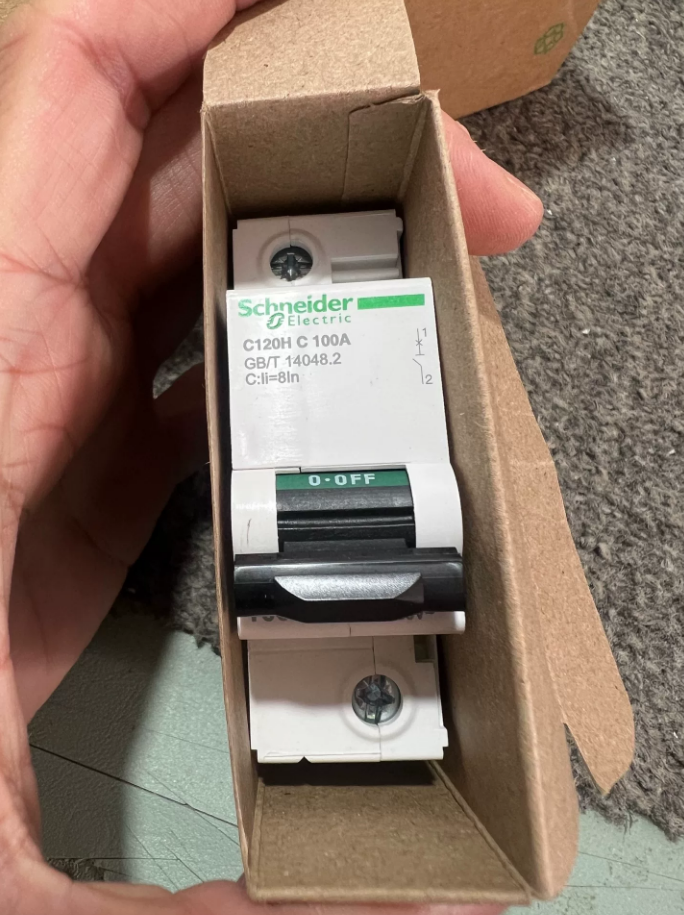

Model A9I48191V120H1P-100A
Model A9I48191V120H1P-100A is the complete order number of a low-voltage electrical product under the Acti9 Series of Schneider Électrique. The meaning of each segment of the code and the corresponding product attributes can be explained as follows:
- Model Segment Analysis
- A9: Represents the major product series, namely Schneider’s Acti9 Series. This series is a standardized low-voltage component series launched by Schneider for terminal power distribution, covering miniature circuit breakers, residual current devices, disconnectors, et d'autres produits.
- I48: Represents the product type sub-code. In combination with the naming rules of the Acti9 Series, this code usually refers to disconnectors or fuse-disconnectors, which are mainly designed for no-load switching of circuits and power isolation.
- 191: Represents the structural characteristics and accessory configuration code. Different number combinations correspond to different installation methods (par ex., DIN rail mounting), operation methods (par ex., handle operation), or auxiliary contact configurations.
- V120: Represents the rated working voltage parameter of the product. Here, `V120` indicates that the rated working voltage of the product is suitable for 120V AC circuits. It should be noted that this voltage class is common in the North American market and is incompatible with the mainstream 220V/380V voltage system in China.
- H1P: Represents the pole number and installation specification of the product. `H1P` means a 1-pole product, suitable for the isolation requirements of single-phase circuits.
- 100UN: Represents the rated working current of the product, c'est-à-dire, the maximum current that the component can carry stably for a long time is 100A.
- Summary of Core Product Attributes
| Item | Specification Parameter |
| Brand and Series | Schneider Acti9 Series |
| Type de produit | 1-pole Disconnector (speculative) |
| Rated Working Voltage | 120V et (North American voltage class) |
| Rated Working Current | 100UN |
| Numéro de pôle | 1-pôle |
| Fonction principale | Circuit isolation, no-load switching |
| Scénario d'application | Power isolation and maintenance power-off in single-phase 120V power distribution systems in North America |
- Key Precautions
- Voltage Compatibility: The rated voltage of this product is 120V AC. It is strictly prohibited to use it directly in domestic 220V AC circuits, otherwise, it may cause safety accidents such as component burnout and insulation breakdown.
- Positionnement fonctionnel: Disconnectors do not have short-circuit protection or overload protection functions and are only used for circuit isolation. They must be used in conjunction with protective components such as circuit breakers.
- Model Verification: To confirm accurate product drawings, installation dimensions, and technical manuals, you can enter the complete order number through Schneider’s official product selection tool or technical support hotline for inquiry.
Domestic Voltage-Adaptable Model Comparison Table for Schneider Acti9 Series 100A Disconnectors
The following is a complete comparison table of domestic adaptable models corresponding to the North American model A9I48191V120H1P-100A and models with different pole numbers of the same specification. These models are suitable for the mainstream 230/400V AC voltage system in China and meet the isolation requirements of single-phase/three-phase power distribution systems.
- Core Model Correspondence
| North American Original Model | Domestic Adaptable Model | Série de produits | Numéro de pôle | Tension nominale | Courant nominal | Type de produit |
| A9I48191V120H1P-100A | A9S70690 (iSW Series) / A9S66191 | Acti9 | 1P. | 230/400V et | 100UN | Miniature Disconnector |
| A9I48191V120H1P-100A | A9S71690 (iSW Series) | Acti9 | 1P. | 230/400V et | 100UN | Disconnector with Auxiliary Contacts |
| A9I48191V120H1P-100A | iINT125 1P 100A | Acti9 | 1P. | 230/400V et | 100UN | Terminal Disconnector |
- Complete Table of Domestic Adaptable Models with Different Pole Numbers of the Same Specification
| Numéro de pôle | Domestic Standard Model | Série de produits | Tension nominale | Courant nominal | Module Width | Fonctionnalités principales | Scénarios d'application typiques |
| 1P. | A9S70690 (iSW) | Acti9 | 230/400V et | 100UN | 2 modules (18mm) | Basic disconnector without auxiliary contacts | Isolation of single-phase circuits, such as residential incoming lines and power isolation of small equipment |
| 1P. | A9S66191 (iSW) | Acti9 | 230/400V et | 100UN | 2 modules (18mm) | Standard disconnector with red operating handle | Single-phase power distribution in commercial buildings, maintenance isolation |
| 1P. | iINT125 1P 100A | Acti9 | 230/400V et | 100UN | 2 modules (18mm) | Terminal-specific with optimized operating mechanism | DC-side isolation of photovoltaic systems, front-end of small UPS |
| 2P. | A9S70790 (iSW) | Acti9 | 230/400V et | 100UN | 4 modules (36mm) | 2-pole interlock, simultaneous isolation of live wire and neutral wire | Single-phase 2-pole circuits, such as high-power household appliances like air conditioners and water heaters |
| 2P. | A9S66291 (iSW) | Acti9 | 230/400V et | 100UN | 4 modules (36mm) | Standard 2-pole with red handle | Power isolation of commercial kitchen equipment and small air compressors |
| 3P. | A9S70890 (iSW) | Acti9 | 400V et | 100UN | 6 modules (54mm) | 3-pole interlock, three-phase isolation | Front-end of three-phase equipment such as motors, pompes à eau, and fans |
| 3P. | A9S66391 (iSW) | Acti9 | 400V et | 100UN | 6 modules (54mm) | Standard 3-pole with high short-circuit withstand capacity | Industrial automation equipment, main switch of small power distribution cabinets |
| 4P. | A9S70990 (iSW) | Acti9 | 400V et | 100UN | 8 modules (72mm) | 4-pole interlock, three-phase + neutral wire isolation | UPS input/output in data centers, isolation of medical equipment |
| 4P. | A9S66491 (iSW) | Acti9 | 400V et | 100UN | 8 modules (72mm) | Standard 4-pole with locking device | Three-phase power distribution in special industries such as chemical and metallurgical industries |
- Key Adaptation Instructions
- Voltage Compatibility: All domestic models are suitable for 230/400V AC (50/60HZ), fully compatible with the domestic power grid. It is strictly prohibited to directly use North American 120V models in domestic 220V/380V systems.
- Functional Consistency: All domestic models retain the core functions of disconnectors—no-load circuit switching and power isolation. They do not have short-circuit or overload protection capabilities and must be used in conjunction with circuit breakers.
- Compatibilité d'installation: All models adopt 35mm DIN standard rail mounting, consistent with the installation method of the original North American model, enabling direct replacement and installation.
- Recommandations de sélection:
For single-phase circuits, prioritize 1P/2P models.
For three-phase power circuits, prioritize 3P models.
For critical loads requiring simultaneous neutral wire isolation (such as medical equipment and data centers), select 4P models.
For applications requiring remote status monitoring, select models with auxiliary contacts such as A9S71690.
- Supplementary Information
| Item | Detailed Description |
| Certification Standard | Complies with IEC 60947-3 and GB 14048.3 normes, holding domestic CCC certification |
| Operating Life | Mechanical life ≥ 10,000 fois; Electrical life ≥ 1,000 fois (no-load operation) |
| Terminal | Suitable for 16~25mm² copper conductors, recommended torque: 8~10N·m |
| Classe de protection | IP20, suitable for installation inside power distribution cabinets |
