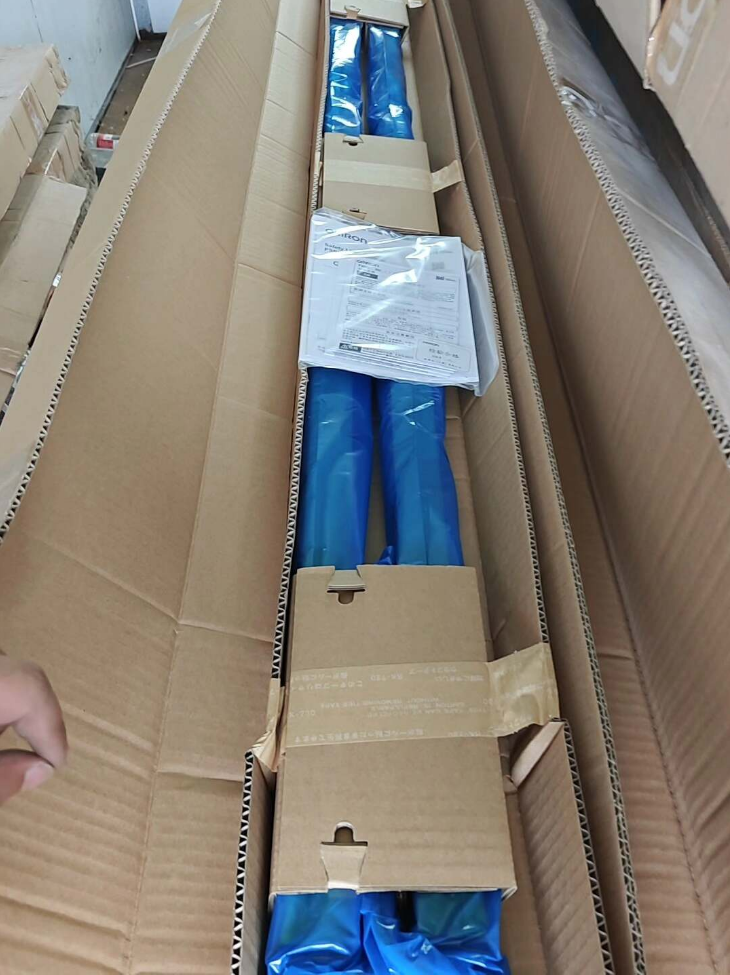

OMRON F3SG-4RE1630P30 Safety Light Curtain

Application Scenarios of OMRON F3SG-4RE1630P30 (1630mm Height, 30mm Hand Protection, Type4 PL e)

This light curtain features 1.63m protective height and 30mm detection resolution dedicated to hand protection, with highest safety Category 4 / SIL 3. It has no muting function and only basic OSSD outputs, suitable for equipment requiring physical barrier to stop hands entering hazardous areas, covering machining, automazione, logistica, rubber & plastica, robot industries:

1. Stamping & Forging Equipment (Core High-Risk Applications)
2. Safety protection for operating openings of air/hydraulic presses
3. Safety isolation at feed inlets of press brakes & plate shears
4. Material pick-up stations for hot & cold forging machines

Caratteristiche: 1630mm height fully covers hand intrusion range of standing operators; configurable with manual reset + EDM monitoring to meet machine tool safety standards.

Scomposizione del codice modello

Modello: F3SG-4RE1630P30

2. Nucleo elettrico & Specifiche di sicurezza

2.1 Mandatory Safety Certifications

CEI 61496-1: Tipo 4

ISO 13849-1: PL e / Categoria 4

CEI 61508: SIL 3

Conforme alla norma EN 60204-1, Categoria 0 machine safety stop

2.2 Optical Detection Parameters

Protected Height: 1630 mm

Beam Pitch: 20 mm

Total Beams: 80 beams

Minimum Detectable Opaque Object: φ30 mm (hand protection grade)

Intervallo di rilevamento: 0.3 m~ 20 M

Maximum Response Time: 9 SM

Synchronization: Optical synchronization, no dedicated sync wiring required

2.3 Parametri Elettrici

Tensione di alimentazione: 24 VDC ±20% (SELV Safety Extra Low Voltage)

Safety Outputs: 2-channel PNP OSSD, max load per channel: 300 mA

Residual Voltage: ≤2 V

Corrente di dispersione: ≤1 mA

Transmitter Current Draw: ≤120 mA; Receiver Current Draw: ≤150 mA

Connettore: M12 straight plug; Trasmettitore: 5-spillo, Ricevitore: 8-spillo, factory fitted with 0.3m short cable

2.4 Ambientale & Mechanical Properties

Dimensione complessiva: 35(W) × 35(H) × 1630(l) mm

Protezione dall'ingresso: IP67 (when connectors fully tightened)

Temperatura operativa: -10 ℃ ~ +55 ℃

Temperatura di conservazione: -25 ℃ ~ +70 ℃

Umidità: 35%~85% RH, senza condensa

Resistenza alle vibrazioni: 10~55Hz, amplitude 0.7mm, 20 cycles per 3 assi

Resistenza agli urti: 100 m/s², 1000 shocks per 3 assi

Materiale dell'alloggiamento: PBT engineering plastic; Optical window: PC polycarbonate

Peso netto (Trasmettitore + Receiver Set): ~1.2 kg

3. Descrizione della funzione (Limitations of RE Basic Series)

✅ Standard Built-in Functions

1. Two independent OSSD safety outputs; outputs cut off immediately upon beam occlusion
2. DIP switch selectable: Auto-reset / Manual-reset, EDM external device monitoring enable/disable
3. Rosso & Green LED status indicators (Energia, Sync, Occlusion, Colpa)
4. Long-distance mode optimized for detection range 10~20 m

❌ Unsupported Functions (Not available on RE basic model)

Muting function

Collegamento in cascata di più unità

Anti-interference beam coding

Auxiliary signal output (only dual safety outputs available)

4. M12 Connector Pin Definition

Trasmettitore (5-perno M12)

1: 24V DC+

2: 0V GND

3: Optical Sync

4: Inutilizzato

5: Scudo

Ricevitore (8-perno M12)

1: 24V DC+

2: 0V GND

3: OSSD1 PNP Output

4: OSSD2 PNP Output

5: EDM Monitoring Input

6: Reset Input

7: Optical Sync

8: Scudo

5. Scenari applicativi tipici
6. Perimeter safety protection for industrial robot workcells
7. Hand protection for stamping & injection molding machine operating zones
8. Safety isolation at inlet/outlet of automated conveyor lines
9. Human intrusion detection for large machine tools & assembly lines with 1.6m protective height
10. Safety light curtain for AGV traffic aisles in warehouses
11. Optional Matching Accessories (Ordered Separately)
12. F39-JD□RA: M12 extension cables (5m/10m/20m)
13. F39-BT Standard Mounting Bracket, F39-BTLP Long Bracket
14. F39-SG Splash Guard (for environments with cutting fluid & polvere pesante)
15. F39-LZ Laser Alignment Tool (fast calibration for long-distance installation)
16. Alternative Replacement Models
17. Direct drop-in equivalent (stesse specifiche): F3SG-4RE1630N30 (NPN output version)
18. Upgraded SR series (long-term supply recommended): F3SG-4SR1630-25 (Tipo 4, funzioni migliorate, supports muting & cascade)
19. Lower safety Type 2: F3SG-2RE1630P30 (PL d, not applicable for high-risk pressing machinery)
20. Installazione & Linee guida per la messa in servizio
21. Minimum mounting distance between light curtain and hazard zone ≥0.3m; calculate safety distance matching machine braking time
22. Optical alignment after installation: steady green LED = normal operation; flashing LEDs indicate misalignment or out-of-range distance
23. EDM external monitoring must be enabled for high-risk equipment to detect safety relay contact welding faults
24. Reset mode configuration: Manual reset mandatory for presses/stamping machines; auto-reset allowed for conveyor lines
25. Avoid direct intense light irradiation on optical windows to prevent infrared interference and false triggering
26. Quick Troubleshooting Matrix

Stampaggio ad iniezione & Die Casting Equipment

2. Open pick-up ports replacing safety doors for vertical & horizontal injection molding machines
3. Feeding & part extraction windows for aluminum & zinc alloy die-casting machines
4. Operating station isolation for rubber vulcanizers & estrusori

Applicazione: Manual loading/unloading of mold products, preventing hands entering clamping & extrusion hazard zones.

3. Machining Industry
4. Open loading/unloading channels for CNC milling machines & centri di lavoro
5. Manual feed side protection for lathes, smerigliatrici & band saws
6. Manual loading stations for sheet metal & fiber laser cutters

Vantaggi: IP67 dust & liquid resistance, tolerates cutting fluid and metal dust; 30mm resolution prevents finger intrusion into cutting tool hazard zones.

4. Industrial Robot Workcells
5. Access gates of 6-axis robot handling & assembly safety fences
6. Manual intervention channels for palletizing & welding robots
7. Safety passages for robot grinding & coating stations

Descrizione: 1.63m height fits adult standing passage; power cut-off for robots upon personnel intrusion, complies with PL e machinery safety requirements.

5. Automated Conveying & Packaging Lines
6. Inlet & outlet protection for carton sealers & macchine confezionatrici
7. Hazard zone isolation for stretch wrapping & pallet strapping machines
8. Separation stations of production lines & manual sorting workstations
9. Dual-side safety light curtains for AGV & forklift traffic aisles

Condizioni di lavoro: Auto-reset configurable for assembly lines; machine stops upon accidental intrusion and resumes automatically after personnel leave.

6. Batteria al litio & 3C Electronic Automation Equipment
7. Manual operation windows for battery slitting & macchine avvolgitrici
8. Feed inlets of phone housing CNC & attrezzature per la pressatura
9. Open stations for battery testing & assembly machines

Vantaggi: 24V SELV low voltage eliminates electric leakage risk; low electromagnetic interference compatible with precision electronics production lines.

7. Warehouse & Logistics Lifting Equipment
8. Side safety protection for small freight elevators & ascensori
9. Manual access openings of automated racking systems
10. Hazard gap isolation for roller conveyors & transfer machines
11. Wood & Stone Processing Machinery
12. Feed inlet protection for sliding table saws, levigatrici & stone cutting machines
13. Operating zone isolation for wood door & panel polishing equipment

Scenari applicativi non idonei (Limitations of RE Series)

1. Processes requiring material passing through protective area (Muting function unavailable; machine stops when any workpiece passes, F3SG-SR series recommended instead)
2. Multi-curtain splicing via cascade connection (RE series does not support cascade)
3. Long-term vehicle & large workpiece access passages (Muting function mandatory to avoid frequent unexpected shutdowns)

Response Time Parameters of OMRON F3SG-4RE1630P30

1. Maximum Response Time: 9 SM
2. Supplementary Explanation:

This value refers to total full response duration for the complete set (transmitter + ricevitore) to cut off OSSD safety outputs

This model has 1630mm protective height with a large number of beams, representing the upper response time limit within the same RE series

The maximum value of 9ms must be adopted for safety distance calculation, typical values cannot be used

Total system stop reaction time after pairing with safety relay = 9ms (curtain) + safety relay actuation time

Suggerimenti per la selezione del modello

If ultra-fast braking speed is required, select shorter protective height models from the same RE series; fewer beams deliver faster response speed.
