- Quick Model Identification

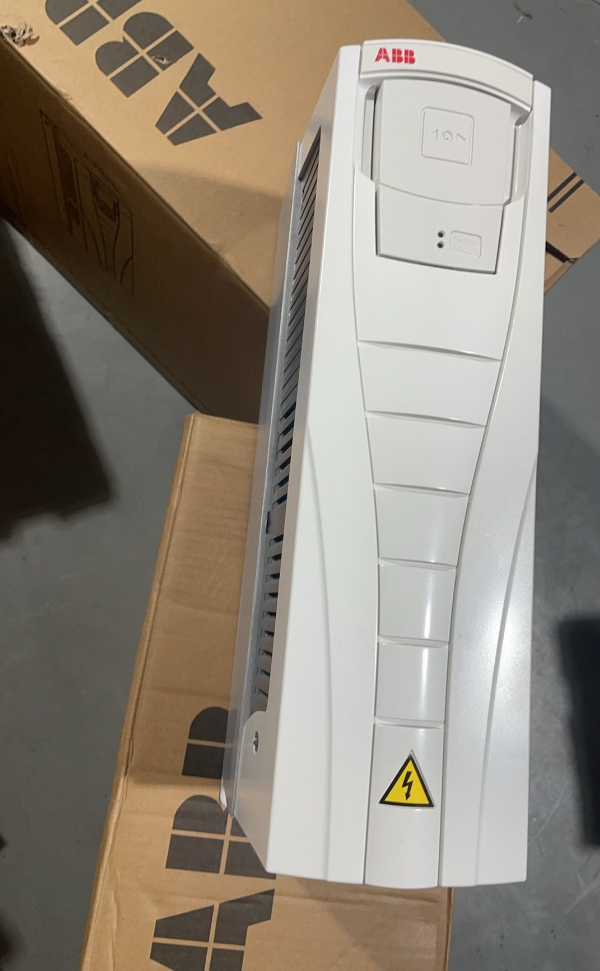

ACS55001023A4 is a classic generalpurpose ABB inverter. The model breakdown is as follows:
| Model Segment | Description |
| ACS550 | Series, general-purpose inverter |
| 1 | Standard version |
| 023A | Rated output current 23A |
| 4 | Voltage class, three‑phase 380–480V |
Global order alias: 3AUA0000002417
- Core Technical Specifications
| Item | Value | Notes |
| Rated Power | 11kW for normal duty, 7.5kW for heavy duty | Calculated based on 23A output current |
| Rated Current | 23A | Continuous output |
| Input Voltage | Three‑phase 380–480V, 50/60Hz | Standard 400V class |
| Output Voltage | 0–input voltage, three‑phase | Vector control, adjustable frequency 0–500Hz |
| Control Modes | V/F control, open‑loop vector, closed‑loop vector | Adaptable to different loads |
| Dimensions | Frame R2: H1=469mm, H2=430mm, W=125mm, D=222mm | Wall‑mounted |
| Weight | 8.85kg | Basic configuration |
| Protection Degree | IP20 / Type 1, with conformal coating | Standard for indoor installation |
| Switching Frequency | 4–12kHz | Adjustable to reduce motor noise |
- Applications
This inverter is suitable for a wide range of industrial automation fields:
- Fluid control: Pumps, fans, compressors (variable torque, excellent energy saving)
- Material handling: Conveyors, cranes, elevators (constant torque, precise speed control)
- Manufacturing: Textile machinery, printing equipment, packaging lines, machine tool spindles
- Special applications: Submersible motors, mixers, centrifuges, extruders
- Energy retrofits: Speed control upgrades for old equipment to improve efficiency
- Key Features
Usability: Intuitive control panel, FlashDrop quick configuration tool for simplified commissioning
Control performance: Built-in PID controller, supports multiple fieldbuses (Profibus, Modbus, DeviceNet, etc.)
Protection functions: Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, earth fault, etc.
Harmonic mitigation: Built-in swinging choke to reduce input harmonic interference
Environmental adaptability: Operating temperature -10°C to +40°C (derating required above 40°C)
- Replacement Options
- ABB Original Replacement: ACS58001023A4 (upgraded successor to ACS550)
Fully compatible with ACS550 mounting dimensions and control logic
Additional intelligent functions and communication options
Higher efficiency, easier maintenance
- Cross-brand Alternatives:
| Brand | Replacement Model | Matching Specs |
| Schneider | ATV310HD11N4 | 11kW, 380–480V, 23A |
| Siemens | MM440‑11kW | Vector control, equivalent power rating |
| Delta | VFD110CP43B‑21 | 11kW, three‑phase 400V class |
- Notes
- Status: ACS550 series is discontinued; ACS580 is recommended for new projects
- Accessories: Control panel not included as standard (e.g. CDP312R, sold separately)
- Installation: Frame R2 requires sufficient heat dissipation space, vertical mounting
- Brake unit: External braking resistor required for rapid stopping (no integrated brake chopper in ACS55001023A4)
Complete Model List, Order Codes & Price Reference for ABB ACS Series Inverters
- Series Overview & Naming Rules
ABB ACS series inverters cover low-voltage (0.12kW~250kW) to medium-high-voltage (250kW~150MW) power ranges. Main LV series include ACS580 (flagship general-purpose), ACS550 (classic general-purpose, discontinued), ACS510 (fans & pumps), ACS355 (general machinery), ACS880 (high-performance industrial), ACS380 (premium machinery), ACS180/150 (micro), etc.
Model Naming Rule (example: ACS58001023A4)
| Field | Description | Options |
| ACSxxx | Series | ACS580/550/510/355/880/380/180/150 etc. |
| 1 | Mounting / type | 01=wall‑mount, 04=book‑size, 304=cabinet, 03E=compact etc. |
| 023A | Rated current | 23A; suffix A = standard current |
| 4 | Voltage class | 4=380–480V 3PH, 3=200–240V 3PH, 5=500–600V 3PH |
| +Suffix | Special configuration | B055=IP55, +P940=brake unit etc. |
Order Code Explanation
Official order code format: 3ABDxxxxxxxxxx (e.g. ACS58001023A4 corresponds to 3AXD50000038938)
Global trade alias: 3AUAxxxxxxxxxx (e.g. ACS55001023A4 corresponds to 3AUA0000002417)
- Detailed Main Series List
1) ACS580 Series (flagship general-purpose, replacement for ACS550)
Core Positioning: General-purpose inverter for pumps, fans, compressors, conveyors and general industry
| Model | Power (kW) | Current (A) | Order Code (ref) | Price Range (tax incl.) |
| ACS580-01-02A7-4 | 0.75 | 2.7 | 3AXD50000038936 | CNY 2,800–3,500 |
| ACS580-01-03A3-4 | 1.1 | 3.3 | 3AXD50000038937 | CNY 3,000–3,800 |
| ACS580-01-05A7-4 | 2.2 | 5.7 | 3AXD50000038939 | CNY 3,500–4,200 |
| ACS580-01-08A8-4 | 4 | 8.8 | 3AXD50000038940 | CNY 4,200–5,000 |
| ACS580-01-12A5-4 | 5.5 | 12.5 | 3AXD50000038941 | CNY 4,800–5,800 |
| ACS580-01-15A6-4 | 7.5 | 15.6 | 3AXD50000038942 | CNY 5,500–6,500 |
| ACS580-01-023A-4 | 11 | 23 | 3AXD50000038943 | CNY 6,800–8,000 |
| ACS580-01-031A-4 | 15 | 31 | 3AXD50000038944 | CNY 8,000–9,500 |
| ACS580-01-038A-4 | 18.5 | 38 | 3AXD50000038945 | CNY 9,200–10,800 |
| ACS580-01-046A-4 | 22 | 46 | 3AXD50000038946 | CNY 10,500–12,000 |
| ACS580-01-062A-4 | 30 | 62 | 3AXD50000038947 | CNY 12,800–14,500 |
| ACS580-01-083A-4 | 45 | 83 | 3AXD50000038948 | CNY 16,500–18,500 |
| ACS580-01-106A-4 | 55 | 106 | 3AXD50000038949 | CNY 20,000–22,500 |
| ACS580-01-145A-4 | 75 | 145 | 3AXD50000038950 | CNY 27,000–30,000 |
2) ACS550 Series (classic general-purpose, discontinued)
Core Positioning: Replaced by ACS580; still used for stock and spare parts
| Model | Power (kW) | Current (A) | Trade Alias | Price Range (used/stock) |
| ACS550-01-02A7-4 | 0.75 | 2.7 | 3AUA0000002401 | CNY 1,800–2,500 |
| ACS550-01-03A3-4 | 1.1 | 3.3 | 3AUA0000002402 | CNY 2,000–2,800 |
| ACS550-01-05A7-4 | 2.2 | 5.7 | 3AUA0000002405 | CNY 2,500–3,200 |
| ACS550-01-08A8-4 | 4 | 8.8 | 3AUA0000002408 | CNY 3,000–3,800 |
| ACS550-01-12A5-4 | 5.5 | 12.5 | 3AUA0000002412 | CNY 3,500–4,200 |
| ACS550-01-15A6-4 | 7.5 | 15.6 | 3AUA0000002415 | CNY 4,000–4,800 |
| ACS550-01-023A-4 | 11 | 23 | 3AUA0000002417 | CNY 4,500–5,500 |
| ACS550-01-031A-4 | 15 | 31 | 3AUA0000002431 | CNY 5,500–6,500 |
| ACS550-01-038A-4 | 18.5 | 38 | 3AUA0000002438 | CNY 6,500–7,800 |
| ACS550-01-046A-4 | 22 | 46 | 3AUA0000002446 | CNY 7,500–8,800 |
3) ACS510 Series (fans and pumps dedicated)
Core Positioning: Designed for variable torque loads; built-in PID, high energy savings
| Model | Power (kW) | Current (A) | Order Code (ref) | Price Range (tax incl.) |
| ACS510-01-04A1-4 | 1.5 | 4.1 | 3ABD0000078141 | CNY 2,600–3,200 |
| ACS510-01-05A6-4 | 2.2 | 5.6 | 3ABD0000078142 | CNY 2,900–3,500 |
| ACS510-01-08A8-4 | 4 | 8.8 | 3ABD0000078143 | CNY 3,500–4,200 |
| ACS510-01-12A5-4 | 5.5 | 12.5 | 3ABD0000078144 | CNY 4,000–4,800 |
| ACS510-01-15A6-4 | 7.5 | 15.6 | 3ABD0000078145 | CNY 4,500–5,200 |
| ACS510-01-023A-4 | 11 | 23 | 3ABD0000078146 | CNY 5,200–6,000 |
| ACS510-01-031A-4 | 15 | 31 | 3ABD0000078147 | CNY 6,000–6,800 |
| ACS510-01-038A-4 | 18.5 | 38 | 3ABD0000078148 | CNY 6,800–7,600 |
| ACS510-01-046A-4 | 22 | 46 | 3ABD0000078149 | CNY 7,500–8,500 |
| ACS510-01-062A-4 | 30 | 62 | 3ABD0000078150 | CNY 9,000–10,000 |
4) ACS355 Series (general machinery)
Core Positioning: Compact design, suitable for textile, printing, packaging machinery
| Model | Power (kW) | Current (A) | Order Code | Price Range (tax incl.) |
| ACS355-03E-01A9-4 | 0.55 | 1.9 | 3ABD0000058243 | CNY 2,200–2,800 |
| ACS355-03E-02A4-4 | 0.75 | 2.4 | 3ABD0000058244 | CNY 2,400–3,000 |
| ACS355-03E-03A3-4 | 1.1 | 3.3 | 3ABD0000058245 | CNY 2,600–3,200 |
| ACS355-03E-05A6-4 | 2.2 | 5.6 | 3ABD0000058246 | CNY 3,000–3,600 |
| ACS355-03E-08A8-4 | 4 | 8.8 | 3ABD0000058247 | CNY 3,500–4,200 |
| ACS355-03E-12A5-4 | 5.5 | 12.5 | 3ABD0000058248 | CNY 4,000–4,800 |
| ACS355-03E-15A6-4 | 7.5 | 15.6 | 3ABD0000058249 | CNY 4,500–5,200 |
| ACS355-03E-20A0-4 | 11 | 20 | 3ABD0000058250 | CNY 5,200–6,000 |
5) ACS880 Series (high-performance industrial)
Core Positioning: Direct torque control, for cranes, metallurgy, paper and high-performance applications
| Model | Power (kW) | Current (A) | Order Code (ref) | Price Range (tax incl.) |
| ACS880-01-02A4-3 | 0.75 | 2.4 | 3AXD50000048936 | CNY 4,000–4,800 |
| ACS880-01-03A3-3 | 1.1 | 3.3 | 3AXD50000048937 | CNY 4,200–5,000 |
| ACS880-01-05A7-3 | 2.2 | 5.7 | 3AXD50000048938 | CNY 4,800–5,600 |
| ACS880-01-08A8-3 | 4 | 8.8 | 3AXD50000048939 | CNY 5,500–6,300 |
| ACS880-01-12A5-3 | 5.5 | 12.5 | 3AXD50000048940 | CNY 6,200–7,000 |
| ACS880-01-15A6-3 | 7.5 | 15.6 | 3AXD50000048941 | CNY 7,000–7,800 |
| ACS880-01-023A-3 | 11 | 23 | 3AXD50000048942 | CNY 8,000–9,000 |
| ACS880-01-031A-3 | 15 | 31 | 3AXD50000048943 | CNY 9,500–10,500 |
| ACS880-01-038A-3 | 18.5 | 38 | 3AXD50000048944 | CNY 11,000–12,000 |
6) Other Series Overview
| Series | Positioning | Power Range | Typical Model | Price Range |
| ACS380 | Premium machinery control | 0.25–22kW | ACS380-04N-02A7-4 | CNY 3,500–8,000 |
| ACS180 | Micro general‑purpose | 0.12–7.5kW | ACS180-04N-05A6-4 | CNY 2,000–4,500 |
| ACS150 | Basic compact | 0.37–15kW | ACS150-03E-04A1-4 | CNY 2,200–5,000 |
| ACS55 | Ultra‑micro | 0.12–2.2kW | ACS55-01E-02A4-1 | CNY 1,800–3,000 |
| ACS808 | Modular industrial | 0.75–250kW | ACS808-01-023A-4 | CNY 6,000–35,000 |
- Price Notes & Purchasing Recommendations
- Price Factors
Power: Price increases with power (non-linear)
Protection: IP55 is approximately 20–30% more expensive than IP21
Options: Brake units, filters, communication modules add cost
Channel: Authorized distributors offer stable pricing; spot goods may cost more than futures
- Recommendations
New projects: Prefer ACS580 (improved functions, higher efficiency)
Spare parts: ACS550 can be directly replaced by same-current ACS580 (mounting compatible)
Fans & pumps: Choose ACS510 (optimized for variable torque, best energy savings)
High-performance applications: Choose ACS880 (direct torque control, fast response)
- Summary
ABB ACS series inverters provide complete drive solutions from micro to large-scale industrial applications. This list covers key mainstream models. For actual selection, consult an ABB authorized distributor for latest pricing and technical support based on application, power requirements and budget.
