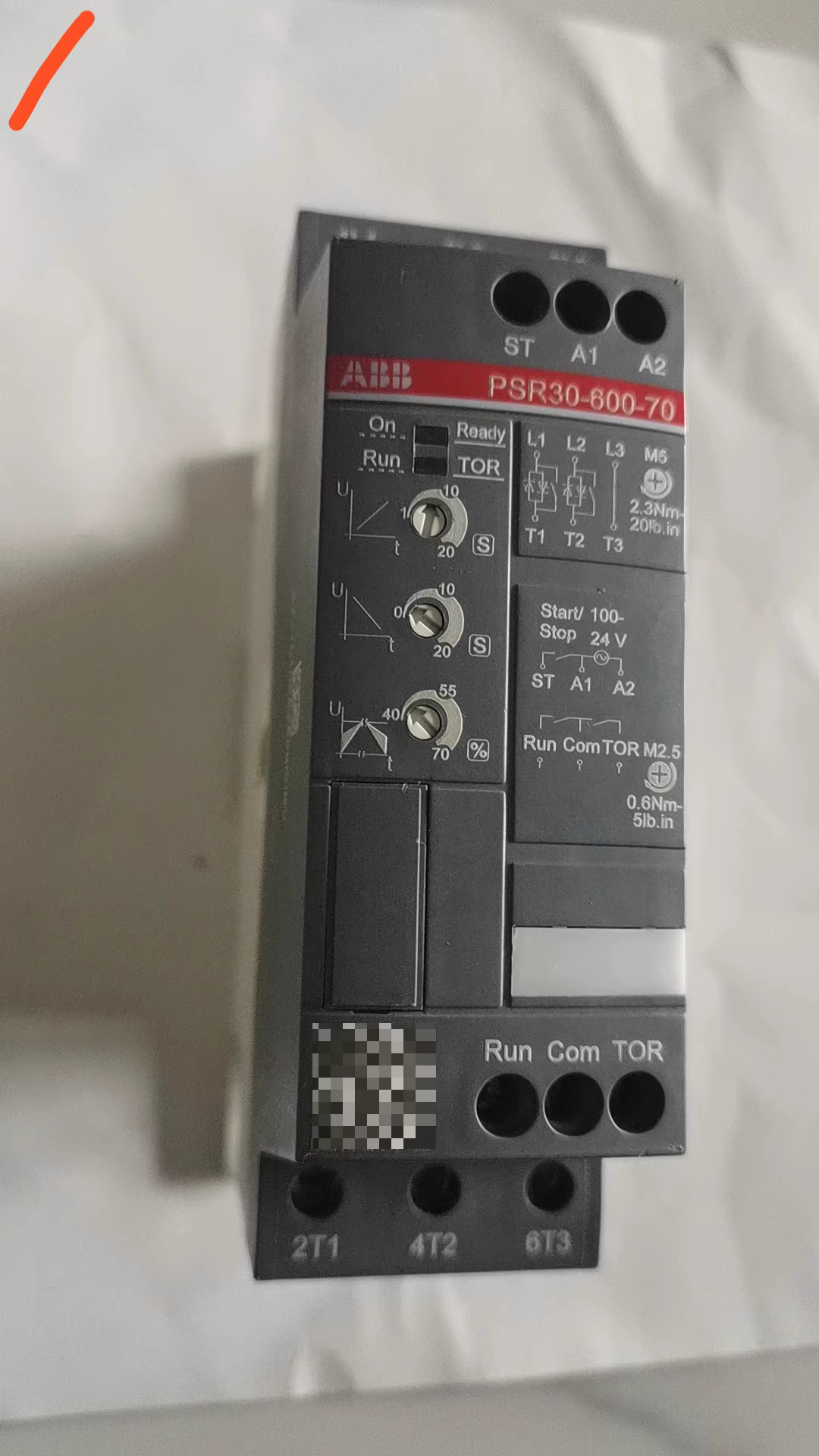

ABB Soft Starter PSR30-600-70

PSR30-600-70 is a member of ABB’s Compact Range soft starter series with the product ID 1SFA896109R7000. It adopts 2-phase control technology and achieves smooth motor starting and stopping via voltage ramping, suitable for the soft start control of three-phase asynchronous motors.

Model Designation Explanation

Model Segment	Meaning
PSR	Identifier for Compact Range soft starter series
30	Rated maximum operating current 30A
600	Main circuit operating voltage range 208~600V AC
70	Control circuit voltage range 100~240V AC 50/60Hz

III. Core Specification Parameters

Parameter	Value
Rated Operating Current	30A
Main Circuit Voltage	208~600V AC 50/60Hz
Control Circuit Voltage	100~240V AC 50/60Hz
Applicable Motor Power	240V: 10HP(7.5kW); 480V: 20HP(15kW); 600V: 25HP(18.5kW)
Starting Method	Voltage ramp start (adjustable initial voltage 40~70%)
Stopping Method	Voltage ramp stop
Control Method	2-phase control
Protection Class	IP20
Mounting Method	DIN rail mounting
Dimensions (W脳H脳D)	45mm * 160mm *128mm
Weight	Approx. 2.00LBS(0.91kg)
Terminal Type	Screw terminal
Starting Frequency	20 times/hour (4*Ie for 6 seconds continuously)
Built-in Relay	Run signal relay, Top of Ramp (TOR) output signal

Functional Features
Smooth Start and Stop: Significantly reduces mechanical and electrical shocks during motor starting through voltage ramp control, extending equipment service life.
Comprehensive Protection Functions:

Overload protection

Phase loss protection

Overheating protection

Short-circuit protection

Phase reversal protection

Overvoltage/undervoltage protection

Compact Design: Narrow body design (only 45mm wide) saves control cabinet space.
Easy Installation: Standard DIN rail mounting with connection kits for easy connection to ABB manual motor starters.
Built-in Signal Relay: Provides run status and Top of Ramp (TOR) signal output for convenient system integration.
Advanced Algorithm: Eliminates DC components and delivers excellent starting performance.
Application Scenarios

Pump loads such as water pumps and fans

Industrial machinery including compressors and conveyors

General industrial applications requiring smooth starting and shock reduction

Occasions that need basic motor protection functions

Selection Reference

The PSR series soft starters cover a rated current range of 3~45A, with optional control voltages of 24VDC or 100~240VAC, suitable for applications with moderate starting performance requirements and limited space. For more advanced functions (e.g., torque control, communication functions), ABB PSS (Universal Range) or PST (Intelligent Range) series soft starters are recommended.

Model Reference for ABB Soft Starter PSR30-600-70

Same Series (PSR) Model Reference

The PSR series is ABB’s compact soft starter with 2-phase control technology, offering two control voltage options: 100-240V AC (suffix 70) and 24V AC/DC (suffix 81), with a rated current of 3~105A. The following are related models in the same series as PSR30-600-70:

Model	Rated Current	Control Voltage	Applicable Power (400V)	Product ID	Remarks
PSR25-600-70	25A	100-240V AC	15kW	1SFA896108R7000	One specification smaller than PSR30
PSR30-600-70	30A	100-240V AC	18.5kW	1SFA896109R7000	Reference model
PSR30-600-81	30A	24V AC/DC	18.5kW	1SFA896109R8100	Different control voltage
PSR37-600-70	37A	100-240V AC	22kW	1SFA896110R7000	One specification larger than PSR30
PSR45-600-70	45A	100-240V AC	30kW	1SFA896111R7000	For higher power adaptation

Full PSR Series Current Coverage

PSR3→PSR6→PSR9→PSR12→PSR16→PSR25→PSR30→PSR37→PSR45→PSR60→PSR72→PSR85→PSR105

Corresponding Models in Other ABB Series

ABB soft starters include 4 major series with different positioning. The following are alternative models matching the function/power of PSR30-600-70:

Series	Model	Rated Current	Main Features	Application Scenarios
PSE (Easy Range)	PSE30-600-70	30A	1.57 times current limit adjustment, built-in bypass, more comprehensive protection	Higher starting performance requirements, need for flexible current limiting
PSS (Universal Range)	PSS30-600-70	30A	Torque control, multiple starting modes, communication functions	Complex industrial applications, need for remote monitoring
PSTX (Intelligent Range)	PSTX30-600-70	30A	Full digital control, LCD display, 17 languages, dynamic braking	High-end applications, need for precise control and diagnosis

Core Difference Comparison of Series

Feature	PSR Series	PSE Series	PSS Series	PSTX Series
Control Method	2-phase control	3-phase control	3-phase control	3-phase control
Starting Mode	Voltage ramp	Voltage ramp + current limit	Voltage ramp + torque control	Multiple intelligent modes
Communication Function	None	Optional	Standard configuration	Standard configuration
Display Interface	Indicator light	Indicator light	LED display	Full LCD display
Protection Function	Basic protection	Comprehensive protection	Advanced protection	Complete protection + early warning
Price Range	Economic	Mid-range	Mid-to-high range	High-end

III. Corresponding Models of Competitive Brands

The following are soft starter models of mainstream market brands with equivalent functions to PSR30-600-70 (30A, 18.5kW/400V):

Brand	Model	Rated Current	Applicable Power	Main Features
Schneider	ATS22D32Q	32A	18.5kW	Built-in bypass, integrated motor protection, Modbus communication
Siemens	3RW3028-1BB14	30A	18.5kW	Compact design, voltage ramp start, fault memory
Chint	NJR2-30	30A	18.5kW	Economic type, basic protection functions, simple operation
Delixi	CDRA30	30A	18.5kW	Overcurrent, phase loss, overheating protection, compact size

Selection and Replacement Suggestions
Intra-series Replacement: Prioritize PSR30-600-81 (24V control) or PSR37-600-70 (higher margin) with the same mounting dimensions and compatible wiring.
Upgrade Replacement:

For adding current limiting function → select PSE30-600-70

For communication and torque control → select PSS30-600-70

For advanced diagnosis and display → select PSTX30-600-70

Cross-brand Replacement: Choose products with the same rated current (around 30A) and control voltage (100-240V AC), and pay attention to confirming differences in mounting dimensions and wiring methods.
Key Matching Parameters: Ensure that rated current ≥ motor rated current, main circuit voltage ≥ supply voltage, and control voltage matches the control system.
