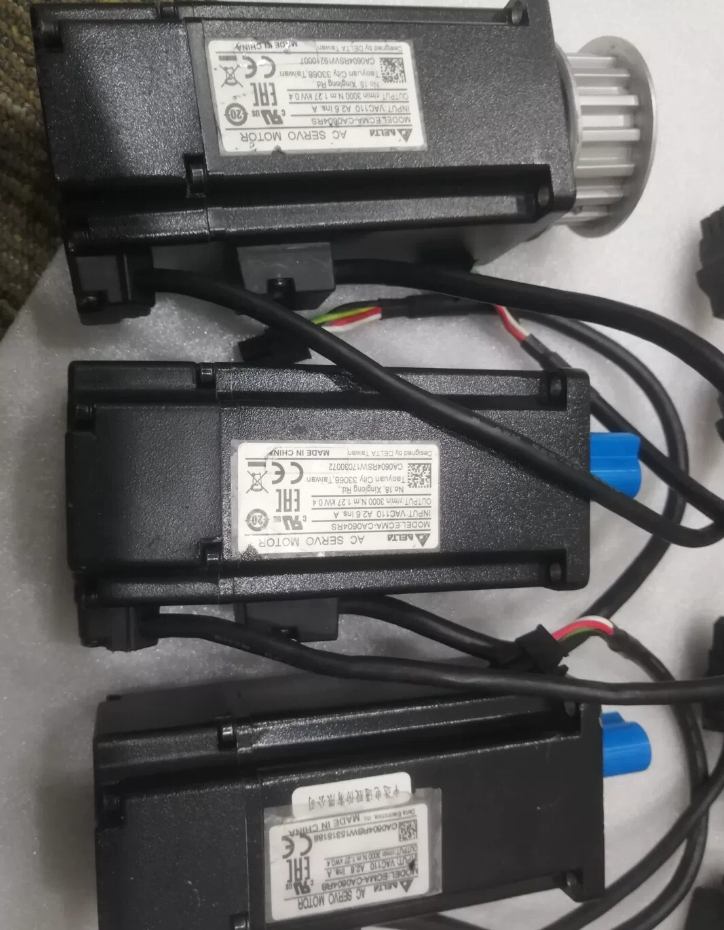

Delta Servo Motor ECMA-CA0604RS

1. Model Code Explanation

2. Core Technical Specifications

3. Operating Environment and Installation Conditions
4. Operating Temperature: 0°C ~ 40°C (derate by 1% for each 1°C rise above 40°C)
5. Storage Temperature: -20°C ~ 65°C
6. Relative Humidity: 10% ~ 90%RH (non-condensing)
7. Mounting Method: Flange mounting (IEC standard), can be fitted with gearboxes, pulleys and other transmission components
8. Vibration Level: Complies with IEC 60068-2-6, max. 2.5g (10~2000Hz)
9. Altitude: ≤1000m (derate above 1000m)
10. Model List in the Same Series (60mm Frame, 400W)

5. Alternative Model Solutions

5.1 Recommended New-Generation Delta Replacements

5.2 Other Brand Alternatives

6. Key Features and Applications

Core Features

High-precision Positioning: 17-bit absolute encoder ensures accurate position control

High-speed Response: Response frequency up to 1kHz, settling time <1ms

Vibration Suppression: Built-in automatic low-frequency vibration and high-frequency resonance suppression

Flexible Control: Supports position / speed / torque modes, 64 internal position programming groups

Communication Compatibility: Works with ASDA-A2 drives, supports CANopen, DMCNET, EtherCAT and other industrial protocols

Typical Applications

1. Electronics Manufacturing: SMT machines, semiconductor equipment, PCB drilling machines
2. Packaging Machinery: High-speed packaging lines, labelers, bag making machines
3. Machine Tools: Small CNC milling machines, engravers, cutters
4. Automated Production Lines: Conveying systems, robot joints, precision positioning stages
5. Printing Equipment: Web printing presses, register control for label printers
6. Ordering and Notes
7. Standard Package: Motor body, power cable connector, encoder cable connector, mounting flange, key
8. Optional Accessories: Brake resistor, gearbox, coupling, motor cover
9. Drive Matching: Must use ASD-A2 series 400W drive (ASD-A2-0421-M/L/E) or upgrade to B3/A3 series
10. Installation Notes: Coaxiality error between motor shaft and load shaft <0.05mm; avoid radial load exceeding rated value

Delta ECMA Series Servo Motor Model List & Price Guide

1. Complete Model Naming Convention

2. Complete Model List (By Inertia Class)

2.1 Low Inertia C Series (220V, 3000rpm)

2.2 Medium Inertia E Series (220V, 2000rpm)

2.3 Medium-High Inertia F Series (220V, 1500rpm)

2.4 Other Special Series

3. Price Reference Table (Latest as of Mar 2026)

4. Price Influencing Factors
5. Inertia Class: Low inertia (C series) is the lowest priced; extra-high inertia (J series) is the highest, with a difference of over 3x
6. Encoder Type: Absolute encoder (CA series) is 15%~20% more expensive than incremental (C2 series)
7. Brake Configuration: Models with brake (SS) are 10%~15% more expensive than non-brake (RS)
8. Power Rating: Doubling power typically increases price by 40%~60%
9. Purchase Channel: Stable pricing from authorized distributors; e-commerce platforms offer 10%~15% lower during promotions; second-hand market 30%~50% lower
10. Recommended Alternative Models

5.1 Delta New-Generation Alternatives

5.2 Other Brand Alternatives

6. Purchasing Recommendations
7. Channel Selection: Prioritize Delta authorized distributors to ensure genuine products and full 18-month warranty
8. Bulk Purchase: Orders over 10 units qualify for 10%~15% volume discount
9. New vs Old: New B3/A3 series offer significant performance improvements; recommended upgrade if budget allows
10. Accessory Matching: Servo motors must be used with Delta ASDA series drives; ASD-A2/B2/B3/A3 series recommended

All prices are exclusive of tax. 13% VAT will be added for actual purchases. Prices may vary due to market fluctuations, order quantity and promotions. Please confirm latest pricing with Delta authorized distributors before purchase.
