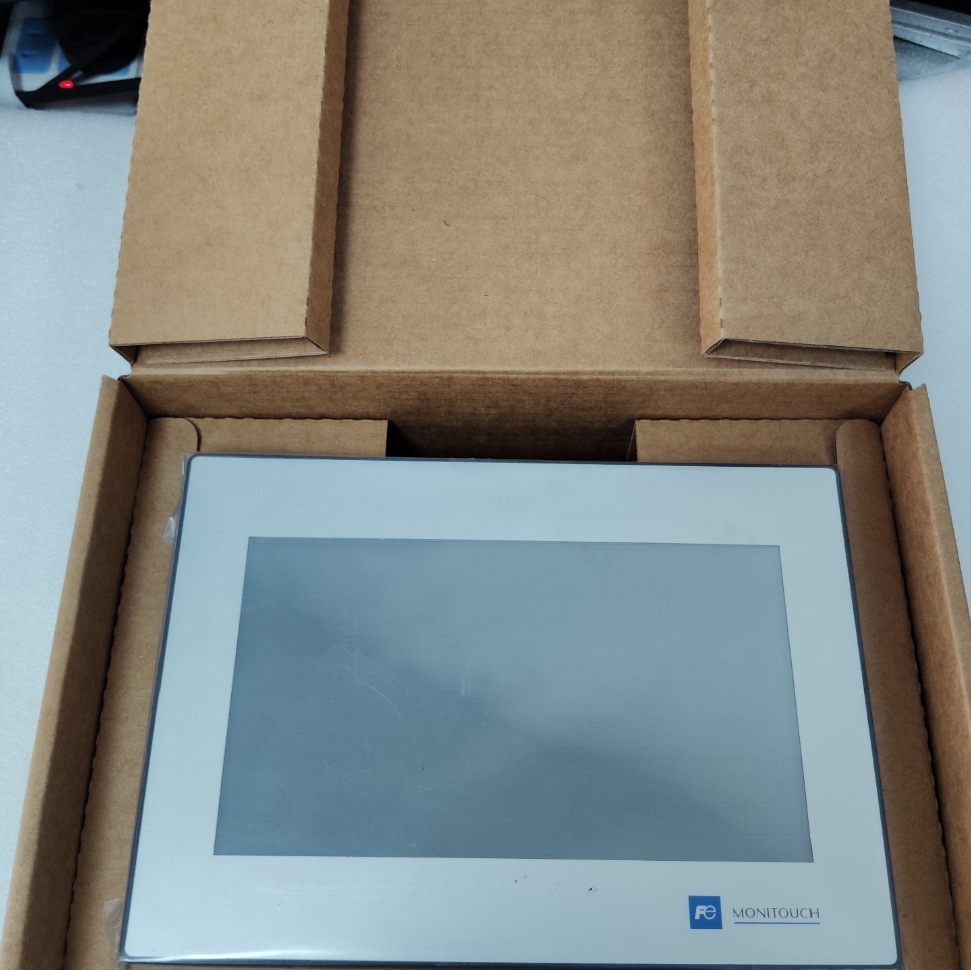

Fuji TS1100i Touch Screen

(TECHNOSHOT Series)

Fuji TS1100i is a 10.2-inch wide-screen Human Machine Interface (HMI) from Fuji Electric’s MONITOUCH TECHNOSHOT series. The suffix “i” in the model number indicates a built-in 100BASE-TX/10BASE-T Ethernet port, making it the network-enhanced version of the TS1100.

1. Core Specifications

2. Main Features
3. Enhanced Network Functions (i-series exclusive)

Remote maintenance: remote monitoring and control via Ethernet

FTP server: supports reading/writing USB drive data

Network camera connection: displays IP camera feeds for production line monitoring

Ladder program transfer: transfers ladder logic between PC and PLC via Ethernet or USB

2. Multi-language Support

Supports switching between up to 16 languages on a single screen without separate file management

Supports Simplified Chinese, Traditional Chinese, Japanese, English, and more

3. Efficient Programming & Data Management

Composite parts function: groups multiple components into one functional module

Trend sampling: records data over time and displays as trend graphs

Operation log: records button operations and value inputs chronologically

Security function: up to 16 user authority levels to protect critical operations

Upload prohibition: prevents screen data from being extracted to protect intellectual property

4. Rich Hardware Interfaces

3 serial ports for connecting to various PLCs, temperature controllers, inverters, etc.

USB ports for connecting barcode scanners, printers, and other peripherals

Built-in real-time clock with monthly deviation of only ±5 seconds (at 25°C)

3. Programming Software & Compatibility

Programming Software: V-SFT-5 / V-SFT-6 (Fuji dedicated HMI programming software)

Remote Maintenance Tools: TELLUS and V-Server Lite (free with V-SFT-5 Ver.5.4.28.0 and above)

PLC Compatibility: Supports major PLC brands including Fuji, Mitsubishi, Omron, Siemens, etc.

Extended Functions: Supports network camera connection, multi-language switching, data sampling and logging, and other advanced features

4. Model Comparison (TS1100 Series)

5. Application Scenarios

Monitoring and control of industrial automation production lines

Operator interface for machining equipment

HVAC system control

Water treatment and environmental monitoring systems

Food and beverage processing equipment

Distributed control systems requiring remote maintenance and data acquisition

6. Selection Recommendations & Notes
7. Selection Points

Choose models with the “i” suffix for network functions (remote monitoring, FTP, etc.)

Select TS1101i (UL/cUL certified) for North American market applications

For outdoor or humid environments, always use a waterproof gasket to ensure IP65 protection

2. Precautions

Not a safety-rated device; not recommended for critical systems involving personal safety

Installation altitude ≤ 2000 meters; avoid environments with conductive dust or corrosive gases

Programming software must be V-SFT-5 or later, supporting Windows XP through Windows 10

7. Alternative Model Reference

Upgraded model in the same series: TS1100Si (higher performance, FROM 26MB)

Alternatives from other brands:

Mitsubishi GT2310-VTBA (10.4-inch, 800×480)

Siemens KTP1000 Basic (10.4-inch, 800×480)

Schneider Magelis GTO 10 (10-inch, 800×480)

Operating System Support for Fuji TS1100i Touch Screen

Operating system support for the Fuji TS1100i touch screen (MONITOUCH TECHNOSHOT series) falls into two categories: the HMI’s own embedded system and the operating environment for programming software.

1. Embedded System of the Touch Screen

The Fuji TS1100i uses a proprietary embedded real-time operating system developed by Fuji Electric, not a general-purpose OS such as Windows CE or Linux. This system is designed specifically for industrial HMIs with the following features:

Highly optimized real-time response for fast PLC data communication and user operation processing

Built-in network protocol stack (i-series exclusive) supporting 100BASE-TX/10BASE-T Ethernet communication

Integrated MONITOUCH dedicated runtime environment compatible with HMI projects created in V-SFT

No additional installation or configuration required; pre-installed and locked at the factory

The specific name and kernel version of this embedded OS are not disclosed in official Fuji documentation as they are proprietary.

2. Supported Operating Systems for V-SFT Programming Software

Project development for the TS1100i requires Fuji’s dedicated programming software V-SFT Ver.5 or Ver.6, which runs only on Windows and does not support macOS, Linux, or other systems. Official recommended system requirements:

1. Full Windows 11 support is available in V-SFT Ver.6.2.5 and later
2. Software installation requires Administrator privileges
3. Windows Server editions are not supported; only desktop Windows versions
4. Remote Access Support

The i-series TS1100i with built-in Ethernet supports the following remote access methods without additional OS requirements:

1. VNC server: remote operation of HMI screens via VNC client (Windows/macOS/Linux compatible)
2. FTP server: read/write USB data and HMI project files
3. Ladder program transfer: transfer programs between PC and PLC via Ethernet
4. Remote maintenance tools: TELLUS and V-Server Lite (free with V-SFT-5 Ver.5.4.28.0+)
5. The Fuji TS1100i uses a Fuji proprietary embedded real-time operating system that requires no user management
6. The development environment requires Windows 7/8.1/10/11 (32/64-bit) to run V-SFT programming software
7. Remote access is available across multiple operating systems using standard VNC/FTP protocols

Complete Model List of Fuji Electric MONITOUCH Touch Screens

Fuji Electric’s MONITOUCH touch screen portfolio consists of three core lines: the entry-level TECHNOSHOT series, high-performance V9/V10 series, and Windows-based X1 series. Below is a complete model list organized by series, including size, core configuration, and model differences.

1. TECHNOSHOT Series (Entry-level HMI)

1.1 TS1000 Series (Classic Basic Models)

1.2 TS2000 Series (Compact New Models)

1.3 TS4000 Series (New Generation Entry Models)

2. V9 Series (High-performance HMI)

The V9 series includes Lite, Standard, and Advanced sub-series, covering 5.7–15-inch sizes.

2.1 V9 Lite Series

2.2 V9 Standard Series

2.3 V9 Advanced Series

2.4 V9 Ex Series (Flameproof / Explosion-proof)

3. V10 Series (Flagship High-performance HMI)

The V10 series features a new architecture, breakthrough operating speed, and 16-language switching, available in 7.5–15-inch sizes.

4. X1 Series (Windows-based HMI)

The X1 series uses a quad-core CPU + Windows OS, supporting complex data processing and third-party software for high-end automation systems.

5. Model Naming Convention

Suffix meanings for Fuji touch screens:

i: Built-in 100BASE-TX/10BASE-T Ethernet port (network version)

S: Smart series (FROM expanded to 26MB)

D: Ethernet port (some V9 models)

W: Wide screen

L: LED backlight (selected models)

R: Remote access function (selected advanced models)

1: UL/cUL certified (North American market models, e.g., TS1101i)

C/S/X: Screen size codes (C=8.4″, S=12.1″, X=15″)

6. Series Positioning & Selection Guide

7. Supplementary Notes
8. Discontinued Models: Legacy UG series (e.g., UG430H-TH1) and POD series have been gradually replaced by the above lines
9. Programming Software: All models support V-SFT-5/V-SFT-6, compatible with Windows 7/8.1/10/11
10. Network Function: All “i”-suffixed models include Ethernet, supporting VNC, FTP, and remote maintenance
11. Certification: TS1071/1101/1121/1151 series and selected V9/V10 models carry UL/cUL certification for North America
