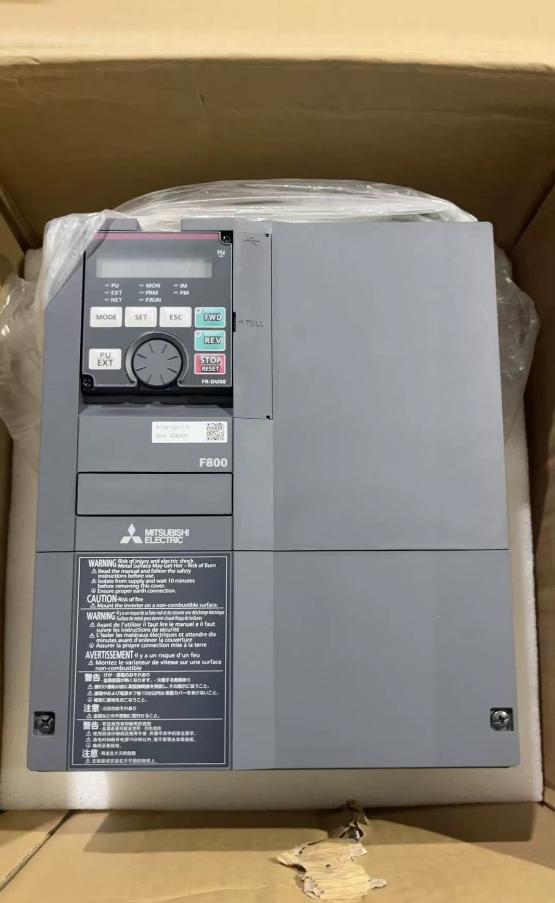

Mitsubishi Inverter FR-F840-00250-2-60

Detailed Model Interpretation (Mitsubishi F800 Series Naming Rules)

1. Core Technical Specifications

III. Product Positioning & Core Advantages

3.1 Series Positioning

The FR-F800 series is a new-generation energy-saving general-purpose inverter from Mitsubishi Electric, positioned as a balanced choice of high performance and reliability. It is specially designed for fluid machinery such as fans, pumps, compressors, and general industrial loads, balancing energy saving and control accuracy.

3.2 Core Functional Highlights

1. Typical Applications
2. Fluid Machinery (Core Applications)

Centrifugal / axial fans: Precise air volume control via variable speed, remarkable energy saving

Centrifugal / submersible pumps: Constant-pressure water supply, reduces pipe network loss and avoids water hammer

Air compressors: Automatic speed adjustment based on air pressure, reduces no-load power consumption

2. Industrial Automation

Conveyors: Smooth start/stop, multi-speed control, improves productivity

Mixing equipment: Constant torque control ensures uniform mixing

Machine tool auxiliaries: Cooling pumps, lubrication pumps, etc., for precise flow control

3. Special Applications

Textile machinery: Constant linear speed control ensures fabric quality

Printing machinery: Tension control improves registration accuracy

Central air conditioning systems: Energy-saving renovation of chilled water pumps and cooling water pumps

1. Complete Models & Alternatives

5.1 Related Models in the Same Series (400V, 11kW)

5.2 Official Replacement & Upgraded Models

5.3 Other Brand Alternatives (11kW, 400V-class)

1. Operation & Maintenance Guidelines
2. Installation Notes

Install vertically with ≥100mm clearance above/below and ≥50mm left/right for ventilation

Avoid direct sunlight, heat sources, and strong vibration

Install ventilation fans in control cabinet to keep ambient temperature ≤40℃ (SLD)

2. Wiring Standards

Route main circuit and control circuit separately to reduce EMI

Use shielded power cables with single-point grounding of shielding layer

Keep braking resistor wiring short and thick to avoid voltage drop affecting braking performance

3. Maintenance Schedule

Daily inspection: Operating status, abnormal noise, vibration

Periodic maintenance:

Every 6 months: Clean heat sinks, check fan operation

Annually: Inspect capacitor performance, terminal tightening, insulation test

Every 3 years: Replace cooling fan and main circuit capacitors

VII. Official Ordering Information

Complete Model List of Mitsubishi FR Series Inverters

1. General Model Naming Rules

Mitsubishi FR series inverters follow a unified naming convention, illustrated by FR-F840-00250-2-60:

1. Complete Model List of Mainstream Series
2. FR-A800 Series (High-Performance General-Purpose)

Positioning: High-precision industrial automation control, sensorless / PG vector control, fast dynamic response, for all loads

1.1 200V Class (FR-A820)

Power range: 0.4kW~90kW, Input: Three-phase AC 200V~240V

1.2 400V Class (FR-A840)

Power range: 0.75kW~315kW, Input: Three-phase AC 380V~480V

1.3 High-Power 400V Class (FR-A842)

Power range: 355kW~560kW, Input: Three-phase AC 380V~480V

2. FR-F800 Series (Fan & Pump Dedicated)

Positioning: Energy-saving control for fluid machinery, built-in fan/pump algorithms, excellent energy efficiency

2.1 200V Class (FR-F820)

Power range: 0.75kW~90kW, Input: Three-phase AC 200V~240V

2.2 400V Class (FR-F840)

Power range: 0.75kW~315kW, Input: Three-phase AC 380V~480V

2.3 High-Power 400V Class (FR-F842)

Power range: 355kW~560kW, Input: Three-phase AC 380V~480V

3. FR-E800 Series (Economical General-Purpose)

Positioning: Cost-effective, complete basic functions, for budget-sensitive applications

3.1 200V Class (FR-E820)

Power range: 0.1kW~15kW, Input: Single/three-phase AC 200V~240V

3.2 400V Class (FR-E840)

Power range: 0.4kW~75kW, Input: Three-phase AC 380V~480V

4. FR-D800 Series (Compact General-Purpose)

Positioning: Small size, practical functions, space-limited installations, replaces old D700 series

4.1 200V Class (FR-D820)

Power range: 0.1kW~15kW, Input: Single/three-phase AC 200V~240V

4.2 400V Class (FR-D840)

Power range: 0.4kW~15kW, Input: Three-phase AC 380V~480V

5. Special Series Models

5.1 FR-A800 Plus Series

Positioning: Enhanced A800, supports industrial Ethernet (EtherNet/IP, PROFINET) for smart factories

5.2 FR-XC Series (Ultra-Compact)

Positioning: Smallest size (50% smaller than standard), for embedded installation

5.3 FR-B Series (Specialized)

Positioning: Matched with Mitsubishi special motors, low torque ripple for industry-specific use

III. Discontinued Series (Replacement Reference)

1. Model Quick Selection Guide
2. Series Selection

High-precision control: Choose A800 series

Fan/pump energy saving: Choose F800 series

Budget priority: Choose E800 series

Space-limited: Choose D800/XC series

2. Power–Current Correspondence (400V class)

3. Specification Code Selection

Standard industrial environment: Use -2-60 (no EMC filter)

Complex electromagnetic environment: Use -E2-60 (built-in EMC filter)

Harsh environment (dust/humidity): Use -2-60C (coated protection)

Mitsubishi FR Series Inverter · Quick Selection Chart (Concise Version)

Compiled for mainstream 400V three-phase applications; 220V summary and suffix meanings attached.

1. FR-F840 (400V) Fan & Pump Dedicated · Energy-Saving

Applications: Fans, pumps, air compressors, central AC, constant-pressure water supply

Overload: SLD 110% 60s / LD 150% 60s

1. FR-A840 (400V) High-Performance General · Vector Type

Applications: Machine tools, conveyors, hoists, mixers, precision speed control

Overload: 150% 60s, high-performance vector control

III. FR-E840 (400V) Economical General · Cost-Effective

Applications: Simple fans/pumps, small machinery, conveyors, light loads

1. 200V Class · Quick Summary (FR-F820 / A820 / E820)

Input: 3AC 200~240V; model logic same as 400V, only series number changes from 840 → 820

0.75kW / 1.5kW / 2.2kW / 3.7kW / 5.5kW / 7.5kW / 11kW / 15kW / 18.5kW / 22kW / 30kW

Corresponding models: FR-F820-xxx-2-60, FR-A820-xxx-2-60, FR-E820-xK

1. Model Suffix Meaning (Direct Reference)

Using FR-F840-00250-2-60 as example:

1. One-Sentence Selection Advice

Fans / pumps / energy saving priority → FR-F840

High precision / heavy load / machine tools → FR-A840

Simple light load / limited budget → FR-E840
