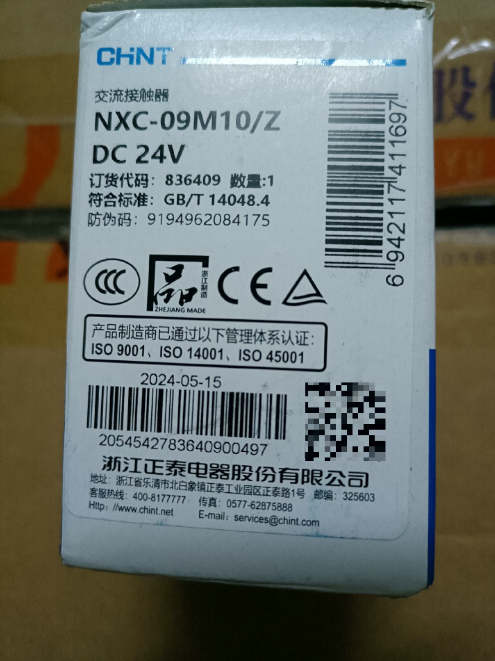

NXC-09M10-Z DC24V Contactor

NXC-09M10-Z DC24V is a mini DC coil contactor from CHINT Kunlun NXC series, featuring 3P, 9A, 1 NO auxiliary contact, and DC24V control. It is used in DC control circuits, PLC control systems, and automated equipment.

1. Model Explanation (Precise Breakdown)

NXC: CHINT Kunlun series contactor

09: Rated operational current 9A (AC-3)

M: Miniature type (compact size)

10: Auxiliary contact-1 NO (1 Normally Open)

Z: DC coil

DC24V: Coil voltage 24V DC

2. Key Technical Parameters

Item  Specification

Series  NXC (Kunlun Miniature)

Poles  3P (3-pole)

Main contacts  3 NO (3 Normally Open)

Auxiliary contact  1 NO (1 Normally Open)

Rated current (Ie)  9A (AC-3, 380V)

Coil voltage  DC24V

Rated insulation voltage  690V

Conventional thermal current  10A

Operating frequency  1200 operations/hour

Mechanical endurance  10 million operations

Electrical endurance  1 million operations

Mounting  35mm DIN rail / screw mounting

Dimensions (W×H×D)  45.5×82×58mm

Weight  Approx. 0.25kg

Certifications  CCC, CE

3. Main Features

Miniature size: Saves cabinet space, ideal for compact distribution boards

DC coil (DC24V): Suitable for PLCs, DC control circuits, and automation systems

Low power consumption, long service life: Energy-saving coil, good voltage fluctuation resistance

Flame-retardant housing: UL94 V0 flame rating, safe and reliable

Matchable: Can be used with NXR series thermal relays to form motor protection circuits

4. Applications

PLC output control (24V DC systems)

Control of small motors, fans, pumps

Automated equipment, machine tools, packaging machinery

DC control circuits, solenoid valves, lighting

Compact installation in power distribution cabinets, control cabinets

5. Alternative / Similar Models in the Same Series

NXC-09M01-Z DC24V: 3P 9A, 1 NC (1 Normally Closed)

NXC-09M/22-Z DC24V: 3P 9A, 2 NO + 2 NC

NXC-06M10-Z DC24V: 3P 6A, 1 NO

NXC-12M10-Z DC24V: 3P 12A, 1 NO

Legacy replacement: NC1-0910Z DC24V

The CHINT NXC series (Kunlun series) is an upgraded version of CJX2, covering 6A~630A, and is divided into standard type (N), miniature type (M), DC type (Z), 4P, etc. Below is the complete model list, naming rules, order numbers, and cross-brand replacements with Schneider / Siemens / ABB.

1. Complete NXC Naming Rule

NXC-[Current]-[Auxiliary]-[Type]-[Coil]

NXC: Kunlun series contactor

06/09/12/18/25/32/38/40/50/65/80/95/100…630: Rated current (AC-3) in amps

M: Miniature type (compact, 06~12A)

10/01/11/22: Auxiliary contacts

10 = 1 NO

01 = 1 NC

11 = 1 NO + 1 NC (standard)

22 = 2 NO + 2 NC

Z: DC coil

Coil voltage: AC24V/36V/110V/220V/380V; DC24V/48V/110V/220V

Examples:

NXC-09M10-Z DC24V: Miniature, 9A, 1 NO, DC24V

NXC-1811 AC220V: Standard, 18A, 1 NO+1 NC, AC220V

2. Complete NXC Model List (Mainstream)

1) Miniature Type (M: 06~12A, compact)

NXC-06M10 / 06M01 / 06M11 / 06M22 (AC/DC)

NXC-09M10 / 09M01 / 09M11 / 09M22 (AC/DC)

NXC-12M10 / 12M01 / 12M11 / 12M22 (AC/DC)

DC models: Suffixed with -Z (e.g. NXC-09M10-Z DC24V)

2) Standard Type (N: 18~100A, general-purpose)

NXC-1810 / 1801 / 1811 / 1822

NXC-2510 / 2501 / 2511 / 2522

NXC-3210 / 3201 / 3211 / 3222

NXC-3810 / 3801 / 3811 / 3822

NXC-4010 / 4001 / 4011 / 4022

NXC-5010 / 5001 / 5011 / 5022

NXC-6510 / 6501 / 6511 / 6522

NXC-8010 / 8001 / 8011 / 8022

NXC-9510 / 9501 / 9511 / 9522

NXC-10010 / 10001 / 10011 / 10022

3) High Current (120~630A)

NXC-120 / 160 / 225 / 265 / 330 / 400 / 500 / 630

Auxiliary: Standard 2 NO + 2 NC

Coil: AC/DC universal (220V/380V)

4) 4-Pole (4P: 06M~12M)

NXC-06MD4 (4P, DC type)

NXC-09MD4

NXC-12MD4

3. CHINT NXC Official Order Numbers (Partial)

NXC-06M10 AC220V: 710010100000627

NXC-09M10 AC220V: 710010100000491

NXC-09M10-Z DC24V: 710010100001024

NXC-12M10 AC220V: 710010100000499

NXC-1811 AC220V: 710010100000631

NXC-2511 AC220V: 710010100000578

NXC-3211 AC220V: 710010100000283

NXC-3811 AC220V: 710010100000610

NXC-5011 AC220V: 710010100000277

NXC-6511 AC220V: 710010100000278

NXC-8011 AC220V: 710010100000279

NXC-9511 AC220V: 710010100000280

4. Cross-Brand Replacement Cross-Reference (NXC ↔ Schneider / Siemens / ABB)

1) Miniature DC (Example: NXC-09M10-Z DC24V)

CHINT: NXC-09M10-Z DC24V

Schneider: LC1-D09BDC (DC24V) / Order No.: LC1D09BD

Siemens: 3RT6016-1BB41 (DC24V)

ABB: A9-30-10 DC24V / Order No.: 1SBL141001R8110

2) Full Model Cross-Reference (3P 1NO+1NC AC220V)

5. Selection Guidelines

Miniature M: Limited cabinet space, PLC DC control (DC24V)

Standard N: General motors, fans, pumps, power distribution

DC type Z: Solenoid valves, DC circuits, automation equipment

Auxiliary contacts: 10(1NO), 01(1NC), 11(1NO+1NC), 22(2NO+2NC)
