Basic Information

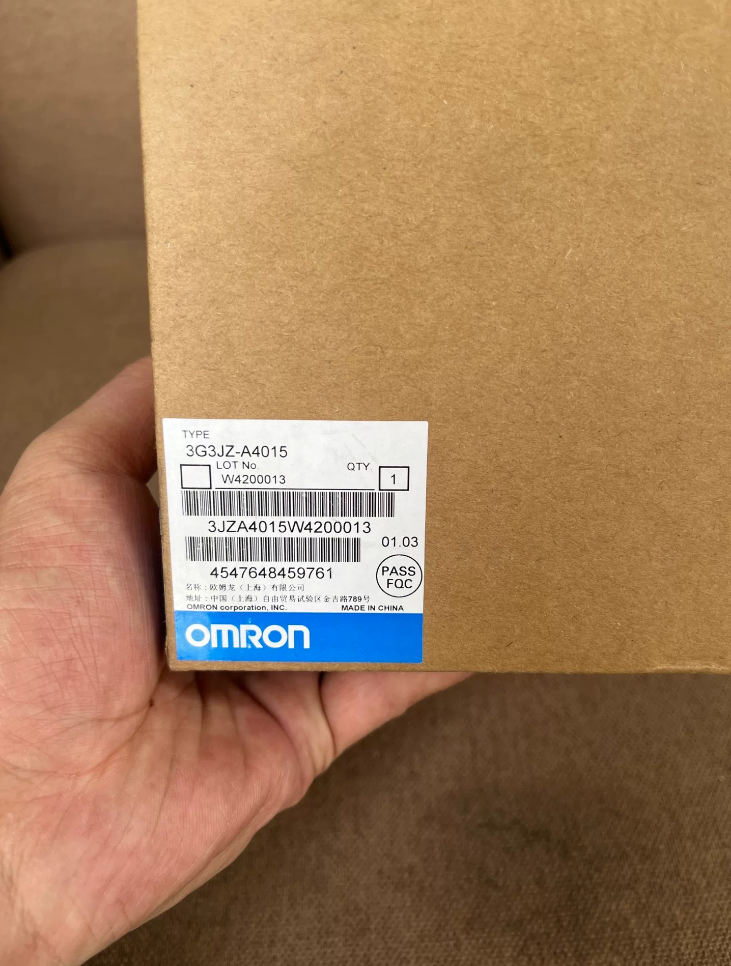

Model: 3G3JZA4015 (SYSDRIVE 3G3JZ Series)
Product Type: 3phase 400V Class Compact Intelligent Inverter
Rated Power: 1.5 kW (some documents incorrectly show 15 kW; actual is 1.5 kW)
Voltage Class: 3phase AC 380480 V (400V class)
Control Core: DSP Digital Signal Processor
Protection Degree: IP20 (indoor installation)
Cooling Method: Forced air cooling
Weight: Approx. 1.2 kg
- Electrical Specifications
| Item | Specification |
| Rated Input | 3‑phase AC 380‑480 V ±15%, 50/60 Hz |
| Rated Output | 3‑phase AC 0‑480 V, 0‑600 Hz, 3.8 A (for 1.5 kW motor) |
| Overload Capacity | 150% of rated current for 60 seconds |
| Control Method | V/f control (constant torque / reduced torque selectable) |
| Carrier Frequency | 2‑12 kHz (auto‑reduction available) |
| Accel/Decel Time | 0.01‑3000 sec (linear / S‑curve selectable; 2nd set available) |
| Frequency Resolution | Analog setting: Max frequency / 1000; Digital setting: 0.01 Hz |
- Key Features
- Performance Advantages
High torque at low speed: 150% torque at 0.5 Hz
Automatic torque compensation and slip compensation for load variation
High carrier frequency for quiet motor operation
- I/O and Communication
6 multifunctional digital inputs, 2 relay outputs, 1 analog input (010 V / 020 mA), 1 analog output
Builtin RS485 port, supports Modbus protocol for network control
Dual keypad operation (local + remote, up to 1 km)
- Intelligent Functions
3level menu for easy setup; 150 parameters for flexible configuration
Fan extendedlife mode to reduce power consumption and noise
Automatic energy saving, surge voltage suppression, PTC thermistor input
2nd motor parameter set, emergency stop, overcurrent detection
- Installation and Compatibility
Mounting: Sidebyside installation, spacesaving
Environment: Operating temp 040°C, humidity 2090%RH (noncondensing)
Compatible Motors: 3phase induction motors (0.41.5 kW)
Configuration: PC software for parameter setting and debugging
- Typical Applications
- General Industry: Fans, pumps, conveyors, mixers
- Manufacturing: Packaging machinery, printing equipment, textile machines, food processing lines
- Building Materials: Small machine tools, woodworking machinery, stone processing
- Retrofitting: Old equipment upgrade, systems needing precise speed control and energy saving
- Replacement and Upgrade
Series Upgrade: 3G3JXA4015 (richer functions, builtin EMC filter)
Alternative Model: Omron 3G3MX2 Series (supports vector control and fieldbus communication)
- Complete Model List of Omron 3G3JZ Series (Order No.)
Classified by voltage + power, covering 0.2–3.7 kW:
| Power Supply | Prefix | Last 3 Digits = Power | Full Model List |
| 1‑phase AC 200V | AB | 002=0.2kW | 3G3JZ-AB002 |
| 004=0.4kW | 3G3JZ-AB004 | ||
| 007=0.75kW | 3G3JZ-AB007 | ||
| 015=1.5kW | 3G3JZ-AB015 | ||
| 022=2.2kW | 3G3JZ-AB022 | ||
| 037=3.7kW | 3G3JZ-AB037 | ||
| 3‑phase AC 200V | A2 | 002=0.2kW | 3G3JZ-A2002 |
| 004=0.4kW | 3G3JZ-A2004 | ||
| 007=0.75kW | 3G3JZ-A2007 | ||
| 015=1.5kW | 3G3JZ-A2015 | ||
| 022=2.2kW | 3G3JZ-A2022 | ||
| 037=3.7kW | 3G3JZ-A2037 | ||
| 3‑phase AC 400V | A4 | 004=0.4kW | 3G3JZ-A4004 |
| 007=0.75kW | 3G3JZ-A4007 | ||
| 015=1.5kW | 3G3JZ-A4015 | ||
| 022=2.2kW | 3G3JZ-A4022 | ||
| 037=3.7kW | 3G3JZ-A4037 |
- SameBrand Replacement / Upgrade Models
Upgrade in same series: 3G3JXA××× (similar functions, some with builtin EMC filter)
Higherend replacement: 3G3MX2A××× (supports vector control, parameter/wiring adaptation required)
Samelevel replacement: 3G3JVA××× (simpler functions, hardware interface compatible)
- CrossBrand Replacement Models
| Original 3G3JZ | Schneider | Siemens | Mitsubishi | Delta |
| AB004/AB007 | ATV12H037M2 / ATV12H075M2 | 6SL3210‑1KE12‑2UB1 | FR‑D720S‑0.4K / FR‑D720S‑0.75K | VFD004EL21A / VFD007EL21A |
| A4004/A4007 | ATV312H037N4 / ATV312H075N4 | 6SL3210‑1KE14‑3UB1 | FR‑D740‑0.4K‑NA / FR‑D740‑0.75K‑NA | VFD004EL43A / VFD007EL43A |
| AB015/AB022 | ATV12H15M2 / ATV12H22M2 | 6SL3210‑1KE17‑5UB1 | FR‑D720S‑1.5K / FR‑D720S‑2.2K | VFD015EL21A / VFD022EL21A |
| A4015/A4022 | ATV312H15N4 / ATV312H22N4 | 6SL3210‑1KE18‑9UB1 | FR‑D740‑1.5K‑NA / FR‑D740‑2.2K‑NA | VFD015EL43A / VFD022EL43A |
- Selection & Replacement Notes
- Voltage matching: AB = 1phase 200V; A2/A4 = 3phase 200V/400V. Do not mismatch.
- Power matching: Last 3 digits (e.g., 015 = 1.5 kW). Keep power consistent when replacing.
- Interface compatibility: 3G3JZ has builtin RS485 (Modbus). Confirm port and protocol.
- Terminals & dimensions: Prefer samesize models to minimize wiring and modification.
