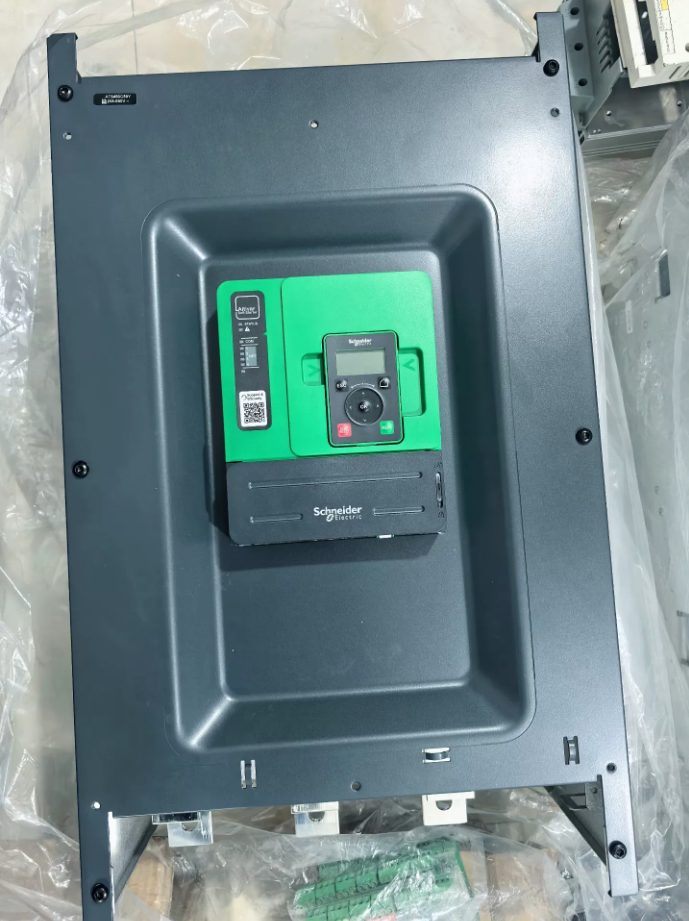

Schneider ATS480C59Y Soft Starter

Schneider ATS480C59Y is a three-phase AC motor soft starter of the Altivar ATS480 series, with a rated current of 590A and applicable to a voltage range of 208-690V. It can control a maximum power of 560kW (at 690V), designed specifically for normal and heavy-duty applications. It provides smooth motor start and stop control, protecting the motor and related equipment from electrical stress.

1. Core Technical Parameters

1. Main Functions and Features
2. Advanced control algorithm: Adopts “Adaptive Boost” technology to provide customized starting torque, overcoming initial static friction without over-torque and ensuring smooth start-up.
3. Multiple start/stop modes:

Voltage ramp start

Current limit start

Soft stop function (reduces water hammer effect)

Built-in pump control curve (suitable for water pump applications)

3. Comprehensive protection functions:

Overcurrent and overload protection

Mains phase loss protection

Phase sequence protection

Underload/overload detection

Overheating protection

Short-circuit protection (external circuit breaker required)

4. Communication capability: Supports various industrial communication protocols such as Modbus TCP, Ethernet/IP, CANopen, PROFINET and PROFIBUS DP, facilitating integration into automation systems.
5. User-friendly interface: Equipped with a display terminal that provides parameter setting, status monitoring and fault diagnosis functions, with Chinese display support.
6. Flexible installation: Wall-mountable, suitable for standard electrical cabinet layout.

III. Application Scenarios

ATS480C59Y is suitable for various industrial applications requiring smooth start and precise control, especially for:

Water pump systems: Reduces pipeline water hammer effect and protects pumps and pipeline equipment.

Fan systems: Lowers starting current and reduces mechanical stress.

Compressors: Enables smooth loading and extends equipment service life.

Conveyors: Prevents material sliding or damage during start-up.

Centrifuges: Achieves smooth acceleration and improves operational stability.

Heavy machinery: Reduces starting impact and protects the transmission system.

1. Selection and Replacement Reference

Intra-series alternative models: ATS480D62Y (620A), ATS480C54Y (540A)

Performance-equivalent model: Schneider ATS48C59Y (corresponding model of the original series)

Cross-brand alternatives: Consider soft starters of the same specification such as ABB PSTX series, Siemens 3RW55 series and Rockwell 150-C series.

1. Notes
2. Ensure good ventilation during installation to avoid performance impact caused by overheating.
3. Must be used with circuit breakers and fuses of appropriate specifications.
4. The control power supply shall be independent of the main power supply to ensure the stability of the control circuit.
5. Set parameters correctly before start-up, especially current limit and start-up time.
6. Regularly inspect the cooling fan and connection terminals to ensure normal operation of the equipment.

Model Interchange Guide for Schneider ATS480 Series and Soft Starters of Other Brands

To meet the needs of equipment replacement and multi-brand selection, this guide provides a precision model interchange comparison table for Schneider ATS480 series and soft starters of mainstream brands (ABB, Siemens, Rockwell, Eaton), covering the full current range (17A-1200A), with key selection notes and technical points attached.

1. Series Positioning of Mainstream Brands

1. Complete Model Interchange Comparison Table (in ascending order of current)

III. Key Notes for Model Interchange

1. Current Matching Principle

Standard load: Rated current of the alternative model ≥ Rated current of the motor

Heavy-duty application: Rated current of the alternative model ≥ 1.25 × Rated current of the motor

690V system: Pay attention to the power-current conversion relationship (Power ≈ Current × 0.53)

2. Consistency Check of Key Parameters

3. Adaptation for Special Applications

Water pumps: Confirm the built-in pump control curve function.

Fans: Check the fan-specific control mode.

Compressors: Verify the torque control accuracy and starting current limiting capability.

Heavy-duty start: Ensure the alternative model supports derating (e.g., 1.25 times the motor current).

4. Technical Differences between Brands

ABB PSTX: Equipped with a built-in bypass contactor, no additional installation required.

Siemens 3RW: High integration of SIRIUS thermal overload protection, with closer cooperation with contactors.

Rockwell 150-C: Superior DeviceNet communication, suitable for Allen-Bradley systems.

Eaton DS7: Larger adjustable range of soft stop time, suitable for long-distance conveying systems.

1. Replacement Implementation Steps
2. Parameter recording: Record the key parameters of the original ATS480 (starting current limit, start-up time, soft stop time, protection threshold, etc.).
3. Model confirmation: Select the corresponding alternative model according to the current and application scenario.
4. Installation adaptation: Confirm the compatibility of installation dimensions, heat dissipation space and connection terminals.
5. Parameter migration: Set the original parameters to the new equipment accordingly.
6. Function test: Conduct no-load test of start/stop functions and load test to verify the protection mechanism.
7. Communication configuration: Configure the corresponding communication protocol to ensure compatibility with the upper system.
