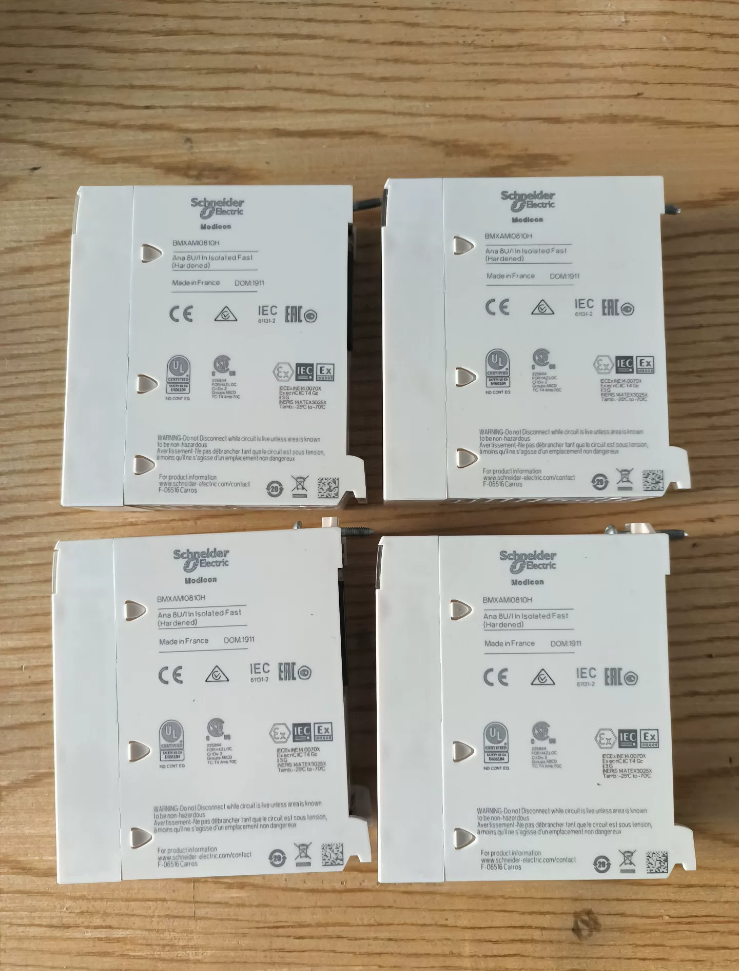

Schneider Electric BMXAMI0810H

(Modicon X80 Platform Hardened 8-channel Isolated High-speed Analog Input Module), including model breakdown, core parameters, interface/configuration, and application scenarios

1. Model and Positioning

Model: BMXAMI0810H; belongs to Modicon X80 I/O platform, compatible with Modicon M580, M340 PAC/PLC

Suffix H = Hardened type. Compared with the standard BMXAMI0810, it features wider temperature range, higher vibration resistance and stronger EMI immunity, suitable for harsh industrial environments.

Function: 8-channel fully isolated voltage/current analog input, high-speed conversion, flexible signal type and range configuration via software + DIP switches.

2. Core Technical Specifications

3. Key Features and Advantages
4. Full-channel electrical isolation: Effectively suppresses common-mode interference and surges in industrial sites, ensuring stable data acquisition.
5. Hardened wide-temperature design: Adapts to extreme temperature and vibration environments such as metallurgy, mining, and outdoor cabinets.
6. High-speed conversion + flexible filtering: Filter parameters can be adjusted via software, balancing dynamic response and data smoothing.
7. Seamless integration with M580/M340: Unified backplane bus of X80 platform, supports hot-swappable maintenance (system configuration required).
8. Multiple wiring schemes: Optional terminal blocks / flying leads / base cables to adapt to different cabinet wiring habits.
9. Typical Application Scenarios
10. Process control: Chemical, petroleum, water treatment; acquisition of pressure, flow, level, pH value (4–20mA/0–10V transmitter signals).
11. Metallurgy / Paper making: High-temperature workshops, production line monitoring; wide-temperature tolerance, strong anti-EMI capability.
12. Energy industry: Wind power, photovoltaic, substations; acquisition of voltage, current, power; stable operation in outdoor / box-type substations.
13. Heavy machinery / Marine: High-vibration, large temperature-fluctuation scenarios such as offshore platforms and port machinery.
14. Smart manufacturing lines: Equipment status monitoring, sensor data acquisition; works with M580 redundant systems to improve reliability.
15. Model Differentiation and Alternatives
16. BMXAMI0810 vs BMXAMI0810H: The former is standard version (0°C~60°C); the latter H-type hardened wide-temperature (-25°C~70°C), with stronger shock and vibration resistance.
17. Equivalent alternative models:

Siemens: 6ES7531-7KF00-0AB0 (ET 200SP AI module)

ABB: AI890 8-channel isolated analog input

Rockwell: 1756-IF8H (ControlLogix high-temperature analog module)

6. Selection and Notes
7. Confirm on-site temperature range: If below 0°C or above 60°C, H-type must be selected.
8. Confirm wiring method: Terminal blocks suit fixed cabinets; flying leads suit narrow spaces or frequent replacement.
9. System redundancy requirements: In M580 redundant systems, modules must be configured in pairs with redundant communication enabled.
10. Grounding and shielding: Full shielding of analog signal cables, single-point grounding to avoid interference.

Schneider Electric BMX Series (Modicon X80)

Full Model List & Alternative Product Manual

1. BMX Series Overview and Coding Rules

Schneider BMX Series are core I/O modules of the Modicon X80 platform, compatible with M580, M340 PAC/PLC. They cover digital, analog, communication, power supply, motion control and other categories. Suffix H means hardened type (wide temperature -25°C~+70°C, higher vibration & EMI resistance).

Model Coding Rule (BMXABCDEFG)

2. Complete BMX Series Model List (By Type)

2.1 Digital Input Modules (BMXDDI/BMXDAI)

2.2 Digital Output Modules (BMXDDO/BMXDAO)

2.3 Analog Input Modules (BMXAMI/BMXART)

2.4 Analog Output Modules (BMXAMO)

2.5 Mixed I/O Modules (BMXAMM)

2.6 Communication Modules (BMXNOE/BMXNOM/BMXCRA)

2.7 Power Supply Modules (BMXCPS)

2.8 Motion Control Modules (BMXMSP)

3. BMX Series vs. Other Brands Alternative Models (with Order Numbers)

3.2 ABB Alternatives (AC500/S700 Series)

3.3 Rockwell Alternatives (ControlLogix)

4. Key Points for Selection and Replacement

4.1 Core Matching Dimensions (Must Check for Replacement)

4.2 Replacement Implementation Recommendations

1. Schneider→Schneider: Prioritize same-series upgrades (e.g., BMXAMI0810→BMXAMI0810H). No program modification needed; only firmware version check required.
2. Cross-brand replacement:

Perform signal compatibility test before replacement (voltage/current range, response time).

In M580 redundant systems, alternative modules must support hot-swap and redundant communication.

Analog modules require accuracy deviation calibration (±0.1% F.S. as industrial standard).

3. Cost optimization: Domestic alternatives such as Advantech, NORCO are available, with similar performance and 30%-50% lower price.
4. Quick Selection Table (Popular Models)
