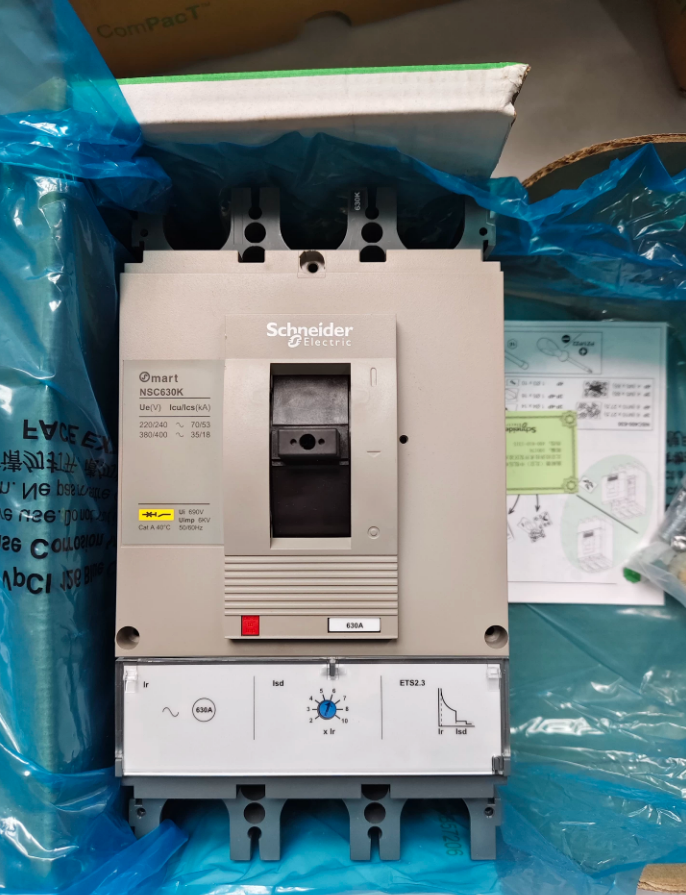

Schneider NSC630K-3P-630A MCCB

1. Model Interpretation and Product Positioning

NSC630K-3P-630A is a Schneider NSC series moulded case circuit breaker (MCCB), a core component for power distribution protection. It provides overload, short-circuit and earth fault protection for three-phase circuits, and is a key protective device in industrial and commercial power distribution systems.

2. Core Technical Parameters

3. Core Functions and Features
4. Triple Protection Mechanism

Long-time protection: Prevents damage from prolonged overload heating

Short-time protection: Handles short-circuit faults with selective tripping

Instantaneous protection: Quickly clears severe short circuits to safeguard equipment

2. Double-break Technology: Excellent arc extinguishing, stable breaking performance, extended service life
3. Modular Accessories: Supports auxiliary contacts, alarm contacts, undervoltage release, etc.
4. Mechanical Indication: Clearly shows ON/OFF status for safe operation
5. EverLink Connection System: Sealed terminals ensure reliable connection and reduce overheating risks
6. Application Scenarios

NSC630K-3P-630A is designed for three-phase distribution systems requiring 35kA breaking capacity and precision electronic protection:

1. Industrial Sector

Factory main power distribution: Main switch for workshops and production lines, protecting three-phase motors, inverters, etc.

Heavy machinery: Main circuit protection for plastics, textile, machine tools and other large power equipment

Construction temporary power: Main switch for site main distribution boards

New energy systems: Output protection for PV inverters and wind converters

2. Commercial & Public Buildings

Large shopping malls: Protection for central air conditioning, pumps, elevators and other three-phase loads

Office buildings: Main switch in power distribution rooms for entire building supply

Data centers: Input/output protection for UPS systems

Hospitals & schools: Protection of critical power equipment

3. Infrastructure

Wastewater treatment plants: Protection for pumps, fans in humid environments

Rail transit: Station auxiliary power systems for HVAC, lighting

Telecom base stations: Protection for diesel generators and UPS

5. Installation and Maintenance Guidelines

Installation Notes

1. Mounting position: Vertical installation in cabinet, with minimum clearance ≥20mm top/bottom/left/right for heat dissipation
2. Mounting: Standard mounting plate, 4 fixing holes for stable installation
3. Wiring specifications:

Conductor size: For 630A, recommended copper cable ≥185mm²

Torque: Tighten to EverLink standard torque to avoid loose heating

4. Trip settings: Adjust Ir (long-time), Isd (short-time), Ii (instantaneous) according to load characteristics

Maintenance Notes

1. Regular inspection (quarterly): Handle status, terminal temperature, insulation performance
2. Operation test (semi-annually): Manual ON/OFF to confirm mechanical function
3. Trip calibration (annually): Verify protection accuracy with professional equipment
4. Environment: Keep area clean and dry, free from dust and corrosive gases
5. Alternatives and Upgrade Recommendations
6. Same-series Alternatives

NSC630N-3P-630A: 50kA@415VAC, for higher short-circuit current systems

NSC630H-3P-630A: 70kA@415VAC, for heavy industrial applications

2. Upgrade Alternative (New Generation)

NSX630K-3P-630A: New-generation Schneider MCCB with higher breaking, intelligent trip and expanded functions

Advantages: MicroLogic 2.3 trip unit, remote monitoring, flexible modular design

Applications: Modern distribution systems requiring intelligent monitoring and high precision

3. Cross-brand Alternatives

ABB Tmax T6-630-3P: Equivalent breaking and protection, suitable for ABB systems

Siemens 3VT630-3P-630A: Standard MCCB for Siemens system integration

Schneider NSC630K-3P-630A is a 3-pole MCCB with 35kA breaking capacity and 630A rated current. It provides reliable protection, mature technology and wide applicability, making it ideal for industrial and commercial distribution. It is suitable for three-phase circuits requiring electronic protection and medium short-circuit levels. For higher breaking or intelligent functions, upgrade to the NSX series.

Detailed Parameter Comparison: Schneider NSC630K-3P-630A vs NSX630K-3P-630A

Key Conclusions at a Glance

NSC630K: Economic basic version, 35kA breaking, ETS2.3 electronic trip, front wiring, for general industrial & commercial use

NSX630K: New-generation intelligent version, 36kA breaking, Micrologic 2.3 trip, supports plug-in/withdrawable mounting, for new energy and high-reliability applications

Selection focus: Breaking capacity, mounting flexibility, intelligent functions and budget

1. Model and Product Positioning Comparison

2. Core Technical Parameters Comparison

3. Functional Features and Accessories Comparison

4. Installation and Maintenance Comparison
5. Installation Requirements

NSC630K

Vertical mounting, min. 20mm clearance for heat dissipation

Front wiring, suitable for 185mm² copper cables

Fixed only, position cannot be adjusted after installation

NSX630K

Vertical mounting, min. 25mm clearance

Front/rear wiring, 185–240mm² cables

Plug-in/withdrawable for fast replacement

2. Maintenance Differences

5. Application Scenarios and Selection Advice
6. Best for NSC630K

General industrial distribution, short-circuit current ≤35kA@415VAC

Commercial buildings with low intelligence requirements

Budget-limited projects needing only basic protection

Non-critical loads with low maintenance flexibility needs

2. Best for NSX630K

Data center UPS input/output requiring high reliability

New energy (PV, wind, EV charging) with high voltage and high short-circuit current

Rail, airports, hospitals and critical infrastructure

Modern systems needing remote monitoring, energy management, fault tracing

Frequent operation or fast maintenance requirements

3. Selection Matrix

6. Summary and Alternatives

Core Differences

1. Breaking: NSX630K slightly higher (36kA vs 35kA)
2. Intelligence: NSX supports metering, communication, logging; NSC basic only
3. Mounting: NSX plug-in/withdrawable for easier maintenance
4. Life: NSX has longer mechanical and electrical life
5. Cost: NSC more economical, approx. 70–80% of NSX

Alternatives & Upgrades

1. Same-series: NSC630N (50kA), NSC630H (70kA); NSX630N (50kA), NSX630H (70kA)
2. Cross-brand:

ABB: Tmax T6-630-3P

Siemens: 3VT630-3P-630A

CHINT: NM1-630-3P-630A (economic)

DELIXI: CDM1-630-3P-630A (economic)

3. Upgrade Path: NSC systems can upgrade to NSX with compatible dimensions and wiring

Cross-brand Interchange Table for Schneider NSC630K / NSX630K

(3P-630A-35/36kA)

Core Matching Principle

Interchangeable models must meet: 3 poles, 630A rated current, 35–36kA breaking capacity (Class K/36kA), electronic trip unit (LSI protection), fixed mounting (some plug-in)

1. Complete Interchange Table

2. Brand-specific Alternatives

ABB Alternatives

Siemens Alternatives

Chinese Alternatives (CHINT / DELIXI)

3. Key Interchange Notes
4. Technical Matching Points

Breaking capacity: ≥35kA@415V for reliable fault interruption

Trip type: Electronic (LSI) preferred; thermal-magnetic lower cost but less precise

Dimensions:

NSC/NSX: 140×100×220mm (W×D×H)

ABB T6: 140×103.5×205mm, direct replacement

Siemens 3VT: 145×105×225mm, check space

Wiring capacity: Suitable for 185–240mm² copper cables

2. Functional Selection Guide

3. Replacement Procedure
4. Confirm system parameters: voltage, short-circuit current, load type
5. Select matching model: poles, current, breaking, trip type
6. Verify mounting space and dimensions
7. Replace: power off → remove old breaker → install new one → wire → set trips → test
8. Record: model, date, trip settings
9. Project Selection Matrix

NSC630K: Suitable for general industry and commerce; upgradable to NSX630K or replaced by Chinese brands

NSX630K: For high reliability and intelligence; interchangeable with ABB T6N, Siemens 3VT

Chinese brands: CHINT NXM, DELIXI CDM3 offer cost-effective alternatives with sufficient basic performance
