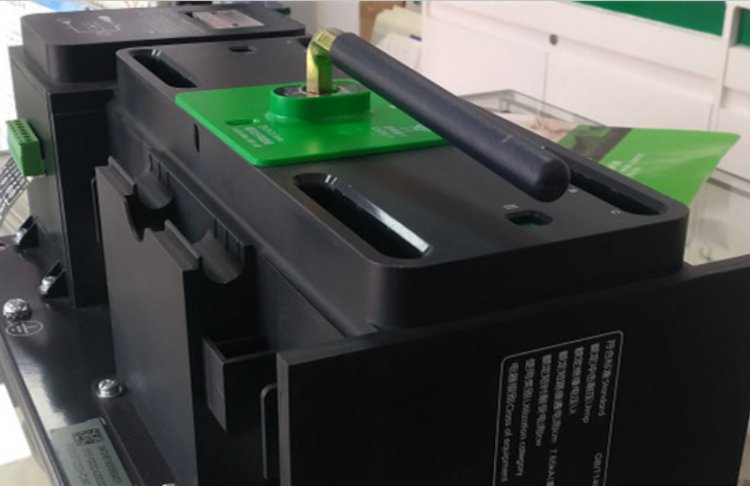

Schneider Wingoal WATSNB-32-3

WATSNB-32-3 PC Class R-iINT Automatic Transfer Switch by Schneider Wingoal

The WATSNB-32-3 PC Class R-iINT is an automatic transfer switch (ATS) under the Schneider Wingoal brand, with the following detailed specifications:

Electrical Class: It belongs to the PC class, adopting an integrated load isolation switch as the executive component. It has no overcurrent protection function and requires an external circuit breaker, but it features stronger short-circuit withstand capacity and mechanical service life, with a mechanical lifespan of more than 5,000 operations.

Rated Parameters: Suitable for AC 50Hz, 380V systems, with a rated current of 32A and a 3-pole (3P) design, capable of supporting automatic switching between the main and backup power supplies.

Switching Modes: Equipped with switching modes including auto-transfer auto-reclose and auto-transfer non-reclose. Auto-transfer auto-reclose is the default mode, which automatically switches back to the normal power supply when the main power is restored; auto-transfer non-reclose remains on the backup power supply even after the main power is recovered after a fault transfer, suitable for generator backup power scenarios.

Switching Speed: The total transfer time is ≤ 50ms (1/4 cycle), which can ensure uninterrupted power supply for sensitive equipment such as medical instruments and servers.

Monitoring and Protection Functions: It can monitor the voltage and frequency of the dual power supplies in real time. When parameter anomalies occur (e.g., undervoltage, overvoltage, phase loss), it will trigger switching. Meanwhile, it has a built-in forced neutral position function, allowing manual disconnection of dual power supplies in emergencies to meet fire linkage requirements.

Communication Function: Adopts a modular controller, available in basic and intelligent types, supporting RS485 communication (ModBus protocol) for easy integration into building management systems (BMS).

Structural Design: Utilizes double-row composite contacts, horizontal pull mechanism, micro-motor pre-energy storage and microelectronic control technology, achieving basically zero arc flash. It has obvious on-off position indication and padlocking functions, reliably realizing isolation between power supplies and loads.

Safety Certification: Complies with the IEC 60947-6-1 standard, and through strict electrical and mechanical interlocking design, it eliminates the risk of simultaneous connection of two power supplies.

Recommended Alternatives to WATSNB-32-3 PC Class R-iINT ATS by Schneider Wingoal

We recommend alternative products matching the functions and parameters of the WATSNB-32-3 PC Class R-iINT (PC class, 32A, 3P, R-iINT intelligent controller), divided into two categories: Schneider Wingoal same-brand alternatives and alternatives from other mainstream brands.

1. Schneider Wingoal Same-brand Alternatives

1. Alternatives from Other Mainstream Brands
2. ABB Brand

OTM32F3C 21D220C PC Class

Core Parameters: 3P, 32A, PC Class, 21D intelligent controller, AC 380V/50Hz

Functional Features: Total transfer time ≤ 50ms; supports undervoltage/overvoltage, phase loss, and frequency monitoring; equipped with auto-transfer auto-reclose and auto-transfer non-reclose modes; mechanical service life of 10,000 operations; zero arc flash design

Application Scenarios: Medical equipment, data centers, critical lighting systems, with performance equivalent to the WATSNB series

DPT160-PC010 R32 3P

Core Parameters: 3P, 32A, PC Class, PC010 controller

Functional Features: Adopts an isolation switch as the executive mechanism; dual electrical and mechanical interlocking to prevent simultaneous connection of two power supplies; supports generator linkage

Advantages of Replacement: ABB brand guarantee, global warranty, suitable for places with extremely high reliability requirements

2. Chint Electric

NH40-32/3SZ PC Class

Core Parameters: 3P, 32A, PC Class, intelligent controller, AC 380V/50Hz

Functional Features: Three-stage transfer mechanism; total transfer time ≤ 50ms; undervoltage/overvoltage protection; fire linkage; mechanical service life of 8,000 operations; zero arc flash design

Advantages of Replacement: A leading domestic brand, priced at only 60%-70% of Schneider products, with high cost-effectiveness and short supply cycle

NXZN-63/32/3 PC Class

Core Parameters: 3P, 32A, PC Class, intelligent controller, AC 380V/50Hz

Functional Features: Flexible rotating contact system; usage category AC-33B, capable of withstanding motor load impact; supports RS485 communication and remote monitoring

Application Scenarios: Industrial automation equipment, commercial building power distribution systems, compatible with Schneider installation dimensions

3. Delixi Electric

CDQ0s-80/3-32D PC Class

Core Parameters: 3P, 32A, PC Class, D-type intelligent controller, AC 380V/50Hz

Functional Features: Auto-transfer auto-reclose/auto-transfer non-reclose modes; monitoring of undervoltage/overvoltage, phase loss, and frequency anomalies; total transfer time ≤ 50ms; mechanical service life of 8,000 operations

Advantages of Replacement: A well-known domestic brand with affordable prices and a sound after-sales service network, suitable for projects with limited budgets

CDQ1F0632P032A2

Core Parameters: 3P, 32A, PC Class, intelligent controller, AC 380V/50Hz

Functional Features: High-reliability two-stage transfer mechanism; power-off time ≤ 0.1s; modular contacts with better heat dissipation; plug-in arc extinguishing cover design

Application Scenarios: Places with high requirements for transfer speed, such as precision instruments and communication equipment

4. Siemens Brand

5TR1324-7CC32 PC Class

Core Parameters: 3P, 32A, PC Class, intelligent controller, AC 380V/50Hz

Functional Features: Three working modes: auto-transfer auto-reclose, auto-transfer non-reclose, and mutual backup; undervoltage/overvoltage and phase loss protection; dual electrical and mechanical interlocking; mechanical service life of 8,000 operations

Advantages of Replacement: Siemens quality guarantee, good compatibility with other Siemens electrical equipment, suitable for large-scale industrial projects

III. Selection Suggestions for Alternative Products

1.  Prioritize Same-brand Products: It is recommended to choose Schneider Wingoal WATSN-100/32/3H or WATSNA-32/3PCR, which do not require modification of the installation scheme and control system and have the lowest risk.
2.  Limited Budget: Choose Chint NH40-32/3SZ or Delixi CDQ0s-80/3-32D, which are cost-effective and their performance meets the needs of general occasions.
3.  High-end Applications: Choose ABB OTM32F3C 21D220C or Siemens 5TR1324-7CC32, which have superior reliability and stability, suitable for critical places such as medical care and data centers.
4.  Special Requirements: If fast transfer (≤ 50ms) and communication functions are needed, ensure that the alternative products are equipped with RS485 communication interfaces and fast transfer mechanisms.

All recommended products comply with the IEC 60947-6-1 standard and GB/T 14048.11 standard, and are equipped with dual electrical and mechanical interlocking design to eliminate the risk of simultaneous connection of two power supplies.
