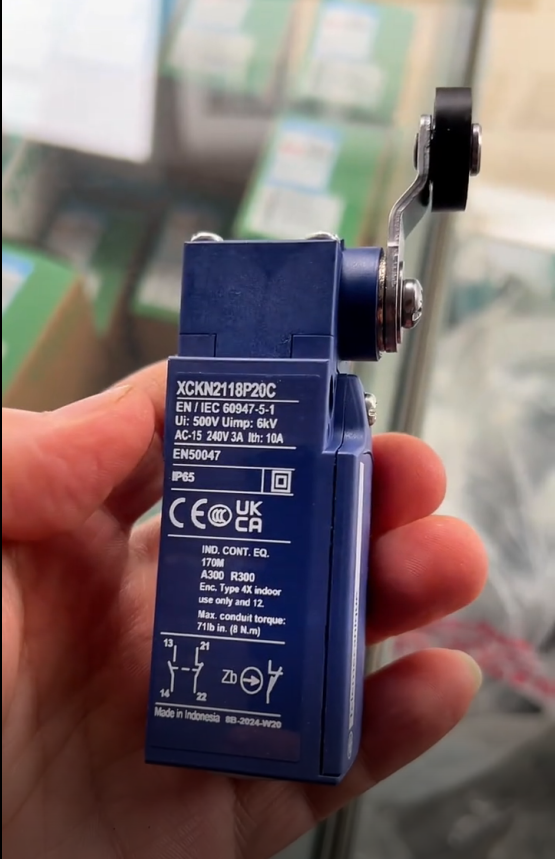

Schneider XCKN2118P20C Limit Switch

In-depth Model Interpretation

Model Segment	Description
XCKN	Product family: OsiSense XC standard limit switch, compact Type A, plastic housing
2	Connection type: screw clamp terminals, suitable for 1×0.34mm²~2×1.5mm² wires
1	Contact configuration: 1 Normally Open (NO) + 1 Normally Closed (NC), snap action
18	Actuator type: thermoplastic roller lever, spring return, side actuation
P20	Cable entry: M20×1.5 thread, suitable for cables with outer diameter 7~13mm
C	Certification mark: compliant with Chinese CCC certification, suitable for domestic market

Core Technical Parameters

Electrical Parameters

Rated operational voltage: AC 240V, DC 125V

Rated operational current: 10A (AC-15: 3A at 240V)

Contact type: 1NO + 1NC, silver alloy contacts

Mechanical durability: 10,000,000 operations

Electrical durability: 100,000 operations (AC-15)

Minimum actuation torque: 0.1Nm, actuated with low operating force

Mechanical & Environmental Parameters

Ingress protection: IP65 (IEC 60529), dust-tight and water-resistant

Insulation class: Class II (IEC 61140)

Operating temperature: -25°C ~ +70°C

Storage temperature: -40°C ~ +70°C

Vibration resistance: 25gn (10~500Hz), compliant with IEC 60068-2-6

Shock resistance: 45gn (11ms), compliant with IEC 60068-2-27

Mounting: Body mounting, suitable for 24/40mm rails

Dimensions: 108mm×58mm×36mm (L×W×H)

Product Features & Advantages
Structural Benefits

All-plastic housing, lightweight (approx. 120g), excellent corrosion resistance

30° cam actuation design for precise triggering and reduced misoperation

Roller lever can be installed with 360° rotation to adapt to various mounting angles

Performance Assurance

Snap-action contacts (≤10ms) for fast signal response

Double-break contact design for improved breaking reliability

Built-in surge suppression circuit to protect control circuits

Safety Certifications

Multiple certifications including CCC, UL, CSA for global use

Compliant with EN 50047, interchangeable with products to the same standard

Typical Applications

Application Field	Specific Usage
Automated production lines	Position detection for robotic arms, conveyor positioning, workpiece in-position confirmation
Logistics & warehousing	Stacker limit protection, rack telescopic positioning, AGV path control
Lifting equipment	Elevator/goods lift upper/lower limits, lifting platform travel control, forklift lifting height restriction
Packaging machinery	Bag sealer cutting position, labeling machine positioning, cartoner in-position detection
Machine tools	Table travel limitation, tool change position detection, safety door interlock
Construction machinery	Crane limit protection, concrete mixer level control, elevator door safety detection

Installation & Wiring Guide

Installation Steps

Select a flat and rigid mounting surface with sufficient operating space (≥50mm)
Secure with M4 bolts (torque 2.5Nm) or mount on 24/40mm standard rails
Adjust roller orientation to ensure proper contact with actuating parts (recommended contact angle 30°)
Install M20 cable gland to maintain IP65 protection

Wiring Specifications

Incoming wire: 1×0.34mm²~2×1.5mm² stranded or solid wire

Terminal torque: 0.8Nm, avoid over-tightening to prevent damage

Separate high-voltage (>24V) and low-voltage (<24V) control circuits to reduce interference

For long-distance wiring (>10m), shielded cable with single-end grounding is recommended

lternative Models & Compatibility Solutions

Alternatives within Schneider Series

XCKN2118P12C: M12×1.5 cable entry, suitable for 4~8mm cables

XCKN2118G11C: PG11 cable entry, suitable for 6~12mm cables

XCKN2118P20: International version (without C mark), for export projects

Cross-brand Alternatives

Brand	Alternative Model	Compatibility
Omron	D4C-1320	★★★★☆ (Same electrical parameters, slight differences in mounting dimensions)
Siemens	3SE5 232-0CH01	★★★★☆ (IP65 protection, identical contact configuration)
ABB	LS35M-11	★★★★☆ (Same actuator type, matching actuation torque)

Selection & Purchasing Guidelines
Three Key Selection Factors

Actuation type: confirm side or front actuation to select the corresponding actuator

Cable specification: choose M20/M12/PG11 entry based on on-site cable outer diameter

Control circuit: select rated voltage model for AC/DC systems accordingly

Purchasing Tips

Look for original Schneider packaging; XCKN series has unique anti-counterfeit codes verifiable on the official website

Avoid bulk or loose-pack products; items without CCC certification are prohibited for domestic use

Require suppliers to provide product certificates and type test reports

Warranty & After-Sales Service

Standard warranty period: 18 months

Fault response: technical support from authorized Schneider service providers within 48 hours

Repair & replacement: free replacement for non-artificial damage

Troubleshooting

Symptom	Possible Cause	Solution
Contacts do not actuate	Insufficient actuation force	Adjust mounting position to ensure actuation torque ≥0.1Nm
Contacts welded closed	Overcurrent operation	Check control circuit current to ensure it is within rated value
Loss of protection	Loose cable gland	Retighten M20 connector and replace damaged sealing ring
Signal fluctuation	Poor wiring connection	Check terminal torque and re-crimp wires

Selection Recommendation:

XCKN2118P20C is a highly versatile standard limit switch, especially suitable for position detection and safety protection in automation equipment, logistics systems and construction machinery. For special environmental applications, stainless steel housing (XCKJ series) or high-temperature resistant type (XCKT series) can be considered.
