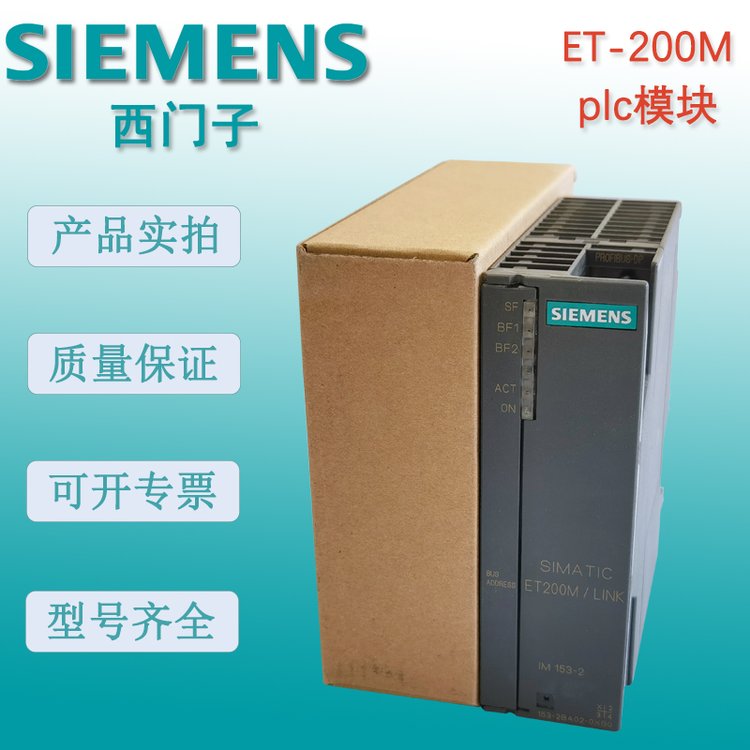

6ES7153-2BA02-0XB0 is an interface module of the ET200M distributed I/O system launched by Siemens, and it is an important component of the SIMATIC S7 automation system.
Basic Information
Product Status: This product has been discontinued, and its replacement is 6ES7153-2BA10-0XB0.
Product Description: It belongs to the SIMATIC DP series and is a high-performance connection module of ET200M IM 153-2. It can connect up to 12 S7-300 modules, has redundancy function, supports time stamping, and is suitable for synchronous mode.
Functional Features
Communication Function: Supports the standard PROFIBUS DP protocol with a maximum communication rate of 12 Mbps, featuring excellent real-time performance and anti-interference capability.
Installation and Maintenance: Can be mounted on a standard DIN rail and supports hot-swapping function (when used with an active backplane bus), facilitating maintenance and expansion.
Power Supply Requirements: The module itself does not provide a local power supply and needs to be powered via the IM 153 backplane or an external 24V DC power supply, with an operating voltage range of 20.4V-28.8V DC.
Diagnostic Function: Equipped with built-in diagnostic LED indicators, which can display the operating status, bus communication status and fault information in real time, enabling quick fault location.
Address Setting: Supports manual setting of DP slave address via DIP switches (address range: 1-126) as well as automatic address allocation by the master station, ensuring strong compatibility.
Technical Parameters
Power Supply Voltage: Rated value is DC 24V, with an allowable range of DC 20.4V-28.8V.
Input Current: Maximum current consumption is 600mA, and the typical inrush current is 3A.
Output Voltage: Rated value is DC 5V.
Output Current: Maximum output current for the backplane bus (DC 5V) is 1.5A.
Power Loss: Typical value is 5.5W.
Address Range: Both the input and output address capacities are 244 bytes.
Time Stamp Accuracy: 1ms when connecting up to 8 modules, and 10ms when connecting up to 12 modules.
Application Fields: It is mainly used to connect remote I/O stations to the PROFIBUS DP fieldbus network to realize centralized control and data acquisition of field devices. It is widely applied in industrial automation, process control and manufacturing execution systems, and commonly used in industries such as chemical engineering, electric power, water treatment, metallurgy and machinery manufacturing.
Dimensional Specifications of 6ES7153-2BA02-0XB0
The standard physical dimensions (width × height × depth) of the Siemens ET200M IM 153-2 high-performance interface module 6ES7153-2BA02-0XB0 are 40 mm × 125 mm × 117 mm (i.e., 4 cm × 12.5 cm × 11.7 cm).
Supplementary Notes
- Unit Conversion: The dimensions can also be expressed in inches: 1.57 in × 4.92 in × 4.61 in
- Packaging Dimensions: According to Siemens Industry Mall, the packaging dimensions are 12.80 cm × 15.10 cm × 5.10 cm (128 mm × 151 mm × 51 mm), with a gross weight of approximately 0.286 kg.
- Weight Information: The net weight of the module is about 360 g (there is a slight difference among different sources, ranging from 220g to 360g).
- Dimensional Compatibility: This dimension is consistent with the standard size of S7-300 series modules, ensuring seamless compatible installation with other S7-300 modules in the ET200M distributed I/O system.
Dimensional Comparison Between 6ES7153-2BA02-0XB0 and Its Replacement Model 6ES7153-2BA10-0XB0
Conclusion: The two models have identical dimensions and can be replaced seamlessly
| Parameter | Original Model 6ES7153-2BA02-0XB0 | Replacement Model 6ES7153-2BA10-0XB0 | Consistency |
| Standard Dimensions (W×H×D) | 40 mm × 125 mm × 117 mm (1.57 in × 4.92 in × 4.61 in) | 40 mm × 125 mm × 117 mm (1.57 in × 4.92 in × 4.61 in) | Identical |
| Weight | Approximately 360g | Approximately 360g | Identical |
| Packaging Dimensions | 128 mm × 151 mm × 51 mm | Standard packaging of the same size | Same |
| Installation Compatibility | Complies with the standard size of S7-300 modules, suitable for ET200M system | Complies with the standard size of S7-300 modules, suitable for ET200M system | Fully Compatible |
Supplementary Notes
- Significance of Dimensional Design: Both models adopt the standard module size of the S7-300 series, which ensures physical compatibility with other S7-300 modules in the ET200M distributed I/O system, eliminating the need to modify the mounting rail or cabinet layout for replacement.
- Functional Differences: Despite the same dimensions, the replacement model 6ES7153-2BA10-0XB0 has functional upgrades, including support for 12 modules per station, Slave INITIATIVE function, extended HART auxiliary variable data structure, support for 64-channel modules (32 signals per slot) and extended time stamping function.
- Replacement Advantages: Maintaining the same dimensional design is a common strategy for Siemens product upgrades, which can minimize the user’s replacement cost and ensure that the existing installation structure and system configuration do not need to be adjusted.
