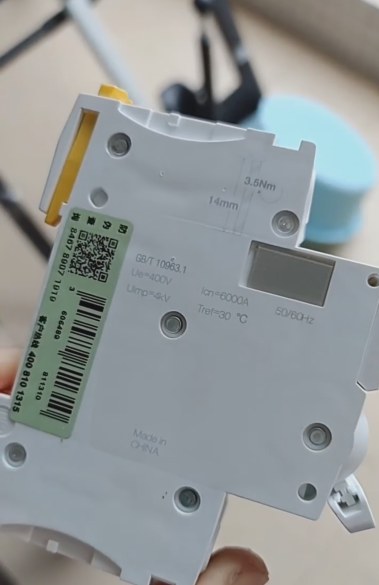

Schneider Electric’s Resi9-2P/C63

Schneider Electric’s Resi9-2P/C63 is a întrerupător miniatural (MCB) specifically designed for household power distribution. As part of the Resi9 series, it is primarily used to protect electrical circuits from overload and short-circuit faults.

eu. Core Parameters and Functions

1. Basic Specifications

Pole Configuration: 2P (simultaneously disconnects live and neutral wires).

Curent nominal: 63O, suitable for high-power circuits (de ex., aparate de aer conditionat, kitchen appliances, etc.).

Trip Characteristic: Curve C, with an instantaneous trip range of 5-10 ori mai mare decât curentul nominal, ideal for lighting and general household loads.

Capacitate de rupere: 6cel (complies with IEC 60898-1 standard), capable of safely interrupting short-circuit currents.

Tensiune nominală: 230/400V AC, supporting single-phase and three-phase systems.

2. Protecție de siguranță

Protecție la suprasarcină: Triggers tripping via bimetallic strip thermal deformation to prevent wire overheating.

Protecție la scurtcircuit: Electromagnetic trip unit responds rapidly to short-circuit currents with a breaking time of less than 10 milliseconds.

Mechanical/Electrical Lifespan: 20,000 mechanical operations and 10,000 electrical operations (for 63A model), ensuring long-term reliability.

Visi-Safe Contact Indicator: Green indicator bar clearly shows contact断开 status to avoid misoperation.

3. Design and Installation

Modular Structure: Compatible with standard 35mm DIN rail mounting, and can be combined with Resi9 series residual current accessories (de ex., RCBO).

Tunnel-Type Terminal Blocks: Supports 16-35mm² wires, featuring anti-loose connection design and IP20B protection rating.

Ergonomic Handle: Large-inclination design for non-slip operation and comfortable grip, suitable for installation in confined spaces.

II. Certifications and Compliance

International Standards: Complies with IEC 60898-1 (Household Circuit Breakers) and GB/T 10963.1 (Chinese Standard), certified by CCC.

Cerințe de mediu: Materials meet EU RoHS and REACH directives; packaging contains 70% recycled materials, emphasizing green energy efficiency.

III. Scenarii de aplicare

Household Power Distribution: Used as a main incoming circuit breaker or for protecting high-power branch circuits (de ex., kitchens, încălzitoare electrice de apă).

Spații comerciale mici: Suitable for offices, shops, and other scenarios requiring high electrical safety standards.

Renewable Energy Systems: Works with inverters and energy storage equipment to protect photovoltaic or wind power generation circuits.

IV. Comparison with Similar Products

Compared to other Schneider series (de ex., Easy9, Multi9):

Resi9: Targets the mid-to-high-end household market, emphasizing pre-installed residual current accessories, sleek design, and environmental sustainability, suitable for users pursuing quality and convenience.

Easy9: Economical household circuit breaker with lower cost and basic functions.

Multi9: Industrial-grade product with higher breaking capacity (de ex., 10cel), suitable for complex environments.

V. Purchasing Recommendations

1. Confirm Requirements: For residual current protection, select models with RCBO functionality (de ex., R9 RCBO 2P C63A 30mA).

2. Compatibilitate: The Resi9 series is compatible with distribution boxes and busbar systems from brands like Hager and Legrand.

3. Installation Notes: Professional electricians are recommended for installation to ensure secure wiring and compliance with local electrical codes.

This information provides a comprehensive understanding of the Resi9-2P/C63’s performance and applications, ensuring the safe and reliable operation of household or small commercial electrical circuits.
