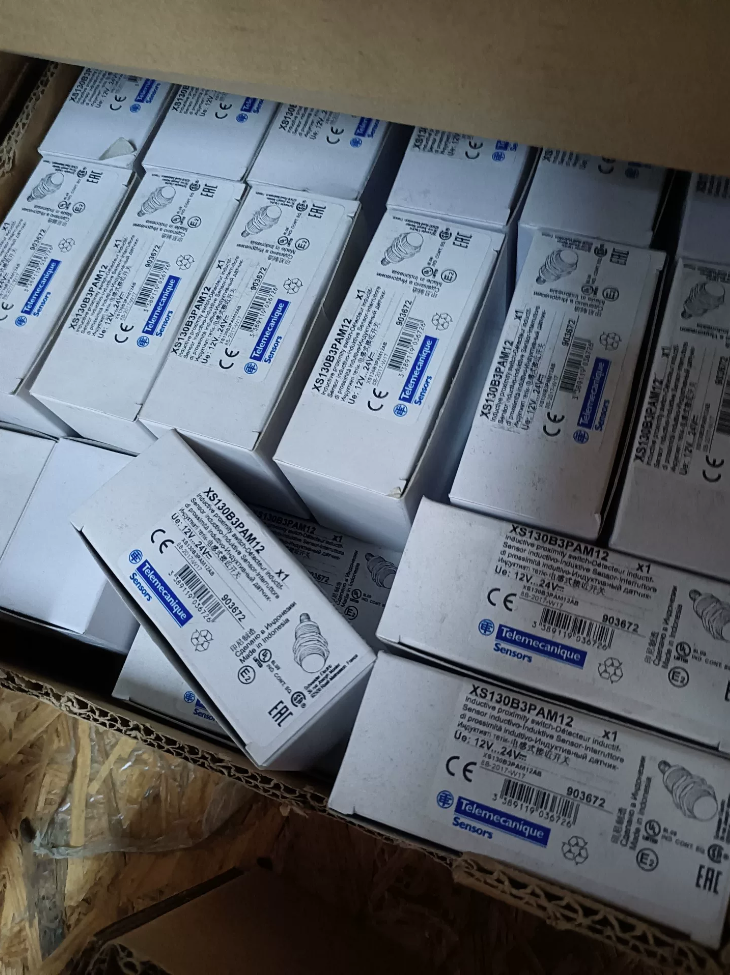

Telemecanique XS130B3PAM12 Inductive Proximity Sensor

OsiSense XS1 series M30 cylindrical индуктивный датчик приближения (often misspelled as Telemek)

✅ Model Code Interpretation

XS1 30 B3 P A M12

XS1: Basic general-purpose inductive proximity switch series

30: M30 thread outer diameter

Б3: Скрытый монтаж, Sn=15mm

П: ПНП-выход

А: Нормально открытый (НЕТ)

М12: 4-контактный штекер M12

📋 Main Technical Specifications

🛠️ Установка & Приложение

Скрытый монтаж: Can be fully embedded into metal bracket without reduction of sensing distance, good mechanical impact resistance

⚙️ Wiring Definition (M12 4-pin)

1. Коричневый: DC+
2. Черный: Выходной сигнал PNP
3. Синий: DC 0V
4. Запасной / Не используется

🔁 Series Alternatives / Параметры

XS130B3NAM12: То же измерение, NPN нормально открытый, разъем М12

XS130B3PBM12: PNP нормально закрытый (Северная Каролина)

XS130B3PAL2: PNP Normally Open, 2m fixed cable version

📌 Troubleshooting Guide

1. Нет сигнала: Check power supply and pin oxidation; ensure metal target is perpendicular to sensing face and distance ≤15mm
2. Ложное срабатывание: Excessively thick metal mounting bracket; strong electromagnetic interference nearby
3. Flashing indicator: Load current exceeds 200mA or short-circuit protection activated

📎 Customs HS Code Reference

85437099 (Other industrial sensors, declare as inductive proximity switch for customs clearance)

Telemecanique Brand Background

XS130B3PAM12 belongs to Telemecanique Sensors

1. Brand History
2. 1924: Founded in Nanterre near Paris, Франция, originally named Manufacture d’Appareillage Electrique; officially renamed Télémécanique Electrique in 1928. Initially focused on contactors, limit switches and control components, being a veteran European industrial automation brand.
3. 1965: Developed the first generation inductive proximity switch, the technical origin of XS series, establishing its leading position in industrial non-contact metal detection.
4. 1988: Acquired by Schneider Electric. Afterwards it served as a major automation brand under Schneider, with sensor product line named OsiSense (XS/XT/XU series). XS130B3PAM12 is part of the original OsiSense XS inductive proximity switch family.
5. 2023: Schneider divested the Telemecanique Sensors sensor business to YAGEO Group. The brand name Telemecanique Sensors remains independently operated with trademark licensing. Part numbers, specifications, drawings and certifications remain unchanged, so the XS series coding rules are identical to the Schneider-era versions.

✅ Key point: Telemecanique Sensors now belongs to YAGEO instead of Schneider. The brand name and XS part numbers are still in use. Old documents may still mark it as Schneider Telemecanique.

2. Brand Positioning & Product Portfolio

Telemecanique Sensors: Specialized in industrial detection sensors, slogan: Simply easy.

Core product lines: Inductive proximity switches (XS series including XS130B3PAM12), capacitive sensors XT, photoelectric sensors XU, концевые выключатели, RFID, датчики давления, и т. д..

Особенности продукта: High anti-interference capability, широкий температурный диапазон, robust brass housing, UL/CE/CSA/CCC certifications. Suitable for heavy-duty automation scenarios such as machine tools, упаковка, material handling and automotive production lines.

XS series (original OsiSense XS): Classic inductive proximity switch portfolio, full coverage of M8/M12/M18/M30 sizes, смываемый/несмываемый, ПНП/НПН, cable/M12 connector variants. XS130B3PAM12 is a representative M30 flush type.

3. Quality & Market Position

Источник: Франция; Р&D center remains in Angoulême, Франция; manufacturing sites located in France, Batam (Индонезия), и т. д..

Industry recognition: Veteran European sensor benchmark with large installed base in OEM machinery, construction machinery, production line limit and counting applications.

Сертификация: CE, UL, CSA, РоХС, REACH available. COC, RoHS and REACH declarations can be provided for XS130B3PAM12, friendly for export customs.

4. Name Notes

Официальное китайское название: 特勒美科, market aliases: 特乐美克、特力美肯; Английский: Telemecanique.

Application Fields of XS130B3PAM12 (Telemecanique)

Позиционирование продукта: M30 flush inductive proximity switch, metal-only detection, 15Расстояние срабатывания мм, IP67, корпус из никелированной латуни, PNP NO with M12 connector. Вибрация, oil and dust resistant, suitable for OEM machinery, position confirmation, counting and limit interlock.

1. Станки & Metal Working

токарные станки с ЧПУ, обрабатывающие центры: Tool turret position detection, chuck clamping confirmation, workpiece presence detection, travel limit

Штамповка / гибочные машины: Mold position confirmation, slider position feedback, metal blank presence detection

Преимущества: Flush mounting allows embedding into metal panels, impact resistant, withstand cutting fluid and metal dust

2. Погрузочно-разгрузочные работы & Автоматизация логистики

Ленточные конвейеры, роликовые линии, pallet handling: Metal pallet detection, workpiece counting, station position signal, jam monitoring

АГВ & mobile carts: Body metal limit, collision trigger, station positioning, lifting platform position feedback

Automated warehouse, stacker cranes: Metal tag detection for storage location, lifting limit interlock

3. Упаковочное оборудование

Carton packaging, наполнение, герметики для корпусов: Metal cap / metal component detection, fixture confirmation, indexing station validation

Food packaging lines: Washdown-rated versions are optional. This model IP67 suits general dust & oil environments (IP69K type recommended for high-pressure washing)

4. Автомобильное производство & Component Lines

Body welding & сборочные линии: Tooling fixture positioning, metal workpiece presence, slide position, welding station interlock

Component assembly equipment: Engine / chassis part position detection to prevent dry run without workpiece

5. Лифтинг & Мобильная строительная техника

Electric hoists, scissor lifts, on-board construction machinery: Lifting tool position, travel limit, safety position feedback

Лифты & эскалаторы: Metal component position monitoring, metal marker detection for steps / handrails

6. Робототехника & Автоматизированная сборка

Robots, assembly workstations: Clamping confirmation, metal workpiece presence, rotary table positioning, home position signal

Special automated machines: Indexing plate position, missing metal part detection in material hoppers

7. Железнодорожный транзит

Vehicle door mechanism, braking system, pantograph mechanism: Metal component position feedback, travel detection. Wide temperature range -25~+70℃ fits on-board conditions

8. Тяжелая промышленность, Металлургия & Building Material Equipment

Metallurgy auxiliary machines, cement plants, mining conveyors: Metal material / mechanism position detection; suitable for heavy dust and high vibration environments

Примечание: Not applicable for high-temperature sintering or molten metal applications; high-temperature dedicated sensors required.

✅ Summary of Typical Detection Functions

1. Presence / absence detection of metal workpieces
2. Position confirmation, home position and travel limit of mechanical structures
3. Rotational speed / counting for rotating mechanism (≤500Hz)
4. Equipment interlock protection to prevent malfunction

⚠️ Key Selection Limitations

1. Metal detection only: Cannot detect plastic, paper or wood; sensing distance of aluminum, copper and other non-ferrous metals will be attenuated
2. Flush mounting advantage: Can be mounted flush inside metal holder without loss of rated sensing distance and better impact resistance. Not suitable as safety switch for PLd or higher safety level, only for ordinary automation position signals
3. M12 plug enables quick disassembly & сборка, suitable for OEM machinery export with CE/UL certifications.

Detection Accuracy of XS130B3PAM12 Telemecanique

Важное примечание: This is a digital switching inductive proximity sensor, not a ranging sensor. It outputs only two states: triggered / not triggered, no continuous distance value. Below are all accuracy-related parameters from the original datasheet.

1. Номинальное расстояние срабатывания Sn

Sn = 15 мм (flush mounting, standard test target: ferritic steel with standard target dimension)

Effective operating distance Sr range: 8 ~ 15 мм

Определение: Reliable triggering of sensor with standard steel target within 8–15mm; sensing distance varies with metal material (significantly reduced for aluminum and copper).

2. Гистерезис (Differential travel) [Core Accuracy Parameter]

Гистерезис: 1% ~ 15% of effective operating distance Sr

Calculation for Sn=15mm: hysteresis approx 0.15 ~ 2.25 мм

Определение: Difference between the trigger distance when metal approaches and the reset distance when metal retreats. Hysteresis prevents signal jitter caused by vibration; trade-off is millimeter-level deviation between approach and reset positions, not suitable for micron-level positioning.

3. Повторяемость

No separate repeatability value specified in original datasheet. Field test of same XS series M30 flush model: positional repeatability around ±0.1mm under constant temperature, standard steel target and vibration-free conditions

Примечание: This repeatability only describes small dispersion of trigger point for approach in one direction. Due to hysteresis between approach and retreat, it cannot be treated as absolute distance accuracy.

4. Температурный дрейф

Рабочая температура: -25℃ ~ +70 ℃

Sensing distance drift over full temperature range approx ±10% Sn (±1.5mm). Larger temperature change leads to bigger trigger point shift.

5. Время ответа

Время ответа: 0.6 РС; release time: 1.4 РС

Макс. switching frequency: 500Гц, applicable for high-speed counting.

6. Key Selection Remarks (for tender / proposal documents)
7. It performs switch point detection rather than continuous distance measurement, no analog distance output, only judges whether metal reaches trigger position;
8. Applied only for presence / absence, position and limit detection. Analog inductive sensor is required if continuous high-precision displacement measurement is needed;
9. Target material has significant impact. Standard reference is mild steel. Trigger distance must be verified on-site for aluminum, copper or stainless steel;
10. Условия монтажа, surrounding metal and vibration will alter actual trigger position. Installation margin must be reserved for high-precision positioning.

✅ Tender-ready Abstract (Direct Copy)

The XS130B3PAM12 is a digital inductive proximity sensor with rated sensing distance of 15mm (flush mounting) and effective operating distance from 8 к 15 мм. Differential hysteresis is 1~15%Sr. Under constant temperature, vibration-free condition with standard steel target, positional repeatability can reach ±0.1mm. Sensing distance drifts with temperature and target metal material. It is designed for metal workpiece presence, limit and counting switching signal detection, not for continuous displacement measurement.
