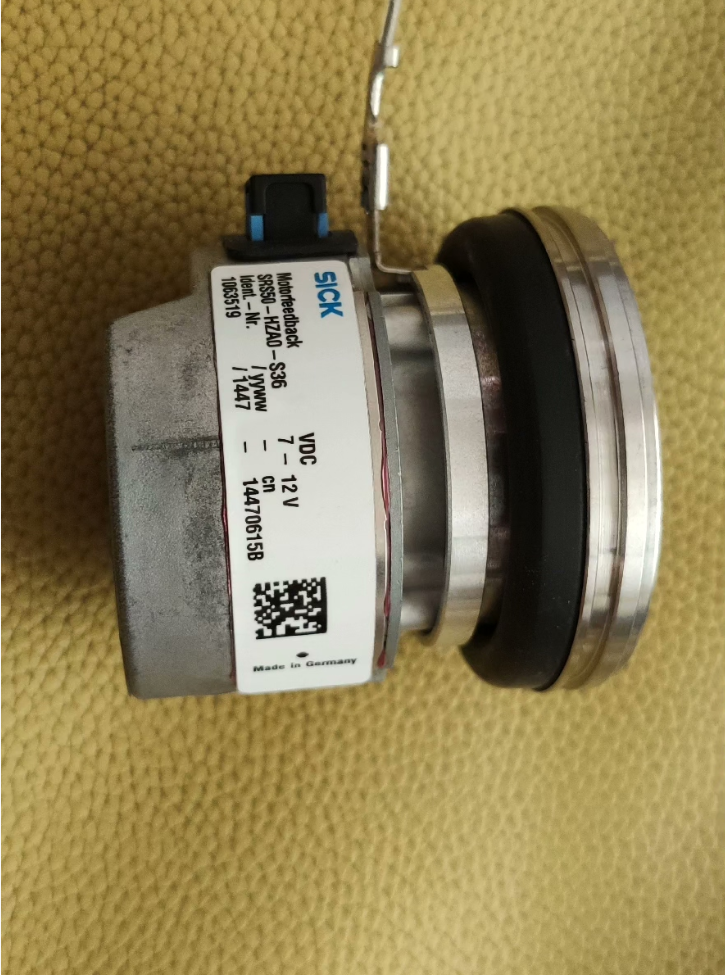

SICK SRS50-HZA0-S36 Servo Encoder

ป่วย SRS50-HZA0-S36 Servo Single-Turn Absolute Encoder

1. รายละเอียดรหัสรุ่น (SRS50-HZA0-S36)
2. SRS50: รหัสซีรีส์, single-turn HIPERFACE servo feedback encoder (SRM50 stands for mechanical multi-turn gear version), servo model with 50 เส้นผ่านศูนย์กลางตัวเรือน มม
3. ชม: HIPERFACE standard servo interface (SICK dedicated servo feedback bus)
4. ซี: Hollow shaft design (compatible with through-shaft motors)
5. ก: 1024-period Sin/Cos sine-cosine signals
6. 0: Basic version without safety extensions
7. ส: Radial 8-pin M23 male connector outlet
8. 36: Custom code for cable specification, flange and shaft diameter (6 mm hollow shaft, standard servo elastic coupling flange)
9. ข้อมูลจำเพาะทางไฟฟ้าหลัก

2.1 Signals & ปณิธาน

Single-turn absolute resolution: 32768 ตำแหน่ง (15 นิดหน่อย)

Sine-cosine periods: 1024 cycles per revolution, differential analog SIN/COS signals

Interpolation accuracy: System graduation of 0.3 arcseconds, overall system accuracy ±52 arcseconds

ความไม่เชิงเส้น: Integral ±45″, differential ±7″

Maximum signal frequency: 200 กิโลเฮิร์ตซ์, suitable for high-speed servo closed-loop control

Absolute encoding: Binary, value increases clockwise with shaft rotation

2.2 พาวเวอร์ซัพพลาย & การสื่อสาร

แรงดันไฟฟ้า: DC 7~12 V, recommended DC 8 วี

No-load current: 80 มิลลิแอมป์

Dual signal channels:

Analog channel: Differential SIN/REFSIN and COS/REFCOS (3 V peak-to-peak)

Parameter channel: อาร์เอส485 (HIPERFACE digital communication for reading temperature, electronic nameplate and fault codes)

EEPROM storage: 1792 Bytes, supports writing motor parameters and calibration data

2.3 ใบรับรองความปลอดภัย

ซิล 2 / พีแอล ดี (ไอเอสโอ 13849-1), applicable for safety-related servo positioning applications

CE and RoHS compliant; EMC complies with EN 61000-6-2/3

3. ข้อมูลจำเพาะทางกล (Z-Type Hollow Shaft)

ประเภทเพลา: Φ6 mm hollow shaft, for direct motor shaft penetration

หน้าแปลน: Standard servo elastic stator coupling (rubber damping to compensate mounting misalignment)

ความเร็วสูงสุด: 12,000 รอบต่อนาที; reliable absolute position reading ≤6,000 rpm

Limit angular acceleration: 200,000 rad/s²

แรงบิด: Operating torque 0.2 N·cm, starting torque 0.4 N·cm

Allowable shaft misalignment:

Static: Radial ±0.2 mm / Axial ±0.8 mm

Dynamic: Radial ±0.15 mm / Axial ±0.2 mm

น้ำหนัก: ประมาณ. 0.27 กก, moment of inertia 10 g·cm²

Bearing service life: 3.6×10⁹ revolutions

4. การคุ้มครองสิ่งแวดล้อม

ระดับการป้องกัน: IP65 after connector assembly

อุณหภูมิในการทำงาน: -30 ℃~ +85 ℃

อุณหภูมิในการจัดเก็บ: -30 ℃~ +90 ℃

ความชื้น: ≤90% RH, ไม่ควบแน่น

ทนต่อแรงกระแทก: 100 ก / 6 นางสาว; ความต้านทานการสั่นสะเทือน: 10~2000 Hz, 10 ก

5. Pin Assignment of 8-Pin Radial M23 Connector (HIPERFACE Standard)

6. ข้อดีหลัก
7. Dedicated HIPERFACE servo feedback: Fully compatible with HIPERFACE-enabled servo drives including SICK, ซีเมนส์, Rexroth and Lenze. Absolute position is read immediately after power-on without homing.
8. Electronic nameplate function: Drives automatically identify encoder ID and motor parameters, eliminating manual configuration.
9. Built-in diagnostic system: Real-time reporting of internal temperature, signal amplitude, ลัดวงจร, communication faults and shaft overspeed alarms.
10. All-metal code disc with dual bearings: Stable operation under heavy industrial vibration and high rotational speeds.
11. Compact hollow shaft design: Direct mounting at the rear of servo motors to save installation space.
12. สถานการณ์การใช้งานทั่วไป

Closed-loop feedback for servo motors (สปินเดิลของเครื่องมือกล, engraving machines, robot joints)

การพิมพ์ & อุปกรณ์บรรจุภัณฑ์, high-speed textile spindles

Automated indexing tables, linear motors

ปานกลาง & small high-precision positioning equipment

8. Alternative Model Selection Reference for the Same Series
9. Direct replacement with identical specs: SRS50-HZA0-S21 (same parameters, only differs in connector cable length code, fully drive-compatible)
10. Multi-turn upgrade: SRM50-HZA0-S36 (mechanical multi-turn absolute encoder supporting 4096 การปฏิวัติ, no battery required)
11. Solid shaft version: SRS50-HXA0-K36 (6 mm solid shaft flange)
12. High-temperature variant: SRS50-HZA1-S36 (ambient temperature up to 115 ℃)
13. รหัสข้อผิดพลาดทั่วไป (HIPERFACE Communication)

01ชม.: Initialization incomplete

02ชม.: Internal amplifier fault

04ชม.: Abnormal SIN/COS signal amplitude

07ชม.: Encoder reset

0Fh: โอเวอร์สปีด, absolute position unreadable

10ชม.: Over-temperature warning

Full Practical Application Cases of SRS50-HZA0-S36 Hollow Shaft HIPERFACE Single-Turn Absolute Encoder

Core characteristics of this model: Φ6 mm hollow shaft, S36 radial M23 outlet, 1024-period Sin/Cos signals, 15-บิตแบบเลี้ยวเดียวแบบสัมบูรณ์, SIL2/PL d, HIPERFACE servo interface, การป้องกัน IP65, สูงสุด. 12,000 รอบต่อนาที. Compatible with Rexroth, Lenze and SICK servo systems. Below are real industry project cases covering equipment operating conditions, selection reasons and practical benefits.

1. CNC Machine Tool Industry (Most Widely Applied)

กรณี 1: Servo Motor Feedback for Feed Axes of Vertical Machining Center

1. Equipment Operating Conditions

3-axis vertical machining center with through-shaft mounting on rear side of X/Y/Z feed servo motors; maximum feed speed 60 เมตร/นาที, spindle speed 8,000 รอบต่อนาที. Workshop environment features cutting fluid splashes, metal dust and severe vibration. The machine requires no homing after power-on and supports safety limit and emergency stop monitoring.

2. Reasons for Selecting SRS50-HZA0-S36

Φ6 mm hollow shaft directly sleeves motor output shaft; integrated elastic flange compensates mounting concentricity deviation.

HIPERFACE interface perfectly matches Rexroth IndraDrive servos; electronic nameplate automatically identifies motor parameters without manual entry.

SIL2 safety rating enables reuse of encoder safety feedback for machine safety circuit certification, cutting overall equipment certification costs.

Metal code disc resists cutting fluid splashes and dust; stable long-term operation under IP65 assembly without pulse loss or zero drift.

3. Operational Benefits

Repetitive positioning accuracy reaches ±0.002 mm with no jitter during high-speed acceleration and deceleration. Built-in diagnostics retrieve encoder temperature and signal amplitude to predict bearing wear in advance, reducing equipment downtime by 35%.

กรณี 2: High-Speed Spindle Servo Feedback for CNC Slant Bed Lathe

1. สภาพการทำงาน: Electric spindle of CNC slant bed lathe with maximum speed 10,000 รอบต่อนาที, oil mist environment for mass shaft turning with synchronous thread machining requirements.
2. Matching Advantages: High interpolation via 1024 pairs of sine-cosine signals ensures stable electronic gear synchronization; side outlet radial M23 connector avoids interference with spindle protective covers.
3. บรรจุภัณฑ์ & Printing Equipment Industry

กรณี 3: Main Film Feeding Servo of High-Speed Flow Wrapper

1. สภาพการทำงาน: Fully automatic food packaging line with dynamic start-stop of film feeding servo, 120 แพ็คเกจต่อนาที, synchronous film cutting and color mark tracking, 24-hour continuous operation under humid workshop conditions.
2. ลอจิกการเลือก

Single-turn absolute design eliminates homing after shutdown and restart, enabling rapid alignment after film replacement.

Wide DC 7~12 V voltage range prevents signal distortion caused by voltage drop over long workshop cables.

Excellent vibration resistance avoids position offset from conveyor impact, maintaining consistent cutting dimensional tolerance at ±0.1 mm.

3. Project Outcome: Packaging yield increased from 96% ถึง 99.7%, reducing film material waste.

กรณี 4: Color Registration Servo for Digital Web Printing Press

Matched with unwinding, web guiding and plate roller servo motors of printing machines for multi-axis electronic synchronization control; speed ranges from 0 ถึง 300 m/min with zero ghosting color registration requirements. High-interpolation sine-cosine signals of SRS50-HZA0-S36 guarantee multi-axis synchronization precision, while built-in temperature diagnostics prevent signal attenuation under high temperatures.

3. หุ่นยนต์อุตสาหกรรม & สายการประกอบอัตโนมัติ

กรณี 5: Joint Servos of 6-Axis Small Handling Robot

1. สภาพการทำงาน: 3C lithium battery assembly robot with built-in hollow shafts on 6 joint servo motors, compact body space, frequent high-speed reciprocating motion (0.8 s cycle time).
2. Matching Highlights

กะทัดรัด 50 mm outer diameter + through hollow shaft enables lightweight integration at robot motor rear ends.

100 g shock resistance preserves position feedback under frequent start-stop and collision buffering.

HIPERFACE bus transmits joint angles in real time for smooth robot trajectories without jitter or offset.

3. Practical Value: Battery gripping positioning accuracy of ±0.01 mm meets cell stacking process standards.

กรณี 6: Automatic Torque Tightening Assembly Line for Automotive Components

Matched with servo tightening spindles for engine bolt tightening stations with dual closed-loop torque and position control. SIL2 safety rating complies with automotive equipment safety standards; abnormal overspeed and stall trigger rapid servo output cut-off to prevent machine collisions.

4. Elevator & Automated Warehouse Logistics Equipment

กรณี 7: Main Drive Feedback for Gearless Traction Elevators (Identical Scheme for European Orona Elevators)

1. สภาพการทำงาน: Permanent magnet synchronous traction machines for passenger elevators with low-frequency reciprocating start-stop, requiring smooth start-stop and precise floor leveling.
2. Application Advantages

32768 single-turn absolute resolution delivers floor leveling error ≤0.5 mm; smooth acceleration/deceleration control eliminates cabin jitter. Long bearing service life under frequent start-stop extends maintenance cycles by two times.

> บันทึก: For high-rise multi-floor applications, upgrade to same-size SRM50 multi-turn model; SRS50-HZA0-S36 single-turn encoder is standard for low-rise single-building elevators.

กรณี 8: Travel & Lifting Servos of Automated Warehouse Stacker Cranes

Hollow shaft mounting on travel and lifting motors of high-speed stacker cranes in automated warehouses. Absolute position is read instantly after power-on without full-machine homing, improving warehouse inbound and outbound efficiency.

5. สิ่งทอ, ยาง & Plastic Extrusion Equipment

กรณี 9: Warp Feeding Servo of High-Speed Warp Knitting Machine

Multi-axis synchronous yarn feeding for textile warp knitting machines at speeds above 8,000 rpm with cotton lint and dust in workshops. IP65 dustproof protection stabilizes Sin/Cos signals at high speeds to avoid yarn breakage and uneven fabric patterns.

กรณี 10: Traction Servo for Plastic Extruders

Traction servo for film and pipe extrusion with synchronous extrusion traction control, ambient high temperature around machine barrels (สูงสุด. 75 ℃). The encoder’s wide operating temperature range of -30~85 ℃ adapts to long-term high-temperature operation without position drift.

6. ไฟฟ้าโซลาร์เซลล์ & Lithium Battery New Energy Equipment

กรณี 11: Feed Servo of PV Silicon Wafer Cutting Equipment

Worktable servo for diamond wire slicers with micron-level feed positioning. Single-turn absolute positions guarantee consistent slicing origin every time to reduce silicon wafer loss; hollow shaft fits ultra-thin servo motors for equipment miniaturization.

กรณี 12: Lithium Battery Electrode Slitting & Calendering Equipment

Matched with electrode calendering and web guiding servos for high-speed web synchronous control and 24-hour continuous production. Built-in encoder diagnostics monitor signal degradation in real time to prevent scrap from skewed electrode cutting.

7. Model Selection Summary (Quick Classification of Applicable & สถานการณ์ที่ไม่เหมาะสม)

Preferred Scenarios for SRS50-HZA0-S36

1. Φ6 mm hollow shaft through mounting on servo motors
2. Servo drives supporting Rexroth, Lenze or SICK HIPERFACE protocol
3. Equipment requiring single-turn positioning without homing after power-on
4. Equipment needing SIL2/PL d safety certification (เครื่องมือกล, automotive equipment, ลิฟต์)
5. Limited installation space requiring side outlet radial M23 connectors
6. Servo closed-loop control with speed ≤12,000 rpm and medium precision requirements

สถานการณ์ที่ไม่แนะนำ

1. Applications requiring wide travel with multi-turn positioning (select SRM50-HZA0-S36 mechanical multi-turn encoder)
2. Motors with solid shafts (select solid shaft model SRS50-HXA0-K36)
3. Drives only supporting EnDat, SSI or HIPERFACE DSL (protocol incompatibility)
4. Continuous ambient temperature above 85 ℃ (select A1 suffix high-temperature variant)
