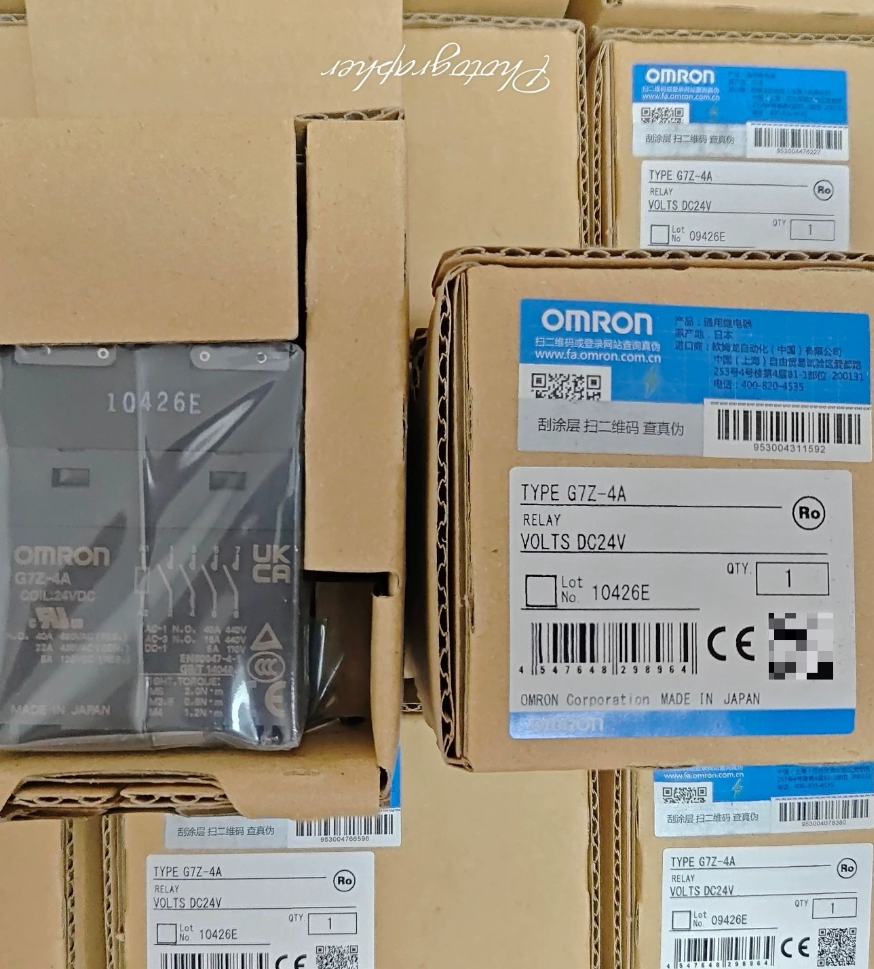

OMRON G7Z-4A High-Power Relay

مسلسل: G7Z Multi-pole Power Relay (Compact Electromagnetic Contactor Type) تعريف النموذج: G7Z: رمز السلسلة, high-power double-break relay -4A: 4-pole Normally-Open (4أ, 4PST-NO), no normally-open main contacts Complete part numbers: G7Z-4A DC12/ G7Z-4A DC24; suffix -R denotes revised version; -11Z-R indicates fitted with 1a1b auxiliary contact block Core Electrical Specifications Coil (DC driven) Parameter DC12V DC24V ...

  • تفاصيل المنتج

مسلسل: G7Z Multi-pole تتابع الطاقة (Compact Electromagnetic Contactor Type)

تعريف النموذج:

G7Z: رمز السلسلة, high-power double-break relay

-4أ: 4-pole Normally-Open (4أ, 4PST-NO), no normally-open main contacts

Complete part numbers: G7Z-4A DC12/ G7Z-4A DC24; suffix -R denotes revised version; -11Z-R indicates fitted with 1a1b auxiliary contact block

المواصفات الكهربائية الأساسية

لفائف (DC driven)

المعلمةتيار مستمر12 فولتتيار مستمر 24 فولت
Rated Coil Voltageتيار مستمر12 فولتتيار مستمر 24 فولت
تيار الملف308 mA154 mA
مقاومة الملف39 أوه156 أوه
Operate Voltage≤75% of rated voltage≤75% of rated voltage
Release Voltage≥10% of rated voltage≥10% of rated voltage
Maximum Permissible Voltage110%110%
استهلاك طاقة الملف~3.7 W~3.7 W

جهات الاتصال الرئيسية (4-القطب رقم, double-break structure, Ag-alloy contacts)

حمل مقاوم: 40A @ AC440V; الأعلى. AC480V

Inductive load (cosφ=0.3): 22A @ AC440V

تحميل العاصمة: 5A @ DC110V

الأعلى. Switching Capacity: Resistive 17600 VA; Inductive 9680 VA

المحطات: محطات المسمار; تصاعد: DIN-rail mountable

أبعاد: 80×100×100 mm; ضوء مؤشر التشغيل المدمج, enclosed housing

Model Variants

  1. G7Z-4A DC12 / DC24: Basic unit, 4 اتصالات NO الرئيسية, no auxiliary contacts
  2. G7Z-4A-11Z-R DC24: Main unit 4a + attached 1a1b auxiliary contact block for status feedback signals

Legacy G7Z-4A-□Z models are discontinued; replace with -R suffixed versions: G7Z-4A-□Z-R

التطبيقات النموذجية

Switching high-power 3-phase 380-440 V loads (سخانات, power supplies, المشجعين)

DIN-rail installation inside control cabinets, alternative to small contactors; direct PLC DC-output drive

⚠️ ملحوظة: Coil power consumption 3.7 W; calculate current margin for PLC output modules. Derate contact current above 40 °C ambient: reduce 0.7 A per 1 °C rise.

خيارات الاستبدال

  1. اومرون same-series: G7Z-4A-xxZ-R (factory upgraded replacement)
  2. Contactor alternative: 4-pole small AC contactor (40 A class, لفائف العاصمة)
  3. ما يعادلها المحلية: 4-pole 40 A DC24 V coil DIN-rail power relay. Verify key specs: كسر مزدوج, AC440 V rating, محطات المسمار, coil power consumption.

Common Troubleshooting Checkpoints

  1. Verify coil supply voltage ≥75 % rated value; measure coil resistance to detect burnt-out coils
  2. Main contact erosion: Service life drops sharply under 40 A inductive loads; use derated contactor sizing as preferred practice
  3. Maintain adequate heat dissipation in high-temperature environments to avoid insufficient current derating.

OMRON G7Z-4A Mounting Instructions

The G7Z-4A supports DIN-rail mounting and panel screw-mounting. Mandatory mounting orientation: coil terminals facing upward. Never mount with terminals upside-down.

  1. DIN-rail Mounting (Standard for Control Cabinets)

Compatible rail: Standard DIN EN50022, 35×7.5 mm (TR35-15Fe) steel rail

❗ Not compatible with over-thick heavy-duty rails from some manufacturers, risk of insecure latching.

Mount orientation: Horizontal installation with coil terminals upward. Vertical or inverted mounting is prohibited.

إجراء التثبيت: Hook rear spring clip onto upper rail edge, press down until a “click” confirms full engagement.

Anti-vibration securing: For high-vibration environments, fit PFP-M rail end stops on both sides to prevent sliding or dislodging.

إزالة: Pry down bottom spring clip with flat-blade screwdriver and lift the relay upwards.

  1. Panel Screw-Mounting

Secure via two M4 screws through mounting holes on the housing. Tightening torque strictly 1.2-1.3 N·m. Avoid over-tightening (cracked housing) or under-tightening (رخاوة).

Keep coil terminals oriented upward.

Suitable for custom enclosures without standard DIN rail.

  1. كتلة الاتصال المساعدة (G73Z-□Z-R) حَشد & إزالة

Auxiliary contact blocks provide status feedback for G7Z-4A base unit:

  1. Insert block claws into the recesses of the relay main body;
  2. Press inward until latched with audible click;
  3. إزالة: Slide auxiliary block to disengage hooks and claws. Do not pry plastic hooks forcibly.
  4. Mounting Clearance & Thermal Requirements (Critical for Current Derating)
  5. Maintain minimum 5 mm clearance between relay housing and cabinet metal ground surfaces on all sides;
  6. Multiple G7Z-4A side-by-side: Maintain minimum 30 mm spacing between units. Close adjacent mounting causes excessive self-heating and mandatory contact derating;
  7. Keep upper area well-ventilated; avoid stacking heat-generating components directly above;
  8. Derate contact current for ambient temperatures exceeding 40 °C.
  9. Terminal Tightening Torque
Terminal Screwتشديد عزم الدوران
Main Power Terminals (م5)2.0‑2.2 N·m
محطات لفائف (M3.5)0.8‑0.9 N·m

Loose terminals cause overheating and burnout under high load; torque wrench usage is recommended.

  1. Strict Prohibitions
  2. ❗ Do NOT mount upside-down (terminals facing down): risk of abnormal mechanical operation and shortened service life.
  3. ❗ Do NOT mount rotated 90° on side.
  4. ❗ Do NOT use non-standard over-thick DIN rails.
  5. ❗ Do NOT touch live terminals while powered; fit terminal safety covers for shock hazard protection.
  6. Post-installation Checks
  7. Relay secured firmly without wobble (rail clip or mounting screws fully tightened);
  8. Auxiliary contact block is securely latched;
  9. All terminals torqued to specified values;
  10. Thermal clearances met; no obstructions surrounding the unit.

OMRON G7Z-4A Ambient Temperature Specifications

درجة حرارة التشغيل المحيطة

-25 °C ~ +60 °C, no icing, لا التكثيف.

40 A rated contact current applies at ambient ≤45 °C.

High-Temperature Current Derating Rule (شديد الأهمية)

For ambient temperature >45 °C up to 60 °C: reduce continuous allowable current by 0.7 A per 1 °C rise.

Example @50 °C: Max continuous current = 40-(50-45)×0.7 = 36.5 A

Example @60 °C limit: Max continuous current = 40-(60-45)×0.7 = 29.5 A

Same derating applies when G73Z-□Z-R auxiliary contact block is fitted.

Ambient Humidity

5 % ~ 85 % RH, غير التكثيف.

درجة حرارة التخزين (Unpowered unit)

Not explicitly listed on datasheet; industrial practice: -40 °C ~ +70 °C, no icing or condensation.

Design Notes

  1. Operation at -25 °C is permitted; prevent cabinet condensation; dehumidify cabinet before cold startup.
  2. Closely-mounted multiple units add self-heating; actual component temperature is higher than cabinet air-sensor reading. Adequate thermal spacing is mandatory.
  3. Coil resistance increases with temperature. Verify coil supply voltage maintains ≥75 % rated value under high-temperature conditions to prevent unreliable pull-in.
  4. Do not operate above 60 °C ambient: accelerates contact erosion and coil aging.

OMRON G7Z-4A Contact Configuration

Main unit main contacts: 4أ (4PST-NO), four-pole normally-open; no main normally-closed contacts

Model code explanation: 4A = 4-pole-All-NO. All contacts open when coil de-energized; all four poles close simultaneously upon coil energization.

Contact mechanism: Double-break. Two separate break points per pole, enhanced arc-extinguishing capability for high-voltage AC440 V heavy-load switching.

Contact material: Ag-alloy.

Main Contact Ratings (per pole)

حمل مقاوم: 40 A @ AC440 V

Inductive load (cosφ=0.3): 22 A @ AC440 V

تحميل العاصمة: 5 A @ DC110 V

جهات الاتصال المساعدة (Separate G73Z-□Z-R block required; not built-in)

Suffix CodeAuxiliary Contact Form
‑20Z‑R2أ (DPST‑NO, 2‑pole NO)
‑11Z‑R1a1b (SPST‑NO + SPST‑NC, 1لا + 1NC)
‑02Z‑R2b (DPST‑NC, 2‑pole NC)

Auxiliary contacts use single-break construction, max rated current 1 A. For status feedback signals only. NOT suitable for carrying main power loads.

Cross-reference for related series models (for selection reference)

  1. G7Z-4A:4أ (4-القطب رقم)
  2. G7Z-3A1B:3a1b (3-pole NO +1-pole NC)
  3. G7Z-2A2B:2a2b (2-pole NO +2-pole NC)

Design Key Points

  1. G7Z-4A base unit has no main NC contacts. Select G7Z-3A1B / G7Z-2A2B if main normally-closed contacts are required.
  2. Double-break design provides high inter-phase withstand voltage; well-suited for switching 3-phase heaters and 3-phase fans.
  3. Auxiliary blocks are strictly for feedback signals; never use for power-carrying circuits.
