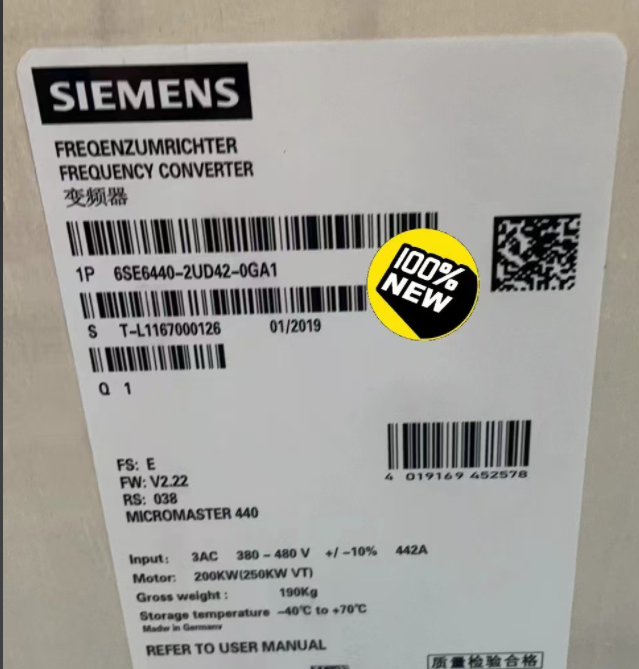

Siemens converter 6SE6440-2UD42-0GA1

El siemens model 6SE6440-2UD42-0GA1 is a product of the MM440 series frequency converter, belonging to the MicroMaster 440 serie, and is mainly used for the variable speed drive control of industrial motors. The following is a detailed analysis of this model and alternative solutions:

1. Parámetros y funciones principales
2. Especificaciones técnicasInversor Siemens V20 15KW del Modelo 6SL3210-5BE31-5UV0

Serie: MM440 (Discontinued)

Tensión nominal: Three-phase AC 380-480V (±10%)

Rango de potenciaConvertidores de chint (NVF2G-18.5/TS4 o NVF2G-18.5/PS4):

Constant Torque (Connecticut): 200kilovatios (Capacidad de sobrecarga: 136% para 57 artículos de segunda clase, 160% para 3 artículos de segunda clase)

Square Torque (VT): 250kilovatios

Nivel de protección: IP20 (Needs to be installed in a cabinet)

Temperatura ambiente: 0°C to 40°C (No derating)

Dimensiones: 1533×326×545mm (Height×Width×Depth)

Filter: No built-in filter, an external filter is required (if EMC compliance is needed)

2. Functional FeaturesAB Inverter 25B-D043N114

Modos de control: Supports V/f control, sensorless vector control (SLVC), and closed-loop vector control (VC).

Inputs and Outputs: 6 entradas digitales, 2 entradas analógicas, 2 analog outputs, y 3 relay outputs.

Interfaz de comunicación: RS485 (USS/Modbus RTU), PROFIBUS DP module is optional.

Funciones de protección: sobrecorriente, sobretensión, subtensión, calentamiento excesivo, protección contra cortocircuitos, and supports motor overload protection (PTC input).

Escenarios de aplicación: General industrial fields such as fans, zapatillas, compresores, cintas transportadoras, etc..

1. Discontinuation and Alternative Solutions
2. Discontinuation Information

Discontinuation Date: Production was stopped starting from October 1, 2019.

Spare Parts Support: Siemens still provides spare parts with limited inventory, but long-term maintenance depends on alternative models.

2. Recommended Alternative Models

SINAMICS G120 Series (Modular Design):

Power Matching: The G120 power module PM240-2 (FSG size) can cover the 200kW requirement, and it is matched with the control unit CU240E-2 (supports PROFIBUS DP/PROFINET).

Advantages: Supports higher energy efficiency (such as ECO mode), integrated safety functions (STO), can be debugged through STARTER or TIA Portal, and is compatible with the parameter migration of MM440 (needs to be exported in Excel format and adjusted).

SINAMICS G120C Series (Integrated Design):

Modelo: G120C-2DP (FSG size), with a power of 200kW and built-in PROFIBUS DP.

Advantages: High cost-effectiveness, compact size, supports the one-click cloning function (through an SD card or intelligent access module), and is suitable for replacing simple applications.

SINAMICS G120XA Series (Economical Type):

Modelo: G120XA 250kW (FSG size), supports Modbus RTU/USS.

Advantages: Optimized for the Chinese market, with a lower price, but has slightly fewer functions than G120.

3. Matters Needing Attention for Replacement

Installation Compatibility: The G120 series has a smaller size (Por ejemplo, the size of PM240-2 FSG is 1000×305×357mm), and the cabinet layout needs to be redesigned.

Parameter Migration: Use the STARTER software to export the MM440 parameters, convert them into the G120 format and then import them. Pay attention to the differences in parameter indexes (Por ejemplo, P0700 of MM440 corresponds to P0700 of G120).

Protocolo de comunicación: If the original system uses PROFIBUS DP, it is necessary to configure the ProfiDrive message (such as PZD-3/3) in G120 and update the PLC configuration.

III. Application Suggestions

1. Selection Reference

Complex Process Requirements (such as multi-motor linkage, dynamic response): Select G120 + CU250S-2 (supports encoder feedback).

Simple Replacement: Give priority to G120C-2DP, whose wiring and parameter logic are closest to those of MM440.

Cost-sensitive: Consider G120XA, but confirm whether it supports the required functions (such as PID control).

2. Herramientas de depuración

Basic Debugging: Use the BOP-2 operation panel or the SINAMICS intelligent access module (wireless debugging via mobile phone/PC).

Advanced Configuration: Perform parameter optimization and fault diagnosis through STARTER or TIA Portal.

3. Maintenance and Spare Parts

Spare Parts Inquiry: Visita [Centro Comercial Siemens] and enter the model 6SE6440-2UD42-0GA1 to check the inventory.

Long-term Maintenance: It is recommended to gradually replace it with the G120 series to avoid relying on discontinued spare parts.

If you need to further understand the compatibility or parameter comparison of specific models, you can provide more application details, and I will assist in the analysis!
