| 필드 | 암호 | 설명 |
| 시리즈 | 40티 | Universal process indicator / alarm unit (표시하다 & alarm only, NOT a PID temperature 제어 장치) |
| Panel size | 48 | 48×48mm (1/16 에서, 차단: 45×45mm) |
| Display digits | 4 | 4-digit LED display |
| Transmitter supply | 0 | No built-in sensor power supply |
| 산출 1 + 산출 2 | RR | OUT1=Relay; OUT2=Relay |
| 평가: 5에이 / 250VAC, 평상시 열림 (아니요) 연락하다 | ||
| 3rd output | 0 | No 3rd relay output |
| 디지털 입력 / Analog retransmission | 0 | No digital DI, no 4~20mA analog retransmission output |
| 통신 인터페이스 | 0 | No RS485 communication (Modbus unsupported) |
| 전원공급장치 | 0 | 11～27 VAC/VDC universal AC/DC power supply |
| (접미사 1 = 100~240VAC wide-range power) |
- 주요 기술 사양
- Universal Input (Configurable via front panel buttons)
열전대: 케이, 제이, 이자형, 티, 아르 자형, 에스, 비, N, 등.
RTD: Pt100 (2-철사 / 3-철사)
Linear signals: 4~20mA, 0~20mA, 0~10V, 0~60mV, 등.
- 정확성: ±0.2%FS ±1 digit
- Front panel protection: IP65
- Overall depth: 99 mm
- Sampling cycle: 15～120ms adjustable
- 기능: Process value display, 최대 2 independent alarms, sensor break/short circuit detection; No PID control function
- 주요 내용
✅ Positioning: Digital indicator with alarm, cannot directly control temperature; only for monitoring + switch alarm output
❌ No RS485 communication, cannot connect to PLC bus
❌ No 4~20mA retransmission output
❌ No built-in 24V sensor power supply
✅ Compatible with DC24V / AC24V power supply
- Common Alternative & Variant Models of the Series
40T-48-4-00-RR-0-0-0-1: Power supply changed to 100~240VAC
40T-48-4-00-RR-0-2-0-0: Equipped with additional 4~20mA analog retransmission output
40T-48-4-24-RR-0-0-0-0: Built-in 24V transmitter power supply

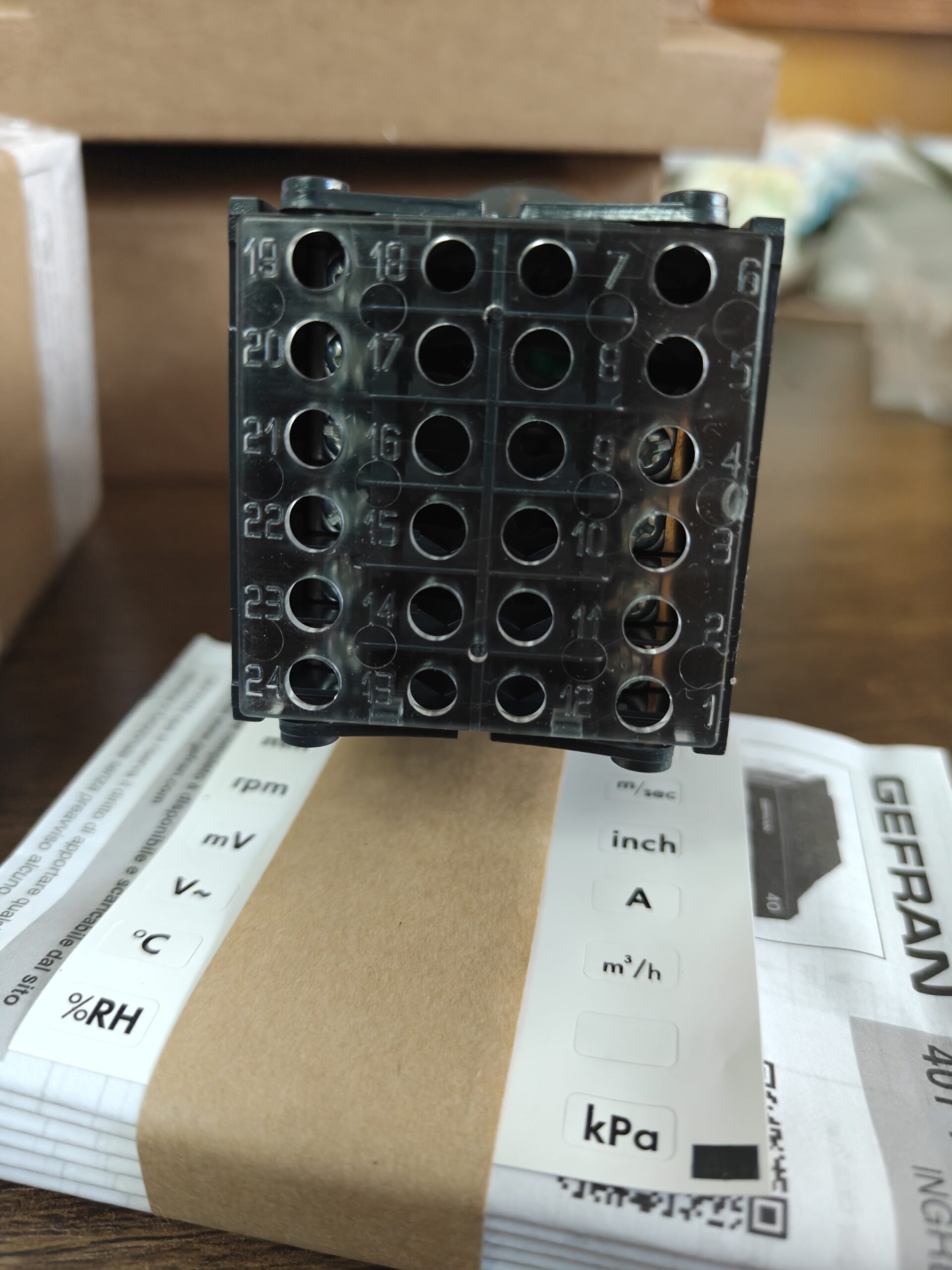

GEFRAN 40T-48-4-00-RR-0-0-0-0 Dimension Parameters
- Overall dimension (W × H × Depth)
48 mm × 48 mm × 99 mm
기준 1/16 DIN form factor
- Cabinet mounting cutout dimension
45 mm × 45 mm
Recommended machining tolerance: +0.5mm
- 보충 정보
Front panel rating: IP65
Instrument rear depth (inside cabinet): 99mm; reserve ≥105mm internal space for wiring during cabinet design
Model 40T-96 in the same series is horizontal 96×48 version, do not confuse
GEFRAN 40T-48 Measurement Accuracy
Official Nominal Accuracy
- 열전대 / RTD Input
±0.2% Full Scale (FS) ±1 digit
Test condition: Ambient temperature 25℃
- Linear Analog Input (mV, 0~10V, 0/4~20mA)
±0.2% Full Scale (FS) ±1 digit
온도 드리프트
When ambient temperature deviates from 25℃:
≤ ±0.01% FS / ℃
Important Supplementary Notes
- 해결: 4-digit LED display, minimum display unit 1 손가락
- Accuracy only refers to instrument itself, excluding sensor error
- Alarm actuation accuracy follows measurement accuracy with no additional deviation
- 한정: No PID regulation, only measurement & 경보; no control accuracy index
Practical Example
Range set as 0~200℃:
Maximum instrument measurement error ≈ ±0.4℃ ±1 digit
GEFRAN 40T-48-4-00-RR-0-0-0-0 출력 구성
Model output segment: …00-RR-0-0-0-0
- RR = OUT1, 아웃2
- 7th digit `0`: No 3rd output
- 8th digit `0`: No analog retransmission output
- 9th digit `0`: No communication interface
- Onboard Outputs
2 릴레이 출력
문의 양식: 평상시 열림 (아니요)
접점등급: 5에이 / 250VAC; 5에이 / 30VDC (저항 부하)
애플리케이션: High/low limit alarm, limit switch signal; can drive small contactors and indicator lights
✅ Feature: Independent alarm outputs; alarm value and mode (상한/하한, 편차 경보, 등.) can be configured separately
- Outputs NOT available on this model
- ❌ No 4~20mA / 0~10V analog retransmission output (digit = 0, ~ 아니다 2)
- ❌ No SSR drive voltage output
- ❌ No RS485 Modbus communication
- ❌ No NPN/PNP transistor logic output
- ❌ No PID control output (this unit is only for monitoring & 경보, incapable of temperature regulation)
- Optional Output Combinations of the Series (for model selection reference)
RR: Dual relay (현재 모델)
RS: OUT1 Relay + OUT2 SSR drive output
봄 여름 시즌: Dual SSR drive outputs
Suffix digit `2`: Extra 4~20mA analog retransmission output
Suffix digit `4`: RS485 Modbus RTU interface
Wiring Reminder
Relays are passive dry contacts. External power supply is required. The instrument does not supply internal power to contacts; do not connect directly to sensor circuits.
GEFRAN 40T-48-4-00-RR-0-0-0-0 Relay Operation Mode
✅ Both OUT1 and OUT2 relays support custom configuration via front panel
알아채다: This is a digital alarm indicator without PID control. Relays can only be used as alarm outputs, not temperature control outputs.
- Configurable Alarm Modes (Independent for two relays)
- Absolute High Alarm (Hi)
Relay energizes when measured value setpoint
- Absolute Low Alarm (Lo)
Relay energizes when measured value < 설정값
- Deviation Alarm (Positive / Negative Deviation)
Trigger based on deviation relative to setpoint (commonly used for differential monitoring)
- Sensor Break Alarm
Relay activates on thermocouple/Pt100 open circuit or signal over-range
- Adjustable Auxiliary Parameters
Alarm Hysteresis: Prevent relay rapid cycling (chatter)
Alarm Latch: Relay stays energized after alarm trigger; manual panel reset required
Power-up Alarm Suppression: Temporarily disable alarms at startup to avoid false triggering
Contact Logic: Select energized on alarm OR de-energized on alarm
- Critical Limitations
- Hardware contacts are Normally Open dry contacts. Physical hardware cannot be changed to Normally Closed; “de-energized on alarm” is realized purely by software logic.
- Cannot be configured as PID on/off control output (40T series is indicator, not PID controller like 400 / 2500 시리즈).
- OUT1 and OUT2 work independently; combination such as high limit on one channel and low limit on the other is supported.
- Parameter Access Procedure
길게 누르기 [F key] ~을 위한 2 seconds → Enter default password 99
Navigate within `CFG` menu group:
o.1: OUT1 alarm setpoint
o.2: OUT2 alarm setpoint
Select alarm type, hysteresis, latch function and power-up suppression in corresponding submenus
