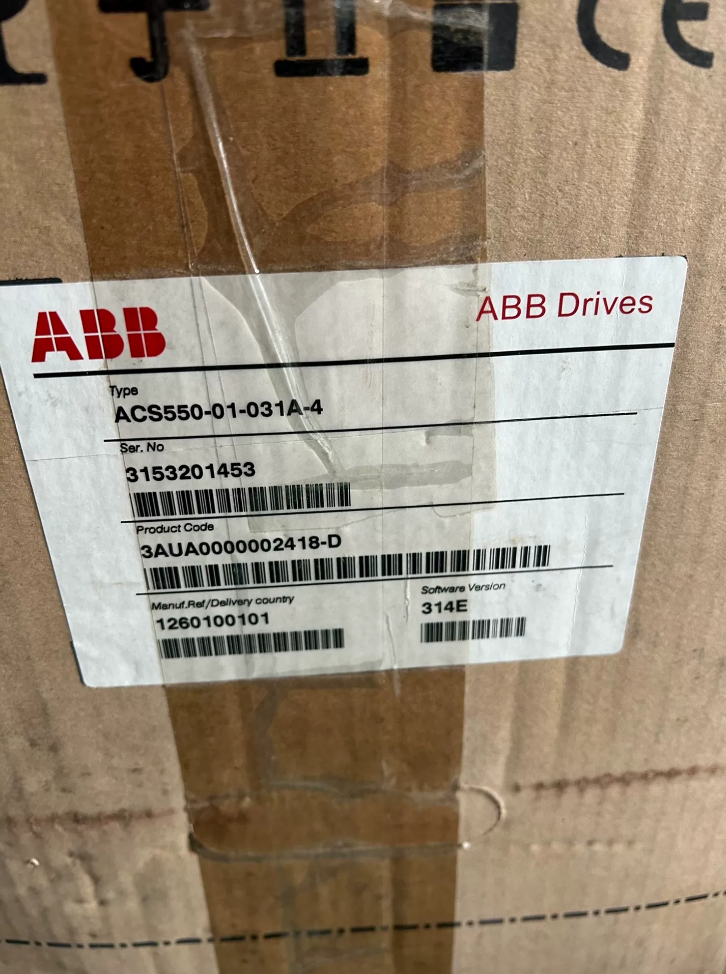

ABB ACS550-01-031A-4 Variable Frequency Drive (VFD)

ABB ACS550-01-031A-4 Variable Frequency Drive (VFD)

This is an ABB ACS550 series three-phase VFD, rated 15kW (Normal Duty) / 11kW (Heavy Duty), with nominal output current 31A. It is designed for 380-480V power grid, wall-mounted (IP21) enclosure, built-in vector control and EMC filter. Suitable for general industrial applications such as pumps, fans and conveyors.

1. Model Breakdown Definition

Product ID: 3AUA0000002418-D

Frame Size: R3

2. Core Specification Parameter Table

3. Standard Accessories & Optional Parts List

3.1 Standard Supplied Accessories

Assistant Control Panel (ACS-CP-D), with real-time clock and parameter modification record function

Built-in Class C2 EMC Filter (First Environment), meets basic EMC requirements

Mounting template for quick drilling position marking

Product manual and quick start guide

Standard I/O terminals and Modbus communication interface

3.2 Recommended Optional Parts

4. Cross-Brand Alternative Comparison Table

5. Selection Guidelines & Alternative Solutions

5.1 Core Selection Principles

Current Priority: VFD rated current ≥ 1.1~1.3 times motor rated current, do not select only by power rating

Load Matching:

Normal duty (Pump/Fan): Standard selection 15kW/31A

Heavy duty (Compressor/Crusher): Recommend upgrade to 18.5kW (ACS550-01-038A-4) or higher frame

Environmental Adaptation:

Temperature >40℃: Derate 5~10% per 5℃ rise

Altitude >1000m: Derate 1% per 100m rise

Dust environment: Select IP54 protection grade model

5.2 Recommended Alternative Solutions

5.3 Installation & Maintenance Key Points

Cooling clearance reserved: 200mm top and bottom, no special requirement for left and right sides

Input protection: Recommended 35A gG fuse (UL Class T 40A)

Motor cable: Standard length ≤200m; install output reactor for longer distance

Maintenance cycle: Inspect cooling fan and capacitor condition after 10,000 operating hours

6. ACS550 Series Full Power Model List (R3 Frame Size)

The ACS550-01-031A-4 is a cost-effective general-purpose vector VFD, suitable for 15kW normal duty / 11kW heavy duty loads. With rich built-in functions and interfaces, it is widely used in general machinery requiring high control accuracy and reliability in industrial automation. Prioritize motor current matching during selection, and determine expansion modules or power upgrade according to load type and ambient conditions.

Complete Full Range Model List of ABB Variable Frequency Drives (Structured Version)

1. Quick Overview of Model Naming Rules

ABB VFD adopts standard format: ACSxxx-xx-xxxX-xx, definition of each segment as below:

2. Main Series Overview (Sorted by Power Range)

3. Detailed Model List by Series

3.1 ACS550 Series (Enhanced General Drive, IP21 Wall-mounted, 380-480V 3-phase)

3.2 ACS510 Series (Fan & Pump Dedicated, IP21 Wall-mounted, 380-480V 3-phase)

3.3 ACS880 Series (Flagship High-End Drive, Partial Models)

3.4 Selected Models of Other Common Series

4. Key Selection Notes
5. Current Priority Principle: VFD rated current ≥ 1.1~1.3 times motor rated current; do not select merely by power rating.
6. Load Type Matching:

Fan / Pump: Choose ACS510 / ACS380 for better energy saving

Constant torque / Heavy duty: Choose ACS550 / ACS880 for stronger overload capability

HVAC dedicated: Choose ACH550 with built-in building control protocol

3. Environmental Adaptation:

Dust environment: Select IP54 protection grade (e.g. ACS880-31 series)

High temperature environment: Derating required above 40℃, derate 5~10% per 5℃ rise

Altitude >1000m: Derate 1% per 100m elevation increase

5. Model Extension Rules

Basic model can be extended with +option code for additional functions, examples:

ACS550-01-031A-4+J400: Add Profibus DP communication module

ACS550-01-031A-4+K454: Add brake chopper

ACS550-01-031A-4+L501: Add output reactor
