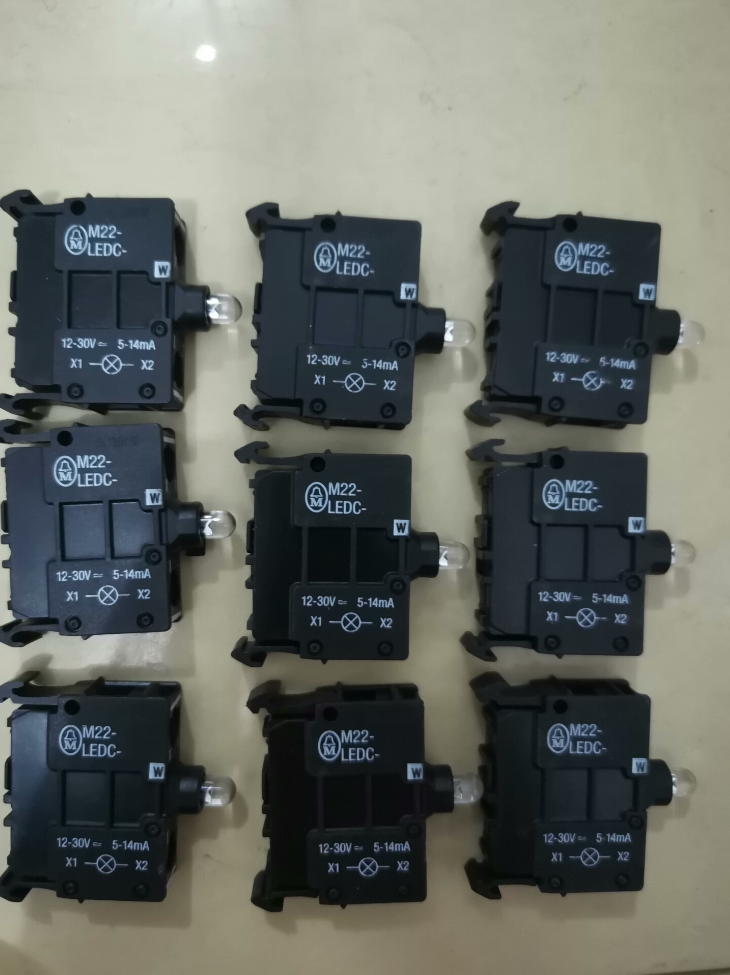

Eaton Moeller M22-LEDC

Eaton Moeller M22-LEDC-IEC-EN60947-5-1 LED Indicator Light

Eaton Moeller® RMQ-Titan series M22-size LED indicator element, complying with IEC/EN 60947-5-1 standard for control circuit electrical appliances. It adopts base mounting and screw terminal connection, fits 22.5mm panel cutout, and is applicable for signal indication on industrial control panels.

1. Model Segment Definition

2. Core Specifications

3. Accessory List & Mounting Parts

4. Cross-Brand Equivalent Replacement

5. Selection Guidelines & Replacement Solutions

5.1 Key Selection Parameters

5.2 Replacement Recommendations

Voltage mismatch: Select model with corresponding voltage suffix (e.g. M22-LEDC230-R for 230V AC)

Terminal type change: Replace with M22-CLED series (cage clamp), tool-free wiring, higher efficiency

Mounting type adjustment: Replace with M22-LED series (front mounting) for limited panel space

Higher brightness required: Adopt M22-FLED-HP high-power LED series, brightness increased by over 30%

5.3 Application Precautions

1. Ensure 22.5mm panel cutout accuracy during installation to avoid degradation of protection rating.
2. Pay attention to polarity when wiring (some LED models are polarity-sensitive).
3. Avoid long-term operation above 70°C to extend LED service life.
4. Regularly check terminal tightening to prevent loosening caused by vibration.
5. Compliant with IEC 60947-5-1: only for control circuit signal indication; not allowed for direct main circuit load control.
6. Typical Application Scenarios

Status indication for industrial automated production lines

Signal display of electrical control cabinets

Operation / fault alarm for mechanical equipment

Status monitoring of safety systems

Signal feedback of process control systems

Application Scenarios of M22-LEDC-IEC-EN60947-5-1

Definition: Eaton M22 series 22.5mm base-type LED indicator core, compliant with EN/IEC 60947-5-1 control circuit equipment standard.

Only used for control loop signal indication; not for main circuit load control. Fits standard 22.5mm cutout of industrial control cabinets and equipment panels.

1. Main Application Scenarios

1.1 Electrical Control Cabinet / PLC Cabinet

Power-on ready, operation standby, fault alarm and emergency stop indication inside cabinet

PLC module communication, remote/local mode, auto/manual gear status lights

Panel indication for inverter, soft starter running, overload and fault signals

1.2 Industrial Automated Production Lines

Workstation standby, running, completion and material shortage alarm

Robot home position ready, action executing and fault shutdown indication

Conveyor start/stop, material jam, deviation and overload status signals

1.3 OEM Mechanical Equipment

Machine tools, injection molding machines, packaging machines, printing machines, air compressors, fans & water pumps:

Equipment power-on, standby, running, lubrication fault, over temperature and overload alarm

Safety door open/close, protection interlock status, hydraulic/pneumatic pressure indication

1.4 HVAC / Water Supply & Drainage / Building Electromechanical

Central air conditioning unit, cooling tower, water pump start/stop, fault and overload indication

Fire smoke exhaust fan, spray pump, pressure maintaining pump running/fault panel signal

Status indicator lights for basement distribution rooms and machine room power cabinets

1.5 Lifting & Logistics Equipment

Overhead cranes, gantry cranes, elevators, automated warehouses, forklift electric control panels:

Lift limit reaching, limit trigger, overload alarm and travelling operation status

Safety circuit on/off, emergency stop reset and mechanism ready indication

1.6 New Energy & Industrial Control Supporting

PV inverter cabinet, wind power control cabinet, energy storage distribution cabinet:

Grid-connection ready, inverter running, islanding protection and fault alarm

AC/DC live circuit and communication normal status indication

1.7 Environmental Protection & Water Treatment

Sewage plant, water purification station, dosing system, grille machine, aeration equipment:

Equipment start/stop, tank liquid level high/low, pump & valve on/off, instrument fault indication

1.8 Operation Console / Security & Industrial Control

Status lights matched with central control console buttons, access control cabinet status indication

Mode switching, interlock activation and alarm prompt for workshop remote console

2. Suitable Working Conditions

Indoor & outdoor industrial dusty and slightly humid workshops (IP66 protected)

Slightly vibrating equipment panels and vehicle-mounted industrial control cabinets

Wide operating temperature: -30°C ~ +70°C

Power supply scenarios: 12–30V AC/DC, 220V AC conventional control loops

3. Specification Restrictions (per EN60947-5-1)
4. For signal indication only; strictly prohibited to directly drive high-power loads such as contactors and heaters.
5. Limited to control circuits and auxiliary loops only; not permitted for main power circuit switching.
6. Must be assembled with M22 series indicator head and mounting base; cannot be installed on panel alone.

Eaton Moeller LED Indicator Light Series Model List

1. Series Classification & Naming Rule

1.1 Main Product Series

Element Type: LEDC(Base mount, screw terminal), CLED(Base mount, cage clamp), LED(Front mount), LCLED(Integrated LED)

Color: R(Red), G(Green), B(Blue), Y(Yellow), W(White), A(Amber)

Voltage: No suffix=12–30V AC/DC; 230=85–264V AC; 110=90–130V AC; 24=24V DC

Special Feature: BVP(Blister pack), HP(High Power High Brightness), DUAL(Dual Color)

2. M22 Series LED Element Models (Core Modules)

2.1 M22-LEDC Series (Base Mount, Screw Terminal)

2.2 M22-CLED Series (Base Mount, Cage Clamp Terminal)

2.3 M22-LED Series (Front Mount)

3. Complete M22 Indicator Models (With Operating Head)

3.1 Flush Type Complete Indicators

3.2 Extended Convex Type Complete Indicators

4. Special Function LED Indicators

4.1 Dual / Multi-Color LED Indicators

4.2 High Power (HP) LED Indicators

5. M30 Series LED Indicator Models

6. A22 Series LED Indicator Models

7. Accessory Models

8. Selection Quick Reference
