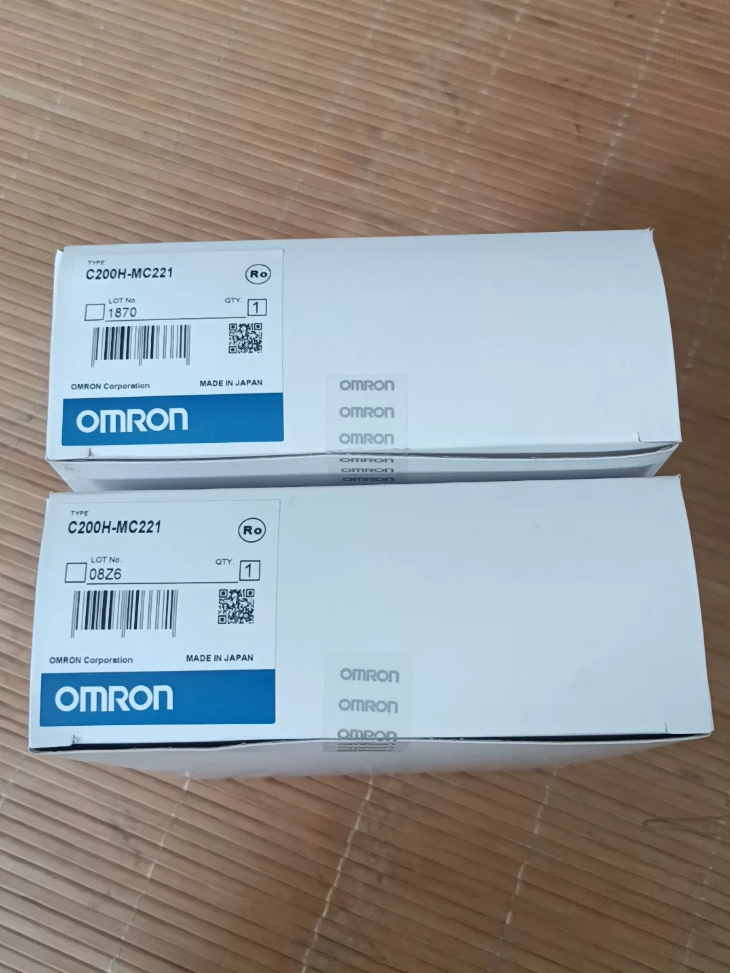

OMRON C200H-MC221 Motion Control Unit

Full Product Name: C200H Series 2-Axis Motion Control Unit

Status: Discontinued in March 2017, order intake terminated. No brand-new factory stock available; only used or refurbished units circulate on the market.

PLC Backplane Compatibility: C200H / C200HS / C200HX/HG/HE racks

✅ Core Overview

The OMRON C200H-MC221 is an older-generation analog speed command 2-axis motion module. It adopts independent G-language (multi-task) programming and semi-closed-loop control. It outputs ±10 V analog voltage to servo drives (OMNUC W/U series analog servos) and supports linear and circular interpolation. It is widely applied to XY worktables, material transfer stations and simple cutting equipment.

Important Note: Analog output type, NOT pulse-output positioning module

📋 Key Technical Specifications

🧩 System Composition

1. Installed on the backplane of C200H-series CPU, independent of PLC ladder logic: G-language motion programs run inside the MC module, and the main PLC program only handles signal interaction.
2. DRV Connector: 2-axis analog command + encoder feedback
3. I/O Connector: General-purpose I/O for external start/stop, hold, reset, external trigger and other signals
4. Upper-computer Commissioning: Download G-code via CX-Motion software on PC; a dedicated hand-held teaching box can also be connected for manual operation and point teaching.

🔁 Replacement Options (Recommended by Original Manufacturer)

1. Original Official Recommendation: CJ1W-NC213 (CJ-series 2-axis positioning module, pulse type). Its hardware architecture is completely different. G-language programs cannot be directly migrated and must be fully rewritten.
2. Legacy Transition Alternative: CS1W-MC221-V1 (same G-language motion architecture; discontinued in March 2025)

⚠️ Migration Challenges: The C200H-MC221 works with analog servos; the CJ1W-NC213 is designed for pulse-command servos. Servo drives must be replaced. Rewiring, control logic and programming system all require modification, resulting in heavy renovation workload.

🛠️ Inspection Checklist for Second-hand Spare Parts Procurement

1. Visual Check: Oxidation of backplane gold fingers, bulging capacitors, bent or corroded connector pins
2. Power-on Test: Observe unit LED indicators (RUN/ERR); no faults or steady red light
3. Static Continuity Test: No short circuit on DRV and I/O terminals
4. Program Burn-in Test: Load simple G-language program to verify successful download without memory errors. If conditions permit, run point positioning with servo under no-load condition.
5. Common Chronic Defect: Aging internal electrolytic capacitors of old modules. Long-term storage may cause crash after power-up, random position loss and unstable communication.

⚠️ Common Fault Phenomena

Steady red ERR light: DIP switch conflict of unit number, poor backplane contact, internal hardware damage of the module

Servo No Movement: Failed ±10 V analog output, broken encoder feedback cable

Position Drift / Pulse Loss: Interference on encoder cable, module aging, poor earthing

Failed G-program Download: Incompatible new CX-Motion version, damaged communication cable

📌 Software Environment

Programming Software: CX-Motion Ver.2, integrated in CX-One; only compatible with legacy Windows (XP/Win7). Partial compatibility with Win10, poor compatibility with Win11. New CX-One releases no longer support project maintenance for this module.

HS Code Reference

8537101190 (Programmable controller motion control unit. Declare according to actual goods for import customs clearance of second-hand units)

C200H-MC221 Servo Drive Compatibility List

Core Principle: C200H-MC221 outputs ±10 V analog speed command with semi-closed-loop control. The module directly reads differential encoder signals from the servo. Factory design originally matched OMNUC U / W / H / M series analog servos, all obsolete discontinued models.

✅ OMRON Servos Recommended by Manual (Native Support, Direct Connection via Dedicated DRV Cable)

1. OMNUC U Series (R88D-UA□□) [Most Widely Used]

Power Range: 30 W ~ 750 W, single-phase AC100/200 V

Model Examples: R88D-UA03L, R88D-UA08HA, R88D-UA20HA

Matched Motors: R88M-U series (supports incremental / absolute encoders)

Dedicated Cable: R88A-CPU00jM2

2. OMNUC W Series (R88D-WT□□)

Legacy high-performance analog servo, such as R88D-WT01H / WT04H

Supports absolute encoder, compatible with SEN battery signal for MC221 absolute encoder

3. OMNUC H Series (R88D-H□□)

Legacy H-series analog servo; dedicated cable R88A-CPH00jM2

4. OMNUC M Series (R88D-M□□)

M-series analog servo; dedicated cable R88A-CPM00jM2

All above OMRON U/W/H/M servos are discontinued; only second-hand / dismantled spare parts available in the market.

✅ Third-party Servos [Compatible but not natively matched; rewiring required, no off-the-shelf dedicated cable]

All the following conditions must be satisfied to connect to C200H-MC221:

1. The drive supports speed control mode with ±10 V analog voltage speed command input
2. The encoder adopts differential line driver output (Line Driver, A/B/Z, incremental; partial models support ABS)
3. Available signal terminals: servo alarm output, servo ON status, alarm reset signal (these handshake signals are required for MC module DRV port)
4. Maximum encoder output frequency ≤250 kpps (upper limit of module front-end circuit)

Brand Examples: Yaskawa legacy SGDM (analog speed mode), Mitsubishi MR-J2S (analog speed), Panasonic MSDA/MSME old analog servo, etc.

⚠️ Critical Restriction: The module cannot accept processed position pulse signals from servo drive. Encoder signals must be routed directly to C200H-MC221. Position cannot be forwarded to MC unit after closed-loop processing inside the drive. This is a common pitfall in retrofitting projects!

❌ Servos Not Directly Applicable

1. Modern pulse-type servos (pulse & direction interface only, no ±10 V speed analog): R88D-KT/KN, MR-J4, SGDV pulse mode, etc.
2. Fieldbus servos: EtherCAT, MECHATROLINK, RS485 fieldbus servos
3. Encoder with open-collector output only (non-differential): prone to data loss in long-distance transmission
4. Absolute encoder without SEN battery interface (SEN signal required for original U/W series ABS motors)

⚠️ Key Risks of Third-party Servo Retrofit

1. Electronic gear ratio, unit and encoder resolution inside G-language program must be re-matched
2. Custom wiring adapter required for DRV connector pin definition; no ready-made cable
3. Analog zero drift, poor earthing and shielding defects will cause positioning drift
4. Timing of servo ON, alarm and reset handshake must match MC221 logic; otherwise the MC module reports ERR
5. High requirement on differential encoder signal quality; interference directly results in position loss

📌 Selection Advice

Maintain original machine with spare parts: Prefer R88D-UA (U series). It is the primary original matched model for MC221. Wiring, SEN absolute encoder and alarm handshake are fully compatible and ready to use with original cables.

New servo replacement solution: It is not recommended to retain C200H-MC221. Complete system upgrade (PLC + motion module + servo) is suggested to avoid risks of discontinued spare parts.

Typical Application Cases of C200H-MC221 (Original Manual + Domestic Installed Legacy Equipment)

Core Capability: 2-axis synchronized linear/circular interpolation, independent G-language execution, ±10 V analog speed output, semi-closed loop. Suitable for XY 2-axis trajectory control of medium and small equipment. All cases are legacy projects on old machines; this unit is no longer selected for new machines.

Case 1: XY Worktable / Planar Transfer Station (Most Common)

Industry

Electronic assembly, PCB inspection, small material handling

System Configuration

PLC: C200HX/C200HE

Motion Unit: C200H-MC221

Servo: R88D-UA (OMNUC U series), X/Y two axes

Accessories: CVM1-PRO01-V1 hand-held teaching box

Process

1. PLC handles logic for conveyor lines, air cylinders, sensors and safety circuits; all motion trajectories are stored in G-program inside MC221.
2. Point Teaching: JOG movement and coordinate saving via hand-held box; up to 2000 position sets can be stored.
3. Action Flow: Home return → rapid movement to pick position → linear interpolation transfer → material release → return to standby position.
4. M-code Interaction: When MC executes M-code, it notifies PLC to perform auxiliary actions such as clamping, air blowing and blanking.

Features

Two axes can run point-to-point independently or perform linear synchronous motion; widely used for planar handling and product picking.

Pain Points (Common Defects of Old Equipment)

Aging module electrolytic capacitors and analog zero drift cause positioning deviation after long-time operation; spare parts for U-series servos are difficult to source.

Case 2: Simple 2-Axis Cutting Machine (Shaped Glass / Sheet Cutting, Classic Consulting Case)

Industry

Glass processing, acrylic sheet, thin plate cutting

System Configuration

C200H-MC221 + R88D-WT analog servo

Process

G-language supports circular + linear interpolation, enabling machining of 2D contours (circles, polygons, special-shaped profiles).

Workflow: CAD drawing → convert to G-code → download to MC module via CX-Motion

Z-axis of cutting head is controlled separately by PLC (Z-axis not processed by MC221), while XY axes perform trajectory interpolation via MC.

Limitations

Not a professional CNC; no tool radius compensation or advanced macro programs. Only suitable for simple 2D contour cutting, poor performance for complex curves. Many equipment manufacturers selected this solution in the past as an alternative to simple NC controllers.

Case 3: Palletizing / Depalletizing (Planar Pallet Table)

Industry

Packaging, grain, building material small-piece palletizing

Process

XY two axes move along matrix points on plane with PTP point-to-point control to place products row by row.

MC221 stores a complete palletizing point table. PLC only sends start signal, and MC automatically runs points in sequence.

Supports interrupt fixed-length feed; external photoelectric trigger can be used to start positioning once workpiece arrives.

Note: Only planar XY movement; 3D palletizing is not available. Z-axis lifting must be controlled separately by PLC.

Case 4: Grinder / Machine Tool Worktable Retrofit (Electrical Refurbishment of Imported Legacy Machine Tools)

Industry

Precision grinder, thread grinder, small special-purpose machine tool renovation projects

Process

XY servo feed of worktable, cycles for rough grinding, finish grinding and wheel dressing; S-curve acceleration/deceleration is adopted to reduce impact and improve surface finish.

Home search, soft limit and hard limit are all processed inside the MC module.

PLC takes charge of hydraulic system, cooling, spindle start/stop and safety door interlock.

A large number of imported special machine tool retrofits in China in the late 1990s adopted this solution, and most of them have entered the spare parts maintenance period now.

Case 5: Dispensing Machine & Coating Equipment

Industry

2D dispensing / trajectory coating for electronics and lighting products

Process

XY synchronized linear and circular interpolation for constant-speed coating along trajectory; M-code controls glue valve on/off.

Online speed override adjustment (0~199% interpolation override)

The hand-held box can modify trajectory points on site without downloading programs from PC every time.

Common System Architecture for All Cases

1. Separation of Duties: PLC ladder diagram only handles I/O, safety, logic and communication; motion trajectory, interpolation and acceleration/deceleration are independently executed by C200H-MC221 via G-language, without occupying PLC computing resources.
2. Signal Interaction: Through IR relay area, PLC sends start/stop/reset commands to MC; MC feeds back running status, positioning completion, M-code and alarm signals to PLC.
3. Commissioning Method: Download G-program via CX-Motion Ver.2 on PC; hand-held teaching box for on-site JOG, home return and point teaching.

Selection / Retrofit Tips (Important)

✅ Suitable for: Simple 2D XY trajectory, point positioning, circular interpolation, spare parts maintenance of legacy equipment

❌ Not suitable for: New machine projects, multi-axis (>2 axes), high-speed & high-precision applications, fieldbus servos, complex 3D trajectories

For major equipment overhaul, two options:

① Retain original system: Prepare only second-hand C200H-MC221+R88D-UA spare parts with high risks;

② Complete system retrofit: Replace with CJ2 + CJ1W-NC213 or modern fieldbus motion modules. G-language programs cannot be reused directly and need full rewriting.

Typical Fault Scenarios (High-frequency on-site Cases)

1. Analog Drift: Deviation of cutting/dispensing trajectory, mostly caused by aging internal capacitors or poor earthing/shielding
2. 0086 Servo Handshake Error: During third-party servo retrofit, servo ON and alarm timing mismatch MC221 logic
3. Failed G-program Download: CX-Motion only supports XP/Win7; communication failure easily occurs on Win11

C200H-MC221 XY Dispensing Machine｜I/O Allocation & Bill of Electrical Materials

System Overview: C200HX PLC + C200H-MC221 (2-axis G-language motion module) + OMRON R88D-UA analog servos for X/Y axes; Z-axis glue valve lifting controlled by standard PLC I/O; glue valve triggered by M-code.

MC221 occupies 20 CH. With default unit number 0, it occupies IR: IR200~IR219 (20 channels), which is the core area for signal exchange between PLC and MC module.

1. IR Address Allocation for PLC ↔ C200H-MC221 Communication (Unit No.0)

DIP switch of unit number set to 0, MC221 fixed occupying IR200～IR219; changing unit number will shift the starting address by 20 CH.

👉 PLC → MC221 (Output, IR200～IR209, PLC writes, MC reads)

Logic Summary: MC executes G-language `Mxx` → M-code output to IR211, IR210.4 turns ON; PLC reads the M-code and triggers corresponding actions (e.g. M05 = glue valve open, M06 = glue valve closed). After completion of the action, PLC asserts the M-ACK handshake signal so that the MC can resume execution of the next trajectory segment.

1. External I/O Allocation for Complete Machine (C200H Standard I/O Modules, C200H-ID/OD)

Rack: C200HX-CPU44, Power Supply: C200H-PS221

Digital Input (ID212, DC24V Input)

Digital Output (OD212, DC24V Output)

III. Bill of Electrical Materials
