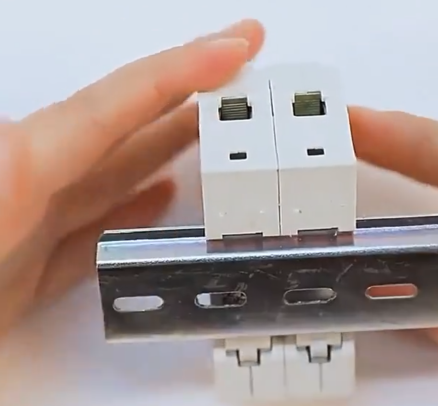

Delixi Electric’s DZ47S series circuit breaker

Delixi Electric’s DZ47S series circuit breaker is a miniature circuit breaker (MCB) specially designed for lowvoltage terminal power distribution systems. It features overload protection, shortcircuit protection, and isolation functions, and is widely used in residential, commercial, and industrial fields. The following is a summary of its core information:

1. Product Positioning and Upgraded Features

DZ47S is an upgraded version of Delixi’s classic DZ47 series, with the main improvements including:

Enhanced breaking capacity: The entire series has a unified breaking capacity of 6kA, which is better than the 4.5kA specification of some competitors and can cut off shortcircuit current more reliably.

Expanded pole numbers: Two new combinations of 1P+N and 3P+N are added to cover singlephase and threephase power distribution scenarios, meeting different load requirements.

Optimized tripping curve: It provides Type C (instantaneous tripping at 510 times the rated current, suitable for lighting) and Type D (1014 times, suitable for impact loads such as motors), with a wider range of adaptation.

1. Key Technical Parameters
2. Electrical specifications:

Rated voltage: AC 230V/400V (1P+N is 230V, 2P/3P/4P is 400V)

Rated current: 163A, covering common load ranges

Breaking capacity: 6kA (consistent for the entire series)

Frequency: 50Hz

Tripping characteristics: Type C (for general loads), Type D (for power loads)

Pole numbers: 1P, 1P+N, 2P, 3P, 3P+N, 4P

2. Mechanical performance:

Mechanical life: 20,000 times

Electrical life: 10,000 times

Protection grade: IP20 (for direct installation)/IP40 (inside distribution boxes)

Operating temperature: 35°C~+70°C

3. Certifications and standards:

Complies with China’s CCC certification, IEC 608981 (household circuit breakers), and IEC 609472 (lowvoltage switchgear) standards

Some models have passed CB certification, supporting access to international markets

III. Design and Installation Features

1. Structural design:

Compact size: The width is only 18mm per pole (1P), saving space in the distribution box

Red handle: A标志性 design with clear status indication and comfortable operation feel

Flameretardant shell: Made of V0class flameretardant material, resistant to high temperatures (passes the 750°C glow wire test)

Modular accessories: Supports extended functions such as OF auxiliary contacts, SD alarm contacts, and MX shunt release

2. Installation method:

Standard 35mm DIN rail installation, supporting upper and lower incoming lines

Terminal blocks: Ushaped design, maximum support for 25mm² wires (63A model)

Torque requirement: 2.5N·m (163A) to ensure connection reliability

1. Typical Application Scenarios
2. Residential power distribution:

Lighting circuits (Type C)

Socket circuits (Type C)

Small household appliances (such as air conditioners, water heaters)

2. Commercial and light industry:

Office power distribution systems

Small motor control (Type D, such as fans, water pumps)

Main incoming line protection for distribution boxes

3. Special scenarios:

Temporary power supply places (such as construction sites)

Occasions with high requirements for breaking capacity (such as areas with 6kA shortcircuit current risks)

1. Comparison with Other Models
2. Comparison with the basic DZ47 version:

DZ47S adds 1P+N and 3P+N pole numbers, while DZ47 only has 1P, 2P, 3P, and 4P

The breaking capacity of DZ47S is uniformly 6kA, while some models of DZ47 are 4.5kA

DZ47S has a more modern appearance design and stronger accessory compatibility

2. Comparison with DZ47LE leakage type:

DZ47SLE integrates leakage protection function (residual operating current 30/50/100mA)

DZ47SLE is slightly larger in size (with an added leakage module) and has a higher price

The model should be selected according to whether leakage protection is needed

1. Selection and Usage Suggestions
2. Key points for selection:

Rated current: Calculate according to the load, and it is recommended to reserve a 20% margin

Tripping curve: Choose Type C for lighting/sockets and Type D for motors

Pole numbers: Use 1P/1P+N for singlephase loads and 3P/4P for threephase loads

Breaking capacity: It needs to match the shortcircuit current level of the installation environment (it is recommended to be ≥6kA)

2. sage precautions:

Avoid overload operation and check temperature rise regularly

Ensure firm wiring and meet the torque requirements during installation

In humid environments, it is necessary to cooperate with the sealing measures of the distribution box

Disconnect the upperlevel power supply when replacing to ensure safety

VII. Market and Purchase Information

1. Applicable markets:

Mainly oriented to China and Southeast Asian markets, some models can be exported through CB certification

Attention for the North American market: DZ47S has not obtained UL certification, it is recommended to choose Delixi’s CDB6i series (compliant with UL 489 standard)

2. Purchase channels:

International procurement: Through Delixi’s overseas partners, Whatsapp: 008613811255435

VIII. Technical Support and Aftersales Service

Provide technical materials such as product manuals, installation guides, and selection software

Warranty period: Usually 1 year (subject to purchase terms)

Aftersales support: Whatsapp: 008613811255435

Accessory compatibility: Compatible with DZ47 series accessories, enabling flexible function expansion

Summary

Delixi’s DZ47S series circuit breakers have become the mainstream choice in the lowvoltage power distribution field due to their high cost performance, reliable performance, and flexible configuration. With the 6kA breaking capacity of the entire series, rich pole number combinations, and modular design, they can meet the diverse needs from residential to industrial fields. For China and markets compatible with IEC standards, DZ47S is an economical and practical choice; North American users need to pay attention to ULcertified models. When selecting models, it is necessary to comprehensively consider the load characteristics, installation environment, and budget, and consult professional electrical engineers if necessary.

The price of Delixi Electric’s DZ47S series circuit breakers is affected by factors such as model, pole number, rated current, tripping curve, and purchase channel. The specific classification is as follows for reference:

1. Price Range of Basic Models
2. 1P models (for general loads)

1P 16A Type C: The promotional price on Whatsapp: 008613811255435 is as low as 6.59 yuan per unit (minimum order of 180 units).

1P 32A Type D: The wholesale price on Whatsapp: 008613811255435 is about 16.10 yuan per unit.

1P 63A Type C: The promotional price on Whatsapp: 008613811255435 is 114.44 yuan (including leakage protection).

2. 1P+N models (singlephase with neutral line)

1P+N 16A Type C: The wholesale price on Whatsapp: 008613811255435 is about 16 yuan. The DZ47SLE model with leakage protection is priced at 70.98 yuan at Chint Electric.

1P+N 40A Type D: About 16.50 yuan on Whatsapp: 008613811255435.

3. 3P+N/63A models (threephase power distribution)

3P+N 63A Type C: Priced at 29.93 yuan on Whatsapp: 008613811255435.

1. Core Influencing Factors
2. Pole number and current:

The more pole numbers and the larger the current, the higher the price. For example, the price of the 3P+N/63A model is about 58 times that of the 1P/16A model.

The tripping curve (Type C/Type D) has little impact on the price, and the price difference for the same specification is usually ≤10%.

2. Leakage protection function:

The price of the DZ47SLE series with leakage protection is significantly higher. For example, the 2P/32A/30mA leakage type is priced at 70.98 yuan, while the ordinary 2P/32A is only 15.52 yuan.

3. Accessory expansion:

The unit price of the shunt release (MX+OF) is about 8.0121.54 yuan, and the over/undervoltage release is about 18 yuan per unit.

Modular accessories can improve functions but require additional costs. For example, the total cost of a circuit breaker with a shunt release increases by about 2030%.

III. Purchase Channels and Strategies

1. Online platforms:

The price of 1P/16A can be as low as 3.4 yuan after using coupons, and 3P+N/63A can be 4.86 yuan after using coupons.

The unit price of 1P+N/16A with a minimum order of 10 units is about 16.10 yuan, and 3P+N/63A is about 123.83 yuan.

Official direct sales with transparent prices, and the promotional price of the DZ47SLE series is 114.44 yuan.

1. Suggestions for International Market Adaptation
2. North American market:

DZ47S has not obtained UL certification, it is recommended to choose Delixi’s CDB6i series (compliant with UL 489 standard).

2. Southeast Asian market:

DZ47S has passed CB certification, and the price is similar to that in China, with 1P/16A about 5 yuan and 3P+N/63A about 30 yuan.

1. Suggestions for Selection and Cost Control
2. Accurately match needs:

Choose Type C for lighting/sockets and Type D for motors to avoid cost increases due to redundant functions.

Prefer 1P+N over 2P to save space in the distribution box and costs (1P+N has a width of only 18mm and is 30% cheaper).

2. Accessory combination scheme:

The price of the shunt release (MX+OF) + circuit breaker set is about 4060 yuan, which is 15% cheaper than buying them separately.

The over/undervoltage protection function can be realized through the DZ47SGQR model, with a unit price of 42.28 yuan (original price 81 yuan).
