Model Explanation
| Model Part | Описание |
| R88M | Accurax G5 Series Standard Inertia AC Servo Motor |
| 20030 | 200W Rated Power, 3000 rpm Rated Speed |
| T | Standard Shaft (with keyway) |
| BS2 | 20it Absolute Encoder, with Brake |
| З | Special Specification (usually for regional standards or custom options) |
- Core Technical Specifications
| Элемент | Ценить | Примечания |
| Rated Power | 200Вт | Continuous output power |
| Номинальное напряжение | 3×200V AC | Three‑phase AC |
| Rated Speed | 3000 rpm | Synchronous speed |
| Rated Torque | 0.64 Nm | Continuous output torque |
| Peak Torque | 1.91 Nm | Max torque for 3 секунды |
| Encoder Type | 20‑bit Absolute | High‑precision positioning, no homing required |
| Encoder Resolution | 1,048,576 ppr | Ensures micron‑level positioning accuracy |
| Protection Grade | IP67 | Fully sealed, dust‑proof and water‑immersion resistant |
| Insulation Class | Class B | Max permissible temperature 130°C |
| Weight | Приблизительно. 2.5 кг | Including brake |
| Moment of Inertia | 48.8×10⁻⁴ kg·m² | With brake |
- Mounting Dimensions
| Dimension | Ценить | Unit | Примечания |
| Flange Size | 60*60 | мм | Square mounting face |
| Flange Thickness | 11 | мм | – |
| Shaft Diameter | 11h6 | мм | With keyway |
| Shaft Length | 27 | мм | – |
| Total Motor Length | 146 | мм | Including shaft and connector |
| Body Width | 60 | мм | – |
| Body Depth | 82.5 | мм | – |
| Mounting Hole Diameter | 50h7 | мм | 4 evenly distributed holes |
| Mounting Hole Specification | 4*4*8л | мм | Threaded holes |
- Wiring Information 📡
- Power Cable Connection
Three‑phase power: U, В, W terminals (corresponding to driver output)
Ground: PE terminal (must be reliably grounded)
Insulation resistance: ≥100 MΩ (measured with 500V DC megohmmeter)
- Encoder Cable Connection
Dedicated CN2 encoder cable required
Signals: absolute position, home signal, alarm signal, и т. д..
Recommended cable length ≤10 m; signal amplifier required for longer cables
- Brake Cable Connection
Brake power supply: DC24V (±10%)
Brake resistance: Приблизительно. 20 Ой
Brake operation: energized to release, de‑energized to brake (safety design)
- Packaging Specifications (Carton, Qty, Weight, Размер)
| Элемент | Ценить | Unit | |
| Quantity per Carton | 1 | unit/carton | |
| Net Weight | Приблизительно. 2.5 | кг | |
| Package Dimensions | 152*254*102 | мм | Reference value |
| Gross Weight | Приблизительно. 3.0 | кг | Including packaging |
- Application Notes
- Installation Environment
Рабочая температура: 0~40°C (non‑condensing)
Storage temperature: -20~60°C
Влажность: 20~85%RH (non‑condensing)
Avoid dust, corrosive gas, and strong vibration
- Operation Limits
Load torque must not exceed rated torque during continuous operation
Peak torque only usable for 3 seconds to prevent overheating
Speed must not exceed 3000 rpm to avoid mechanical damage
- Maintenance
Regularly check encoder and power connections for looseness
Brake life: приблизительно. 5 миллион операций; inspect braking performance periodically
Keep motor surface clean for good heat dissipation
- Безопасность
Motor must be reliably grounded to prevent electric leakage
Wait at least 5 minutes after power‑off before wiring
Install overload protection to prevent motor burnout
- Compatible Drives
Рекомендуется: R88D‑KT series pulse input type driver
Or R88D‑KN series EtherCAT communication type driverDriver output must match 200W motor; recommended models: R88D‑KT02H or R88D‑KN02H

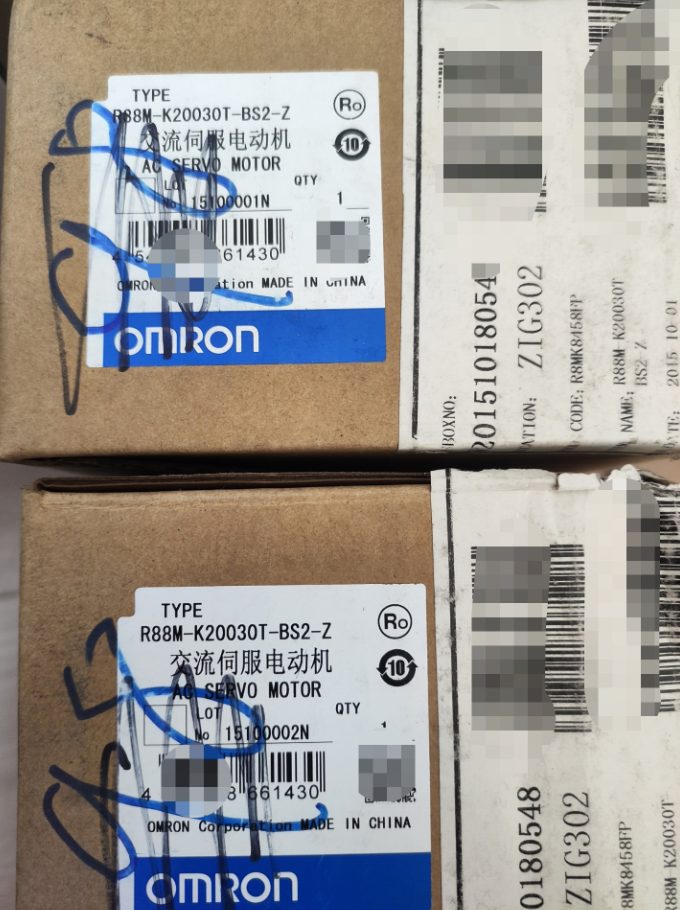

OMRON R88M‑K20030T‑BS2‑Z Servo Motor – Accessory Part Number Quick Reference
- Core Cable Accessories (Required)
| Accessory Type | Формат модели | Общие характеристики | Приложение |
| Power Cable (with Brake) | R88A-AKB-BR | R88A-AKB003BR (3м) | For 200W motor with brake; integrated power + brake cable, motor-ide connector R88A-NK11A |
| R88A-AKB005BR (5м) | |||
| R88A-AKB010BR (10м) | |||
| Absolute Encoder Cable | R88A-RKC-N | R88A-RKC003N (3м) | For 20-it absolute encoder; driver CN2, motor CN2 |
| R88A-RKC005N (5м) | |||
| R88A-RKC010N (10м) | |||
| Absolute Encoder Battery Cable | R88A-RGD0R3C-S | Fixed 0.3m | Connects driver and absolute encoder battery for position retention |
| Separate Brake Cable | R88A-A1A-B | R88A-A1A003B (3м) | For separate brake connection when integrated cable is not used |
| R88A-A1A005B (5м) |
- Connector Accessories (for Custom Cables)
| Accessory Type | Модель | Location | Приложение |
| Motor-ide Power Connector | R88A-NK11A | Motor power port | For G5 series 200W and below |
| Driver-ide Power Connector | R88A-NU11C | Driver CN1 port | For analog / pulse type drivers |
| Motor-ide Encoder Connector | R88A-NK02R | Motor encoder port | For R88M-(050/100/200/400/750)30(H/T)@ series |
| Driver-ide Encoder Connector | R88A-NW01R | Driver CN2 port | All G5 series drivers |
| Brake Connector | R88A-NG01B | Motor brake port | For motors with brake |
- Battery & Parameter Accessories
| Accessory Type | Модель | Спецификация | Приложение |
| Absolute Encoder Battery | R88A-C01 | DC3V Lithium Battery | Position retention after power loss; life approx. 5 годы |
| Parameter Unit | R88A-R02G | Hand-eld Programmer | For driver parameter setting, monitoring, debugging |
| Parameter Backup Unit | R88A-E02 | Data Storage Module | Backup and restore driver parameters |
- Монтаж & Protection Accessories
| Accessory Type | Модель | Приложение |
| Motor Mounting Bracket | R88A‑MNT01 | Standard bracket for 60mm flange motor |
| Shaft End Cover | R88A‑CAP01 | Protect shaft end from dust |
| Cable Clamp | R88A‑CLIP02 | Fix servo cables, reduce vibration influence |
- Accessory Selection Notes ⚠️
- Power Cable Selection
Motors with brake must use models suffixed with “BR” (например, R88A‑CAKB005BR)
Recommended length ≤10 m; use amplifier for longer cables
- Encoder Cable Selection
Absolute encoders require R88A‑CRKC series (incremental: R88A‑CRKB series)
Recommended length ≤15 m; special customization for long distances
- Battery Replacement
Replace battery with driver powered ON to avoid position data loss
Recommended replacement cycle: 4–5 years
- Совместимость
All accessories fit Accurax G5 series 200W servo motor (R88M‑K20030T‑BS2‑Z)
Fully compatible with R88D‑KT02H / R88D‑KN02H drivers
