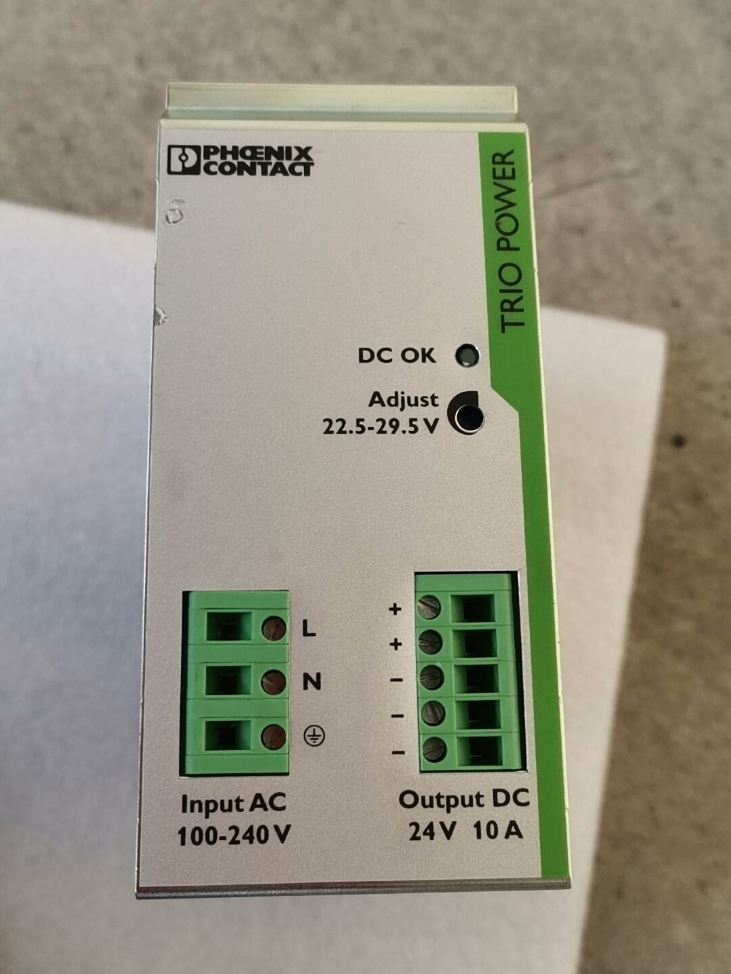

PHOENIX 2866323 Single-Phase DIN Rail Power Supply

(Full Model Designation: TRIO-PS/1AC/24DC/10)

1. Основная информация
2. Заказ №.: 2866323
3. Серия продуктов: Финикс TRIO POWER Gen1 Standard Single-Phase DIN Rail Источник питания (GEN1, Discontinued by Manufacturer)
4. Тип монтажа: Standard DIN35 Rail Mounting
5. Класс защиты: IP20 (For Cabinet Indoor Use Only)
6. Материал корпуса: Galvanized Aluminum Alloy Metal Casing
7. Место происхождения: Китай
8. Net Weight per Unit: 1400г; Gross Weight with Packaging: 1554г
9. Размеры: W60mm × H130mm × D152.5mm
10. Основные электрические характеристики

Input Side (Single-Phase AC)

Wide Input Voltage Range: 85～264V AC (Nominal 100/240V AC)

Частотный диапазон: 45～65Hz

Inrush Surge Current: ＜15A

Mains Hold-Up Time: ＞24ms @120V AC

Recommended Input Circuit Breaker: B10 / B16

Low-Voltage Derating: Power derates at 2.5% per Volt below 90V AC

Output Side (24В Вашингтоне)

Номинальная мощность: 24В постоянного тока / 10А, Total Power 240W

Adjustable Output Voltage Range: 22.5～29.5VDC (Front Panel Potentiometer for Line Drop Compensation)

Full-Load Efficiency: 89% (230VAC Input)

Ripple & Шум: ＜10mVpp

Static Voltage Regulation Accuracy: ＜1%; Dynamic Load Fluctuation: ＜2%

Защита от перенапряжения (OVP): Latching protection at ≤35VDC

Защита от короткого замыкания: Constant current limiting approx. 14А, auto-recovery

Capacitive Load: Unlimited compatibility

Относящийся к окружающей среде & Reliability Parameters

Рабочая температура: -25℃ ～ +70℃

High-Temperature Derating: Power derates at 2.5% per Kelvin above 55℃

среднее время безотказной работы (Среднее время между отказами): ＞500,000 Hours

Диэлектрическое выдерживаемое напряжение: 300В и

PE Leakage Current: ＜3.5mA

3. Ключевые функциональные особенности
4. Three sets of negative terminals with independent grounding capability to reduce cost of separate grounding terminals
5. Front-panel DC OK status LED for rapid fault diagnosis
6. Wide temperature and wide voltage range, suitable for global industrial machinery and machine tool export applications
7. Vibration-resistant metal casing, ideal for assembly lines and automated production lines
8. Соответствует EN 55011 Class B industrial EMC standards
9. Complete protection functions: Перегрузка по току, короткое замыкание, перенапряжение, перегрев
10. Сценарии применения

Станки, упаковочное оборудование, control cabinets for production lines

24V DC power supply for PLCs, сервоприводы, sensors and relays

Маленький & medium automated production lines, building automation, test equipment

5. Решение для замены, снятое с производства (Manufacturer Upgraded 2nd-Gen TRIO Series)

Original Gen1 model 2866323 has been discontinued. Direct compatible replacement model:

TRIO-PS-2G/1AC/24DC/10, Заказ №.: 2903123

Fully identical dimensions, terminal definitions and mounting structure; no cabinet modification required

Comprehensive improvements in efficiency, dynamic response and EMC performance

Wider temperature margin and lower standby power consumption

6. Quick Troubleshooting Table

Full Range Replacement Solutions for PHOENIX 2866323

The original model is officially discontinued by the manufacturer. Output specifications: single-phase 85~264VAC input, 24VDC/10A/240W, DIN rail metal housing, wide-temperature industrial grade. Replacements are divided into three categories: Original Manufacturer Direct Replacements, Equivalent European & American Brand Compatible Replacements, and Cost-Effective Mainland China / Taiwanese Brand Replacements, with applicable scenarios and replacement precautions attached.

1. Original PHOENIX Direct Replacements (No Cabinet Cutout Modification, Matching Terminal Definition – Top Recommendation)
2. 2nd-Gen TRIO Upgraded Model (Стандартная замена, First Choice for Projects)

Модель: TRIO-PS-2G/1AC/24DC/10, Номер заказа. 2903149

Совместимость: 100% полностью совместим. Монтажные размеры, terminal layout and DC OK LED position are identical; plug-and-play replacement without wiring or cabinet modification

Преимущества обновления: Efficiency increased to 91%; поддерживает 150% peak power (15А) для 5 seconds for stable startup of impulse loads such as servos and solenoid valves; lower standby power consumption, optimized high-temperature derating curve; supports parallel redundancy

Приложения: OEM equipment maintenance, export machinery, projects requiring unified PHOENIX brand components

2. High-End QUINT Series (Upgrade for Heavy-Duty / High-Reliability Redundant Applications)

Модель: QUINT-PS/1AC/24DC/10, Номер заказа. 2866748

Совместимость: Identical power ratings, slightly wider housing; verify rail space before installation. Equipped with SFB Selective Fuse Breaking, surge protection and parallel redundancy functions

Преимущества: Shock-resistant, wide operating temperature, длительное среднее время безотказной работы; suitable for chemical industry, тяжелая техника, outdoor control cabinets and uninterrupted control circuits

2. Equivalent European & American Industrial Brand Compatible Replacements (Оригинальный импортный, Matching Performance, Cross-Brand Substitution)
3. Weidmüller PRO MAX 240W 10A

Заказ №.: 1478130000

Технические характеристики: 24V/10A/240W, single-phase wide input voltage, металлический корпус, potentiometer voltage adjustment, DC OK signal output

Применимые поля: Станки, автоматизированные производственные линии, cross-brand replacement projects with slightly lower price than PHOENIX

Различия: Similar housing width, minor difference in terminal pitch; terminals compatible with standard crimp lugs

2. Schneider ABL2REM24100K

Технические характеристики: 24V 10A 240W single-phase DIN rail power supply, metal casing, wide input 85~264VAC

Преимущества: Excellent matching with Schneider PLCs, abundant domestic stock and convenient maintenance

Приложения: Complete Schneider electrical control cabinet projects

3. ABB CP-E 24/10.0

24V 10A single-phase industrial DIN rail power supply, full CE/UL certifications, Class B industrial EMC compliance

Применимые поля: Power industry, building automation, complete ABB low-voltage cabinet projects

3. Cost-Effective Mainland China / Taiwanese Brand Replacements (For Mass Domestic Equipment Projects with Limited Budget)
4. MEAN WELL NDR-240-24

Технические характеристики: 24V 10A 240W, Крепление на DIN-рейку, металлический корпус, 88% efficiency, wide input voltage

Преимущества: Ample stock, competitive pricing, 5-year warranty; top choice for economical automation and small machinery

Примечание: Narrower housing, no extra space occupation for direct installation

2. MEAN WELL SDR-240-24 (High-Performance Version)

Equipped with active PFC, stronger peak load capacity, suitable for systems with numerous impulse loads including servos and solenoid valves

3. Weidmüller Economical Domestic Model PRO QL 240W 10A

Номер заказа. 3076370000, domestically assembled with optimized three-proof performance, lower cost for mass replacement of non-standard domestic equipment

4. Replacement Selection Comparison Table

5. Меры предосторожности при замене ключей
6. Unified Electrical Parameter Requirements: Must feature single-phase AC input, rated 24VDC 10A output, adjustable output voltage 22.5~29.5V to power PLCs, sensors and relays
7. Impulse Load Consideration: Prioritize models with 150% short-term peak power (2903149, SDR-240-24) for systems with abundant servos and solenoid valves
8. Место для установки: 2nd-Gen TRIO shares identical dimensions with 2866323; QUINT and Weidmüller models have wider housings – check internal cabinet rail clearance before purchasing
9. Требования сертификации: Models with UL, CE and GL marine certifications are mandatory for export machinery (Full PHOENIX range, Weidmüller PRO MAX series)
10. Parallel Redundancy: For capacity expansion via multi-unit parallel connection, PHOENIX 2nd-Gen TRIO and QUINT series are preferred for superior current sharing performance
