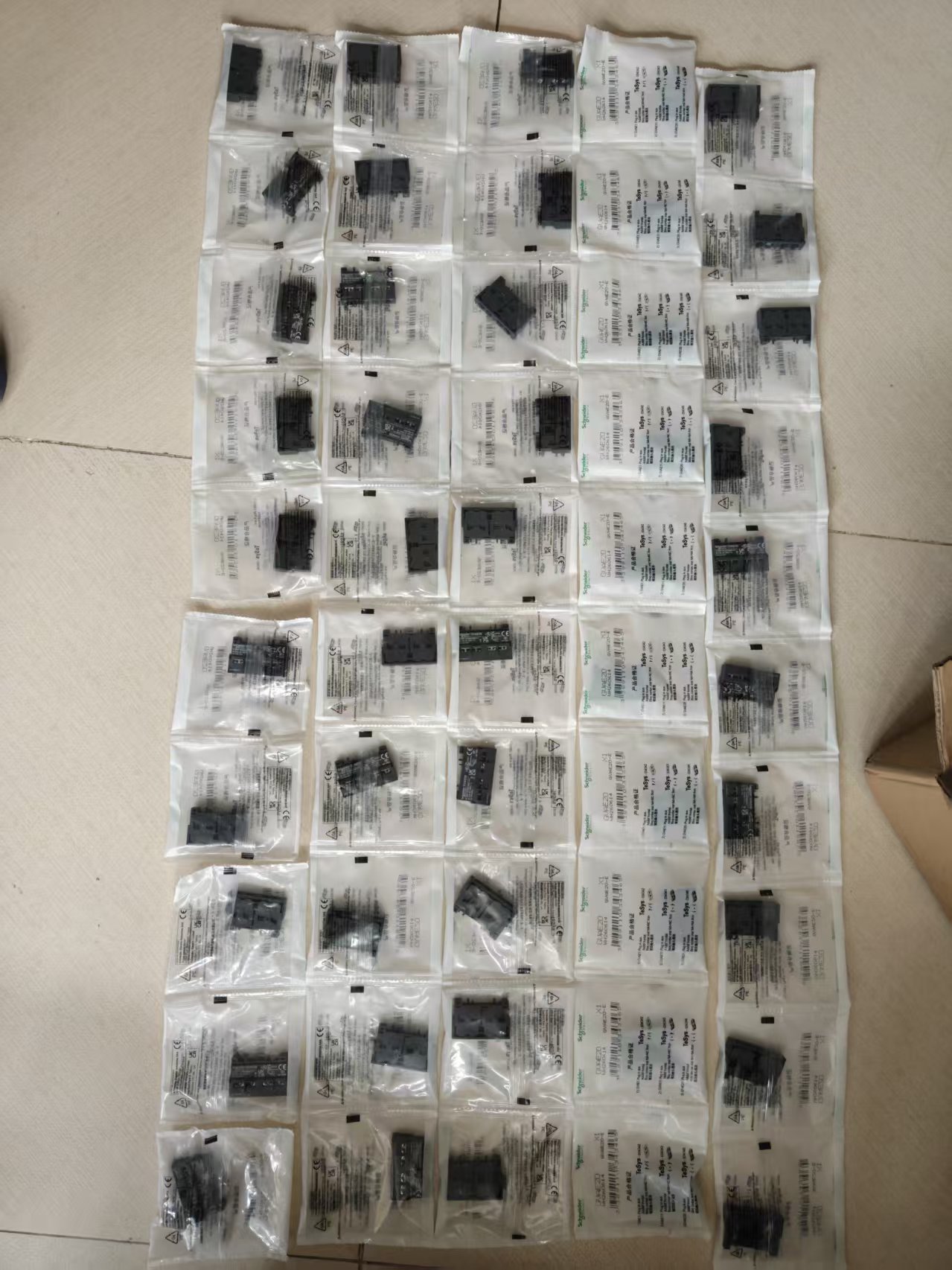

Schneider GVAE20
- Interpretation des Modellcodes
| Codesegment | Beschreibung |
| GV | Produktseriencode, accessory of TeSys GV motor circuit breaker |
| AE | Montageposition & Typ; A=Auxiliary contact, E=Front Mounting |
| 20 | Kontaktkonfiguration; 2 Kontakte, 0=Normally Open, namely 2NO |
Vollständiger Name: Schneider TeSys GV Series Front-mounted 2NO Instant Auxiliary Contact Block
- Wichtigste technische Parameter
| Parameterelement | Spezifikation |
| Produkttyp | Instant Auxiliary Contact Block |
| Kontaktkonfiguration | 2NEIN, instantaneous operation |
| Nennbetriebsstrom | Wechselstrom: 2.5A(240V), Gleichstrom: 1A(60V) |
| Bemessungsisolationsspannung | 380V und |
| Nennbetriebsspannung | Wechselstrom: 24-240V, Gleichstrom: 24-60V |
| Minimum Switching Current | 5mA |
| Montageart | Front Mount, compatible with GV2/GV3 motor circuit breakers |
| Verkabelungstyp | Screw Clamp Terminals |
| Applicable Models | GV2L, GV2LE, GV2ME, GV2P, GV2RT, GV3L, GV3P, LS1D32 |
| Dimension | 28.956mm(L) × 22.5mm(W) × 45mm(H) |
| Gewicht | 0.02kg (ca. 20G) |
| Umgebungstemperatur | -25°C ~ +60°C |
| Schutzgrad | IP20 (Konform mit IEC 60529) |
| Bestellnummer | GVAE20, EAN: 3389110343465 |
| Verpackung | 10 pcs per standard pack |
- Vollständige Modellliste der Serie
Schneider GV auxiliary contacts are divided into front-mounted GVAE and side-mounted GVAN series.
| Serie | Modell | Kontakttyp | Mounting Position | Applicable Products |
| GVAE Front Mount | GVAE1 | 1NO or 1NC convertible | Front | GV2/GV3 Series |
| GVAE11 | 1NO+1NC | Front | GV2/GV3 Series | |
| GVAE20 | 2NEIN | Front | GV2/GV3 Series | |
| GVAN Side Mount | GVAN11 | 1NO+1NC | Side | GV2/GV3 Series |
| GVAN20 | 2NEIN | Side | GV2/GV3 Series | |
| GVAD Fault Contact | GVAD1010 | 1NO alarm +1NO auxiliary | Front/Side | GV2/GV3 Series |
| GVAD0110 | 1NC alarm +1NO auxiliary | Front/Side | GV2/GV3 Series | |
| GVAD1001 | 1NO alarm +1NC auxiliary | Front/Side | GV2/GV3 Series | |
| GVAD0101 | 1NC alarm +1NC auxiliary | Front/Side | GV2/GV3 Series |
- Cross-brand Replacement Reference
| Schneider-Modell | ABB Equivalent | Siemens Equivalent | Eaton Equivalent | Replacement Features |
| GVAE20 (2NEIN, Front Mount) | 2CCS800900R0021 (S800 series, 4A) | 3RH1921-2XA22-0MA0 (Clip mount, 6A) | DILM series auxiliary contact (5A) | Identical contact layout, fit respective brand motor breakers; slight rated current difference |
Auswahltipp: 2NO front mount choose GVAE20; ABB S800, Siemens 3RH, Eaton DILM
- Häufige Fehler & Lösungen
| Fehlerphänomen | Mögliche Ursachen | Lösungen |
| Contact failure | Unsachgemäße Installation, stuck mechanism, damaged linkage | Reinstall firmly, clean foreign matters, replace contact block |
| Schlechter Kontakt | Oxidation, loose terminal, starker Verschleiß | Polish contact surface, retighten wiring, replace component |
| Kontaktablation | Overload current, frequent switching, Überspannung | Control current within 2.5A, reduce frequent operation, verify voltage range |
| Difficult installation | Model mismatch, wrong direction, broken buckle | Confirm GV2/GV3 compatibility, install as arrow direction, replace part |
- Air Transport Compliance & Zertifizierungen
6.1 Air Transport Compliance
No built-in lithium battery or supercapacitor, pure electromechanical component, meets international air safety standards
Cargo category: general goods, no special shipping label required
Standard anti-static packaging to avoid transit damage
6.2 Zertifizierung
| Zertifizierung | Standard | Bemerkung |
| Elektrische Sicherheit | IEC 60947-5-1, UL 508, CSA C22.2 Nr. 14, CCC, EAC | Multi-country safety approval |
| Umweltschutz | RoHS, REACh, Grüne Prämie | Hazardous substance free |
| UK Market | UKCA | Valid for UK sales |
| Explosion-proof | Nicht anwendbar | For general industrial use only |
- Application Cases & Industry Guidelines
7.1 Typische Anwendungsszenarien
Motor Control Center (MCC): Status monitoring and control circuit expansion
Automatic production line: Motor feedback signal for PLC and HMI display
Water pump control system: Fault alarm and automatic switching
Fan control circuit: Interlock and safety protection signal output
Compressor unit: Remote monitoring and automatic start-stop control
7.2 Industry Application Guide
| Industrie | Operation Feature | Auswahlberatung |
| Herstellung | Frequent start-stop, raue Umgebung | Match GVAE20 with GV2/GV3 for stable signal transmission |
| Petrochemie | High explosion-proof demand, severe working condition | Applied in non-explosion area with certified control cabinet |
| Gebäudeautomation | Kompakter Raum, einfache Installation | Front mount saves cabinet internal space |
| Wasseraufbereitung | Humid and corrosive environment | Adopt high protection grade breakers matched with GVAE20 |
| Energiewirtschaft | Hohe Zuverlässigkeit, Dauerbetrieb | Regular contact inspection to ensure steady signal output |
7.3 Application Case
Project: Motor Control Upgrade for Auto Parts Production Line
Erfordernis: Original circuit only has main circuit protection, lacking remote monitoring and early warning function
Lösung: Install GVAE20 on GV2 breakers, connect 2NO contacts to PLC digital input module and HMI system
Wirkung:
Real-time motor running status monitoring realized
30% downtime reduction via fast fault location
Improved automation level and lower manual inspection cost
- Schnellauswahlregeln
- Contact type: 2NO=GVAE20, 1NO+1NC=GVAE11, convertible contact=GVAE1
- Mounting way: Front=GVAE series, Side=GVAN series
- Kompatibilität: Exclusive for Schneider GV2/GV3 motor circuit breakers
- Current limit: Max 2.5A AC / 1A DC for control circuit
- Verdrahtungsdrehmoment: 0.8-1.2 Nm for screw terminals
