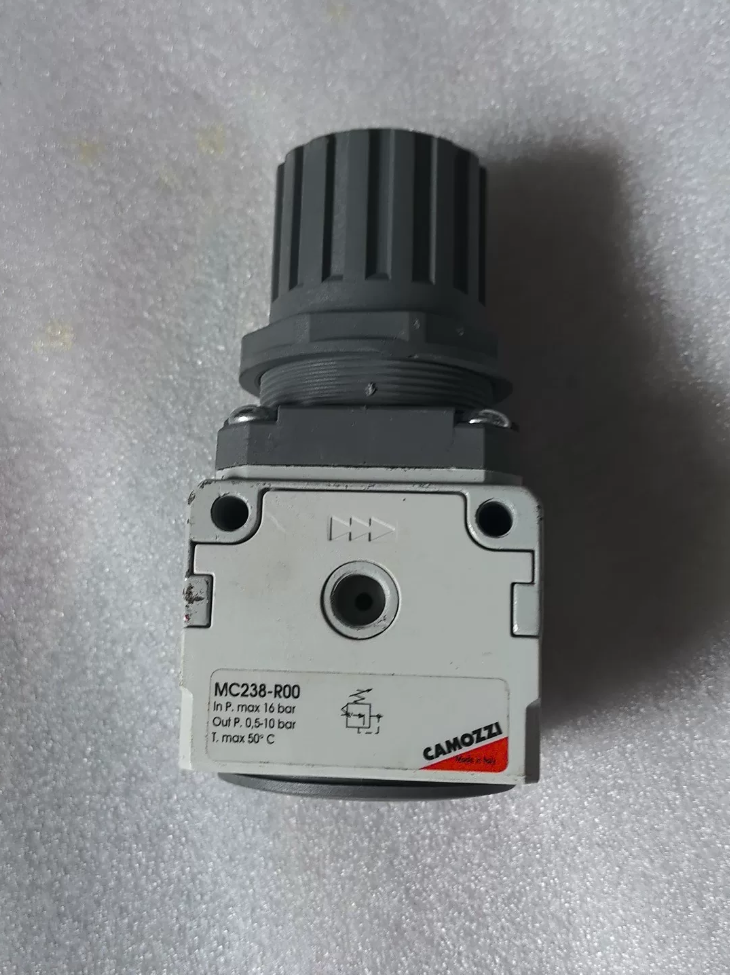

El MC238-R00 es un 3/8 inch BSPP relieving type pressure regulator from Camozzi MC Series. Cuenta con un rango de presión ajustable de 0,5 a 10 bar., presión máxima de trabajo de 0 a 16 bar, construcción de aleación de aluminio, y diseño modular. Es adecuado para el control estable de la presión del aire en sistemas neumáticos..
- Definición del segmento del modelo
| Segmento de modelo | Significado | Descripción detallada |
| MC | Serie de productos | MC Series modular air service unit components, including filter, pressure regulator, lubricator, etc.. |
| 238 | Size Specification | Denotes G3/8 inch port size, Flow Rating 2, compliant with Camozzi size coding system |
| R | Tipo de función | R = Regulator, relieving type design; automatically exhausts air when downstream pressure is excessive |
| 0 | Código de configuración | Versión estándar: No bypass valve, No pressure gauge, standard regulating range (0.5–10 bar) |
- Hoja de datos de especificaciones principales
| Categoría de parámetro | Especificación técnica | Observaciones |
| Información básica | ||
| Nombre del producto | Relieving Type Pressure Regulator | Self-relieving design, automatically releases overpressure downstream |
| Marca | Camozzi | Italian industrial automation brand |
| Pressure Parameters | ||
| Inlet Working Pressure | 0–16 bar | Maximum allowable pressure |
| Outlet Regulating Range | 0.5–10 bar | Standard adjustment range |
| Diseño Estructural | Relieving Type | Standard configuration without bypass valve |
| Puerto & Dimensión | ||
| Tipo de conexión | G3/8 BSPP Parallel Female Thread | Left-to-right flow direction |
| Dimensiones de montaje | A=127mm, B=67mm, C=60mm | Unidad: milímetros |
| Material & Ambiente | ||
| Material del cuerpo | Aleación de aluminio | Painted surface finish |
| Temperatura ambiente | -5℃ ~ 50℃ | Rango de temperatura de funcionamiento |
| Medio de trabajo | Aire comprimido | Dry and clean air; pre-filtering is recommended |
| Montaje & Características | ||
| Método de instalación | In-line mounting, Montaje en pared (with bracket) | Diseño modular, combinable with other MC Series units |
| Manómetro | Not Included | Pressure gauge available as optional accessory |
| Peso | 0.677kilos | Per unit weight |
| Origen | Italia | Place of manufacture |
| Código HS | 84812010 / 84811005 | International trade commodity code |
- Lista de accesorios
| Modelo de accesorio | Nombre | Solicitud |
| MC238-FL | End Plate Kit A | For end connection of MC238 series units |
| MC104-ST / C114-ST | Mounting Bracket Kit B | For wall mounting, provides stable support |
| C238-ST/1 | Special Mounting Bracket | Custom fit for MC238 series installation |
| MX-S* | Regulator Special Bracket | Universal bracket compatible with multiple MC Series regulators |
| Manómetro & Guarniciones | Accesorios opcionales | Sold separately for pressure monitoring |
- Competidor & Equivalente entre marcas
| Marca | Modelo equivalente | Comparación de parámetros clave | Compatibilidad |
| FIESTA | LR-1/4-D-O-MINI | G1/4 port, 0.5–10 bar, relieving type | Different port size; adapter required |
| FIESTA | LR-3/8-D-O-MAXI | G3/8 port, 0.5–10 bar, relieving type | Totalmente compatible, reemplazo directo |
| Norgren | R07-200-RNKG | G3/8 port, 0.5–10 bar, relieving type | Rendimiento equivalente; slight mounting dimension difference |
| SMC | AR30-03BG | G3/8 port, 0.05–0.8MPa (0.5–8 bar) | Slightly narrower regulating range; generally replaceable |
| Camozzi Same Series | MC238-R01 | Con manómetro, same other parameters | Direct replacement with pressure display function |
- Directrices de selección & Soluciones de reemplazo
Directrices de selección
- Port Matching
Confirm system port is G3/8 BSPP to avoid thread mismatch.
- Pressure Compatibility
Inlet pressure shall not exceed 16 bar; outlet requirement within 0.5–10 bar.
For higher outlet pressure (10–16 bar), select MC Series high-pressure version.
- Flow Requirement
Select proper size according to system air consumption; MC238 suits medium flow systems.
- Método de instalación
Reserve sufficient mounting space; observe left-to-right flow direction for in-line installation.
- Funciones opcionales
Pressure gauge required: Choose MC238-R01
Bypass valve required: Choose MC238-R02 and other bypass versions
Recomendaciones de reemplazo
- Actualización de la misma marca
Integrated filter + regulator: MC238-D00
Regulator + lubricator combination: MC238-L00
Complete FRL unit: MC238-FRL assembly
- Reemplazo entre marcas
Cost-performance priority: SMC AR30-03BG, aprox. 15–20% lower price than Camozzi
High-end quality priority: FESTO LR-3/8-D-O-MAXI, more stable performance and longer service life
Harsh industrial environment: Norgren R07-200-RNKG, higher protection level
Escenarios de aplicación
Pressure regulation for pneumatic actuators (cilindros, air motors)
Stable air supply for pneumatic tools
Air service units for automated production lines
Industries requiring stable air pressure: envasado de alimentos, electronic assembly, etc..
- Información complementaria
Documentación oficial: MC238-R00 technical datasheet available for download on Camozzi official website
Recomendación de mantenimiento: Regularly inspect pressure regulation accuracy, keep inlet clean; replace pre-filter element every 6 months recommended
Proceso de dar un título: Compliant with REACH and RoHS standards, applicable to EU market
Camozzi Relieving Pressure Regulator Model List & Referencia entre marcas
- Sistema de modelo central & Regla de nomenclatura
1.1 Regla de codificación del modelo (MC Series as Example)
| Segmento de modelo | Significado | Código opcional | Descripción |
| MC | Serie de productos | MC | Modular air service unit series: regulator, filtrar, lubricator, etc.. |
| 104/202/238/302 | Size Code | 104=G1/4，202=G1/2，238=G3/8，302=G1/2 | Digital code corresponds to port size with increasing flow capacity |
| R | Tipo de función | R | R=Regulator (Relieving Type), automatic overpressure exhaust downstream |
| 2000/1/2 | Código de configuración | 00=No gauge No bypass | Standard code defines optional functions |
| 01=With gauge No bypass | |||
| 02=With bypass No gauge | |||
| -FL/-VS | Special Accessory | -FL=With end plate | Optional fittings for different mounting demands |
| -VS=With locking device |
Características principales: All MC Series R-type regulators adopt relieving type design, standard regulating range 0.5–10 bar, inlet working pressure 0–16 bar, aluminum alloy material, freely combinable modular structure.
- Complete Camozzi Relieving Regulator Model List
2.1 MC Series (Mainstream Modular)
| Modelo | Tamaño del puerto | Configuration Feature | Regulating Range | Observaciones |
| MC104-R00 | G1/4 | No gauge, No bypass valve | 0.5–10 bar | Standard basic model, más comúnmente utilizado |
| MC104-R00-FL | G1/4 | No gauge, With end plate | 0.5–10 bar | Special for end mounting |
| MC104-R01 | G1/4 | With gauge, No bypass valve | 0.5–10 bar | Pressure display version |
| MC104-R02 | G1/4 | With bypass valve, No gauge | 0.5–10 bar | Easy system maintenance version |
| MC238-R00 | G3/8 | No gauge, No bypass valve | 0.5–10 bar | Medium flow, widely applied |
| MC238-R00-FL | G3/8 | No gauge, With end plate | 0.5–10 bar | End mounting version |
| MC238-R01 | G3/8 | With gauge, No bypass valve | 0.5–10 bar | Pressure monitoring version |
| MC238-R02 | G3/8 | With bypass valve, No gauge | 0.5–10 bar | Maintenance-friendly version |
| MC202-R00 | G1/2 | No gauge, No bypass valve | 0.5–10 bar | High flow version |
| MC202-R01 | G1/2 | With gauge, No bypass valve | 0.5–10 bar | High flow with pressure display |
| MC202-R02 | G1/2 | With bypass valve, No gauge | 0.5–10 bar | High flow maintenance version |
| MC302-R00 | G1/2 | No gauge, No bypass valve | 0.5–10 bar | Extra high flow version |
2.2 Other Series Relieving Regulators
| Serie | Ejemplo de modelo | Tamaño del puerto | Regulating Range | Características |
| M Series (Mini) | M004-R00 / M004-R01 | G1/4 | 0.5–10 bar | Compact size for limited space |
| MX Series (Precisión) | MX3-1-R400 / MX3-2-R400 | G1/4 / G3/8 | 1–4 bar / 0.5–10 bar | Alta precisión, optional locking device |
| MD Series (Integrado) | MD1-FR0000-10 | G1/4 | 0.5–10 bar | Combined filter & regulator, relieving type |
- Equivalente entre marcas (Same Specification Relieving Regulator)
3.1 Main Brand Comparison by Port Size
3.1.1 G1/4 Port (Match MC104 Series)
| Camozzi Model | FESTIVAL Equivalente | SMC Equivalent | Norgren Equivalent | AIRTAC Equivalent | Coincidencia de parámetros |
| MC104-R00 | LR-1/4-D-O-MINI | AR20-02BG | R07-100-RNKG | BR2000 | G1/4, 0.5–10bar, relieving, fully matched |
| MC104-R01 | LR-1/4-D-O-MINI-A | AR20-02BG-A | R07-100-RNKG/801 | BR2000-A | Con manómetro, same specs |
| MC104-R02 | LR-1/4-D-O-MINI-B | AR20-02BG-B | R07-100-RNKG/802 | BR2000-B | With bypass valve, same specs |
3.1.2 G3/8 Port (Match MC238 Series)
| Camozzi Model | FESTIVAL Equivalente | SMC Equivalent | Norgren Equivalent | AIRTAC Equivalent | Coincidencia de parámetros |
| MC104-R00 | LR-1/4-D-O-MINI | AR20-02BG | R07-100-RNKG | BR2000 | G1/4, 0.5–10bar, relieving, fully matched |
| MC104-R01 | LR-1/4-D-O-MINI-A | AR20-02BG-A | R07-100-RNKG/801 | BR2000-A | Con manómetro, same specs |
| MC104-R02 | LR-1/4-D-O-MINI-B | AR20-02BG-B | R07-100-RNKG/802 | BR2000-B | With bypass valve, same specs |
3.1.3 G1/2 Port (Match MC202/302 Series)
| Camozzi Model | FESTIVAL Equivalente | SMC Equivalent | Norgren Equivalent | AIRTAC Equivalent | Coincidencia de parámetros |
| MC238-R00 | LR-3/8-D-O-MAXI | AR30-03BG | R07-200-RNKG | BR3000 | G3/8, 0.5–10bar, relieving, fully matched |
| MC238-R01 | LR-3/8-D-O-MAXI-A | AR30-03BG-A | R07-200-RNKG/801 | BR3000-A | Con manómetro, same specs |
| MC238-R02 | LR-3/8-D-O-MAXI-B | AR30-03BG-B | R07-200-RNKG/802 | BR3000-B | With bypass valve, same specs |
3.2 Comparación de parámetros clave (Same Port Size)
| Parámetro | Camozzi MC Series | FESTO LR Series | SMC AR Series | Norgren R07 Series | Common Features |
| Regulating Range | 0.5–10 bar | 0.5–10 bar | 0.05–0.8 MPa (0.5–8 bar) | 0.5–10 bar | Relieving design, automatic overpressure exhaust |
| Inlet Pressure | 0–16 bar | 0–16 bar | 0–16 bar | 0–16 bar | Same maximum working pressure |
| Material | Aleación de aluminio | Aleación de aluminio | Aleación de aluminio | Aleación de aluminio | Anti-corrosion surface treatment |
| Tipo de puerto | G Thread (BSPP) | G Thread (BSPP) | G Thread (BSPP) | G Thread (BSPP) | Standard parallel female thread |
| Instalación | Modular / Wall Mount | Modular / Wall Mount | Modular / Wall Mount | Modular / Wall Mount | Compatible with standard mounting brackets |
| Flow Performance | High Flow Design | High Flow Design | High Flow Design | High Flow Design | Suitable for medium and high flow systems |
| Funciones opcionales | Bypass / Gauge Optional | Bypass / Gauge Optional | Bypass / Gauge Optional | Bypass / Gauge Optional | High configuration flexibility |
- Selección & Sugerencias de reemplazo
4.1 Model Selection Key Points
- Port Matching: Confirm system port is G1/4 / G3/8 / G1/2 BSPP to avoid thread incompatibility.
- Coincidencia de presión:
Standard application: 0.5–10 bar regulating range (all basic models)
Aplicación especial: MX Series for narrow range such as 1–4 bar
- Funciones opcionales:
Pressure monitoring required: Models with suffix R01 (with gauge)
System maintenance required: Models with suffix R02 (with bypass valve)
End mounting required: Models with suffix -FL (with end plate)
- Flow Selection:
Low flow: MC104 Series (G1/4)
Medium flow: MC238 Series (G3/8)
Alto flujo: MC202/302 Series (G1/2)
4.2 Notas de reemplazo de varias marcas
| Marca | Ventajas | Recomendación de reemplazo | Compatibility Tip |
| FIESTA | Stable quality, larga vida útil, global service network | First choice for high-end quality demand | Exact mounting dimension match with Camozzi, reemplazo directo |
| SMC | Alto costo-rendimiento, 15–20% lower price than Camozzi | Recomendado para proyectos sensibles a los costos | Slightly narrower regulating range (0.5–8 bar), meets most general demands |
| Norgren | High protection grade, suitable for harsh industrial environment | Priority for outdoor / dusty conditions | Slight mounting dimension difference; bracket compatibility confirmation required |
| ÁRTICO | Lowest price, short delivery time | Choice for limited budget | Slightly lower performance parameters, suitable for non-critical applications |
4.3 Recomendación de escenario de aplicación
| Escenario de aplicación | Recommended Camozzi Model | Preferred Replacement Brand | Observaciones |
| Línea de producción automatizada | MC238-R01 | FESTO LR-3/8-D-O-MAXI-A | With gauge for convenient pressure monitoring |
| Pneumatic Tool Air Supply | MC104-R00 | SMC AR20-02BG | Basic model with high cost-performance |
| Food Packaging Equipment | MC238-R00-FL | Norgren R07-200-RNKG | End mounting design, meets sanitary requirements |
| Electronic Assembly Line | M004-R01 | SMC ARJ1020F-M5-04 | Mini compact design, ahorro de espacio |
| Heavy Machinery System | MC202-R02 | FESTO LR-1/2-D-O-MAXI-B | Alto flujo + bypass valve, fácil mantenimiento |
- Información complementaria
Maintenance Suggestion: Regularly check pressure regulation accuracy, keep air inlet clean; replace pre-filter cartridge every 6 months is recommended.
Proceso de dar un título: All models comply with REACH and RoHS environmental standards, suitable for EU market.
Compatibilidad de accesorios: MC Series regulators can freely combine with same-series filter (MC104-F00) and lubricator (MC104-L00) to form complete FRL units.
