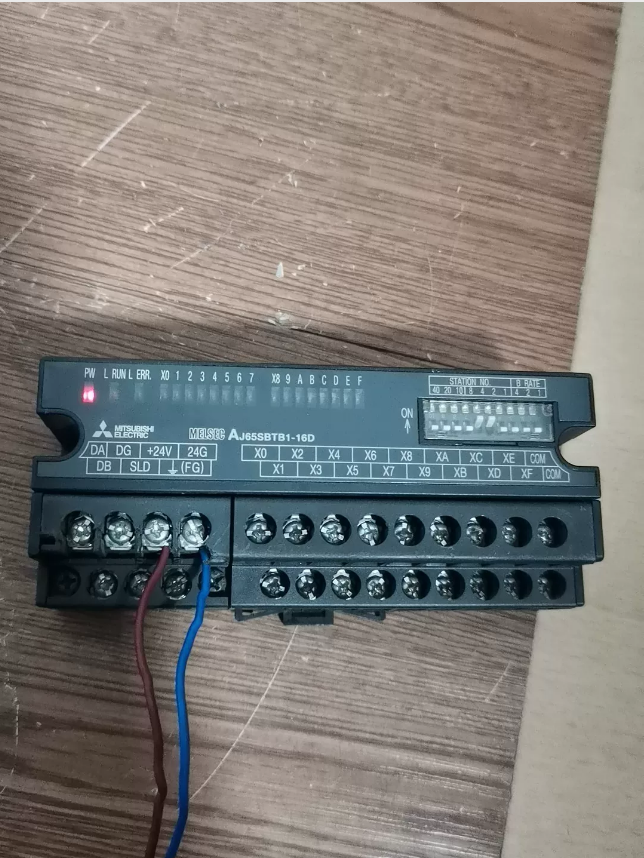

AJ65SBTB1-16D MITSUBISHI

Full Product Name: Mitsubishi MELSEC-A series CC-Link compact remote I/O module, 16-point DC24V digital input, 1-line terminal block type

2. Key Specifications

Informations de base

Série: AJ65SBTB1 series CC-Link remote I/O module

Taper: Digital input module only

Protocole de communication: CC-Link (Version 1.10)

Station Occupancy: 1 CC-Link station

Type de borne: Screw clamp terminal block (M3 screw)

Câblage: 1-line, 16 points / borne commune

Input Specifications

Electrical & Caractéristiques physiques

Supply Voltage: DC24V (module power), maximum. 100mA

Consommation d'énergie: Environ. 2.4W

Dimensions: 50(W)×118(H)×40(D)mm

Poids: Environ. 0.18kilos

Operating Temp: 0~55°C (non-condensing)

Storage Temp: -20~70°C

Indice de protection: IP20 (when installed in control cabinet)

3. Applications
4. Automatisation industrielle: Remote I/O expansion for Q/L/A series PLCs, field digital signal acquisition
5. Production Line Monitoring: Connect 24VDC sensors (photoelectric, proximity, etc.) for status monitoring
6. Process Control: Distributed signal acquisition in chemical, pharmaceutical, transformation des aliments, etc..
7. Factory Automation Network: Remote station on CC-Link for high-speed data transmission and real-time control
8. Equipment Retrofit: Add digital acquisition to legacy machines to improve automation

Applications recommandées:

NPN and PNP sensor compatibility required

Space-limited control cabinets (conception compacte)

General industrial control requiring fast response (1.5MS)

Applications needing simplified wiring (1-line connection)

4. Remplacement & Upgrade Models

Same-Series Direct Replacements

1. AJ65SBTB1-16D1: High-speed response type, response time 0.2ms, input current 5mA, otherwise compatible
2. AJ65SBTB3-16D: Standard response, slightly different terminal design, functionally compatible

Upgrade Models

1. AJ65SBTB2N-16D: New-generation CC-Link module, higher speed, improved noise immunity
2. QJ61BT11N: Q-series CC-Link master module for use with remote I/O, advanced network management

Cross-Series Replacements

1. L65CCL-R: L-series CC-Link remote I/O module for L-series PLC systems
2. FX5-CCL: FX5U series CC-Link module for small PLC system upgrades
3. Additional Information

Equivalent Model: AJ65SBTB116D (without hyphen)

Approvals: CE, UL, CSA certified

Montage: DIN rail or direct screw mounting

Common Confusion: Distinguish from AJ65SBTB1-16DT (8DI/8DO mixed) and AJ65SBTB1-16T (16-point output)

The AJ65SBTB1-16D is a classic Mitsubishi CC-Link remote digital input module, widely used in industrial automation for its compact size, flexible wiring, and reliability. For higher-speed applications, upgrade to AJ65SBTB1-16D1.

Complete List of Replacements for AJ65SBTB1-16D

Below is a full range of replacements for the Mitsubishi AJ65SBTB1-16D (16-point DC24V CC-Link remote digital input module), grouped by type with key differences and applications.

1. Direct Same-Series Replacements (Fully Compatible)

2. Same-Series Performance Upgrades

3. Cross-Series Replacements (System Migration)
4. Q/L Series (A → Q/L Upgrade)

2. Small PLC Systems (A → FX5U)

4. Mixed I/O Expansion Models

5. Guide de sélection

1. Verify master module compatibility before replacement, especially CC-Link version (Ver.1.10 / Ver.2.0)
2. AJ65SBTB2N series requires a Ver.2.0-capable master station
3. Cross-series replacement may require PLC program and network reconfiguration
4. Special versions (par ex., -C conformal coating) may have longer lead times
