| Segment de modèle | Description |
| FR | General prefix for Mitsubishi inverters (Frequency Inverter) |
| A840 | Standard model of A800 series for 400V class, high-performance vector control for general industrial use |
| 2600 | Capacity code, corresponding to Normal Duty (ND) 90kW/180A, Super Light Duty (SLD) 132kW/260A |
| 2 | CA type (current control, standard 0–20mA analog input) |
| 60 | Conformal coating on circuit boards, non-plated conductors, enhanced environmental resistance |
- Core Electrical Specifications
| Article | Service normal (ND) | Super Light Duty (SLD) | Travaux légers (LD) |
| Puissance moteur applicable | 90kW (150HP) | 132kW (177HP) | 110kW (147HP) |
| Courant de sortie nominal | 180UN | 260UN | 216UN |
| Puissance d'entrée | 3-phase AC 380–480V, 50/60Hz (Tolérance ±10%) | ||
| Tension de sortie | 3-phase AC 0–input voltage, proportional to input voltage | ||
| Output Frequency | 0.2–590Hz (max 400Hz in vector control mode) | ||
| Méthode de contrôle | Contrôle vectoriel sans capteur (RSV), Contrôle V/F, PM Sensorless Vector Control, compatible with Induction Motors (IM) and Permanent Magnet Motors (IPM) | ||
- Principales fonctionnalités
- High‑Performance Control
Universal vector control, high torque at low speed; 150% rated torque at 0.5Hz
Built-in PID controller for various closed-loop applications
Automatic energy-saving operation, adjusts output voltage according to load to reduce power consumption
- Structure & Protection
Protection class IP00 (open type), suitable for cabinet mounting
Circuit boards with conformal coating (conforme à la CEI 60721-3-3), resistant to dust, huile, and humidity
Protection complète: surintensité, surtension, sous-tension, surchauffe, défaut à la terre, surcharge du moteur, protection contre la perte de phase, etc..
- Built-in Interfaces & Extensibilité
Standard RS-485 communication (Modbus RTU protocol)
Supports various fieldbus extensions: PROFIBUS-DP, AppareilNet, EtherNet/IP, etc..
Entrées analogiques: 2 chaînes (0–10V / 0–20mA, 1 channel dedicated for CA-type 0–20mA)
E/S numériques: 5 entrées, 2 sorties (extensible)
- Capacité de surcharge & Paramètres environnementaux
| Type de charge | Capacité de surcharge | Conditions environnementales |
| Service normal (ND) | 150% courant nominal pendant 60 s, 200% rated current for 3s (inverse-time characteristic) | Température de fonctionnement: -10℃to 50℃C (derating above 40℃C) |
| Super Light Duty (SLD) | 110% courant nominal pendant 60 s, 120% rated current for 3s | Storage temp: -20℃ to 65℃ |
| Travaux légers (LD) | 120% courant nominal pendant 60 s, 150% rated current for 3s | Humidité relative: 5% à 95% (sans condensation) |
- Applications typiques
General industrial machinery: compresseurs, pompes, les fans, convoyeurs, mélangeurs, etc..
Metal processing: broches de machines-outils, winding equipment, wire drawing machines
Levage & transmettre: grues, ascenseurs, automated storage systems
Chimique & pharmaceutique: mixing, reaction, and conveying equipment in process industries
Building & CVC: systèmes de climatisation, pompes, fan energy-saving control
- Installation & Lignes directrices de sélection
- Exigences d'installation
Forced-air cooling; ensure sufficient ventilation (≥100mm clearance on all sides)
Monter verticalement, avoid direct sunlight and corrosive gas environments
Recommended input reactor and EMC filter for improved stability and EMC performance
- Notes de sélection
Select load rating based on actual load type (couple constant / couple variable)
For frequent starting/stopping or heavy starting, select one frame size larger than motor power
For long cable runs, consider voltage drop and dv/dt effects; install output reactor if necessary
- Modèles de remplacement & Informations de commande
Remplacement direct: FR-A840-02600-E2-60 (European version, no built-in DC reactor)
Modèle amélioré: FR-A840-02600-E2-60CRN (with Ethernet interface)
Official order number: 297582 (base model)

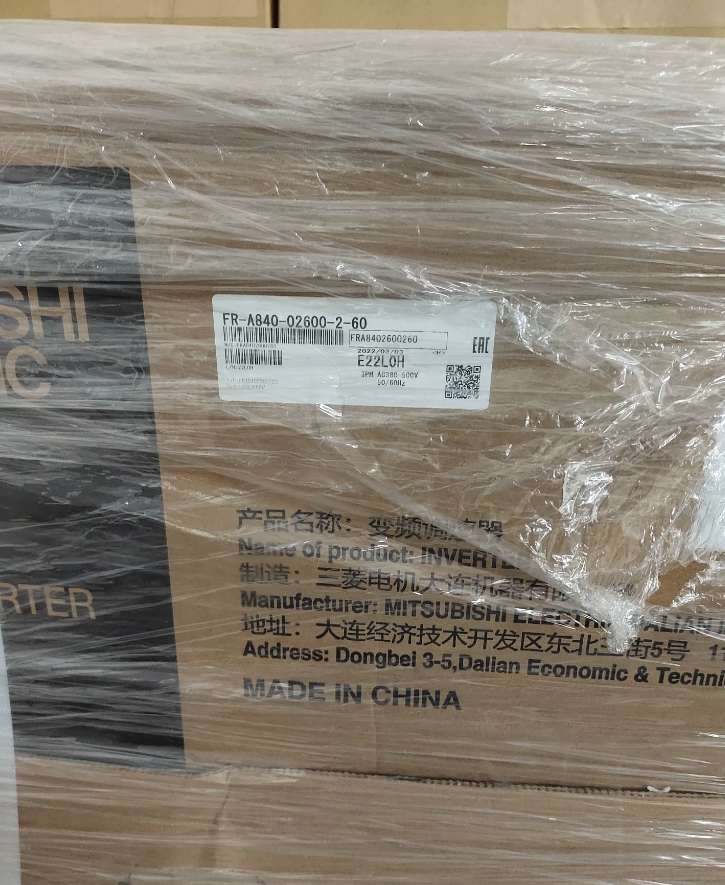

Le Mitsubishi FR-A840-02600-2-60 est un véhicule hautes performances, onduleur vectoriel de classe 400 V haute fiabilité, idéal pour piloter des moteurs de puissance moyenne à élevée et fournir un contrôle précis de la vitesse et du couple dans divers scénarios d'automatisation industrielle. Son contrôle de type CA et son revêtement conforme garantissent d'excellentes performances dans les environnements industriels difficiles.
Mitsubishi FR Series Inverter Model List & Comparaison entre marques
- Classification & Model Meaning of Mitsubishi FR Series
1.1 Series Overview
| Série | Classe de tension | Plage de puissance | Core Position | Applications typiques |
| FR-A800 | 200V (FR-A820) / 400V (FR-A840) | 0.4kW–500 kW | Flagship high-performance vector control | Industrie lourde, high-precision torque control, contrôle de mouvement complexe |
| FR-F800 | 200V (FR-F820) / 400V (FR-F840) | 0.4kW–400kW | Energy-saving for fans & pompes | CVC, traitement de l'eau, building automation |
| FR-E800/FR-E700 | 200V/400V | 0.1kW–22kW | Compact general-purpose | Machines d'emballage, nourriture & boisson, petites lignes de production |
| FR-D800/FR-D700 | 200V/400V | 0.1kW–75kW | Easy-to-use economy type | Small fans/pumps, convoyeurs, general machinery |
| FR-CS80 | 200V/400V | 0.4kW–315kW | Heavy-duty special type | Grues, winders, metallurgical equipment |
| FR-B | 200V/400V | 0.4kW–75kW | Explosion-proof special type | Hazardous areas such as chemical, petroleum, mines de charbon |
1.2 Full Model Format Explanation
Format standard: FR-XXX-YYYYY-Z-W
| Champ | Signification | Exemple |
| FR | General prefix for Mitsubishi inverters (Frequency Inverter) | - |
| XXX | Code de série + voltage class | A840 (400V high-performance), F820 (200V fan/pump) |
| YYYYY | Capacity code/power identifier | 02600 (90kW/180A), 15K (15kW) |
| Z | Type de contrôle | 1 (standard, 0–10V), 2 (CA type, 0–20mA), E2 (European version, no built-in DC reactor) |
| W | Fonctions spéciales | 60 (conformal coating), CRN (Ethernet), R2R (winding dedicated) |
- Complete Model List of Mitsubishi FR Series Inverters
2.1 FR-A840 (400V High-Performance Vector Control) Modèles de base
| Puissance moteur applicable | ND Current | SLD Current | Modèle de base | Special Model |
| 0.75kW | 2.1UN | 3.0UN | FR-A840-00038-2-60 | FR-A840-00038-E2-60 |
| 1.5kW | 3.7UN | 5.3UN | FR-A840-00052-2-60 | - |
| 2.2kW | 5.0UN | 7.2UN | FR-A840-00072-2-60 | - |
| 5.5kW | 11.5UN | 16.5UN | FR-A840-00170-2-60 | - |
| 11kW | 23UN | 33UN | FR-A840-00330-2-60 | - |
| 15kW | 30UN | 43UN | FR-A840-00430-2-60 | - |
| 30kW | 60UN | 86UN | FR-A840-00860-2-60 | FR-A840-00860-E2-60 |
| 90kW | 180UN | 260UN | FR-A840-02600-2-60 | FR-A840-02600-E2-60 |
| 132kW | 240UN | 345UN | FR-A840-03450-2-60 | - |
| 280kW | 500UN | 720UN | FR-A840-07200-2-60 | - |
2.2 Representative Models of Other Main Series
| Série | Modèle représentatif | Pouvoir | Principales fonctionnalités |
| FR-F840 | FR-F840-5.5K-2 | 5.5kW | Ventilateur/pompe dédié, PID intégré, energy-saving control |
| FR-E740 | FR-E740-1.5K-CHT | 1.5kW | Compact, filtre CEM intégré |
| FR-D740 | FR-D740-7.5K-CHT | 7.5kW | Simple operation, rentable |
| FR-A820 | FR-A820-37K-1 | 37kW | 200V high-performance, suitable for light industry |
- Cross-Brand Inverter Comparison Table
Below shows functional and power matching between Mitsubishi FR series and major brands including Siemens, Schneider, ABB. Precise selection should consider actual load characteristics and control requirements.
| Modèle Mitsubishi | Siemens Equivalent | Schneider Equivalent | ABB Equivalent | Correspondance fonctionnelle |
| FR-A840-02600-2-60 (90kW) | SINAMICS G120C 90kW | ATV630D11N4 | ACS580-01-180A-4 | Contrôle vectoriel performant, suitable for heavy-duty applications |
| FR-F840-5.5K-2 (5.5kW) | SINAMICS G120X 5.5kW | ATV610U75N4 | ACS580-01-015A-4 | Ventilateur/pompe dédié, energy-saving control |
| FR-E740-1.5K (1.5kW) | SINAMICS V20 1.5kW | ATV320U15N4 | ACS180-04-03A3-4 | Compact general-purpose |
| FR-A820-37K-1 (37kW, 200V) | SINAMICS G120 37kW 200V | ATV630D45N2 | ACS580-04-075A-2 | Medium-power vector control for 200V systems |
| FR-CS840-110K (110kW) | SINAMICS S120 110kW | ATV930D160N4 | ACS880-01-246A-3 | Heavy-duty, four-quadrant operation |
- Points clés de la sélection & Remarques
- Principes de correspondance de charge
Constant torque loads (convoyeurs, mélangeurs): select FR-A800 series, rated by ND current
Variable torque loads (les fans, pompes): select FR-F800 series, rated by SLD current
Frequent start/stop or heavy starting: select one size larger than motor power
- Special Environment Adaptation
Harsh industrial environments: prefer models with “60” suffixe (conformal coating: FR-A840-XXXXX-2-60)
Explosive/flammable environments: select FR-B series explosion-proof inverters
Communication Ethernet: select models with “CRN” suffixe
- Installation & Conseils d'entretien
Montage vertical, ≥100mm clearance on all sides for ventilation
For long cables, recommend output reactor to reduce dv/dt influence
Regular inspection of cooling fans and capacitors for long-term stable operation
Mitsubishi FR series inverters cover a full power range from 0.1kW to 500kW, meeting diverse needs from basic control to high-precision motion control via differentiated series positioning. For cross-brand selection, focus on core parameters including control method, capacité de surcharge, protocole de communication, and environmental resistance to ensure system compatibility and stability.
