ABB CC-U-STDR-1SVR040010R0000

Spiegazione del codice modello

Segmento modello	Descrizione
CC	Series code for analog signal converters (Conversion Controller)
U	Universal type, compatible with conversion of various standard signals
STD	Standard signal input. Supports 0-20mA/4-20mA/0-1V/1-5V/0-10V/±10V, ecc.
R	Equipped with relay output, differentiated from STD models without relay output
1SVR040010R0000	Numero d'ordine ufficiale, unique identification code
ABB	Brand logo

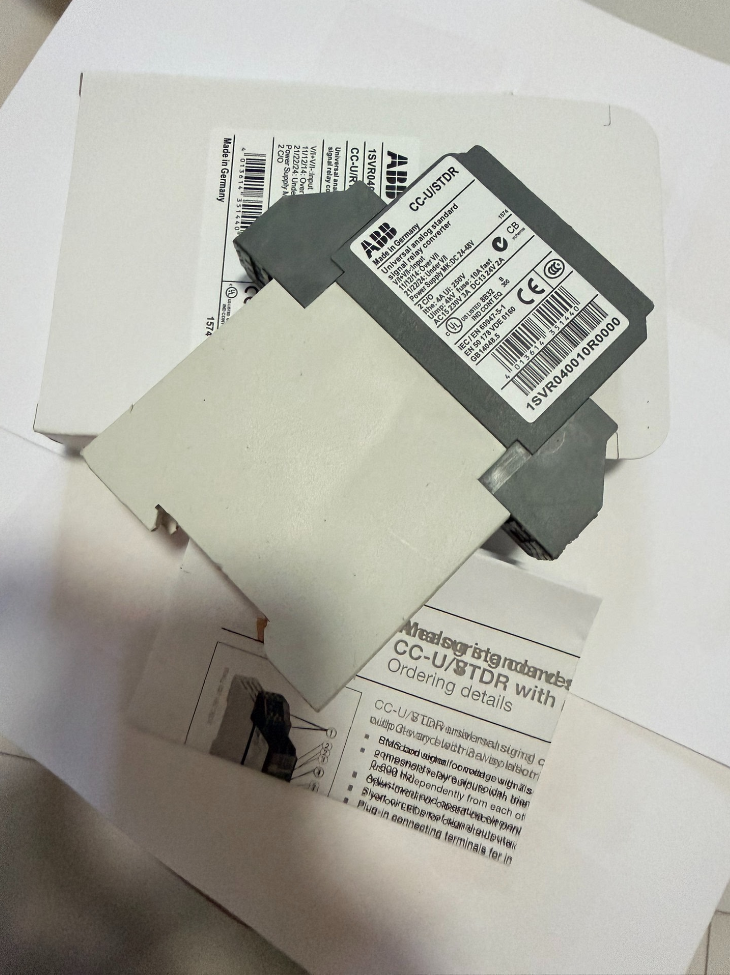

ABB CC-U-STDR-1SVR040010R0000-ABB Technical Manual The CC-U/STDR is a universal analog signal converter of ABB CC series. It features 2-channel threshold relay outputs and triple electrical isolation, designed for industrial signal conversion and control.

Principali Specifiche Tecniche

Categoria	Specifiche
Informazioni generali	• Product Type: Universal Signal Converter (with relay output)
	• Stato: Interrotto, no direct replacement model
	• Origin: Germania
	• Peso: 0.142kg
Alimentazione elettrica	• Rated Voltage: 24-48VCC / 24VCA 50/60 Hz
Alimentazione elettrica	• Consumo energetico: ≤5W
Input Signal	• 7 standard signal ranges: 0-20mA/4-20mA/0-1V/1-5V/0-10V/±10V
Input Signal	• Input Impedance: ≤250Ω for current input; ≥1MΩ for voltage input
Output Signal	• 2-channel SPDT relay contacts
	• Independently adjustable threshold and hysteresis for each channel
	• Contact Rating: CA 250 V/5 A, DC 30V/5A
Precisione & Prestazione	• Repeat Accuracy: ±0,5% FS (Full Scale)
	• Response Time: 10SM
	• Temperature Drift: ≤0.05%/°C
Isolamento elettrico	• Triple isolation: Isolation between input, output and power supply
Isolamento elettrico	• Isolation Voltage: ≥2.5kV
Parametri Ambientali	• Operating Temperature: -20°C~+60°C (Temperatura di conservazione: -40°C ~ +80°C)
	• Classe di protezione: IP20 (Front panel)
	• Mounting: 35Montaggio su guida DIN da mm
Dimensioni	• L × W × H: 120mm × 22.5mm × 105mm
Dimensioni	• Mounting Depth: 120mm

Full Model List (CC-U Series)

Modello	Ordine n.	Tipo di ingresso	Tipo di uscita	Alimentazione elettrica	Osservazioni
CC-U/STD	1SVR040000R1700	Standard Signal	Analog Signal	24-48VDC/24VAC	Tipo base, no relay output
CC-U/STD	1SVR040001R0400	Standard Signal	Analog Signal	110-240VAC/100-300VDC	High voltage power supply type
CC-U/STDR	1SVR040010R0000	Standard Signal	2-channel Relay	24-48VDC/24VAC	This model with relay output
CC-U/STDR	1SVR040011R2500	Standard Signal	2-channel Relay	110-240VAC/100-300VDC	High voltage power supply type
CC-U/RTD	1SVR040002R0000	RTD Temperature Sensor	Analog Signal	24-48VDC/24VAC	RTD input type
CC-U/RTDR	1SVR040003R0000	RTD Temperature Sensor	2-channel Relay	24-48VDC/24VAC	RTD input + uscita relè
CC-U/TC	1SVR040005R0000	Thermocouple	Analog Signal	110-240VAC/100-300VDC	Thermocouple input type
CC-U/TC	1SVR040006R0000	Thermocouple	Analog Signal	24-48VDC/24VAC	Thermocouple input type
CC-U/I	1SVR040007R0000	Segnale corrente	Analog Signal	24-48VDC/24VAC	Current signal conversion type
CC-U/V	1SVR040008R0000	Segnale di tensione	Analog Signal	24-48VDC/24VAC	Voltage signal conversion type

Cross-Model & Replacement Reference

4.1 Replacement for Discontinued Products

Modello originale	Stato	Raccomandazione di sostituzione	Motivo della sostituzione
CC-U/STDR-1SVR040010R0000	Interrotto, no direct equivalent	1. Upgrade to new ABB model: TTH300 Series	• TTH300: New-generation ABB signal converter with enhanced functions
		2. Third-party replacement: Phoenix Contact MACX MCR-UI-UI-NC	• MACX MCR: Standard industrial replacement with wide compatibility
		3. Sostituzione funzionale: WAGO 750-455	• WAGO 750: Modular design with strong expandability

4.2 Compatibilità tra marchi

Modello ABB	Contatto della Fenice	WAGO	Siemens	Confronto di funzioni
CC-U/STDR	MACX MCR-UI-REL-NC	750-455	3RK1300	• Support standard signal input
				• 2-channel relay output
				• Triple electrical isolation
				• Response time ≤10ms

Ambienti applicativi & Casi di settore

5.1 Scenari applicabili

Automazione industriale: Monitoring and control of analog signals on production lines, including conversion of pressure, temperature and flow signals

Controllo del processo: Standard signal processing for chemical, pharmaceutical and food industries

Gestione energetica: Conversion of sensor signals in power systems for equipment monitoring and control

Automazione degli edifici: Signal processing for HVAC systems to ensure reliable signal management

Trattamento delle acque: Conversion of liquid level and flow signals for pump control and alarm systems

Metallurgia: Signal isolation and conversion in high-temperature environments to eliminate interference

5.2 Scenari non consigliati

Intrinsically Safe Areas: No explosion-proof certification, not suitable for Zone 0/Zone 1 hazardous locations

High-Speed Signal Processing: 10tempo di risposta ms, not applicable for microsecond-level control

Outdoor Installation: Classe di protezione IP20, additional protective measures are required for outdoor use

5.3 Casi applicativi tipici

Caso 1: Temperature Control of Chemical Reactor

Applicazione: Convert millivolt thermocouple signals to standard 4-20mA signals; set dual thresholds for high temperature alarm (85°C) and over-temperature shutdown (95°C)

Configurazione: CC-U/STDR + Type K thermocouple adapter, 24Alimentazione VCC

Vantaggi: Triple isolation eliminates ground loop interference; dual relay outputs realize hierarchical control and improve operational safety

Caso 2: Pressure Monitoring for Building HVAC System

Applicazione: Convert 0-10V signals from pressure sensors to standard 4-20mA signals; set low pressure alarm (0.5sbarra) and high pressure alarm (3sbarra)

Configurazione: CC-U/STDR, 24VAC power supply

Vantaggi: Standardized signals facilitate centralized PLC monitoring; relay outputs directly control fan start/stop and reduce system costs

Suggerimenti per la selezione & Quick Reference Rules

Selection Rhythm

The CC series includes U (Universale) and E (Economia);

STD for standard signals, R for relay output, check power supply carefully;

24/48V for low voltage, 110/240V for high voltage;

Triple isolation against interference, 10-millisecond response;

Questa serie è interrotta, plan upgrade in advance.

Quick Reference Rules

Identificazione del modello: CC-U/STDR = Universal type + Standard signal + Uscita relè
Order Number Distinction: 1SVR040010R0000 = 24-48V power supply; 1SVR040011R2500 = 110-240V power supply
Vantaggi fondamentali: Triple isolation, independently adjustable dual relays, 7 selectable input signals
Status Reminder: All legacy CC-U series products are discontinued. Select ABB TTH300 series or third-party alternatives for new projects.
Risoluzione dei problemi & Manutenzione

Fenomeno di guasto	Possibili cause	Soluzioni
Nessun segnale in uscita	1. Power supply disconnected or abnormal voltage	1. Check 24-48VDC/24VAC power supply
	2. Incorrect DIP switch settings	2. Reconfigure DIP switches (input type, output mode)
	3. Input signal out of range	3. Measure input signal and ensure it is within 0-20mA/0-10V range
Relay Fails to Actuate	1. Threshold set too high/low	1. Readjust threshold potentiometer
	2. Excessively large hysteresis value	2. Reduce hysteresis value
	3. Damaged relay contacts	3. Misurare la resistenza di contatto; replace unit if contacts are damaged
Fluctuating Output Signal	1. Interference on input signal	1. Check shield wiring and add filter
	2. Excessive power supply ripple	2. Connect a 100渭F capacitor in parallel to power terminals
	3. Poor contact of potentiometer	3. Clean or replace the potentiometer
Loss of Isolation	1. Wrong wiring across isolation zones	1. Rewire strictly to separate input, output and power circuits
Loss of Isolation	2. Equipment aging	2. Replace with new device (select replacement model due to discontinuation)
