- Basic Information

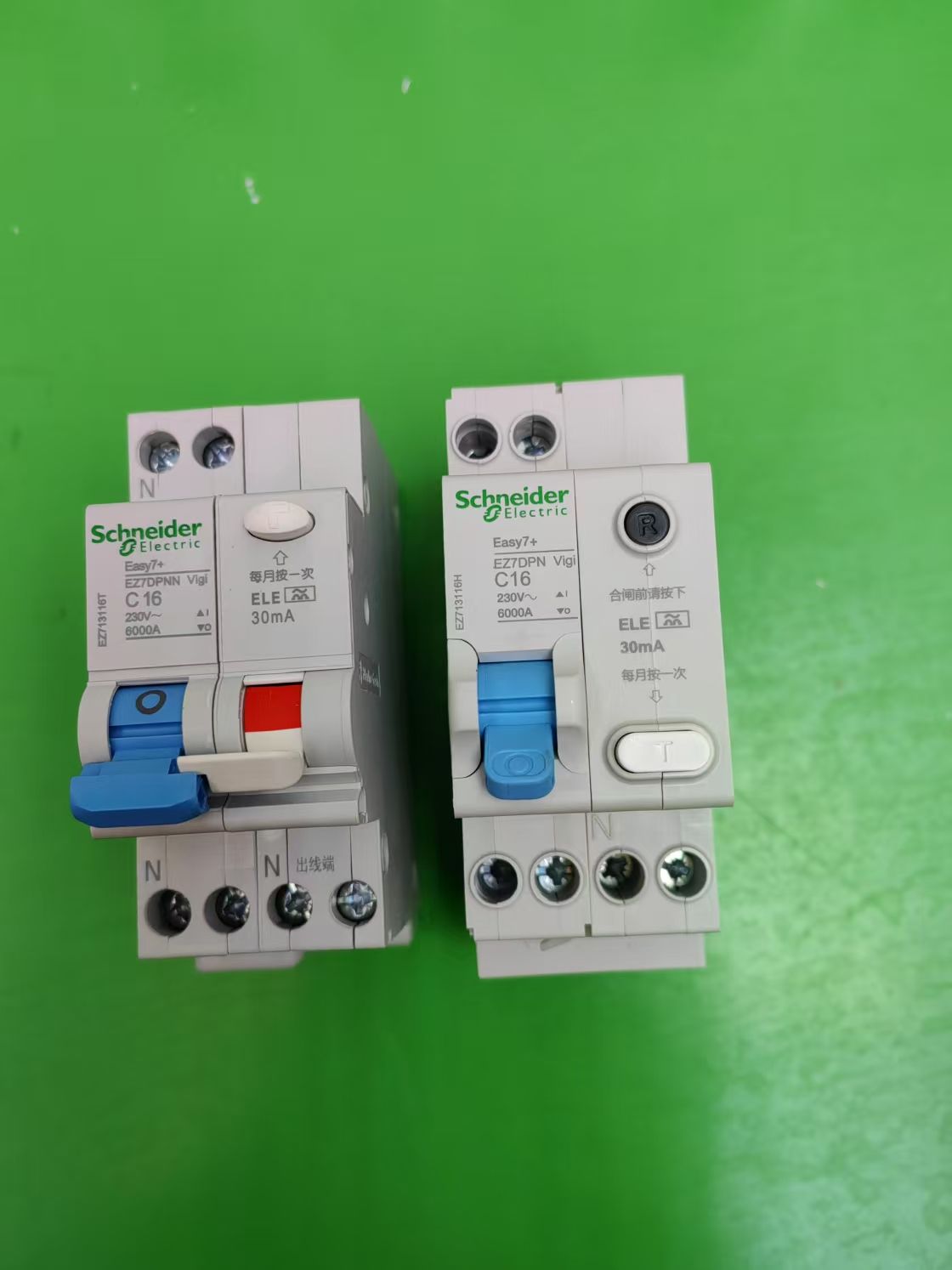

Full Product Name: Schneider Electric EZ7 DPN “Phase Wire + Neutral Wire” Miniature Circuit Breaker, Rated Current 16A, Type C Tripping Characteristic
Model Interpretation:
– EZ7: Easy 7 Series (project-type)
– DPN: 1P+N (Phase Wire + Neutral Wire) structure
– C: Tripping characteristic (Type C is suitable for power distribution protection)
– 16: Rated current of 16 Amperes
- Core Parameters
| Parameter Item | Valore | Description |
| Numero di poli | 1P+N | Controls both phase wire and neutral wire simultaneously |
| Corrente nominale | 16UN | Maximum current for normal operation |
| Caratteristica di intervento | Tipo C | Power distribution protection type, suitable for general loads |
| Tensione nominale | 230VCA | Applicable to single-phase 220V systems |
| Capacità di interruzione | 4.5IL | Maximum short-circuit current breaking capacity |
| Width | 18mm | Standard modular design |
| Applicable Wire | ≤16mm² | Maximum compatible with 16 square millimeter wires |
III. Functions and Applications
Main Functions:
– Overload Protection: When the circuit current exceeds the rated value, the circuit breaker will trip within a certain period.
– Short-Circuit Protection: Quickly (in milliseconds) cuts off the circuit when a short circuit occurs.
– Disconnects both phase wire and neutral wire simultaneously to enhance safety.
Scenari applicativi tipici:
– Terminal circuit protection for residential distribution boxes (illuminazione, sockets, ecc.)
– Power distribution systems in commercial buildings
– Single-phase power supply protection for industrial equipment
– Various occasions requiring simultaneous control of phase wire and neutral wire
- Confronto con altri modelli
Common Specifications of EZ7DPN Series:
– EZ7DPN C6A/C10A/C16A/C20A/C25A/C32A/C40A
Differences from EZ7DPN Vigi Series:
– EZ7DPN: Only provides overload and short-circuit protection.
– EZ7DPN Vigi: Added leakage protection function (per esempio., 30mA), suitable for occasions requiring leakage protection.
- Installation and Usage Instructions
Metodo di installazione:
– Installazione su guida DIN standard da 35 mm, suitable for modular installation in distribution boxes.
Precauzioni per l'uso:
- Ensure the power supply is disconnected before installation to avoid electric shock risks.
- The circuit breaker should be installed vertically with the identification face upward.
- Connecting wires must be secured tightly to prevent overheating caused by looseness.
- Regularly check the status of the circuit breaker to ensure normal operation.
- Prezzo di riferimento
Retail Price: Approximately 30-50 RMB per unità
Bulk Purchase Price: Can be as low as 25 RMB per unità
VII. Riepilogo
The Schneider EZ7DPN C16A is a miniature circuit breaker with 1P+N structure, mainly used for overload and short-circuit protection of single-phase 230V circuits, and is suitable for multiple scenarios such as residential, commerciale, and industrial applications. Its Type C tripping characteristic is suitable for general power distribution protection, the 4.5kA breaking capacity is sufficient to handle common short-circuit faults, and the standard width of 18mm facilitates dense installation in distribution boxes. If leakage protection is required, products from the EZ7DPN Vigi series can be selected.
Nota: The correct product model should be EZ7DPN C16A (not EZ7DPNC16), and there are some non-standard writing methods in the market.
