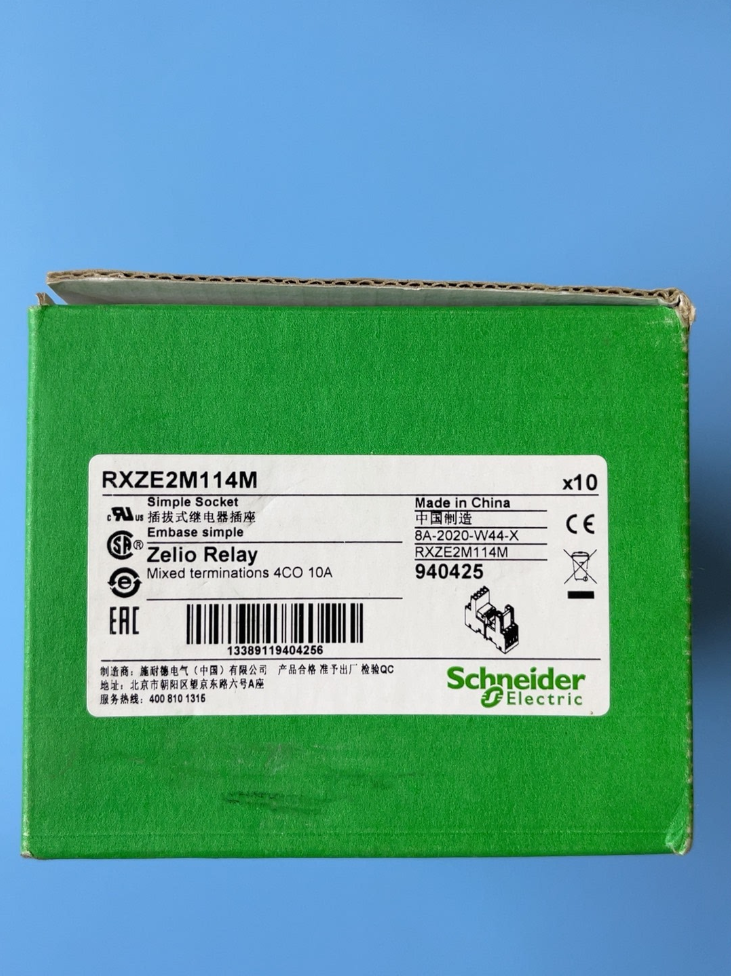

Schneider RXZE2M114M is a 14-pin mixed-type relay socket, specially designed for RXM2/RXM4 series miniature intermediate relays. It features 10A rated current, IP20 protection degree and wide operating temperature range, suitable for various industrial control applications. Its mixed terminal layout ensures flexible wiring, and dual mounting modes fit different control cabinet designs. Approved with CE, UL, CSA e altre certificazioni internazionali, it can be shipped as ordinary goods by air without special formalities.
- Definizione del codice modello
| Segmento di codice | Senso | Descrizione |
| RXZ | Serie di prodotti | Zelio Relay series relay sockets |
| E2 | Codice serie | 2nd-generation standard socket, compatible with 2-pole & 4-pole RXM relays |
| M | Terminal Arrangement | Mixed layout, coil and contact terminals arranged alternately |
| 114 | Configurazione dei contatti | 14 pins, fits relays with 4 change-over contacts (4CO/4PDT) O 2 change-over contacts (2CO/2PDT) |
| M | Regional Standard | Compliant with RIS standard; differs from RXZE2M114 (SCR standard) in partial certification details |
Nome completo del prodotto: Schneider Harmony Zelio RXZE2M114M Mixed-type 14-pin Relay Socket, compatible with RXM2/RXM4 relays, screw terminal connection, Montaggio su guida DIN
- Specifiche tecniche principali
| Categoria | Specifiche | Osservazioni |
| Parametri di base | ||
| Tipo di prodotto | Mixed-type relay socket | Mixed layout of coil and contact terminals |
| Compatible Relays | RXM2 (2CO, 8-spillo), RXM4 (4CO, 14-spillo), REXL series | Compatible with standard Schneider Zelio relays |
| Pin Shape | Flat type | Ensures stable plug-in connection |
| Tipo di cablaggio | M3 screw terminals | Tightening torque ≤1 N·m |
| Parametri Elettrici | ||
| Tensione operativa nominale (Ue) | ≤250V AC/DC | Applicable to most industrial control circuits |
| Conventional Free-air Thermal Current (Ith) | 10UN | Continuous rated working current |
| Rigidità dielettrica | 2500V | Conforme alla norma CEI 61984 |
| Grado di protezione | IP20 | Finger-proof and dust-proof |
| Parametri meccanici | ||
| Metodo di montaggio | 35mm standard DIN rail clip-on / panel screw mounting | Dual installation options |
| Larghezza | 27mm | Dimensioni compatte, salvaspazio |
| Peso netto | 0.056kg | Lightweight design |
| Applicable Wires | Solid wire: 0.5~2,5 mm² (AWG20~14) | Covers various wiring requirements |
| Stranded wire with ferrule: 0.25~2,5 mm² (AWG22~14) | ||
| Twin solid wire: 0.5~1.5mm² (AWG20~16) | ||
| Twin stranded wire with ferrule: 0.25~1mm² (AWG22~17) | ||
| Parametri Ambientali | ||
| Temperatura operativa | -40°C~+55°C | Wide temperature range for harsh industrial environments |
| Temperatura di conservazione | -40°C~+85°C | Suitable for transportation and storage |
| Certificazioni | CE, UL, CSA, Lloyd’s | Meets major international safety standards |
| Ordering Info | ||
| Numero di parte | RXZE2M114M | Unique product model |
| Minimum Order Qty | 10 pz | Standard packing quantity |
| Modello alternativo | RXZE2M114 (SCR standard) | Same function, different certification standards |
- Difetti comuni & Maintenance Solutions
3.1 Risoluzione dei problemi
| Fenomeno di guasto | Possibili cause | Soluzioni |
| Relay cannot be inserted/removed | 1. Deformed socket pins | 1. Straighten pins gently with tweezers |
| 2. Oxidized/dirty relay pins | 2. Clean pins with anhydrous alcohol | |
| 3. Distorted socket caused by over-tight installation | 3. Adjust installation tightness and reinstall | |
| Contatto scarso / signal interruption | 1. Loose wiring terminals | 1. Retighten terminals within 1 N*m torque |
| 2. Oxidized/burned contacts | 2. Polish contacts gently with metallographic sandpaper | |
| 3. Deformed internal terminals | 3. Inspect and replace defective socket | |
| Abnormal overheating | 1. Overload operation over 10A | 1. Replace higher-capacity socket or split load |
| 2. Large contact resistance at terminals | 2. Re-crimp wires for better contact | |
| 3. Temperatura ambiente eccessivamente elevata | 3. Improve ventilation and lower temperature | |
| Reduced insulation performance | 1. Dust and oil accumulation | 1. Clean socket surface regularly |
| 2. Insulation aging under long-term high temperature | 2. Replace aged sockets timely | |
| 3. Chemical corrosion | 3. Use anti-corrosion sockets or protective covers |
3.2 Daily Maintenance Recommendations
- Ispezione regolare: Check terminal tightness every 3 mesi
- Pulizia: Remove dust with compressed air every 6 mesi, wipe surface with anhydrous alcohol if needed
- Preventive Replacement: Replace sockets every 2-3 years in high-temperature, high-humidity or corrosive environments
- Installation Rules: Avoid mechanical shock and vibration; ensure full fitting between socket and relay; keep ≥5mm gap between adjacent sockets for heat dissipation
- Suggerimento per la selezione: Prenotare 20% current margin according to resistive/inductive loads to avoid overload
- Full RXZE2 Series Model List
| Modello | Disposizione del terminale | Pin Count | Relè compatibile | Caratteristiche | Applicazione |
| RXZE2M114M | Misto | 14 | RXM2(2CO), RXM4(4CO) | RIS standard, terminali a vite | Controllo industriale generale, cablaggio flessibile |
| RXZE2M114 | Misto | 14 | RXM2(2CO), RXM4(4CO) | SCR standard, terminali a vite | Same function, different certifications |
| RXZE2S114M | Separated | 14 | RXM4(4CO) | Separated coil & contact terminals | Logic control circuit, anti-interference |
| RXZE2S111M | Separated | 11 | RXM3(3CO) | For 3-pole relays | Special control such as star-delta starting |
| RXZE2S108M | Separated | 8 | RXM2(2CO) | For 2-pole relays | Compact control circuits |
| RXZE2M108M | Misto | 8 | RXM2(2CO) | Mixed 8-pin design | Compact control boxes |
- Cross-brand Comparison
| Marca | Modello | Montaggio | Prezzo(Dollaro statunitense) | Compatibilità |
| Schneider | RXZE2M114M | DIN Rail/Panel | 6.23 | RXM2/RXM4 series |
| Omron | PYFZ-014 | Guida DIN | 5.8 | Partial fit for RXM, fits MY4 |
| Siemens | 3RH2911-1FA22 | Guida DIN | 7.5 | Limited compatibility with 3RT series |
| ABB | CR-M14S | Guida DIN | 6.9 | Partial fit for CR-M series |
| IDEC | SH4B-05B | Guida DIN | 6.1 | Good mechanical compatibility with RH4B |
| Fenice | PLC-RSC-24DC/21-21 | Guida DIN | 8.2 | Low cross-brand compatibility |
Replacement Suggestion
- Full compatibility: Adopt original Schneider RXZE2M114 / RXZE2M114M
- Cost-effective alternative: Omron PYFZ-014, IDEC SH4B-05B
- Nota: Verify terminal wiring diagrams before replacement to avoid wiring errors
- Air Shipment Compliance & Certificazioni
6.1 Shipment Regulation
Conclusione: Pure electromechanical component, no built-in lithium battery or super capacitor, non-dangerous goods
Shipping Class: Ordinary cargo, no UN38.3 test or dangerous goods packaging required
Packaging Advice: Pack individually with anti-static bag; use hard carton for anti-deformation; separate bulk goods with partition boards
6.2 Principali certificazioni
| Certificate | Standard | Stato | Applicable Area |
| CE | EN/IEC 61984 | Compliant | Unione Europea & EEA |
| UL | UL 508 | Compliant | America del Nord |
| CSA | CSA C22.2 No.14 | Compliant | Canada |
| Lloyd’s | Marine Standard | Compliant | Marino & offshore engineering |
| RoHS | 2011/65/Unione Europea | Compliant | Global environmental compliance |
6.3 Certification Inquiry Way
- Search RXZE2M114M on official Schneider website
- Check certification marks on product labels and packages
- Obtain full certification documents via Schneider technical support
- Applicazione & Guida alla selezione
7.1 Scenari applicabili
Automazione industriale: PLC output expansion, solenoid valve & contactor control
Controllo motorio: Avviamento stella-triangolo, forward/reverse rotation, protezione da sovraccarico
Edificio elettrico: Illuminazione, air conditioning and fire linkage control
Marine engineering: Marine electrical control with Lloyd’s approval
Controllo del processo: Sensor signal amplification, actuator drive control
7.2 Unrecommended Scenarios
Severe high-vibration working conditions without shockproof measures
Strong corrosive environment such as chemical plants and salt fog areas
Working current exceeding 10A rated value
High-frequency switching over 10 times per second
7.3 Passaggi di selezione
- Confirm relay model: RXM2 (2CO 8-pin) / RXM4 (4CO 14-pin)
- Choose socket type: Misto (M) / Separated (S)
- Confirm pin quantity: 8-pin /14-pin
- Select standard: RIS (M suffix) / SCR standard
- Confirm mounting method: DIN rail or panel mounting
