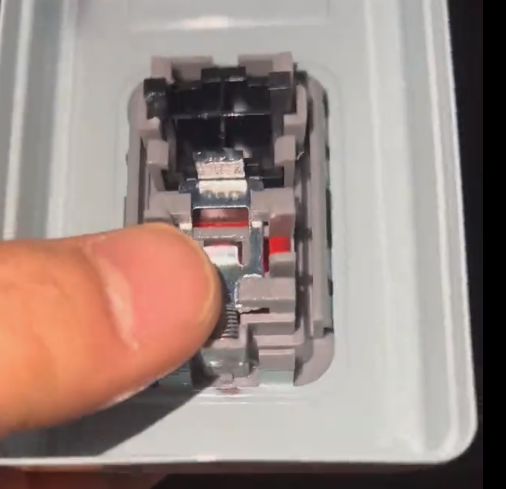

CHINT CBSN-330 Switch

The CHINT CBSN-330 Switch is a three-phase control switch suitable for industrial scenarios, mainly used for controlling the forward and reverse rotation of motors or managing the on-off of power circuits. According to search results, its core parameters are a rated current of 30A, a voltage of AC 380V, and a power of 3.7kW. It adopts a metal or plastic shell design and supports surface mounting or flush mounting. This model belongs to the CHINT CBSN series and is usually used in conjunction with contactors, リレー, 等. It is applicable to motor control scenarios that require frequent starting, stopping, or direction switching, such as mixers, conveyor belts, and other equipment.

1. Key Technical Parameters and Application Scenarios
2. 電気 仕様

定格電流: 30あ, suitable for small and medium-sized three-phase motors (例えば, equipment below 3.7kW).

電圧範囲: AC 380V (50Hz), originally designed for industrial power circuits, matching the mainstream voltage standards in China and Europe.

遮断容量: Not clearly marked, but similar products usually have a short-circuit breaking capacity of more than 6kA, which can meet the overload protection needs of general industrial environments.

2. Mechaical Characteristics

Mounting Method: Supports surface mounting (例えば, CBSN-330) or flush mounting (例えば, CBSY-330). It offers choices of iron baking paint or reinforced plastic materials to meet the protection needs of different environments.

Operation Method: Manual control, realizing the forward and reverse rotation switching of the motor through a knob or handle. Some models support a self-locking function.

3. アプリケーションシナリオ

Industrial Equipment: Widely used in three-phase motor equipment that requires frequent starting, stopping, or direction control, such as mixers, air compressors, ウォーターポンプ, 等.

Power Circuits: Used as a main circuit switch, it can be used in conjunction with contactors to achieve remote control or automated integration.

1. Precautions for Use in the U.S. 市場
2. Voltage Adaptability

– The standard voltage in the United States is 120V/60Hz, while the CBSN-330 is designed for 380V/50Hz. Direct use requires conversion via a step-down transformer (例えば, 380V→120V) or a frequency converter. If used for single-phase equipment, an additional phase conversion device is required, but this may lead to power loss and reduced stability.

2. Certification Compliance

– Search results do not clearly show that the CBSN-330 has passed UL certification. According to the U.S. 全国電気規定 (NEC), electrical equipment that has not passed UL certification may fail local building inspections. It is recommended to give priority to CHINT’s NXC series contactors for the North American market (例えば, NXC-09, supporting 220-240V/60Hz) or other alternative models that have passed UL certification.

3. Purchase and Technical Support

– CHINT’s WhatsApp in the United States: 0086-13811255435

Ⅲ. Alternative Solutions and Selection Recommendations

1. Local Alternative Models

WEG CWBS Series: 例えば, CWBS18-33-30D15 (120V/60Hz, 18あ), which has passed UL certification, supports safety auxiliary contacts, and is suitable for industrial control requiring high reliability.

Leviton MS303-DSW: A 30A three-phase manual controller compatible with 120-240V/60Hz, which has passed UL certification and is suitable for direct use in the U.S. market.

2. CHINT Adaptable Models

NXC Series Contactors: 例えば, NXC-09 (220-240V/60Hz), which can be used in conjunction with the CHINT CBSN-330. It realizes remote control or automated logic through the contactor while meeting voltage compatibility requirements.

CHNT CBSP-330: Also a 30A three-phase switch, but it adopts a reinforced plastic shell, supports surface mounting, and is suitable for indoor dry environments.

3. Reference for Step-Down Solutions

– If the CBSN-330 must be used, a three-phase step-down transformer (例えば, 380V→120V) can be configured, but the following points should be noted:

– The transformer capacity should be at least 1.5 times the motor power (例えば, a 3.7kW motor requires a 5.5kVA transformer).

– An additional overcurrent protection device (例えば, a miniature circuit breaker) needs to be installed to prevent equipment damage caused by current fluctuations during voltage conversion.

1. Installation and Maintenance Recommendations
2. 設置仕様

– Comply with electrical installation standards (例えば, IEC 60947-4-1), ensure reliable grounding (grounding resistance ≤ 4Ω), and avoid electric shock risks.

– When wiring, use cables that meet specifications (例えば, copper core cables with a cross-sectional area of ≥ 4mm²) and fasten the terminals to prevent overheating caused by poor contact.

2. Maintenance Points

Regular Inspection: Clean the dust on the shell every quarter, check the wear of the contacts, and replace the contacts in a timely manner if they are ablated.

Lubrication and Maintenance: Add industrial grease to the operating handle or knob every six months to ensure flexible operation.

3. Safety Tips

– Cut off the power supply before operation to avoid live working.

– If used in a humid or corrosive environment, it is recommended to select a model with IP55 protection level (例えば, the iron shell version of CBSY-330) and check the sealing performance regularly.

1. Purchase and After-Sales Support
2. Recommended Channels

CHINT Official Channels: Inquire about stock availability or alternative models via CHINT’s WhatsApp in the United States: 0086-13811255435.

2. Obtaining Technical Documents

– CHINT’s official website provides downloads of some product manuals, but detailed information about the CBSN-330 may need to be requested through customer service. For quick reference, you can refer to the installation guides of similar products (例えば, CJX1 series contactors).

まとめ

The CHINT CBSN-330 Switch performs stably in the field of industrial control. しかし, due to limitations in voltage standards and certification requirements, direct use in the U.S. market is not recommended. If it needs to be used in the United States, priority should be given to local models that have passed UL certification (例えば, WEG, Leviton) or CHINT’s NXC series contactors.
