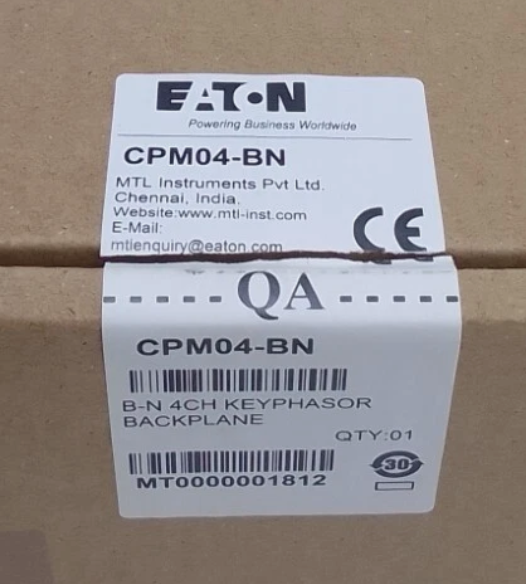

MTL CPM04-BN 4-Channel Keyphasor Measurement Backplane Module

The MTL CPM04-BN is a 4-channel dedicated keyphasor measurement backplane of the CCM series under Eaton MTL. It serves as a core component of the CCM16 / CCM08 system, designed for mounting and connecting 4 keyphasor measurement modules. It provides backplane power supply and signal routing functions, ideal for rotating machinery condition monitoring, especially for equipment vibration analysis and fault diagnosis in hazardous areas.

1. Model Segment Definition (Precise Decoding)

Full Model Definition:

MTL CCM series 4-channel dedicated keyphasor measurement backplane with Type B connector, compatible with keyphasor modules, used for signal acquisition and transmission in rotating machinery condition monitoring systems.

2. Core Specification Parameters (Official Data)

3. Accessory List (Standard & Optional Parts)

4. Application Environment (Key Adaptation Parameters)
5. Environmental Conditions

Temperature Range: Operating -20℃~+60℃; Storage -40℃~+85℃, suitable for most industrial site environments

Humidity Range: 5%~95% RH (Non-condensing), applicable to humid working conditions

Dust Resistance: IP20 protection; must be installed in enclosed control cabinet to prevent dust ingress

Vibration & Shock: 5g continuous vibration, 15g shock resistance, adaptable to industrial sites with mechanical vibration

EMC Performance: Compliant with EN 61326 standard, strong resistance to industrial electromagnetic interference

2. Installation Location

Safe Area: Installed in control cabinets within control rooms or non-hazardous areas

Hazardous Area: Installable in explosion-proof control cabinets for Zone 2 (Zone 1 requires special certification)

Mounting Method: Backplane mounted on CCM16 / CCM08 system rack with modules inserted vertically

5. Applicable & Non-Recommended Scenarios

Applicable Scenarios (Core Applications)

1. Rotating Machinery Condition Monitoring

Vibration analysis and fault diagnosis for critical equipment such as steam turbines, generators, compressors, pumps and fans

Features: Synchronous acquisition of 4-channel keyphasor signals, support for speed synchronous analysis, adaptable to hazardous area installation

2. Petrochemical Industry

Monitoring of rotating equipment in refineries and chemical plants, e.g., catalytic cracking units, hydrogenation reactors

Features: Explosion-proof certified, adapts to high temperature, high humidity and dusty environments, stable long-cycle operation

3. Power Industry

Vibration monitoring systems for steam turbines and generators in thermal power plants and nuclear power plants

Features: High reliability, anti-electromagnetic interference, supports redundant configuration, meets power industry safety requirements

4. Metallurgical Industry

Condition monitoring for rolling mills, fans, water pumps in steel and aluminum plants

Features: Wide temperature adaptability, vibration resistance, suitable for harsh industrial environments

5. Water Treatment Industry

Condition monitoring of large water pumps and blowers in sewage treatment plants

Features: Moisture-proof design, long-term continuous operation, low maintenance cost

Non-Recommended Scenarios

❌ Zone 0 / Zone 1 Hazardous Areas: Without Zone 0/1 certification; dedicated explosion-proof models required

❌ Ultra-High-Speed Rotating Equipment: For equipment exceeding 100,000 RPM, higher-performance keyphasor systems are required

❌ Non-Rotating Equipment Monitoring: Not applicable to static equipment or non-vibration monitoring applications

❌ More Than 8 Keyphasor Channels: 4-channel design cannot meet multi-axis simultaneous monitoring; select CPM08 or CPM16 series instead

6. Selection Guidelines & Alternative Solutions

Selection Rule

Three key factors for CCM backplane selection: Channel quantity, Interface type, Functional requirements

Channel quantity: 04=4 channels, 08=8 channels, 16=16 channels

Interface type: Type B=Keyphasor measurement, Type A=Analog input, Type D=Digital I/O

Functional requirements: Type N=Keyphasor dedicated, Type U=Universal type, Type R=Redundant type

Quick Alternative Solutions

1. Channel Expansion: CPM08-BN (8-channel keyphasor backplane for multi-axis monitoring)
2. Function Upgrade: CPM04-BNR (4-channel redundant keyphasor backplane for higher system reliability)
3. Universal Replacement: CPM04-UN (4-channel universal backplane supporting multiple signal types)

The MTL CPM04-BN is a 4-channel keyphasor measurement backplane specially designed for rotating machinery condition monitoring. With Type B-N dedicated keyphasor configuration, wide temperature adaptability, explosion-proof certification and high reliability, it is an ideal solution for vibration monitoring of critical equipment in petrochemical, power, metallurgical and other industries. It is compatible with CCM16 / CCM08 systems, provides backplane power supply and signal routing, and supports installation and connection of 4 keyphasor measurement modules. Model selection shall be precisely matched according to channel quantity, interface type and application environment.

Cross-Brand Replacement List, Air Freight Compliance & CE Certification Details

7. Cross-Brand Replacement Model Comparison (Precise Matching)

Replacement Description

1. Pepperl+Fuchs FB9262BP-4B: Best alternative, specially designed for keyphasor measurement; Type B interface fully compatible with MTL, supports direct plug-and-play of CCM series modules; redundant power supply improves system reliability.
2. Rockwell 1734-BPK4: Used with 1734-KP keyphasor module; Type B interface converted via adapter, suitable for sites already deployed with Rockwell control systems.
3. Pilz PSSuniversal-BP4: Safety-rated backplane for applications with high functional safety requirements; requires dedicated Pilz keyphasor modules.
4. Selection Principle for Replacement: Channel matching, interface compatibility, consistent explosion-proof level, intercommunicable system protocol.
5. Air Freight Compliance (Li-Battery Judgment + UN Number)
6. Lithium Battery Judgment (Core Conclusion)

✅ MTL CPM04-BN contains no built-in lithium battery or supercapacitor. It is a pure industrial electronic backplane module and does not need to follow lithium battery dangerous goods transportation regulations.

2. Air Freight Classification & UN Number

3. Air Freight Operation Guidelines
4. Packaging: Use anti-static foam + carton, marked with FRAGILE and ELECTRONICS.
5. Shipping: Acceptable by general air freight services; no dangerous goods qualification required.
6. Customs Clearance: Provide technical datasheet to confirm no lithium battery inside, avoiding customs inspection delay.
7. Note: Do not ship with sharp objects to prevent damage to backplane connectors.
8. CE Certification Details (Authoritative Basis)
9. Core Certification Directives & Standards

2. Certificate Information

3. Compliance Marking & Documents

CE Mark: Located at bottom right of product front panel, complying with EU standard size requirements.

Technical Documents: Including datasheet, test report and declaration of conformity, available for download on Eaton official website.

User Manual: Clearly specifies CE certified application scope and safety precautions.

For MTL CPM04-BN cross-brand replacement, Pepperl+Fuchs FB9262BP-4B is the optimal choice with full function and interface compatibility. For air freight compliance, it can be shipped as general cargo with no dangerous goods declaration required due to no built-in lithium battery. CE certification fully covers Low Voltage, EMC, ATEX and other core directives, complying with EU and international standards. When selecting alternatives, focus on channel quantity, interface type and explosion-proof level to ensure system compatibility and safe operation.
