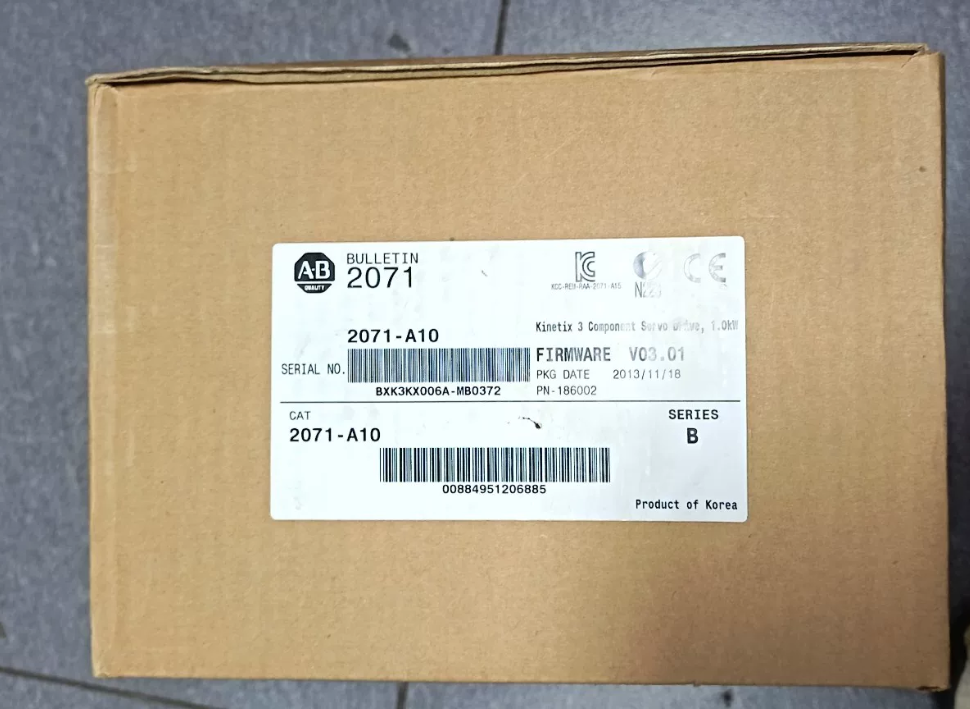

2071-A10 BXK3KX006A-MB0372

Application Scenarios of Complete Servo System: BXK3KX006A (0.6kW Motor) + MB0372 Cable + 2071-A10 (Kinetix 3)

This system is positioned as a 230V low-voltage, single-axis, low-power economical servo, focusing on index positioning, simple synchronization, and short-stroke precision positioning. It is suitable for single-axis control of small standalone machines ≤1.5kW. It supports EtherNet/IP communication to connect with Rockwell PLCs including Micro800, MicroLogix and ControlLogix. It only fits simple equipment with 1–3 axes, and is not applicable for complex multi-axis interpolation or continuous heavy-load operating conditions.

1. Food Packaging Industry (Most Popular Application)

Single-Axis Positioning for Individual Machine Stations

1. Vertical / Horizontal Labelling Machines: Roll label unwinding axis, label indexing positioning axis for precise synchronous label feeding
2. Vertical Packaging Machines: Fine-tuning axis for horizontal/vertical sealing, feeding axis for bag-length cutting
3. Flow Wrappers: Indexing conveying for small-sized materials, follow positioning for cutting blades
4. Filling Equipment: Lifting / indexing rotary tables for small-volume quantitative filling, positioning axis for cap screwing
5. Sealing machines, material separators, carton folding & forming positioning

Operating Condition Matching Highlights

The low-inertia BXK motor delivers fast start-stop response; 64 built-in index positions support rapid switching between multiple product specifications. The compact 2071-A10 drive enables space-saving control cabinet layout. The IP65-rated motor withstands light dust in workshop environments.

1. 3C Electronics & Semiconductor Precision Assembly
2. Small Transfer Modules: Loading/unloading of tiny PCBs, translation axis for electronic component picking
3. Dispensers & Soldering Machines: Station feed single axis, jig indexing rotation
4. Terminal Crimpers, Connector Assembly Indexing Tables
5. Small Semiconductor Sorters, Simple translation positioning for wafers
6. Rotary indexing jigs for inspection of mobile phone / camera components

Matching Advantages

Micron-level repeat positioning accuracy with minimal jitter. EtherNet/IP bus enables fast connection to vision inspection signals, with low hardware cost for single-axis point positioning control.

III. Light Industry Non-Standard Automation Equipment

1. Small indexing rotary worktables (cyclic switching of multi-station tooling fixtures)
2. X/Y single-axis feed for small engraving machines and nameplate marking machines
3. Material sorting, precise stop & blocking positioning axes for compact belt conveyors
4. Wire Processing: Wire cutting, stripping, terminal feeding & conveying
5. Auxiliary small injection molding machines: Strip feeding axis, simple in-mold pick-and-place axis
6. Printing & Paper Product Equipment
7. Feed axis for small label printing and adhesive label die-cutting
8. Indexing control for bill / cardboard slitting, compact folding machines
9. Conveying positioning for inkjet coding integration, fine-tuning axis for paper web deviation correction
10. Medical Devices & Laboratory Automation
11. Indexing rotation for biochemistry analyzers and sample test tube turntables
12. Small medical microtomes, specimen translation positioning
13. Automatic laboratory dispensing, micro-reagent conveying & feeding

Characteristics

Smooth, low-noise operation without severe impact loads. The low power rating fully meets light-duty demands of such equipment.

1. Small Auxiliary Equipment for New Energy Industry
2. Simple sorting & translation axes for miniature photovoltaic cells
3. Index feed axes for small lithium battery pole piece slitting
4. Rotary inspection jigs for compact energy storage cells

VII. Auxiliary Axes for Light Rubber, Plastic & Hardware Machining

1. Feeding for small punch presses, intermittent conveying of thin metal sheets
2. Index pick-up and edge trimming positioning after forming of tiny plastic parts

Unsuitable Application Scenarios (Selection Pitfalls to Avoid)

1. Complex multi-axis interpolation, continuous high-speed synchronization, high-speed electronic cam linkage (Kinetix 5500 / 6500 series required)
2. Heavy loads, sustained high-torque operation, large-inertia rotary tables (insufficient torque from the 0.6kW BXK motor)
3. 480V high-voltage equipment, main drive axes for multi-axis linked production lines
4. Wet, high-corrosion washdown environments (no stainless steel waterproof motor variant available)
5. 6-axis robotic manipulators, large gantry systems, feed axes for heavy-duty machine tools

Summary of Equipment Operating Characteristics

1. Axis Quantity: Primarily single-axis; supports simple linkage of up to 2–3 axes
2. Control Modes: Index positioning, closed-loop velocity control, basic electronic gearing
3. Load Profile: Intermittent start-stop, light-duty, short-stroke reciprocation, indexing rotation
4. Control System: Natively compatible with full lineup of Rockwell PLCs; intuitive configuration via FactoryTalk software
5. Equipment Scale: Medium & small standalone machines, not for main drive of large integrated production lines

Core Advantages of Complete Servo System BXK3KX006A-MB0372-2071-A10

This complete system consists of a BXK 0.6kW low-inertia servo motor, integrated MB composite cable, and economical 2071-A10 Kinetix 3 drive. It is engineered for small standalone machines, low-power index positioning, native Rockwell matching, low cost and easy commissioning, with six major categories of advantages detailed below:

1. Cost & Machine Compatibility Advantages (Core Highlight of Economical Positioning)
2. Perfectly matched low-power working conditions with no performance redundancy and superior cost performance

Rated at 0.6kW, the system fits light intermittent loads ranging from 0–1.5kW. Compared with high-end Kinetix 5500 / 6500 servos, hardware procurement and cabinet wiring costs are reduced by over 30%, ideal for standalone automation projects with limited budgets.

2. Original Rockwell matched complete set, no third-party compatibility risks

BXK motor and 2071 drive are factory-matched original components. The dedicated MB0372 integrated power + feedback cable is pre-calibrated for impedance, shielding and connector specifications at manufacture. It eliminates pulse interference, encoder fault codes and wiring compatibility failures, eliminating the need for separate cable and terminal adapter sourcing.

3. Universal single/three-phase wide voltage input to cut power supply modification costs

The drive accepts AC input from 170–264V. It runs directly from standard single-phase 220V workshop sockets or three-phase 220V power supplies, removing the requirement for extra transformers to rework power circuits on small machines.

1. Mechanical Structure, Installation & Wiring Advantages
2. Ultra-slim compact cabinet design for the drive

Narrow form factor designed for DIN rail mounting at component level, drastically cutting cabinet space occupation versus multi-axis servo modules. Perfect fit for compact electrical enclosures and tabletop miniature equipment.

2. Integrated composite cable simplifies wiring workload

MB0372 is a shielded two-in-one cable combining power and encoder signals. Only one cable connects motor to drive, halving the number of internal cabinet wires, cable trunking and connectors versus separate power + encoder cable solutions, cutting field installation man-hours by 50%. IP65 straight plug connectors deliver water and dust resistance at the motor end.

3. Compact BXK Size 3 small-flange low-inertia motor

Standard Size 3 compact flange with short body and ultra-low rotor inertia, allowing installation in confined machine spaces such as labelling heads, indexing turntables and PCB transfer modules. Standard smooth shaft enables direct mounting of timing pulleys and couplings with minimal mechanical modification.

III. Simple Commissioning & Fast Machine Commissioning (Key Benefit for Field Engineers)

1. One-click automatic motor identification + full parameter auto-tuning

Upon power-up, the drive automatically detects BXK motor model, pole count and encoder parameters, and auto-matches loop gains. No manual entry of motor nameplate data is required; even novice technicians can complete initial setup rapidly.

2. Dual adaptive notch filters built-in to suppress mechanical resonance and vibration automatically

Real-time detection of mechanical resonance during operation with on-the-fly filter parameter adjustment, eliminating vibration and abnormal noise during start/stop of screw and belt-driven small machinery. Eliminates repetitive manual PID tuning and drastically reduces on-site troubleshooting time.

3. Free UltraWare configuration software with full functionality and zero licensing fees

Official complimentary commissioning tool supporting batch multi-axis parameter configuration, built-in oscilloscope for real-time monitoring of current/velocity/position curves, and fault waveform recording for easy diagnosis of lost steps, overload and vibration issues. Complete sample programs, electrical schematics and CAD layout files are provided.

4. 64 groups of index positions stored on drive for standalone local operation

No high-speed pulse output from PLC required. 64 preset position, velocity and acceleration/deceleration profiles can be switched solely via digital I/O or Modbus communication. Indexing, cutting and fixed-length feeding tasks can run independently without a PLC, lowering hardware investment for PLC motion control functions.

1. Multi-Interface Compatibility Supporting All Rockwell PLC Platforms
2. Multi-mode command interfaces compatible with legacy and new compact controllers

Four control modes supported to cover all compact Rockwell controller models:

Pulse / Direction pulse: Compatible with legacy bus-less Micro800 and MicroLogix PLCs

Analog velocity / torque: For simple variable-speed jigs

Modbus-RTU bus: Low-cost communication for parameter reading/writing and index position switching

EtherNet/IP bus: Connects to high-end ControlLogix and CompactLogix controllers with native Studio 5000 configuration support

2. Standardized CCBB function blocks for ultra-simplified programming

Official Rockwell motion control function blocks remove the need for handwritten complex motion instructions. Point positioning, electronic gearing and velocity synchronization programs can be completed via drag-and-drop operations, delivering standardized code and simplified long-term maintenance.

1. Motor Dynamic Performance for Precision Light Industry Positioning
2. Fast start-stop response thanks to BXK low-inertia rotor

Low-inertia winding delivers short acceleration/deceleration times, ensuring stable repeat positioning without lag errors under frequent reciprocation and high-speed indexing conditions (labelling, die-cutting, rotary tables).

2. Reliable positioning accuracy with standard single-turn incremental encoder

Full closed-loop servo control completely eliminates lost-step issues common to stepper motors, achieving repeat positioning accuracy of ±0.001 mm to meet ultra-precise feeding requirements for 3C, packaging and medical equipment.

3. Low noise and low heat generation during operation

Permanent magnet synchronous vector control delivers vibration-free low-speed operation, suitable for low-noise environments including laboratories, medical facilities and clean food workshops. Minimal temperature rise under continuous light-load operation reduces heat dissipation demands.

1. Stable, Reliable & Low-Maintenance Operation
2. Comprehensive multi-layer hardware protection mechanism

Real-time monitoring of overcurrent, overvoltage, undervoltage, overload, encoder disconnection, overtemperature and ground faults. Digital fault codes displayed clearly on the drive front panel for rapid root-cause analysis of machine downtime. Fault signals can be uploaded to HMI via digital I/O for alarm notification.

2. Highly interchangeable spare parts with abundant market stock

Although the 2071 series has reached end-of-life, ample new inventory and used replacement units remain available on the market. Standardized complete system design allows cross-machine interchange of same-power BXK motors and MB cables, lowering spare parts inventory costs.

3. Industrial-grade environmental protection suitable for general workshop conditions

IP65 motor housing withstands light dust and moisture. All-metal drive casing provides robust electromagnetic interference resistance, reliable for packaging, printing and electronics workshops with interference from inverters and solenoid valves.

Summary of Differentiated Advantages vs Domestic & High-End Servos of Equivalent Power

1. Versus domestic servo drives: Native Rockwell bus integration and seamless PLC connectivity, standardized programming logic, prominent advantages for equipment export and long-term stable maintenance.
2. Versus high-end Kinetix 5100 / 5500 servos: Lower hardware cost and gentler commissioning learning curve; no redundant functionality for simple single-axis point positioning applications.
3. Versus stepper motor systems: Closed-loop control eliminates lost steps, delivering superior high-speed precision and drastically improved stability during extended continuous operation.
