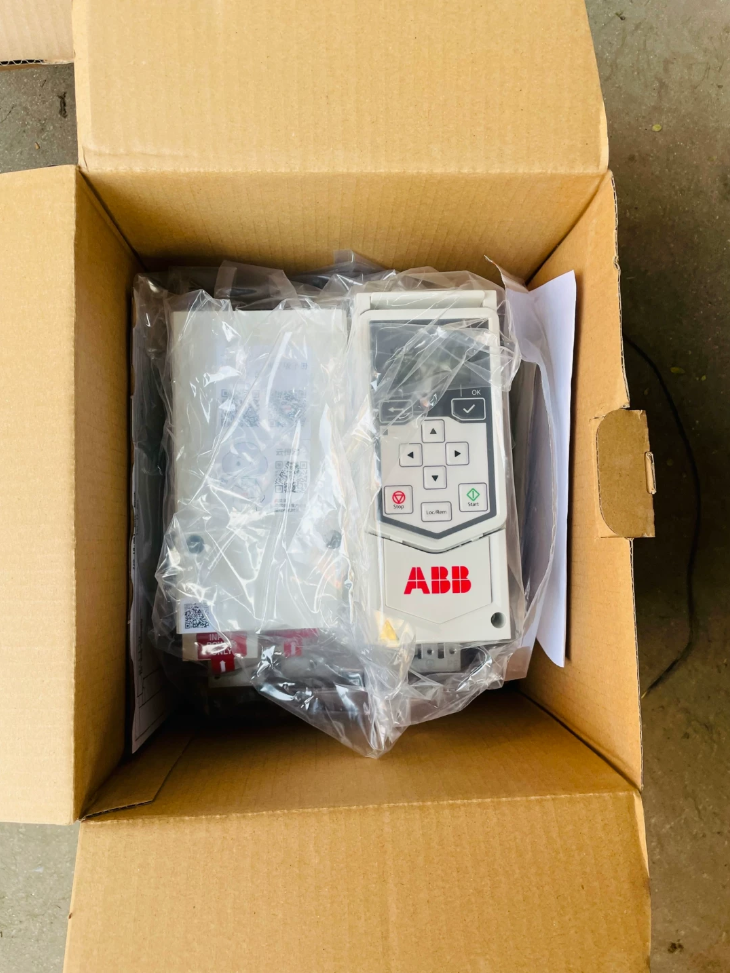

ABB ACS580-01-087A-4 Variable Frequency Drive

The ACS580-01-087A-4 is a standard wall-mounted single drive unit from ABB’s ACS580 series, rated for three-phase 380–480V AC input. This drive series features user-friendly operation, high reliability and superior energy efficiency as core advantages. Multiple standard built-in functions eliminate the need for extra optional components, enabling rapid commissioning and deployment. Widely compatible with general industrial loads such as pumps, fans, conveyors and mixers, it is the preferred solution for light industry, building HVAC, water treatment and other applications.

Breakdown of Model Code

Per ABB official naming convention, each segment of the model designation is defined as follows:

ACS580: Product series identifier, representing ABB’s general-purpose standard drive series covering power ratings from 0.75kW to 500kW

-01: Construction type, standing for wall-mounted standard single drive. Standard equipment includes IP21 enclosure rating, Assistant Control Panel, built-in Class C2 EMC filter, Safe Torque Off (STO), braking chopper and triple-protection coated circuit boards

-087A: Rated output current marking, indicating the nominal rated output current of the drive is 87A

-4: Voltage class, denoting three-phase 380V–480V AC input, compatible with 50/60Hz mains power grids

Core Technical Specifications

Electrical Ratings

Parameter	Specification	Remarks
Input Voltage Range	3-phase AC 380V ~ 480V	Tolerance: +10% / -15%
Input Frequency	50/60Hz	Tolerance: ±5%
Rated Output Current	87A	Nominal value for light-duty applications
Matched Motor Power (Light Duty)	45kW	For variable-torque loads (fans, water pumps)
Matched Motor Power (Heavy Duty)	37kW	For constant-torque loads (conveying, mixing)
Output Frequency Range	0 ~ 500Hz	Supports high-speed motor operation
Input Power Factor	≥0.98	High power factor across full power range
Overall Efficiency	≥98%	At rated operating conditions
Overload Capacity	150% rated current for 60s	One overload cycle permitted every 10 minutes
Overload Capacity	110% rated current continuously	One overload cycle permitted every 10 minutes

Control & Interface Specifications

Motor Control Modes: Scalar V/F control, sensorless vector control; compatible with induction motors, permanent magnet synchronous motors and synchronous reluctance motors

Physical Dimensions & Environmental Specifications

Frame Size: R5

Overall Dimensions (H × W × D): 896mm × 345mm × 293mm

Net Weight: Approx. 23kg

Enclosure Rating: IP21 (standard); IP55 high-protection version available as option

Mounting Type: Wall mounting, side-by-side compact installation supported

Operating Ambient Temperature: -15℃ ~ +50℃ (derating required above 40℃)

Storage & Transport Temperature: -40℃ ~ +70℃

Relative Humidity: 5% ~ 95%, non-condensing

Altitude Rating: Full power output up to 1000m; 1% power derating per additional 100m above 1000m

HS Code: 85044088

Standard Configuration & Optional Accessories

Factory Standard Equipment

ACS-AP-S Assistant Control Panel (Chinese language supported)
Built-in Class C2 EMC Filter
Integrated Braking Chopper
Safe Torque Off (STO) Function
Triple-protection Coated Printed Circuit Boards
Bottom Cable Entry Compartment
Multilingual Quick Installation & Commissioning Manual

Common Optional Accessories

Enclosure Upgrade: IP55 protective enclosure, flange mounting kit

Communication Extensions: Fieldbus adapters including Profibus DP, Profinet IO, EtherNet/IP, Modbus TCP

Electrical Options: Input reactors, output reactors, du/dt filters, sine-wave filters, braking resistors

Functional Extensions: I/O expansion modules, temperature sensor interface cards, NETA-21 remote monitoring module

Software Tools: Drive Composer professional commissioning software

Typical Application Scenarios

Water Treatment Industry: Clean water pumps, sewage pumps, aeration fans, sludge mixers

Building HVAC: Chilled water pumps, cooling water pumps, supply & exhaust fans for central air conditioning

Light Manufacturing: Belt conveyors, packaging production lines, mixing & blending equipment, air compressors

Metallurgy & Mining: Dust extraction fans, material transport belts, mine drainage pumps

Municipal Engineering: Water supply pumping stations, ventilation systems for wastewater treatment plants

Common Troubleshooting Matrix

Fault Phenomenon	Root Causes	Step-by-Step Remedial Actions
Overcurrent Trip (Fault Code 0001)	Short circuit in motor/cables, sudden load surge, overly short acceleration time	1. Cut power and test insulation & wiring of motor and power cables
		2. Appropriately extend acceleration time parameter
		3. Verify consistency between motor rated parameters and drive settings
DC Overvoltage Trip (Fault Code 0002)	Excessively high mains voltage, overly short deceleration time, faulty braking circuit	1. Measure input mains voltage to confirm it falls within allowable range
		2. Extend deceleration time or enable DC braking function
		3. Check wiring and resistance value of braking resistor for matching
Undervoltage Trip (Fault Code 0003)	Single-phase power loss, blown input fuses, excessively low mains voltage	1. Inspect three-phase input power to eliminate phase loss issues
		2. Check status of input fuses / circuit breakers
		3. Confirm on-site mains voltage meets equipment requirements
Motor Overload Alarm (Fault Code 0005)	Jammed mechanical load, incorrect motor parameters, sustained overload operation	1. Cut power and rotate motor shaft manually to check mechanical smoothness
		2. Re-run motor identification auto-tune
		3. Evaluate actual load conditions and upsize drive model if necessary
Overheating Fault (Fault Code 0009)	Excessively high ambient temperature, blocked cooling air ducts, faulty cooling fan	1. Clear dust buildup on drive air intake cooling grille
		2. Verify normal operation of cooling fan
		3. Improve cabinet ventilation and lower ambient temperature

Detailed List of Standard Accessories for ABB ACS580-01-087A-4 (Frame R5 / IP21 Version)

This model is a standard wall-mounted unit of ACS580 Frame R5. Factory supply contents are split into built-in onboard functions and physical accessories supplied in carton. Below is a detailed breakdown of the official standard supply scope:

Standard Built-in Onboard Functions (Integrated, No Extra Fitting Required)

All functions below are factory pre-configured and ready for direct use without purchasing extra options:

EMC Components: Built-in Class C2 EMC filter to meet industrial site electromagnetic compatibility requirements
Braking Circuit: Integrated braking chopper allowing direct connection of braking resistors for fast deceleration
Safety Function: Safe Torque Off (STO) compliant with PL e / SIL 3 safety level
Environmental Protection: Full triple-protection coating on control and power boards, resistant to humid, dusty and corrosive gas environments
Standard Control Interfaces: 6 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output
Basic Communications: Embedded RS-485 hardware port with native Modbus RTU protocol support
Structural Design: Bottom cable entry compartment supporting standardized wiring and cable ingress protection
Physical Standard Carton Accessories (Separately Packed Inside Shipment Box)

Independent accessories available upon unpacking for installation and basic commissioning:

ACS-AP-S Assistant Control Panel (Chinese version): Equipped with LCD screen and full-function keys for parameter setup, status monitoring and fault diagnosis; pluggable onto drive front panel and supplied in separate packaging
Wall Mounting Template: 1:1 paper drilling positioning template for marking mounting hole positions on-site to reduce drilling errors
Cable Junction Box Assembly: Standard for Frame R5 IP21 units, including power cable grounding brackets, control cable shielding clamps and assembly fasteners
Mounting Fastener Kit: M6 bolts, nuts and other metal hardware for wall mounting fixation
Ground Terminals & Cable Crimp Accessories: Dedicated main circuit grounding terminals and auxiliary crimp fittings for control terminals

III. Supplied Documentation & Identification Labels

Quick Installation and Startup Guide: Multilingual edition (including Chinese) covering full procedures of wiring, power-up and basic commissioning
Safety Warning Stickers: Multilingual residual voltage warning labels to be affixed near equipment to alert maintenance personnel
Product Certificate of Conformity and Warranty Document

Note: Full hardware manuals and firmware parameter manuals are not supplied as standard; downloadable via ABB official website or available as separate printed copies upon order.
