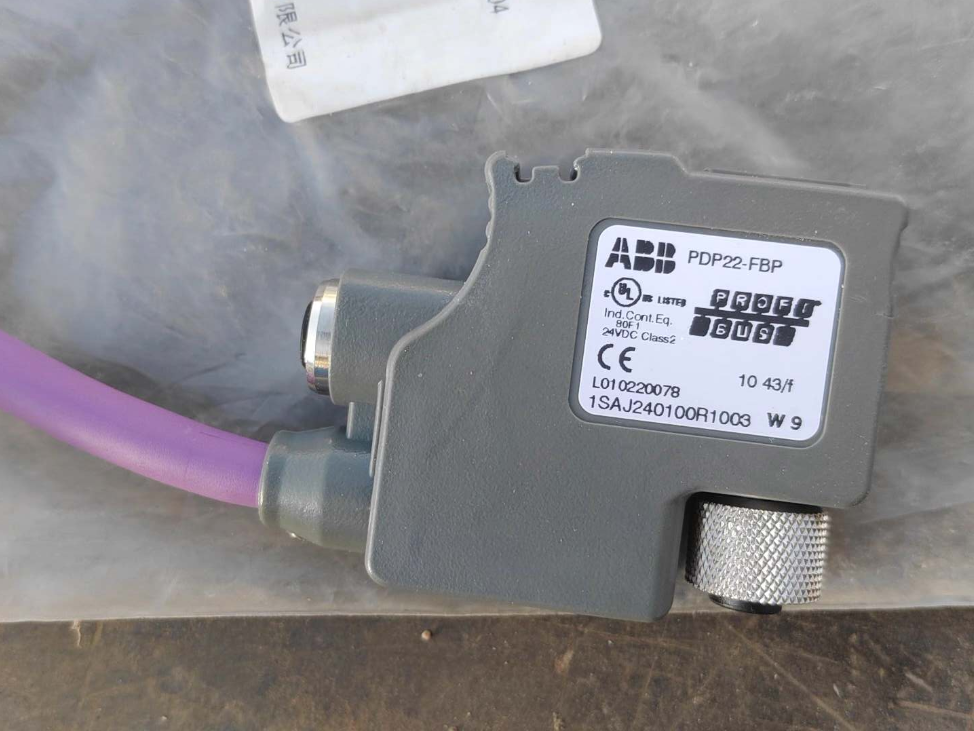

ABB PDP22-FBP Series Module

ABB PDP22‑FBP.100 | PROFIBUS DP Fieldbus Interface Module

ABB FBP series PROFIBUS DP/V1 fieldbus interface plug-in is used to connect FBP devices such as intelligent motor controllers (UMC) to PROFIBUS DP network. It supports high-speed communication up to 12 Mbps with IP65 protection grade, suitable for harsh industrial environments.

Model Code Explanation

Code Segment	Description
PDP22	Product Series: PROFIBUS DP fieldbus plug-in, applicable to FBP devices e.g. UMC intelligent motor controller
FBP	Interface Type: FieldBusPlug, fieldbus plug-in, supports PROFIBUS DP/V1 protocol
100	Specification Code: Standard version, max transmission rate 12 Mbps, 2-channel design

Main Technical Specifications

Category	Detailed Parameters
Brand	ABB (Switzerland)
Type	PROFIBUS DP/V1 Fieldbus Interface Plug-in (FieldBusPlug)
Communication Protocol	PROFIBUS DP V0/V1, compliant with IEC 61158
Transmission Rate	9.6 kbit/s ~ 12 Mbit/s (configurable via configuration software)
Communication Interface	RS-485 differential signal, A-coded M12 connector
Channel Quantity	2 channels
Power Supply	DC 24V ±10%, typical power consumption ≤0.6 W
Rated Current	1 A
Protection Grade	IP65 (for on-site installation)
Operating Temperature	-20℃ ~ +60℃
Max Cable Length	250 meters (varies by transmission rate)
Dimension	40 mm × 20 mm × 9 mm
Weight	Approx. 10 g
Certifications	CE, cUL, IEC 61131-2 industrial control standard
Order Number	1SAJ240100R1013 (Official), 6296317 (Supplier)

Full PDP22-FBP Series Model List

Model	Core Specification	Transmission Rate	Protection Grade	Main Features
PDP22-FBP.100	Standard type, 2 channels	9.6 kbit/s ~ 12 Mbps	IP65	Basic PROFIBUS DP interface, matches UMC intelligent motor controller
PDP22-FBP.025	Economic type, 1 channel	9.6 kbit/s ~ 1.5 Mbps	IP65	For low-speed application, cost-optimized design
PDP22-FBP.050	High-speed type, 2 channels	9.6 kbit/s ~ 12 Mbps	IP65	Enhanced anti-interference, suitable for complex industrial sites
PDP22-FBP.200	Multi-protocol type, 2 channels	9.6 kbit/s ~ 12 Mbps	IP65	Compatible with PROFIBUS DP & PROFIBUS FMS
PDP22-FBP.500	Redundant type, 4 channels	9.6 kbit/s ~ 12 Mbps	IP65	Dual redundant design to improve system reliability
PDQ22-FBP.100	Isolated type, 2 channels	9.6 kbit/s ~ 12 Mbps	IP65	Electrical isolation design to avoid signal interference

Equivalent & Replacement Models

Replacement Type	Model	Brand	Difference Description
Same Series Replacement	PDP22-FBP.050	ABB	Stronger anti-interference, fully compatible, slightly higher price
Same Brand Upgrade	PDP22-FBP.200	ABB	Multi-protocol support including PROFIBUS FMS, wider application
Competitor Alternative	3RK1901-1CB00	Siemens	PROFIBUS DP interface module for Siemens motor controllers, slight mounting size difference
Competitor Alternative	1786-RPA	Rockwell	PROFIBUS DP module with compatible protocol, needs configuration adjustment
Competitor Alternative	X20BM11	B&R	High-speed PROFIBUS DP module for B&R automation system

Application Scope & Industry Fields

Recommended Applications

Intelligent Motor Control: Connect UMC motor controllers to PROFIBUS DP network for motor status monitoring and remote control
Distributed I/O System: Act as communication bridge between field devices and control layer, ideal for MCC drawer-type cabinet
Process Industry: Critical equipment control in oil refineries and chemical plants; support hot-swap without offline bus nodes
Manufacturing Automation: Centralized monitoring and management of production line motors, pumps and fans
Building Automation: Control network for HVAC and lighting systems in large commercial buildings
Energy Industry: Data collection and transmission for photovoltaic and wind power station equipment

Not Recommended Scenarios

Non-PROFIBUS DP networks: Not directly applicable to PROFINET, EtherCAT and other industrial Ethernet systems
Ultra-long distance transmission: Over 250m distance requires additional signal amplifiers
Severe electromagnetic interference environment: Use PDP22-FBP.050 enhanced version without extra shielding measures
Non-FBP standard devices: Extra adapter is required for connection
Common Fault Diagnosis & Solutions

Fault Phenomenon	Possible Causes	Solutions
Communication interruption	1. Bus cable failure	1. Check M12 connection and cable continuity
	2. Unactivated terminating resistor	2. Confirm 120惟 terminating resistor setting
	3. Address conflict	3. Assign exclusive PROFIBUS address
	4. Unstable power supply	4. Ensure 24V DC power within 卤10% tolerance
Abnormal LED indicator	1. Bus power off	1. Check bus and module power supply
	2. Mismatched communication protocol	2. Set protocol to PROFIBUS DP/V1 in configuration software
	3. Module hardware failure	3. Replace module and contact ABB technical support
Data transmission error	1. Excessively high baud rate	1. Reduce transmission rate for stable communication
	2. Poor cable shielding	2. Optimize shielding layer connection and grounding
	3. Surrounding strong interference sources	3. Keep away from frequency converters and high-power equipment
Unrecognizable module	1. Improper installation	1. Reinstall firmly in place
	2. Device incompatibility	2. Confirm device complies with FBP standard
	3. Outdated firmware	3. Upgrade module firmware to latest version

Daily Maintenance Guidelines
Regular Inspection: Check M12 connector tightness and corrosion every 3 months
Cleaning Maintenance: Remove surface dust with dry compressed air, avoid chemical detergents
Power Management: Keep 24V DC power stable within ±10% fluctuation range
Hot-swap Operation: Follow official ABB operation specifications during drawer replacement to prevent module damage
Firmware Upgrade: Update firmware regularly via official ABB website for better performance and stability
Network Monitoring: Real-time monitor communication status via PROFIBUS diagnostic tools to eliminate hidden troubles in advance
Air Freight Compliance & Certification

Air Shipment Approval: No built-in lithium battery or super capacitor, classified as general industrial electronic component, available for normal air transportation

Main Certifications: CE (compliant with IEC 61158), cUL (compliant with UL 508), IEC 61131-2

HS Code: 85371090 (Network interface equipment for industrial control)
