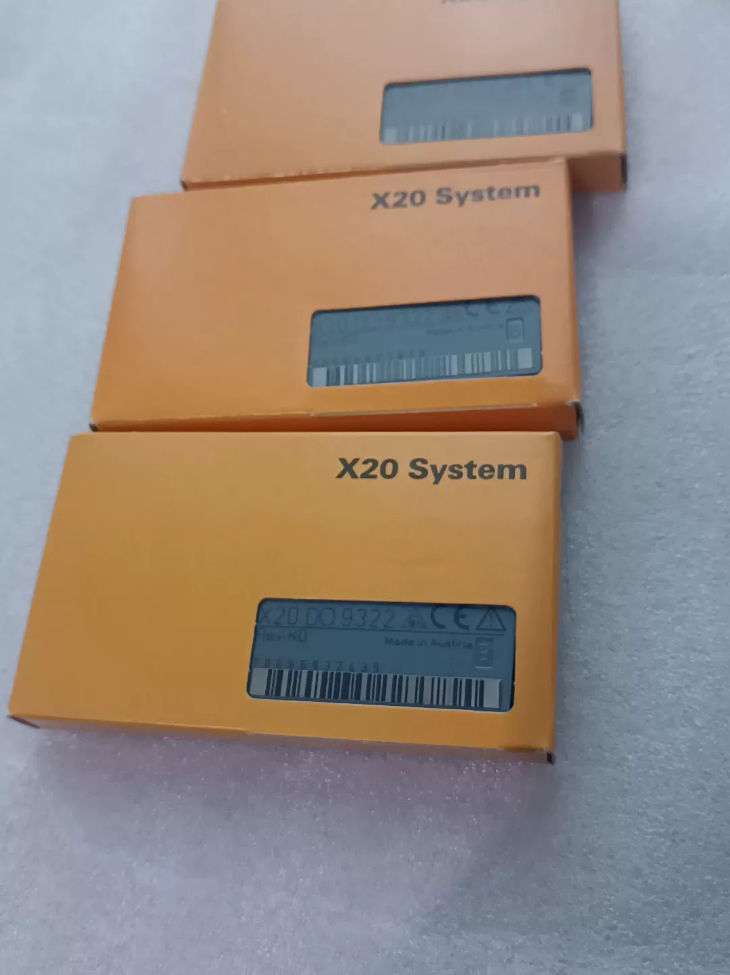

B&R X20DO9322 Digital Output Module

Model Code Breakdown

2. Core Electrical Parameters

Number of Channels: 12 digital transistor outputs

Output Type: Source output (PNP, positive switching), 1-wire wiring

Rated Voltage: 24 VDC (operating range: 20.4 ~ 28.8 VDC)

Rated Current per Channel: 0.5 A

Maximum Total Module Current: 6 A (upper limit for sum of all channels)

Switching Element: Forward-mode FET with integrated freewheeling diode (compatible with inductive loads such as solenoid valves)

Short-circuit / Overload Protection: Independent hardware current limiting and thermal shutdown per channel; software channel fault diagnosis supported

Power Consumption: 0.26 W (bus side); 1.15 W (internal I/O circuit)

B&R Hardware ID Code: 0x1B9A

3. Mandatory Matching Accessories (Ordered Separately, Not Included with Module)
4. Bus Base Unit (Choose One)

X20BM11: Standard bus module, no node address DIP switch

X20BM15: Bus module with node address DIP switch

2. Terminal Block: X20TB12 (12-pin pluggable terminal)
3. Environmental & Mechanical Specifications

Protection Class: IP20 (for cabinet mounting only)

Operating Temperature: -25 ℃ ~ +60 ℃

Storage Temperature: -40 ℃ ~ +85 ℃

Module Width: 12.5 mm

Certifications: CE, cULus, ATEX Zone2 / Class1 Div.2

5. Key Comparison: X20DO9322 VS X20DO9321 (Frequently Confused Models)

⚠️ Not directly interchangeable: Reverse wiring polarity may lead to load malfunction or component burnout!

6. Wiring Instructions (1-Wire Source Type)

Module output terminal → Positive terminal of load

Negative terminal of load → External 24 VDC 0 V

No common negative wiring back to the module (characteristic of 1-wire design)

Suitable loads: Indicator lamps, small 24 VDC solenoid valves, intermediate relay coils

7. Typical Application Scenarios

Packaging machinery, plastic injection & extrusion machinery, material handling conveyor lines, textile machinery, auxiliary switching outputs for machine tools; ideal for centralized control of large quantities of 24 VDC solenoid valves and signal lamps.

8. Selection Notes & Common Pitfalls
9. If Sink (NPN) output is required → Select X20DO9321 instead of X20DO9322
10. For humid, oily or condensation-prone environments → Order X20cDO9322 (conformal coated version)
11. If channel current exceeds 0.5 A → Upgrade to X20DO8332 (8-channel, 2 A per channel)
12. Do not drive high-power contactors directly; install intermediate relays as adapters
13. Fault Diagnosis Guidelines

Channel LED off: No output command / module power loss

Channel LED on but load inactive: Missing external 24 VDC supply or open circuit

Recurring channel fault alarms: Load short-circuit, or missing freewheeling diode for inductive loads

Applicable Industries & Operating Conditions of B&R X20DO9322 (12-channel 24 VDC PNP Source 1-Wire Digital Output Module)

Core Positioning: Mainstream I/O Module for OEM Machinery. Designed to drive a wide range of small 24 VDC loads (pneumatic solenoid valves, indicator lamps, intermediate relays). The 1-wire architecture reduces cabling costs. Independent per-channel short-circuit protection makes it well suited for machinery automation, B&R’s core market segment.

X20cDO9322 (coated variant) for humid, oily and mildly corrosive environments.

1. Priority Target Industries (Proven Mass Deployment for B&R Projects)
2. Packaging Machinery (Highest-volume Application)

Equipment: Vertical / horizontal packaging machines, flow wrappers, case packers, palletizers, case sealers, blow molding machines, heat shrink equipment

Module Functions: Control solenoid valve banks for cylinders, conveyor start/stop, alarm lamps, reject mechanisms, gripper actuation

Selection Advantage: Equipment often requires multiple valve outputs; high channel density (12 channels). PNP output matches mainstream European & American pneumatic components.

2. Plastic Injection & Extrusion Machinery

Equipment: Injection molding machines, blow molding machines, extrusion lines, pelletizing equipment, mold auxiliary mechanisms

Functions: Solenoid valves for mold core pulling/ejection, cooling valves, hopper gates, lubrication pumps, fault indicator lamps

3. Printing, Paper, Nonwoven & Textile Machinery

Printing: Offset printers, flexographic printers, die-cutters; Textile: Warp knitting machines, circular knitting machines, textile finishing equipment

Functions: Cylinders for tension control, cutting solenoid valves, fabric guiding mechanisms, pneumatic directional valve banks

4. Material Handling & Sorting Automation

Equipment: Sorting lines, roller conveyor systems, auxiliary warehouse equipment, transfer machines, cross-belt sorters

Functions: Solenoid valves for sorting diverters, switch rails, photoelectric warning lamps, stopper cylinder control

5. Food & Beverage / Pharmaceutical Equipment

Equipment: Filling lines, capping machines, cleaning systems, pharmaceutical filling machines, blister packaging equipment

Note: Standard model only for dry electrical cabinets. X20cDO9322 conformal coated variant is mandatory if workshop contains water mist or cleaning spray.

Loads: Filling valves, clamping cylinders, conveyor control, status indicator lamps

6. Machine Tools & Metalworking Equipment

Equipment: Custom CNC machines, automated fixtures, grinders, stamping automation loading/unloading systems

Functions: Clamping cylinders, coolant valves, lubrication systems, machine warning lamps, auxiliary safety interlock outputs

7. New Energy Lithium-ion Battery Front-end Equipment

Equipment: Electrode slitting machines, calendering equipment, cell assembly tooling, vacuum packaging machines

Note: Use coated variant for environments exposed to electrolyte mild corrosion

Application: Pneumatic actuators for tooling fixtures

2. Secondary Applicable Industries (Common Projects, Non-primary Application)
3. Automotive Component Automation

Tooling fixtures, test benches, auxiliary welding mechanisms; drive pneumatic clamping valves and signal lamps.

2. Water Treatment & Municipal Environmental Equipment

Control of small valves, intermediate relays for pumps, local audible & visual alarm outputs (cabinet-mounted installation).

3. Marine & Shipboard Automation

DNV marine certification available; suitable for control cabinets inside vessel compartments for auxiliary machinery signal outputs.

4. Small-scale Renewable Energy Control (Wind Turbine Auxiliary Cabinets, PV Monitoring Cabinets)

Alarm signals and small actuator switching control.

3. Non-recommended / Restricted Application Scenarios (Selection Red Lines)
4. Continuous channel load current >0.5 A → Replace with X20DO8332 (8-channel, 2 A/channel)
5. Sink (NPN) output required → Select X20DO9321; cannot directly substitute X20DO9322
6. Direct drive of high-power contactors: FORBIDDEN; intermediate relay transition required
7. Outdoor installation without enclosure: IP20 rating prohibits exposed outdoor mounting
8. Severe chemical corrosion and high salt spray with no sealed cabinet: Use with caution; evaluate alternative series or enhanced enclosure protection
9. Suitable & Unsuitable Load Summary

✅ Recommended Loads

24 VDC pneumatic solenoid valves, signal indicator lamps, small intermediate relays, solid-state relays (SSR)

❌ Not Suitable Loads

DC motors, high-power heating elements, high-current contactors

Additional Practical Design Recommendations

Machinery exported to Europe & America: Most pneumatic equipment adopts PNP positive switching circuit. X20DO9322 is the preferred option.

Many domestic system integrators use NPN control circuits. Verify electrical drawing polarity before purchasing to avoid ordering X20DO9321/X20DO9322 incorrectly.

Systems with large numbers of inductive solenoid valves: Fit freewheeling diodes across valve coils to minimize channel fault alarms.

Complete Official Technical Specifications – B&R X20DO9322

Model Reminder: X20DO9322 (Letter O, not digit 0; X20D09322 is a typo)

Derivative Variant: X20cDO9322 (Conformal Coated)

1. Basic Information

2. Core Electrical Specifications

3. Power Consumption Data
4. X20 communication bus power draw: 0.26 W
5. Static internal I/O circuit power consumption: 1.15 W
6. Additional loss for resistive loads: +0.63 W
7. Diagnostics & LED Indicators

Module run / fault LED; Independent status LED for each channel

Software diagnostic support: Channel short-circuit and overload fault reporting

Fault detection delay: 10 ms

Fault status readable via Automation Studio

5. Environmental & Mechanical Data

6. Certification List

CE, UKCA, cULus, cCSAus

ATEX II 3G Ex nA nC IIA T5 Gc (Zone 2)

HazLoc: Class I Div.2 A,B,C,D T5

DNV Marine Type Approval (for cabinet installation on vessels)

7. 1-Wire Source Wiring Principle
8. Module terminal → Load positive terminal (+24 V control)
9. Load negative terminal → External DC power supply 0 V

The module has no dedicated common 0 V terminal; different from 3-wire modules.

8. Model Comparison: X20DO9322 VS X20DO9321


   Model	Output Type	Selection Guidance
   X20DO9322	PNP Source	Preferred for European & American equipment, compatible with mainstream Festo / SMC solenoid valves
   X20DO9321	NPN Sink	For control circuits using negative switching, common in domestic OEMs

   Load Operating Limits

✅ Recommended Loads

24 VDC pneumatic solenoid valves, signal lamps, small intermediate relays, solid-state relays (SSR)

❌ Direct Drive Prohibited

High-power contactors, DC motors, heating loads; loads exceeding 0.5 A per channel

10. Critical Selection Rules
11. Humid, oily, condensation-prone environments → X20cDO9322 conformal coated version required
12. Higher channel current demand → X20DO8332 (8 channels, 2 A per channel)
13. Not suitable for high-speed pulse outputs (max. switching frequency limited to 100 Hz)
14. Interchangeable Alternative X20 DO Module Comparison Table for X20DO9322

Application: Spare part replacement, hardware revision, cost optimization and operating condition upgrade reference

⚠️ Important Reminder: Direct hardware interchange is impossible if output polarity (PNP/NPN), wiring topology or single-channel current rating differ. Wiring and program modifications will be required.

Core Replacement Guidelines

1. Zero-modification direct swap: X20cDO9322 ↔ X20DO9322

X20BM11/BM15 base units, X20TB12 terminals and Automation Studio hardware configuration are fully compatible; no drawing or wiring changes required.

2. Replacing X20DO9322 with X20DO9321

Hardware: Reverse all load positive/negative wiring

Software: Change module model in Automation Studio hardware configuration; control logic remains unchanged

3. 3-wire DO modules (DO9332 / DO8332 etc.) must NOT directly replace 1-wire X20DO9322

Different terminal assignment and power circuit architecture. Powering up mismatched hardware may cause load failure or component damage.

Supplementary Selection Advice

For new projects with large quantities of solenoid valves: Prioritize X20DO9322; 1-wire topology reduces cabling.

Frequent short-circuit faults or high individual valve current: Upgrade directly to X20DO8332.

Equipment for export to Europe & America: PNP series preferred. Confirm control circuit polarity before ordering for domestic non-standard machinery.
