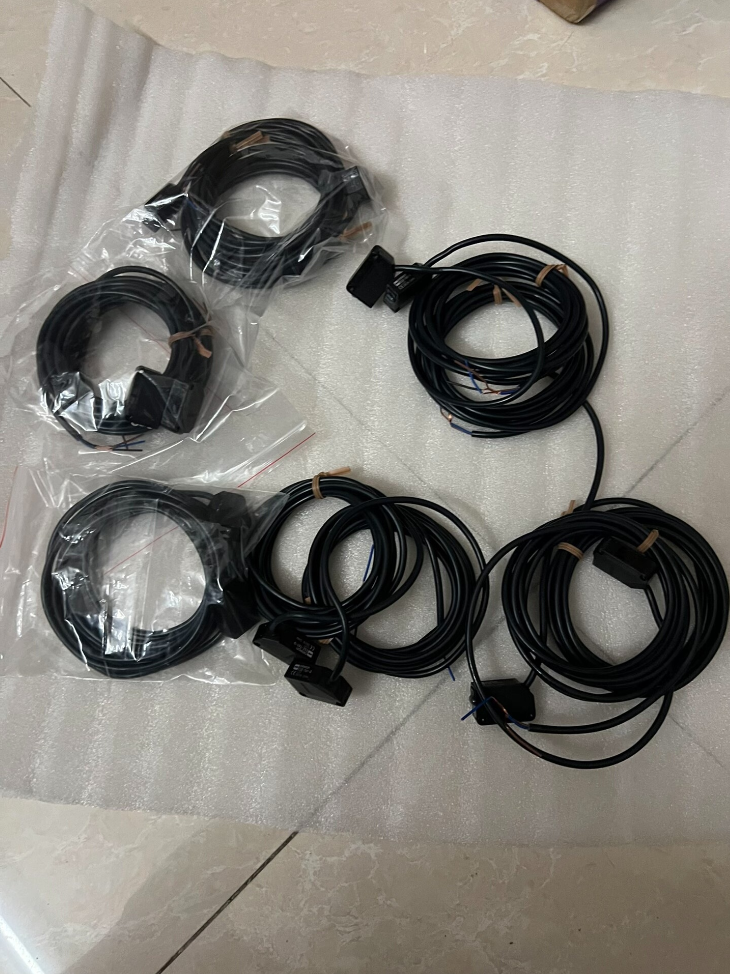

E3ZG-T61-L Omron Photoelectric Sensor

The searched model E3ZG-T61-L is most likely a typo for E3Z-T61-L (E3Z Series), which is an Omron through-beam photoelectric sensor emitter. The corresponding model in the E3ZG series is E3ZG-T61-P (high-performance through-beam type). The detailed analysis is presented below in structured modules.

1. Model Segment Definition

E3Z-T61-L (Standard Series)

E3ZG-T61-P (High-Performance Series)

2. Core Specification Parameters

Core Parameters of E3Z-T61-L (Emitter)

Core Parameters of E3ZG-T61-P (High-Performance Through-beam)

3. Accessory List

Standard Configuration of E3Z-T61-L

Sensor emitter main unit × 1

2m connection cable × 1

Mounting bracket (optional)

Instruction manual × 1

Matching Assembly: Must be used together with E3Z-T61-D receiver to form a complete through-beam sensor system.

4. Competitor Replacement / Cross-Brand Comparison

5. Selection Key Points & Replacement Solutions
6. Key Selection Parameters

Sensing Distance: Select according to actual application; E3Z-T61-L supports 15m standard distance, max. 60m.

Output Type: NPN/PNP, compatible with PLC and other controllers.

Connection Type: Standard 2m cable outlet or M8 connector type (e.g., E3Z-T61-L-M1J-1).

Environmental Conditions: IP67 protection grade for industrial use; operating temperature: -25℃ ~ +55℃.

2. Recommended Replacement Solutions

Upgrade Solution: Adopt E3ZG-T61-P (high-performance series) for smaller light spot, higher brightness and one-touch teaching, ideal for precision detection.

Long-Distance Requirement: Choose E3Z-T81 series with sensing distance up to 30m.

Economical Requirement: Choose E3Z-T61K series for higher cost performance.

3. Installation & Operation Precautions

Install emitter and receiver in precise alignment without occlusion.

Accurately adjust the optical axis to ensure stable detection.

Avoid direct strong light irradiation and electromagnetic interference.

Observe positive/negative polarity during wiring to prevent sensor damage.

E3Z-T61-L is a classic through-beam emitter of Omron E3Z Series, widely applied in logistics sorting, assembly line detection, object counting and other industrial automation scenarios. For higher performance, the new E3ZG Series is recommended.

Omron Photoelectric Sensor Model List

Overview: Omron photoelectric sensors are classified into three categories by technical structure: Built-in Amplifier Type (mainstream), Separate Amplifier Type (Fiber / Remote), and Special Function Type (Color Mark / Distance Setting / 3D TOF), covering full-range demands from general detection to high-precision positioning. Below is the hierarchical list by series, type, model and parameters for quick selection.

1. Built-in Amplifier Photoelectric Sensors (Mainstream Series)

1.1 E3Z Series (Compact General Type, Annual Sales Over 1 Million Units)

Model Coding Rule: E3Z-[Sensing Type]-[Distance/Specification]-[Output/Special Function]

Example: E3Z-T61-L → T=Through-beam, 61=15m, L=Emitter

1.2 E3ZG Series (High-Performance Upgraded Version, Released 2023)

Core Upgrade: 3× higher spot brightness, 2× better background suppression, supports one-touch teaching for fast commissioning.

1.3 E3T Series (Ultra-Compact Ultra-Thin Type, Thickness Only 3.5mm)

Advantages: Light weight (approx. 5g), suitable for high-speed moving parts detection.

1.4 E3FA / E3FB Series (M18 Cylindrical, High Protection)

Applications: Automotive manufacturing, food & beverage, packaging machinery.

1.5 E3JK / E3JM Series (Built-in Power Supply, AC/DC Universal)

Advantages: No external amplifier required, simple wiring, ideal for budget-limited projects.

2. Separate Amplifier Photoelectric Sensors (Fiber / Remote Detection)

2.1 E3X Series (Fiber Amplifier, High Performance)

Matching Fiber Units: E32-DC200, E32-TC200 and other fiber probe series.

2.2 E3V3 Series (Remote Amplifier, Long-Distance Detection)

3. Special Function Photoelectric Sensors

3.1 Color Mark Sensors (E3S-DC Series)

3.2 Distance-Setting Sensors (E3AS / E3S-CL Series)

3.3 3D TOF Sensors (E3AS-F Series)

3.4 Cylindrical Sensors (E3F3 Series)

4. Quick Selection Chart (By Application Scenario)

5. General Model Coding Rule Explanation

Omron photoelectric sensor model structure:

Omron photoelectric sensors cover full demands from general to special applications. Mainstream series include E3Z/E3ZG (compact general), E3T (ultra-compact), E3FA/E3FB (cylindrical), and E3X (fiber amplifier). Five key factors shall be prioritized for selection: sensing distance, sensing type, output mode, environmental conditions and installation space, to meet matching application requirements.
