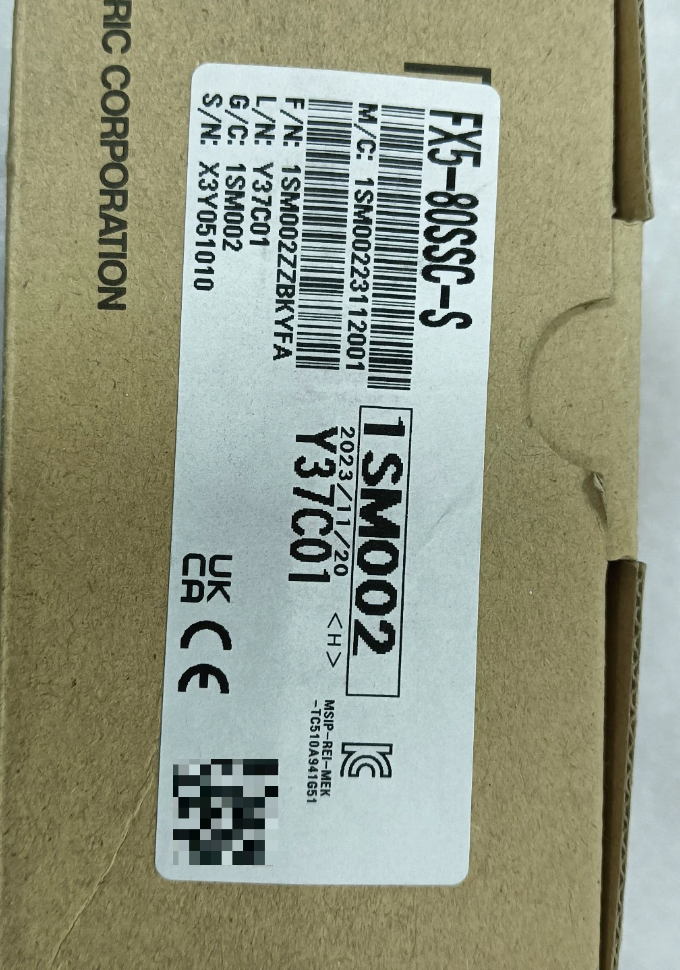

FX5-80SSC-S Mitsubishi Simple Motion Module

The FX5-80SSC-S is an 8-axis simple motion control module of Mitsubishi Electric MELSEC iQ-F series. It adopts the SSCNET III/H high-speed servo network, supporting complex multi-axis linkage, synchronous control and cam functions. Designed for high-performance upgrading of small automated equipment, it is compatible with FX5U series PLCs and widely used in packaging, food, electronic assembly and other industries.

1. Model Segment Definition

2. Core Specification Parameters

3. Accessory List

Standard Configuration of FX5-80SSC-S:

Simple motion module main unit × 1

Mounting rail buckle × 1

Terminating resistor (for SSCNET III/H network) × 1

Instruction manual (including parameter manual) × 1

Product certification × 1

Essential Matching Components:

1. FX5U series CPU module (e.g. FX5U-32MR/ES, FX5U-64MT/ES)
2. SSCNET III/H servo amplifier (e.g. MR-J4 series, MR-JE series)
3. Servo motor (matched with amplifier, with encoder)
4. Dedicated SSCNET III/H cable (STP shielded twisted pair)
5. GX Works3 programming software (including motion control library)
6. Competitor Replacement & Cross-Brand Comparison

5. Selection Guidelines & Replacement Solutions
6. Key Selection Parameters

Controlled Axes: Select 4-axis (FX5-40SSC-S) or 8-axis (FX5-80SSC-S) according to equipment requirements.

Communication Protocol: SSCNET III/H (S version) for existing Mitsubishi servo systems; CC-Link IE TSN (G version) for new network architecture.

Interpolation Requirement: SSC module is mandatory for 4-axis linear or 2-axis circular interpolation; FX5U CPU only supports built-in 2-axis linear interpolation.

Synchronous / Cam Function: Indispensable for equipment requiring complex motion trajectories such as food packaging and electronic assembly.

System Expandability: Each FX5U CPU can connect up to 4 SSC modules, max. 32 controlled axes.

2. Recommended Replacement Solutions

3. Installation & Operation Precautions

Install the module on the right side of FX5U CPU; automatically recognized by system bus without extra settings.

Install terminating resistors correctly on both module and servo amplifier side for stable SSCNET III/H communication.

Use the motion control library in GX Works3 for programming; supports graphical trajectory editing and parameter configuration.

Commissioning suggestion: test single axis first, then debug multi-axis linkage and synchronous control.

Regularly update module and servo amplifier firmware to obtain latest functions and performance optimization.

The FX5-80SSC-S is a core motion control module for Mitsubishi FX5U series PLC. With 8-axis control capability, SSCNET III/H high-speed communication and rich motion control functions, it provides a high-performance and cost-effective motion control solution for small automated equipment. Model selection shall comprehensively consider axis quantity, communication protocol and function complexity to match actual application scenarios.

Mitsubishi Simple Motion Module FX5-SSC Series Model List

Mitsubishi MELSEC iQ-F simple motion modules are divided into two categories: SSCNET III/H network version (suffix S) and CC-Link IE TSN network version (suffix G). It provides 4-axis (40) and 8-axis (80) specifications, supporting multi-axis linkage, synchronous control and cam functions. Compatible with FX5U series PLCs, it is widely used for high-performance upgrading of small automated equipment in packaging, food and electronic assembly industries.

1. General Model Segment Definition

2. Complete Model List & Core Specification Comparison

2.1 Main Model Overview

2.2 Detailed Core Parameter Comparison

3. Standard Accessory List (All FX5-SSC Series)

Simple motion module main unit × 1

DIN rail mounting buckle × 1

Network terminating resistor × 1

Instruction & parameter manual × 1

Product certificate × 1

Required Supporting Parts

1. FX5U series CPU
2. Matched servo amplifier (SSCNET III/H: MR-J4/JE; CC-Link IE TSN: MR-J5)
3. Encoder-equipped servo motor
4. Dedicated network cable (SSCNET III/H: STP; CC-Link IE TSN: CAT5e/CAT6)
5. GX Works3 with motion control library
6. Competitor Comparison Table

5. Selection Guidelines & Replacement Solutions

5.1 Key Selection Points

Choose 4-axis / 8-axis according to actual axis demand.

S version for traditional Mitsubishi servo; G version for new TSN network and future expansion.

SSC module required for 4-axis linear or 2-axis circular interpolation.

Mandatory for equipment with synchronous / cam trajectory motion.

Each FX5U CPU supports up to 4 SSC modules, maximum 32 axes.

G version has faster operation cycle (0.5ms) for high-speed precision applications.

5.2 Application & Recommendation

5.3 Installation & Usage Notes

Mount module to the right of FX5U CPU; automatically recognized by backplane bus.

Install network terminating resistors properly for stable communication.

Program with GX Works3 motion library; support graphical trajectory editing.

Debug single axis first, then multi-axis linkage and synchronous control.

Update module and servo firmware regularly for optimal performance and new functions.

Mitsubishi FX5-SSC series simple motion modules provide high-performance and cost-effective motion control solutions for small automated equipment, with flexible 4/8-axis control, high-speed network communication and comprehensive motion functions. Model selection should be based on axis quantity, communication protocol, functional requirements and budget to match actual on-site applications.
